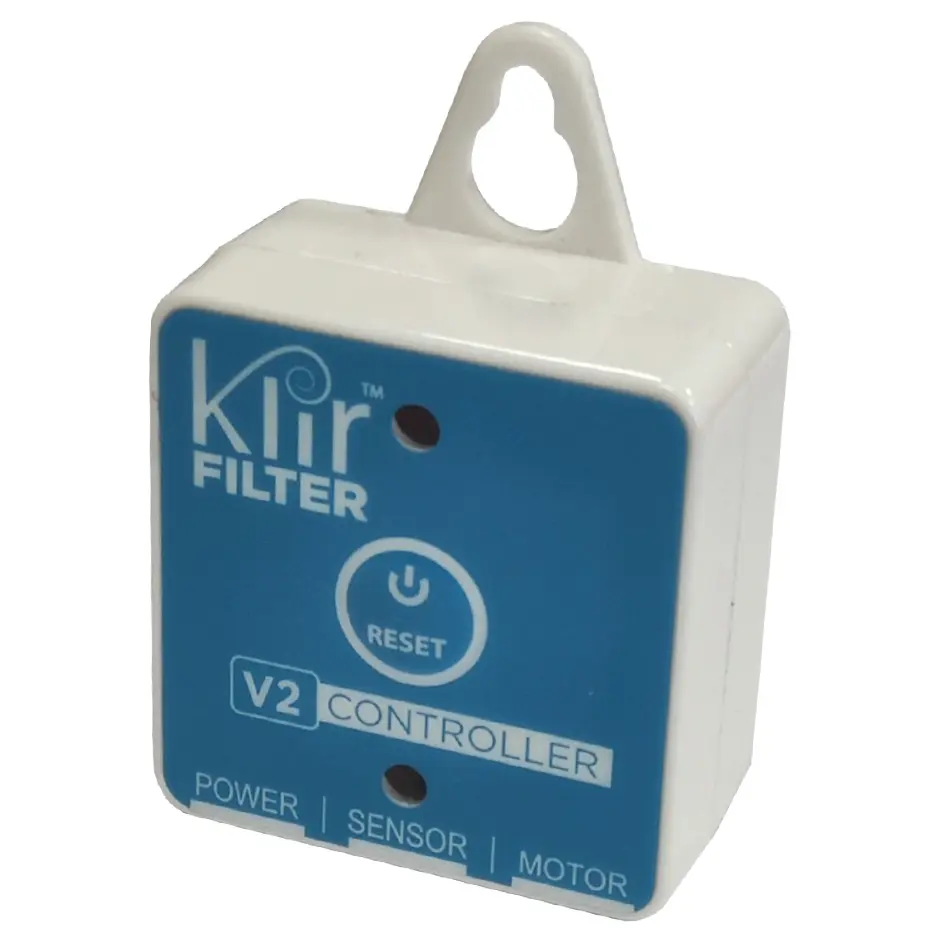

Klir V2 Controller
SKU: CV-KLIR-V2CNTL
- 100% Genuine OEM Factory Replacement: Distributed directly by CoralVue as a standalone electronic replacement to restore second-generation automated roller cycles.
- Upgraded Dynamic Sensor Terminal: Engineered specifically to sync with the advanced magnetic triple-optical sensor wire array, utilizing high-accuracy signal lines.
- Smart Hardware Timeout Protection: Programmed with an internal fail-safe cutoff timer that stops the motor if a mechanical tracking jam occurs, saving your fleece rolls.
- Low-Voltage Output Regulation: Safely monitors and distributes low-amperage 12V DC power to the geared drive motor situated over open sump water.
- Manual Advance Push-Button: Built with an external tactile button for effortless manual indexing, troubleshooting, or tensioning fresh rolls during media swaps.
Klir
Klir by CoralVue provides automatic fleece filters that replace filter socks. They automatically advance 50-micron fleece when dirty, maintaining clear water with less maintenance.
Replacement controller for the Klir Fleece Filter Di-7 V2 and Klir Fleece Filter Di-4 V2.
*Requires the Klir Fleece Filter V2 Optical Sensor to operate; it will not work with previous sensor versions.
What’s Included:
(1) Klir Replacement Automatic Fleece Filter V2 Electronic Smart Controller Module Only
Technical Specs:
Official Manufacturing Title: Klir Filter V2 Controller
SKU / Factory Part Identifier: CV-KLIR-V2-CONTRL
Operating Input Voltage System: 12V DC Low-Voltage Circuit Loop
Sensor Port Port Interface: Balanced Low-Voltage Digital Audio-Style Receiving Jack
Material Housing Composition: Water-Resistant, Non-Leaching Injection-Molded ABS Thermoplastic
Primary Outer Color Finish: Matte Midnight Blue
Chassis Platform Compatibility: Form-Fitted strictly for second-generation Klir Di-4 V2 and Klir Di-7 V2 Roller Filter arrays
Electronic Hardware Requirement: Requires the V2 Magnetic Triple Optical Sensor to operate; will not function with legacy V1 screw-mount wires
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
- Disconnect the old, malfunctioning control module's power adapter brick from your wall socket or GFCI strip to safely cut electricity to the loop.
- Trace the wires coming from the old controller box and disconnect the power barrel connector, the motor line terminal, and the plug coming from your magnetic triple sensor.
- Remove the old controller from your dry-side mounting bracket or cabinet hook and set it aside. Wipe the mounting area down with a clean, dry cloth.
- Mount your fresh CV-KLIR-V2-CONTRL V2 Controller Module securely on the cabinet wall, ensuring it is positioned well away from any potential plumbing leaks or damp areas.
- Plug the terminal cord from your magnetic V2 triple optical sensor and the power connector from your motor block firmly into their matching receiving jacks on the new controller.
- Reconnect your 12V DC power adapter to the controller box, plug the adapter back into the wall outlet, and press the manual button to verify a successful test cycle.
Pro Tips:
- Never Mount the Electronic Controller Module Inside an Open Sump Tank Rim.
CRITICAL MOISTURE SAFETY EXCLUSION: While the internal circuit tracks are shielded by an ABS outer shell, this controller unit is not submersible and is not completely waterproof. Mounting the box inside an open sump basin exposes it to continuous salt spray, high humidity, and direct splashing. This exposure can bridge circuit tracks and cause early electronic component failure. Always mount the module on the exterior cabinet wall or inside a dry equipment area using a proper drip loop.
- Confirm Your Sensor Style First to Ensure Compatibility. Before uploading this item or ordering it for a setup, check your level sensor configuration. This V2 controller (CV-KLIR-V2-CONTRL) utilizes a unique dynamic jack designed explicitly for second-generation systems using the upgraded magnetic-mount triple optical sensor. If your fleece roller uses the older legacy V1 screw-in style single-eye sensor, this V2 box will not accept the connection. For those older setups, you will need to source the Klir Filter V1 Controller (CV-KLIR-CNTL) instead.
- Use the Manual Override Button to Easily Check for Mechanical Binding Jams. If your filter stops winding forward automatically but your water lines appear normal, press the manual override button on the face of the new box. If the motor clicks briefly or the controller flashes a red error light without advancing the fleece, this indicates a physical media jam or stripped spindle teeth rather than an electronic fault. Slide the motor block up and verify that your wide fabric roll is tracking straight and free of salt creep before restarting.
