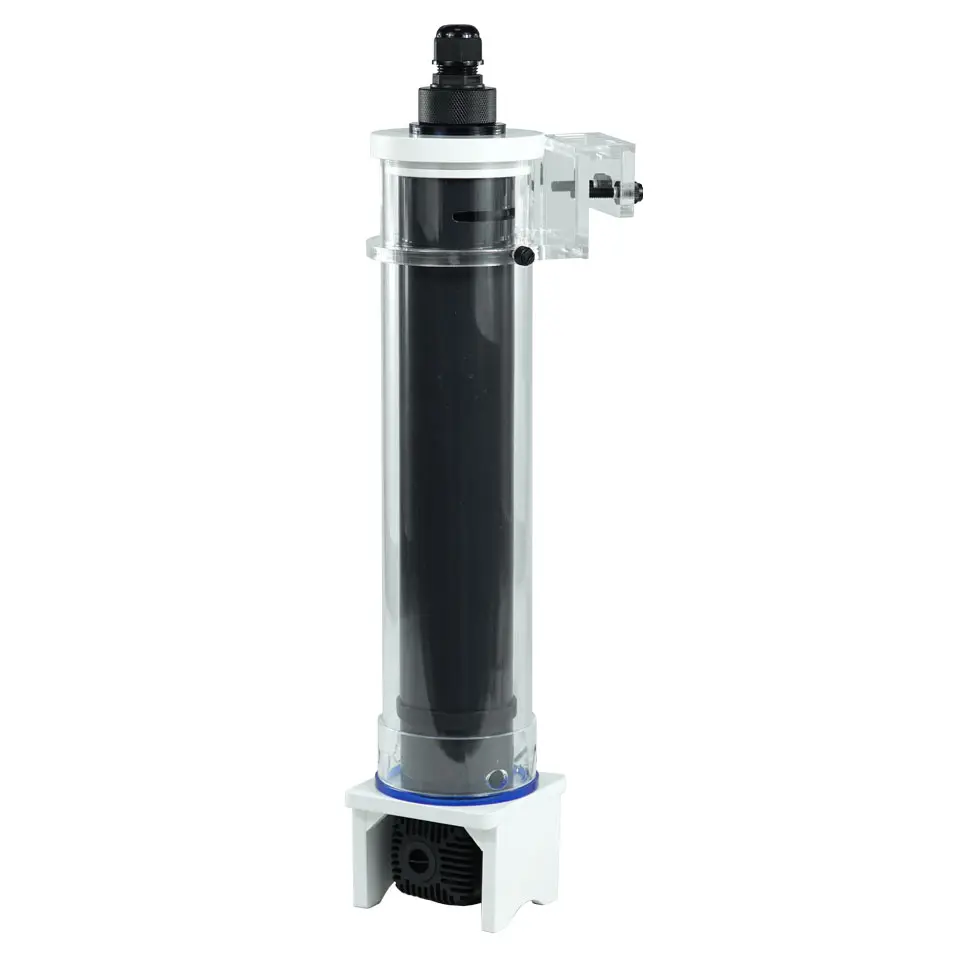

IceCap In-Sump 18w UV Sterilizer
SKU: IC-UVR18INT
MSRP: $ 245,70
-
Available Through Authorized Retailer
- Zero Hard-Plumbing Drop-In Installation: True plug-and-play assembly rests directly inside your filter sump compartment, avoiding complex external vinyl tubing loops.
- DC-700 Feed Pump Included: Ships bundled with a dedicated, low-voltage DC-700 water pump (8.5W @ 12V) engineered to push water across the radiation sleeve at an optimized flow rate.
- Premium Quartz Protection Sleeve: Protects the internal element using a pure, highly transparent quartz glass barrier that allows optimal transmission of UVC germicidal rays.
- Targeted DNA/RNA Elimination: Emits specialized light wavelengths that disrupt the reproduction cycles of suspended single-celled algae, viruses, fungi, and protozoa.
- Reef & Bio-Media Safe Layout: Selectively irradiates water flowing directly through its isolated internal vessel, leaving your beneficial bio-filter colonies completely unharmed.
- Perfect for All-In-One Aquariums: Slender, ultra-compact profile maximizes layout room inside tight filtration blocks, matching small sump footprints perfectly.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
IceCap In-Sump 18w UV Sterilizer — Internal Assembly
The IceCap In-Sump 18W UV Sterilizer (SKU: IC-UVR-18INT) is an authentic, completely integrated water purification system distributed by CoralVue to promote elite biosecurity and crystal-clear water conditions in freshwater setups up to 600 gallons and marine reef systems up to 60 gallons. Standard traditional UV sterilizers require complex external plumbing paths, requiring users to cut vinyl lines, secure hose clamps, and find space under the cabinet to hard-mount bulky plastic canisters that run a constant risk of leaking. The IceCap In-Sump series completely rewrites this framework by moving the entire vessel directly inside your existing filtration sump footprint. If a seal ever experiences a slow leak, the water falls harmlessly back into your filtration basin, offering absolute peace of mind against room floods.
This complete kit arrives with an energy-efficient IceCap DC-700 Feed Pump, matched precisely to handle the internal fluid dynamics of the 18-watt radiation chamber. As the pump forces an optimized stream of water past the high-output UVC lamp, the radiation instantly targets free-floating pathogens and single-celled algae cells. This targeted process shatters the internal cellular bonds of green hair algae spores and infectious microscopic parasites before they can settle onto your fish or rocks. Because it only acts on organisms suspended in the water moving through the unit, it will never disrupt or degrade the beneficial nitrifying bacterial colonies growing securely on your stationary bio-media, sand bed, or liverock.
Key Features:
Eradicates Green Water Outbreaks: Destroys free-floating micro-algae cells in the water column, preventing dense green water blooms and maintaining pristine visual clarity.
Suppresses Aquatic Pathogens: Drastically reduces infectious pathogen counts in the water loop, protecting your fish and corals against horizontal disease transfer.
Tool-Free Maintenance Engineering: Hand-tightened ballast cap and top sealing thumb screws allow for stress-free monthly maintenance and straightforward annual bulb replacements.
Note: This self-contained internal filtration unit contains (1) 18W UV housing, (1) DC-700 feed pump, an 18-watt high-output bulb, a quartz sleeve, and mounting bracket clips. Replacement lamps and quartz housings are sold under separate product categories.
IceCap In-Sump UV Sterilizer Specification Matrix
What’s Included:
(1) IceCap In-Sump Internal UV Sterilizer Outer Vessel Housing
(1) 18-Watt High-Output T5 UV Lamp Element
(1) High-Transmittance Pure Quartz Glass Sleeve
(1) IceCap DC-700 Low-Voltage Water Feed Pump with Power Cord
(1) Reliable Electronic UV Control Ballast with Status Light Display
Technical Specs:
Official Manufacturing Title: IceCap In-Sump 18w UV Sterilizer
SKU / Factory Part Identifier: IC-UVR-18INT
Universal Product Code (UPC): 6974415981121
Operational Voltage Framework: 120V AC / 60Hz Base Grid
Total UV Lamp Energy Power: 18 Watts
Average Element Lifespan: 10,000 Operational Hours (approx. 12 Months)
Baseline Current Draw: 800mA
UVC Output Intensity Metric: 50μW/cm2
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Instructons:
- Unbox all components. Crucial Pre-Check: Carefully slide the open-ended quartz sleeve out of its protective tube. Inspect it closely for hairline cracks or fractures caused during transit before beginning assembly.
- Install the included DC-700 feed pump by pushing its output nozzle firmly onto the molded receive barb located at the base of the external UV vessel housing.
- Align the pins on your 18-watt lamp with the female socket on the ballast cord and push them together firmly. Carefully lower the connected lamp element down into the dry center chamber of the installed quartz sleeve. Warning: Never touch the raw glass of the bulb with bare hands; skin oils can burn into the glass and cause early failure. Wipe with rubbing alcohol if touched.
- Insert the combined sleeve and bulb assembly straight into the upper cavity of the UV housing. Thread the plastic ballast collar nut clockwise by hand to lock it down. Hand-tighten only; never use wrenches or channel locks.
- Position the assembled UV sterilizer vertically inside a chosen chamber of your sump setup. Ensure the water level matches your requirements, and verify that the electrical cord plate at the top sits securely above the high water baseline.
- Connect the DC-700 pump line to its power bar outlet. Once water is flowing smoothly and you verify there are no leaks around the top plate seals, plug the electronic UV ballast into a dedicated, GFCI-protected outlet to fire up the lamp.
Pro Tips:
- Target a Slow Water Flow Turnover Rate If Fighting Active Parasites. To target and kill tough protozoan parasites (like Marine Ich or Velvet), you need a high UVC radiation exposure dosage, which requires a slower water velocity. Adjust your feed pump loop down to a target turnover rate of 0.5 to 1.5 times your total aquarium water volume per hour. If you are only seeking to eliminate green water blooms or clear out basic bacterial cloudiness, you can safely open up your flow rates to a faster turnover of 3 to 4.5 times your tank volume per hour.
- Ensure the Top Electronic Plate Always Rests Clear Above Your Sump's Water Line. While these internal sterilizers are labeled as "In-Sump" units, they are not fully submersible water pumps. The main body column handles water contact perfectly, but the upper electronic collar, cord entrance paths, and ballast nut connections must remain completely dry. Always position the bracket layout so that the top section sits at least an inch or two above the maximum high-water line of your sump compartment to protect against electrical short circuits.
- Swap Out Both Your UV Bulb and Your Quartz Sleeve Annually. Even if your 18W bulb continues to emit a visible blue glow after a year of continuous service, its germicidal UVC output wavelength degrades significantly after 10,000 hours of run-time, losing its ability to sanitize pathogens. At the same time, the outer quartz sleeve will slowly develop a microscopic mineral crust that blocks light transmission. For top-tier performance, replace both the bulb and the quartz sleeve concurrently every 12 months.
