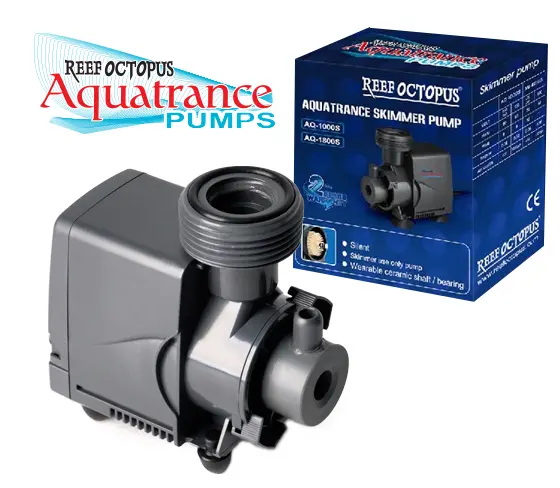

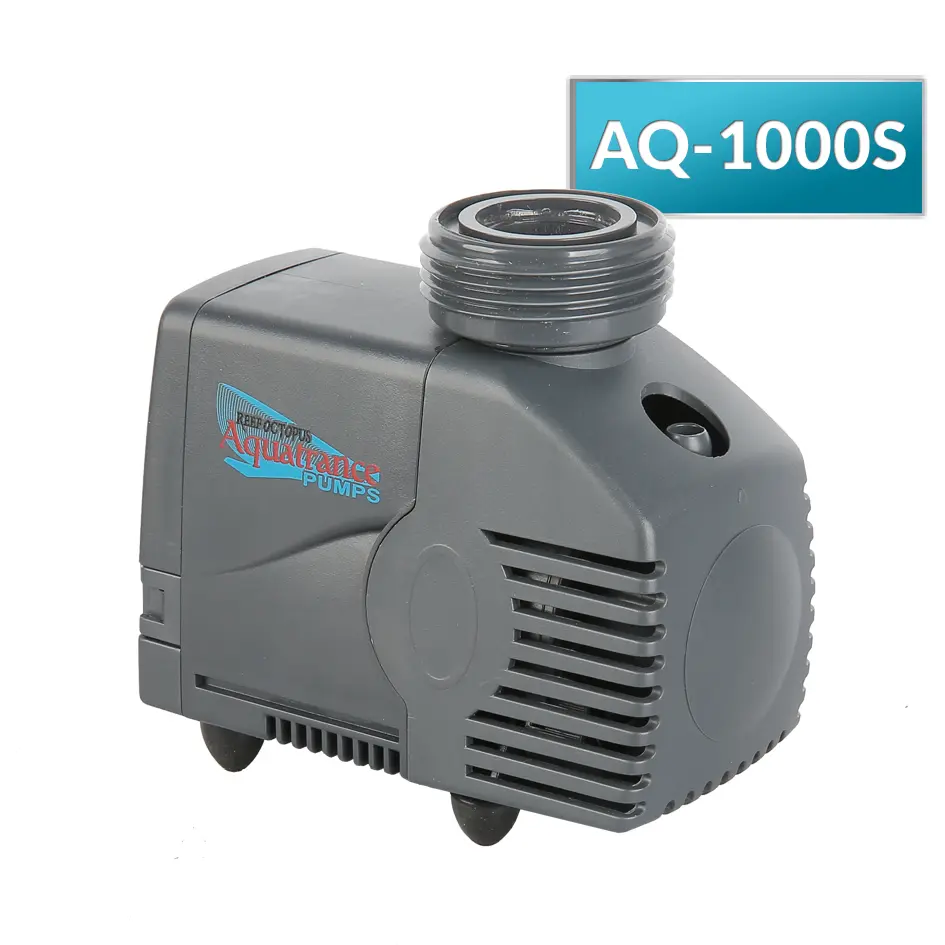

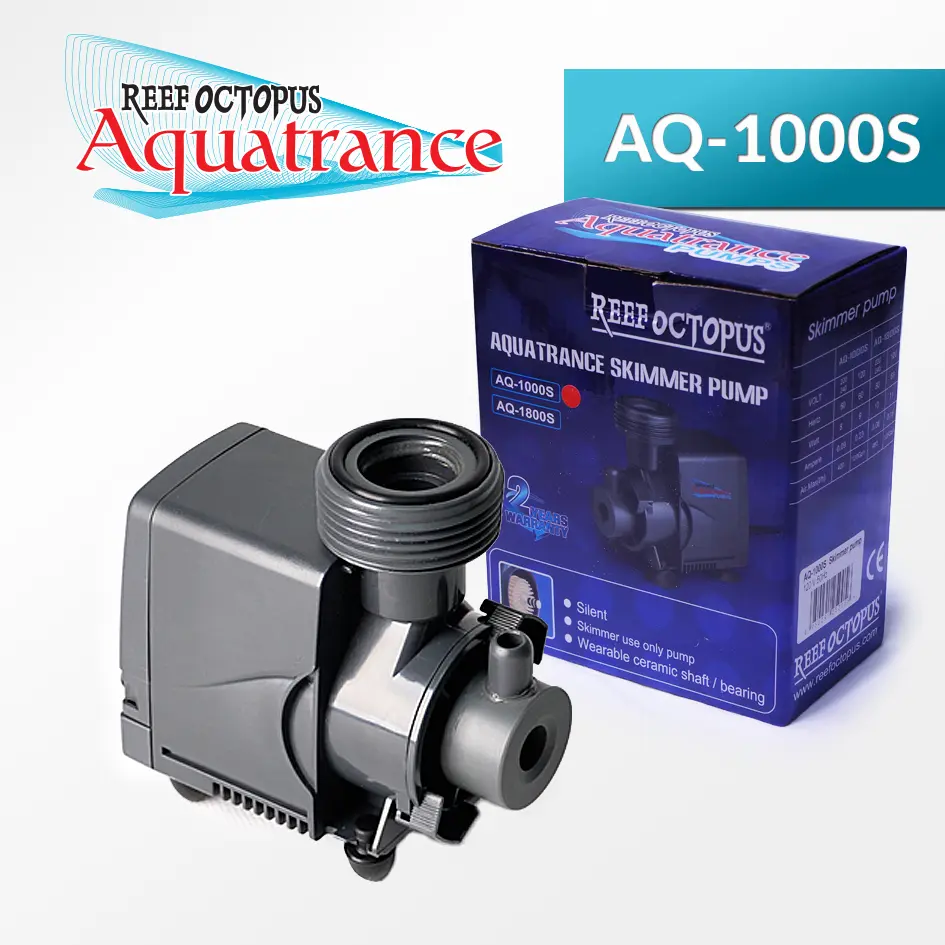

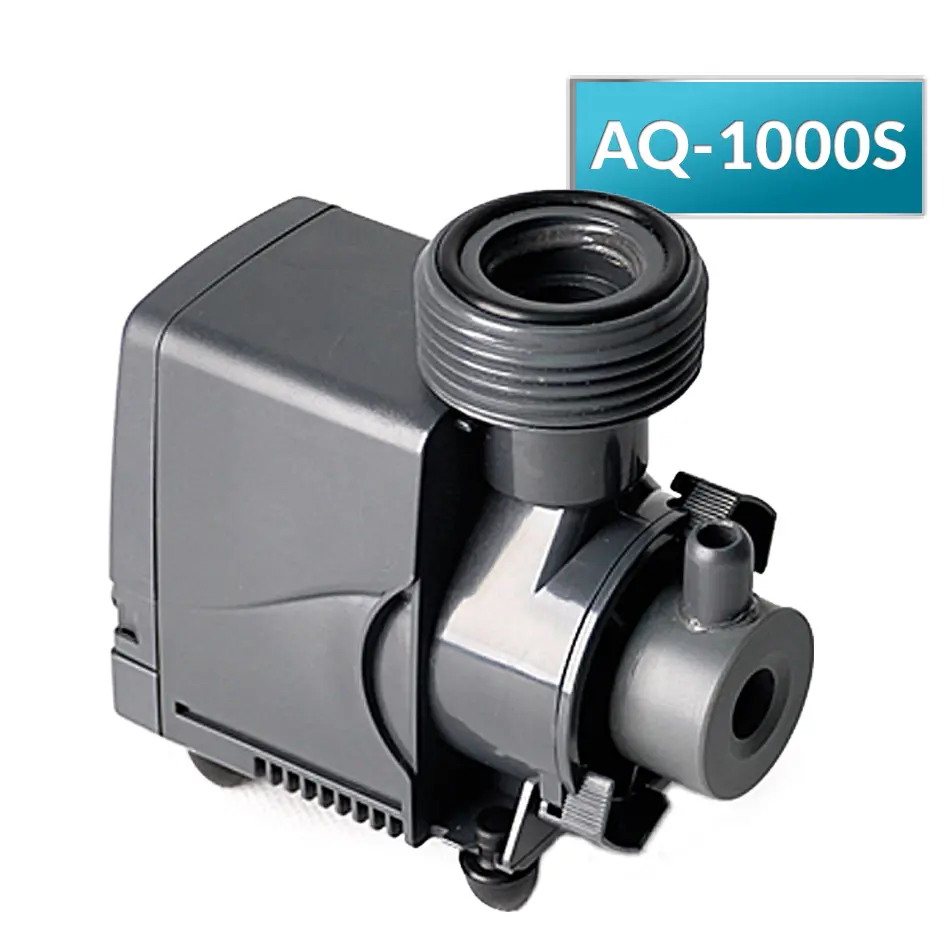

Octo Aquatrance 1000S Skimmer Pump
SKU: AQ-1000S

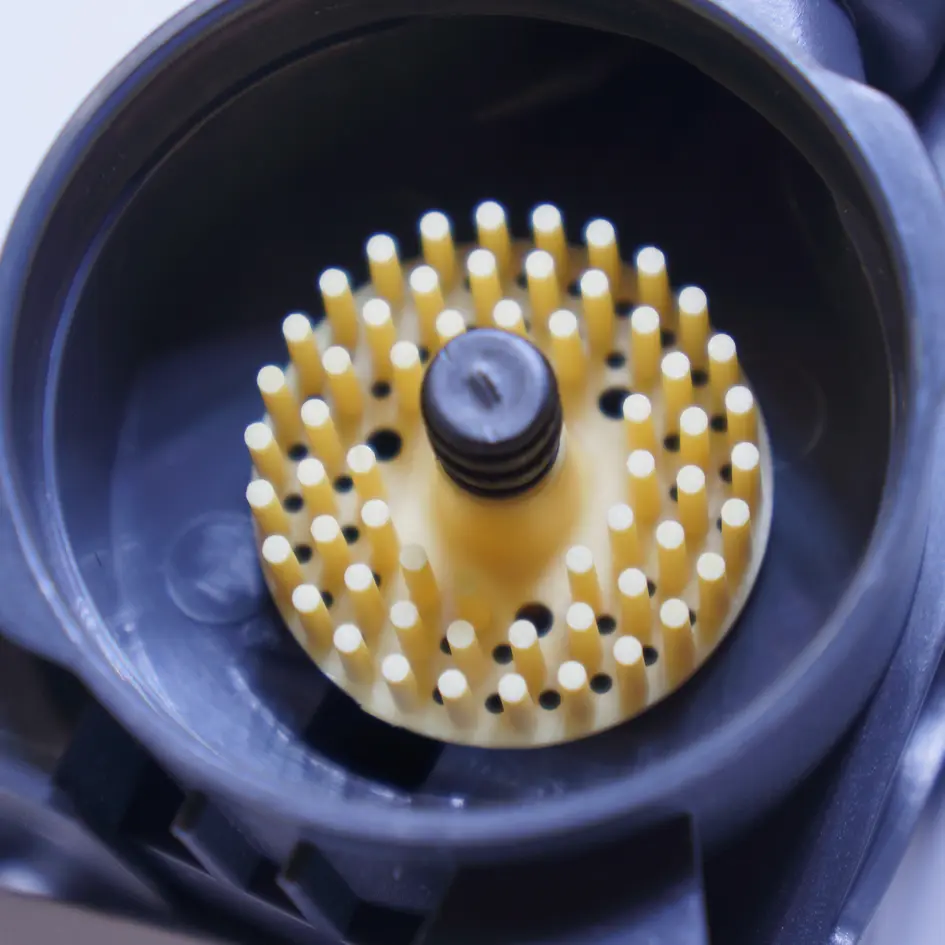

- High-Efficiency Fractionation: Features a specialized structural pinwheel impeller that systematically shreds air and incoming water into a dense, creamy micro-bubble cloud.
- Low-Energy Consumption: Engineered around an optimized, eco-friendly motor block that consumes a mere 18 watts of electricity while operating at full capacity.
- Direct OEM Configuration: Designed with a large grey threaded front volute snout to serve as a direct drop-in replacement across popular Reef Octopus Classic skimmers.
- Substantial Air Injection: Pushes a consistent 720 Liters per Hour (25 SCFH) of air flow into the reaction chamber to maximize daily organic waste export.
- Compact Spatial Profile: A small, streamlined physical footprint allows the pump to seat comfortably within tight, space-constrained space-saver skimmer bases.
- Submersible Quiet Dynamics: Features a balanced ceramic shaft and premium magnetic rotor assembly that dampens operating harmonics for whisper-quiet sump setups.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 2000S Pinwheel Protein Skimmer Pump
The Reef Octopus Aquatrance 2000S Skimmer Pump (SKU: AQ-2000S) is a highly reliable, cost-effective replacement pinwheel pump explicitly engineered to restore peak performance to intermediate generations of Reef Octopus Classic and Super Reef Octopus in-sump and hang-on-back protein skimmers. Over long years of uninterrupted, continuous operation, raw calcium buildup, abrasive carbon fragments, and organic sludge wear down internal magnetic tolerances. This wear leads to louder motor chatter, decreased air extraction, and frequent start-up failures. The Aquatrance 2000S replaces aging, legacy OTP-GT 2000 pump blocks, introducing a significantly more compact frame that draws less power while maintaining an impressive air-to-water fractionation ratio.
Operating on a safe and exceptionally efficient 18-watt architecture, the AQ-2000S is equipped with a high-performance neodymium magnet rotor paired with a factory-balanced pinwheel impeller. As water passes through the front volute chamber, the specialized pinwheel chops air entering the venturi line into a microscopic bubble fog. This massive surface area ensures that dissolved organic compounds attach tightly to the bubbles and lift smoothly into your collection cup. Designed specifically with a large grey threaded discharge outlet snout, this pump links seamlessly to existing 25mm factory metric plumbing loops without the need for complicated vinyl tube coupling configurations.
Key Features
Maximized Air-to-Water Blending: Delivers professional-grade waste fractioning performance at an economical price point, enhancing water clarity across your ecosystem.
Resilient Internal Components: Outfitted with a premium wear-resistant ceramic shaft and protective rubber end caps to minimize friction and prevent heat-warping.
Streamlined Footprint Integration: Bypasses unnecessary external casing bulk to give you more breathing room when fitting the pump beside sump partitions.
Cool Running Submersible Drive: Advanced internal motor potting drops operating temperatures, preventing calcium crusts from binding up the impeller core prematurely.
Universal Volute Threading: The coarse threaded discharge snout supports direct union connection rings, enabling instant, tool-free installation loops.
Verified Skimmer Fitment Guidelines
No Additional Adapters Required: Classic 150-INT (CLSC-150INT), NWB-150 (OTP-GT Pump models), Classic 150-SSS (CLSC-150SSS), Classic 2000-HOB (CLSC-2000HOB), Super Reef Octopus SRO-2000INT.
Requires Separate Conversion Adapters / Custom Kits: Classic 150-EXT (CLSC-150EXT), DNWB-150 (OTP-GT Pump models), BH-2000 HOB, Diablo XS-160.
*No special adapter required for the CLSC-110, SRO-1000int and BH300.
What’s Included:
(1) Reef Octopus Aquatrance 2000S Skimmer Pump Unit
(1) Direct-Fit Pinwheel Impeller Assembly (Pre-Installed)
(Note: Clear venturi air intake nozzles, silicone air hoses, and 25mm metric outlet slip adapters are sold separately)
Technical Specs:
Official Model Name: Aquatrance 2000S Pinwheel Pump
SKU / Part Number: AQ-2000S
Maximum Volumetric Water Flow Rate: 198 GPH (750 LPH)
Maximum Air Induction Intake Rate: 720 L/H (25 SCFH)
Power Consumption Rating: 18 Watts @ 120V / 60Hz
Physical Boundary Dimensions: 5.30 in L x 2.80 in W x 5.70 in H
Output Connection Size: 25mm Metric Threaded Snout (Outer Diameter)
Manufacturer Warranty Support: 1-Year Limited Warranty on Pump Block and Rotor Component Assembly
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Disconnect the main power supply line for your existing protein skimmer pump and pull the entire filtration unit completely out of the sump basin.
- Carefully unscrew or slide the old pump block away from the skimmer’s internal structural intake plumbing adapter tree.
- Remove the clear venturi air adapter snout from your old pump intake side and push it firmly into the specialized intake socket on the new AQ-2000S cover.
- Verify your factory 25mm threaded outlet adapter contains its rubber sealing o-ring, then screw the adapter clockwise onto the large grey threaded pump snout until it is hand-tight.

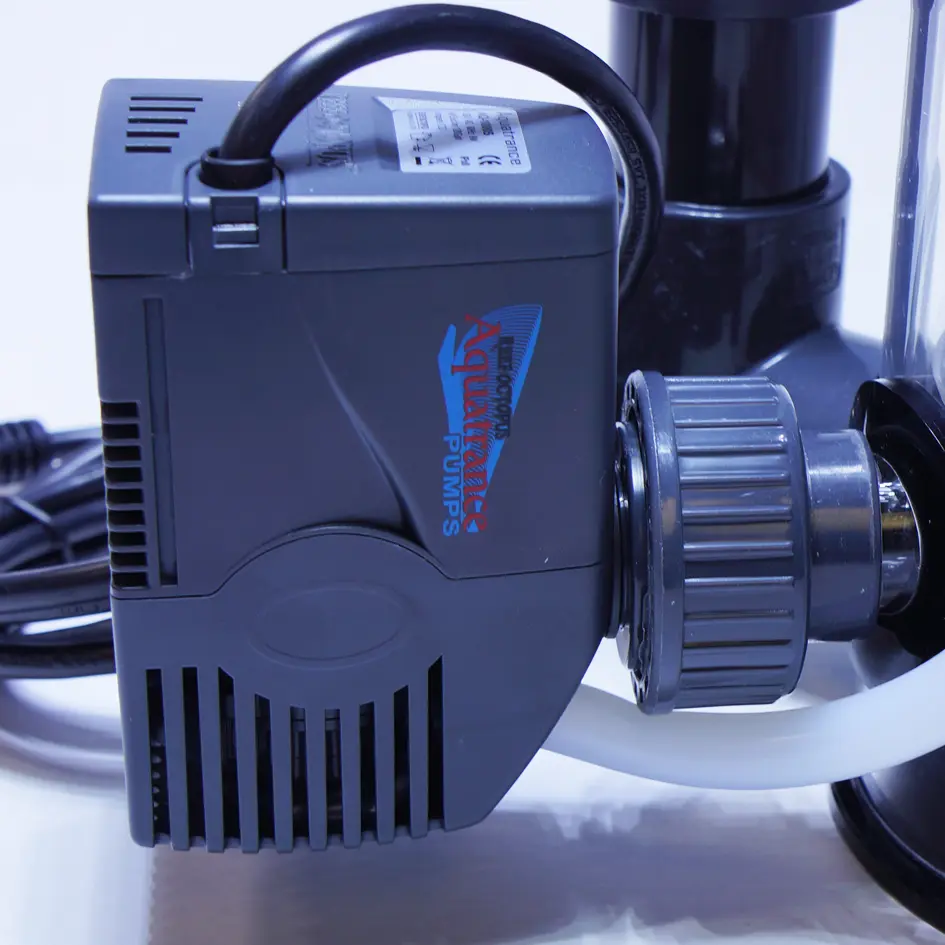

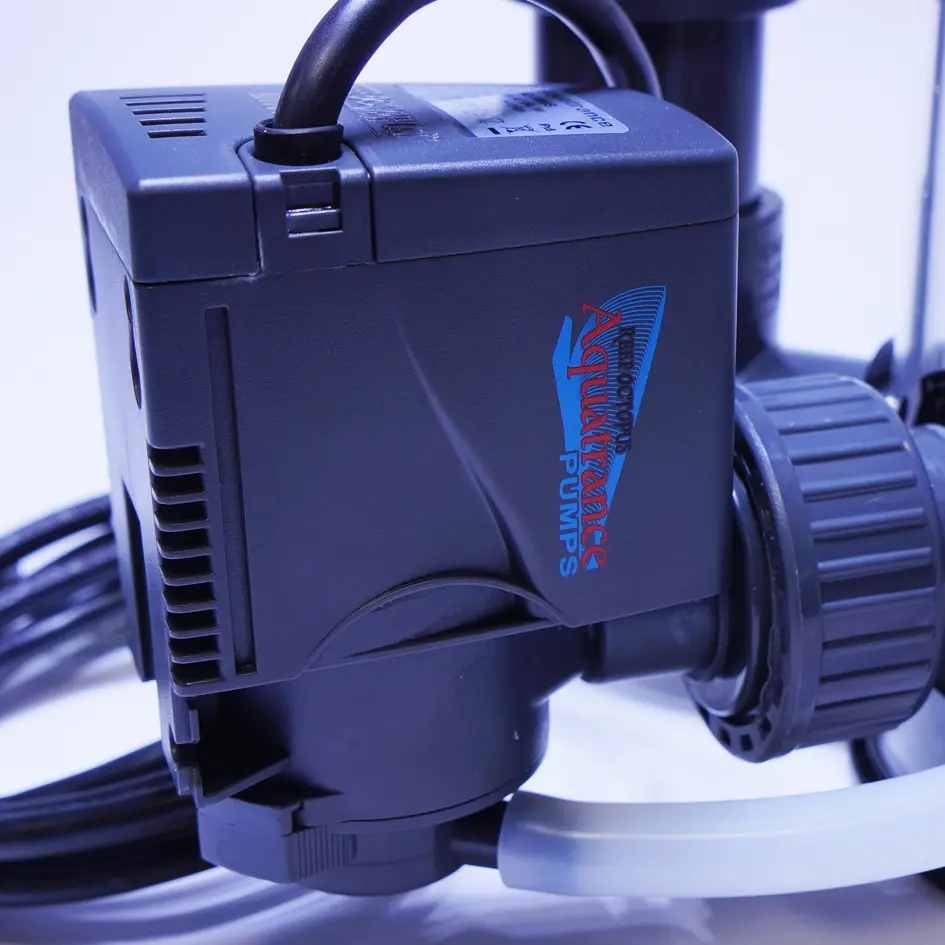

- Securely press the completed pump assembly back onto the skimmer body line, slide the flexible air muffling tube over the venturi, and lower the skimmer back into position.
- Plug the standard three-prong power connector into a GFCI-protected outlet frame and monitor the air line to confirm a rich bubble line starts forming immediately.
Pro Tips:
- Do Not Overtighten the Volute Snout. When mating your 25mm output adapter ring onto the grey male threads of the AQ-2000S volute cover, wrap the connection hand-tight only. Never use pliers or heavy plumbing wrenches to crank down on the union. The threads are cut into precision PVC plastic; applying mechanical force will strip the threading grooves or warp the integrated o-ring seat, triggering air leaks that strip velocity from your skimmer's bubble vortex.
- Perform a 3-Month Vinegar Bath. To preserve the premium factory warranty matrix, make it a habit to lift the pump out of your sump environment every 90 days for an overnight citric acid or white vinegar soak. Saltwater sumps continuously vaporize calcium carbonate, which collects along the spinning pinwheel tracks. Dissolving these mineral sheets keeps the ceramic shaft gliding friction-free, preventing the motor from drawing high amperage and overheating.
- Verify Your Legacy Snout Threading First. If you are buying this pump to replace an older, discontinued Reef Octopus OTP-2000 pump, double-check your current skimmer connection points. Very old legacy pumps featured smooth black output tubes that relied on soft vinyl connectors and slip configurations. If your skimmer uses that older layout, you must purchase a dedicated 25mm metric output adapter or upgrade kit concurrently with the AQ-2000S to accommodate the modern, large grey threaded volute format.
