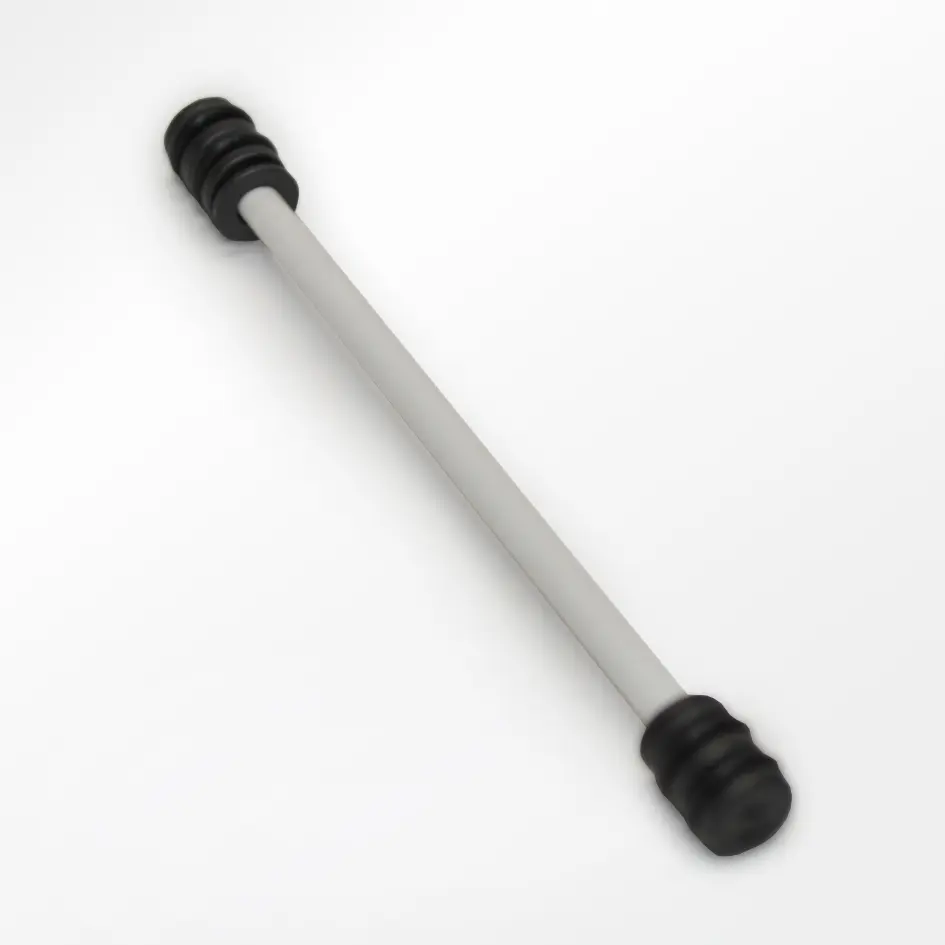

Octo Aquatrance 1000(S) / 1200 Pump Impeller Shaft
SKU: ROP-AQ1000-SFT
- 100% Genuine Factory Component: Crafted directly by Reef Octopus as an exact structural match to swap out cracked or micro-fractured impeller spindles.
- Polished Ceramic Composition: High-grade ceramic core minimizes mechanical resistance, allowing quiet operation and low energy draw.
- Integrated Rubber End Cushions: Ships complete with dampening rubber grommets to keep the ceramic core centered and eliminate vibration transfer.
- Cross-Model Versatility: Fully compatible with both the Aquatrance 1000S (Needlewheel Skimmer variation) and the Aquatrance 1200 (Standard Water Pump variation).
- Restores Reliable Restarts: Replaces scored or warped shafts that freeze up, ensuring the pump restarts reliably after maintenance or power blackouts.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 1000(S) / 1200 Replacement Ceramic Shaft (SKU: ROP-AQ1000-SFT)
The Reef Octopus Aquatrance 1000(S) / 1200 Replacement Ceramic Shaft (SKU: ROP-AQ1000-SFT) is an authentic, internal OEM maintenance component distributed by CoralVue to preserve high-velocity magnetic drive stability inside aquarium pumps. While outer pump volutes and electrical stators can last for years under continuous submersion, internal moving parts handle non-stop friction and spinning wear. Over months of operation, microscopic calcium deposits and debris particles can work their way into the impeller well, scoring the center spindle. If the shaft warps, cracks, or snaps, the internal magnetic field destabilizes, causing harsh grinding noises, reduced flow, or an electrical lock that prevents the pump from turning back on.
The defining operational advantage of the ROP-AQ1000-SFT configuration is its premium Ceramic Construction and End-Cap Array. Unlike cheap steel aftermarket shafts that pit, rust, or bind up when exposed to harsh marine salt water, the Reef Octopus ceramic core remains completely inert and corrosion-free. Outfitted with specialized rubber end caps on both tips, this assembly isolates the spinning magnetic impeller, absorbing vibrations before they can shake your skimmer body. Keeping a fresh shaft on hand is the easiest way to preserve your Aquatrance pump and ensure silent, reliable filtration.
Key Features
Eliminates Loud Grinding Noise: Swapping a scored or uneven shaft stabilizes the impeller's rotation, dampening annoying hums and vibrations.
Guarantees Marine Saltwater Safety: Corrosion-resistant ceramic composition will not rust, degrade, or leach heavy metal compounds into your water column.
Tool-Free Internal Rebuilds: Drop-in engineering lets you pull the old rod out and slide the replacement straight into the motor block in under a minute.
(Note: This retail package includes (1) Ceramic Shaft and (2) Silicone Rubber End Cap Grommets. The spinning magnetic needlewheel impeller assembly and outer pump volute covers are sold under separate categories).
Reef Octopus Aquatrance Component Sizing Continuum
| Accessory Classification Scale | Material SKU Identifier | Onboard Core Material Base | Compatible Aquatrance Stator |
|---|---|---|---|
| Aquatrance 1000/1200 Shaft | ROP-AQ1000-SFT | High-Polished Rigid Ceramic | Aquatrance 1000S & 1200 Models |
| Aquatrance 1800/2000 Shaft | ROP-AQ1800-SFT | High-Polished Rigid Ceramic | Aquatrance 1800S & 2000 Models |
| Aquatrance 3000 Shaft | ROP-AQ3000S-IMP | Full Assembly Pack | Aquatrance 3000S Models |
What’s Included:
(1) Reef Octopus Replacement High-Polished Ceramic Shaft Core
(2) Shock-Absorbing Silicone Rubber End Cap Grommets
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance AQ1000 & AQ1200 Replacement Shaft
SKU / Factory Part Identifier: ROP-AQ1000-SFT
Spindle Material Foundation: Sintered Technical Ceramic Matrix
End Component Material Base: Inert Saltwater-Grade Flexible Silicone
Primary Fluid Application Track: Internal Drive Assembly Centering Support
Chassis Platform Compatibility: Form-Fitted for Reef Octopus Aquatrance 1000S and 1200 Pump Models
- Unplug your Reef Octopus skimmer or utility pump from its electrical outlet. Pull the pump assembly out of your sump chamber and move it to a clean workspace.
- Twist the outer front volute cover counter-clockwise to unlock it, and pull it straight away from the pump body to expose the impeller chamber.
- Carefully pull the magnetic impeller assembly straight out of the motor block. Slide the worn or broken shaft out from the center core of the magnet. Warning: If the ceramic shaft has snapped into multiple pieces, verify that you have pulled all broken shards out of the deep inner well before continuing.
- Retrieve one of the rubber end caps from the well bottom or the volute cover face.
- Slide your new ROP-AQ1000-SFT ceramic shaft straight through the middle of the impeller. Push the fresh rubber end caps onto both tips of the rod.
- Gently lower the completed assembly back down into the magnetic motor cavity. Push the front volute cover back on, twist it clockwise to lock it down, and submerge the pump to confirm smooth, quiet operation.
Pro Tips:
- Never Flex or Twist the Ceramic Rod During Installation to Prevent Snapping. While technical ceramic material is incredibly hard and handles thousands of hours of high-velocity spinning wear without breaking a sweat, it has very low lateral flexibility. If you try to bend, force, or pry the shaft into place at an angle during assembly, it will snap instantly like a dry toothpick. Always handle the rod gently, and slide it straight down into the center of the motor block along its vertical axis.
- Always Confirm that Both Rubber End Caps are Extracted Before Placing the New Shaft. When an old impeller shaft breaks or gets pulled out for a maintenance overhaul, one of the small rubber end caps will almost always get stuck down at the very bottom of the dark motor well, while the other stays pressed into the front volute cover. If you drop a new shaft in with its fresh rubber caps attached while an old cap is still stuck at the bottom, the shaft will stick out too far. This prevents the cover from closing properly and will cause loud rattling or lock up the motor entirely. Use a pair of plastic tweezers or a flashlight to check that the inner well is completely clear before rebuilding your pump.
- Routinely Soak the Pump Internals in Citric Acid to Prevent Impeller Seizing. Because your skimmer pump constantly mixes raw tank water with air, calcium carbonate and salt creep will naturally precipitate inside the hot motor block over time. This calcification forms a rough crust on the ceramic shaft, creating friction that destroys your pump's performance. Every 3 to 6 months, take the pump apart and soak the ceramic shaft and impeller assembly in a warm bath of water and citric acid or white vinegar. This safely dissolves the hard scale, keeping your pump running whisper-quiet.
