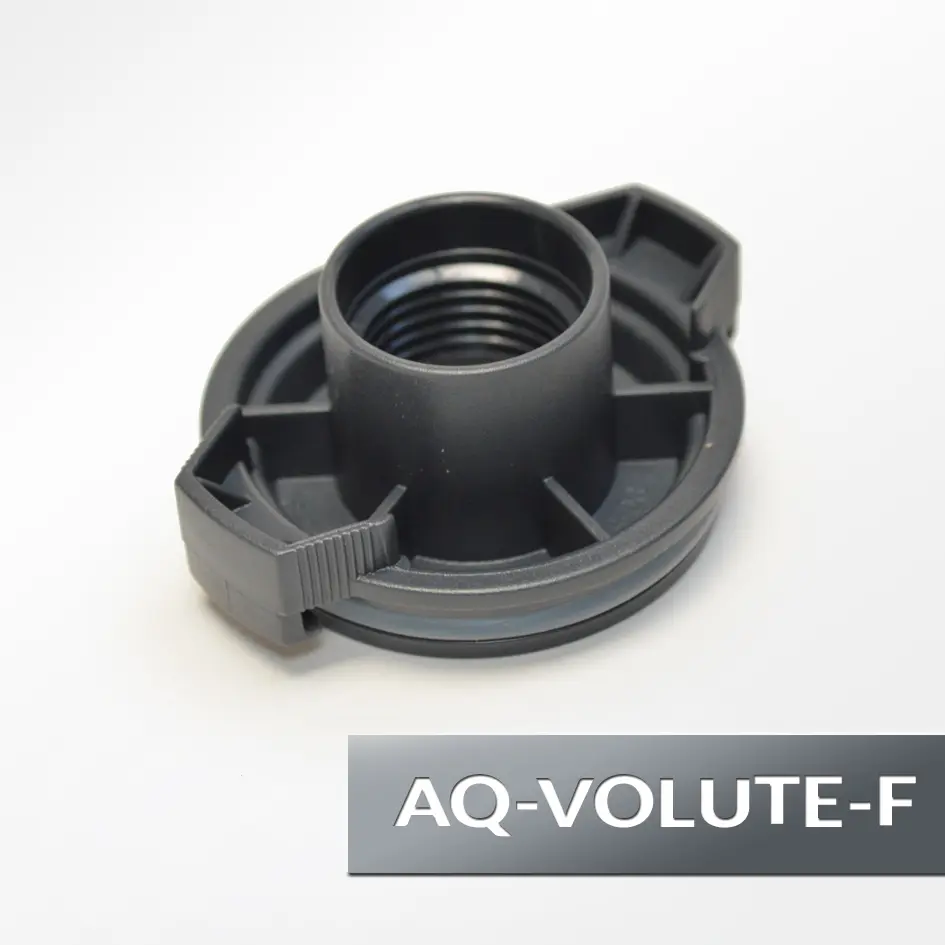

Octo Aquatrance Volute Cover F
SKU: ROP-AQ-VOLF
- Genuine OEM Factory Part: Crafted directly by Reef Octopus as an exact drop-in structural match to swap out cracked, warped, or leaking pump faceplates.
- Massive Multi-Model Compatibility: Engineered to fit the distinct tracking pathways of the Aquatrance 1000S (and related small AQ engine configurations) across several core chassis styles.
- Heavy-Duty Polymer Engineering: Injection-molded from a rugged, marine-grade plastic matrix to resist splitting under continuous system vibrations.
- Tight Hydraulic Profile: Creates a precise hydraulic seal over the needlewheel chamber, forcing all internal flow directly through the air-shredding matrix.
- Quick Twist-Lock Alignment: Uses a low-friction locking track design that lets you remove the cover for quick cleaning without tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 1000S Replacement Volute Cover F (SKU: ROP-AQ-VOLF)
The Reef Octopus Aquatrance 1000S Replacement Volute Cover F (SKU: ROP-AQ-VOLF) is an authentic, structural OEM component distributed by CoralVue to preserve high-velocity air draw and waste fractionation inside home aquarium protein skimmers. The volute cover acts as the primary containment seal for the internal spinning needlewheel impeller assembly. Because high-performance protein skimmers depend entirely on maintaining a precise vacuum to cleanly slice a massive volume of incoming water and ambient air, any structural integrity loss across the pump face will ruin skimming production. Hairline fractures from dropping the pump during standard maintenance, or worn-down interlocking tracks from heavy calcium scale buildup, can cause the pump housing to micro-leak or rattle—dropping organic waste extraction rates significantly.
Molded from an inert, chemical-resistant marine polymer matrix, the ROP-AQ-VOLF layout features precise interior tolerances engineered to map cleanly around the over-molded rare-earth magnetic rotor core of the Aquatrance 1000S engine block. It stands as one of the most versatile faceplate configurations in the line, covering an array of popular hang-on-back and standalone internal skimmer systems. By restoring a tight hydraulic connection over your needlewheel matrix, this faceplate forces all incoming air through the pin matrix, restoring your skimmer to its original factory fractionation capacity.
Key Features
Restores True Air Shredding: Seals the impeller chamber perfectly, forcing all incoming water and air directly through the needlewheel matrix to build a thick waste foam.
Resolves Pump Priming Faults: Creates a tight hydraulic seal that stops micro-air leaks from forming, ensuring your skimmer pump primes reliably after power cuts.
Glueless Maintenance Access: Twist-lock alignment pins slip smoothly into the pump stator frame, letting you take the pump apart for quick cleaning without tools.
(Note: This retail part contains (1) individual Aquatrance 1000S Volute Cover F. Internal needlewheel impellers, ceramic shaft spindles, silicone end caps, and rubber sealing O-rings are sold under separate product categories).
Comprehensive Aquatrance 1000S Volute Cover Matrix
Because Reef Octopus uses several unique types of the Aquatrance 1000S skimmer pump face across different skimmer bodies, please verify your exact setup matches this specialized layout track before ordering:
Aquatrance 1000S Volute Cover F (This SKU): Custom-tailored specifically for the Classic 100HOB (AQ-1000S), Classic 100FHOB (AQ-1000S), BC-90EXT HOB (AQ-800), BC-120INT (AQ-1200), BC-150 (AQ-1500), BC-170INT (AQ-1800), and BC-200INT (AQ-1800).
Aquatrance 1000S Volute Cover C: Built for Classic Recirculating models BC120R, BC150R, and BC170R.
Aquatrance 1000S Volute Cover D: Built for Classic 1000HOB and Classic 90HOB hang-on-back setups.
Aquatrance 1000S Volute Cover E: Built for Classic 300HOB and Classic 100-INT in-sump skimmers.
What’s Included:
(1) Reef Octopus Aquatrance 1000S Injection-Molded Replacement Volute Cover F
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance 1000s Volute Cover F
SKU / Factory Part Identifier: ROP-AQ-VOLF
Structural Housing Material Base: Saltwater-Safe Hardened High-Impact ABS Plastic
Locking Connection Interface: Direct Quarter-Turn Interlocking Tab Ring
Primary Target Engine Match: Specially Calibrated for Aquatrance 1000S (and related small AQ series variants)
Skimmer Chassis Compatibility: Explicitly for Reef Octopus Classic 100HOB, Classic 100FHOB, BC-90EXT, BC-120INT, BC-150, BC-170INT, and BC-200INT Variations
- Unplug your Reef Octopus protein skimmer pump from its electrical wall outlet. Remove the Aquatrance motor block from your skimmer chassis and transfer it to a dry, well-lit workspace.
- Twist your old, damaged Volute Cover F counter-clockwise roughly 15 degrees to disengage the locking tabs from the front of the motor block stator frame. Pull the cover straight away to expose the spinning pinwheel impeller.
- Check the internal rubber sealing ring tucked inside the pump face rim. Clean the track with a soft towel to clear away any loose salt crust or organic slime. Pro Tip: If your previous volute cracked because of heavy calcium buildup, soak the main pump face in a warm vinegar bath before mounting the new part.
- Align the locking ears of your new ROP-AQ-VOLF volute cover F with the open slots on the front of the pump stator.
- Press the volute cover forward firmly against the sealing ring, and twist it clockwise until you feel it click into place. The main intake port should face squarely toward its factory running alignment.
- Slide your venturi air-injection tube assembly back onto its dedicated inlet nozzle, mount the pump back onto your skimmer body, and submerge the unit to resume normal protein skimming.
Pro Tips:
- Double-Check Your Exact Skimmer Model Letter Classification Before Purchase. Reef Octopus utilizes four separate letter-coded variations (C, D, E, and F) of the Aquatrance 1000S front pump cover to match a wide range of different skimmer body frames. While they all lock onto the exact same underlying 9W motor block frame, each letter version uses a entirely different front port connection length, shape, or intake path to couple with its targeted skimmer chassis. This Volute Cover F handles an expansive range of systems including the Classic 100HOB, BC-120INT, and BC-150 configurations. Always double-check your skimmer body's official product stamp before checking out to make sure you select the correct letter fitment.
- Apply a Thin Layer of Reef-Safe Silicone Grease to the O-Ring for a Perfect Seal. When mounting your new ROP-AQ-VOLF cover onto an older pump block, take a moment to pull out the large rubber sealing O-ring and wipe it down with a tiny dab of reef-safe silicone grease. Over years of continuous submersion, rubber seals can slowly dry out and become brittle. Lightly lubricating the ring helps the new volute tabs slide into place smoothly without binding, preventing micro-leaks and ensuring an airtight siphon lock.
- Never Force the Twist-Lock Rings If Calcium Buildup Blocks the Path. If you are taking your pump apart for routine maintenance and find that the volute cover is frozen shut or won't twist into place, stop and do not force the plastic tabs. Forcing a stuck volute will easily snap the locking ears off the plate or tear the tabs on the expensive motor block. Drop the entire pump block into a warm bath of water mixed with citric acid or white vinegar for 30 minutes. The acid safely dissolves the hard calcium scale, letting the parts slide apart and lock back together easily.
