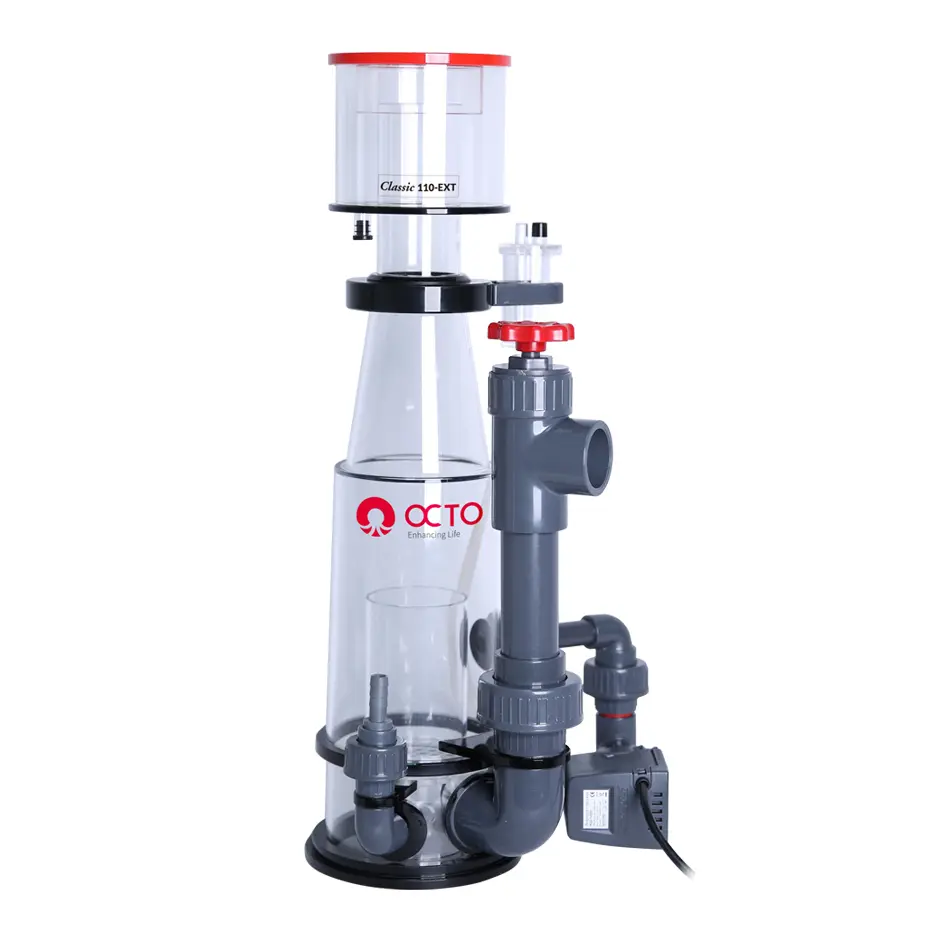

Octo Classic 110EXT Recirculating Protein Skimmer
SKU: CLSC-110EXT
MSRP: $ 400.77
-
Available Through Authorized Retailer
- Recirculating Performance: Processes water independently of the chamber feed rate, maximizing dwell time and organic contact for crystal-clear water.
- Out-of-Sump Flexibility: Watertight external engineering allows for placement outside or inside the sump, freeing up vital space for other life support filtration.
- Aquatrance 1000s Power: Features the highly efficient, specialized Aquatrance pinwheel pump for superior air shredding and consistent foam production.
- Turbulence-Reducing Hybrid Body: The 5-inch reaction chamber transitions smoothly into a hybrid cone neck, stabilizing the foam column for dry skimmate extraction.
- Precision Control Assembly: Outfitted with an integrated gate valve output that allows for ultra-fine internal water level tracking and adjustments.

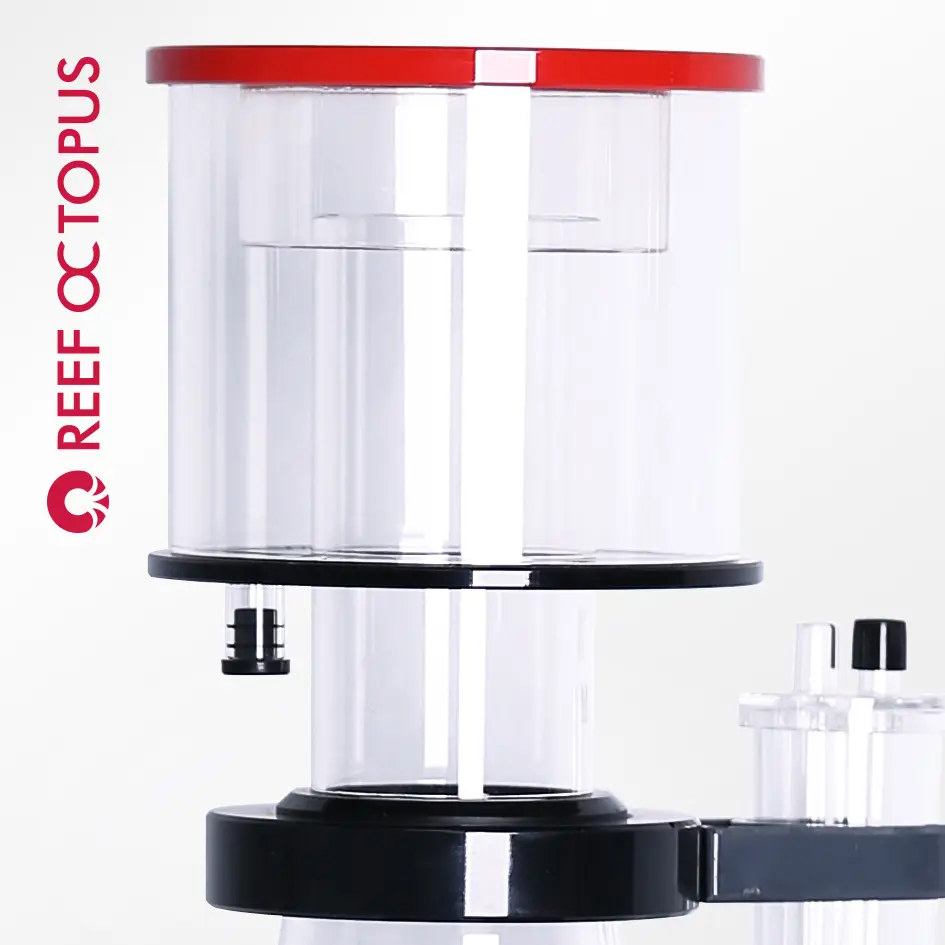

- Quick-Release Collection Cup: Features an easy-to-use quick-release neck configuration requiring minimal clearance for rapid, tool-free maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

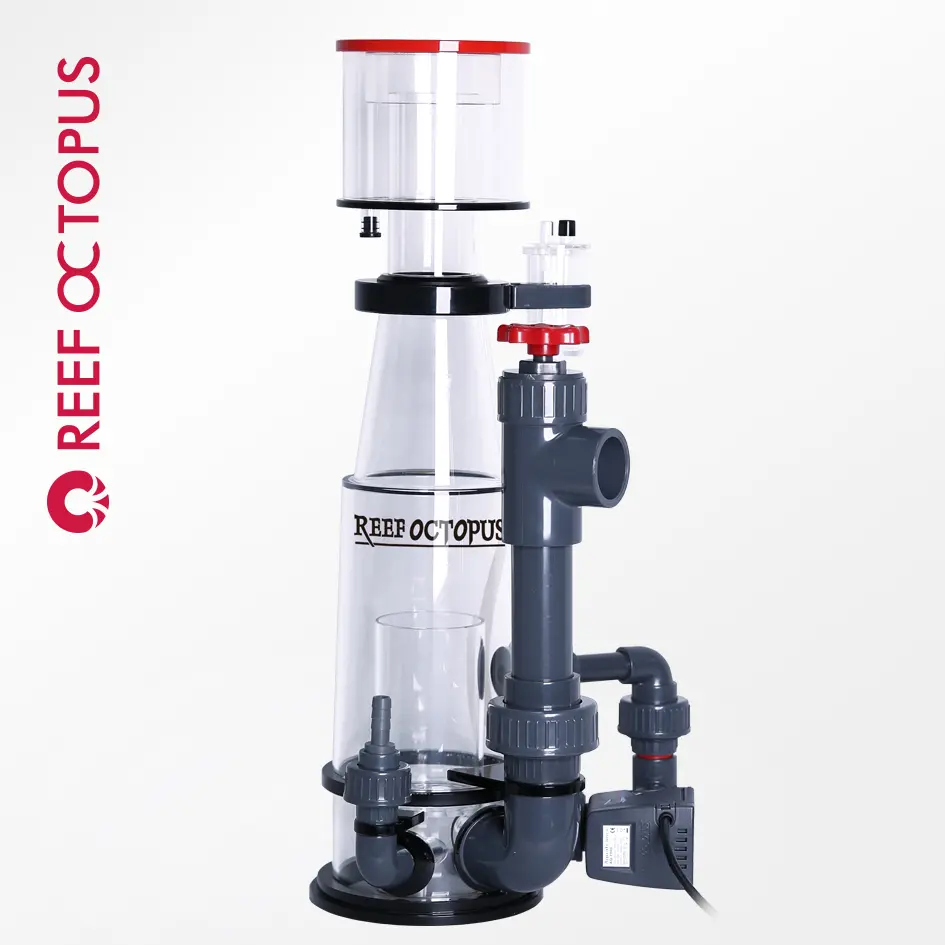

Reef Octopus Classic 110EXT Recirculating Protein Skimmer
The Reef Octopus Classic 110EXT (SKU: CLSC-110EXT) is a high-performance external recirculating protein skimmer designed to bring advanced filtration control to marine aquariums up to 130 gallons. Unlike standard internal skimmers that rely on a single water stream for both processing and moving water, the Classic 110EXT utilizes a sophisticated recirculating configuration. The onboard Aquatrance 1000s pinwheel pump acts solely to shred air and water together within the 5-inch chamber. A separate feed pump or direct overflow line (sold separately) determines the water flow-through rate, giving the hobbyist total control over nutrient dwell time.
Handcrafted from durable, premium cast acrylic, the Classic 110EXT features a modified hybrid cone body that stabilizes the rising micro-bubble mixture while eliminating heavy turbulence. This smooth transition ensures organic wastes collect effectively in the quick-release collection cup before they can degrade into nitrates or phosphates. Equipped with an oversized air silencer for quiet cabinet operation and metric-to-standard plumbing adapters, this versatile external unit delivers commercial-level filtration efficiency for standard-sized standalone reef and fish-only marine environments.
Key Features
Independent Recirculation Logic: Maximizes air-to-water exposure time by decoupling chamber mixing from tank turn-over volume.
Aquatrance 1000s Pinwheel Pump: Delivers a robust 420 L/H of air draw while operating at a highly efficient 9 Watts.
Integrated Bubble Diffuser: Calms water entering the reaction zone to preserve structural foam stability.
Precision Gate Valve Output: Simplifies micro-adjustments to find the exact "sweet spot" for wet or dry skimming demands.
Minimal Clearance Neck: Designed to drop straight into restricted cabinet layouts, needing only a fraction of an inch of overhead clearance to remove the cup.
Bioload Handling
Heavy Bioload: 75 Gallons
Medium Bioload: 90 Gallons
Light Bioload: 130 Gallons
What’s Included:

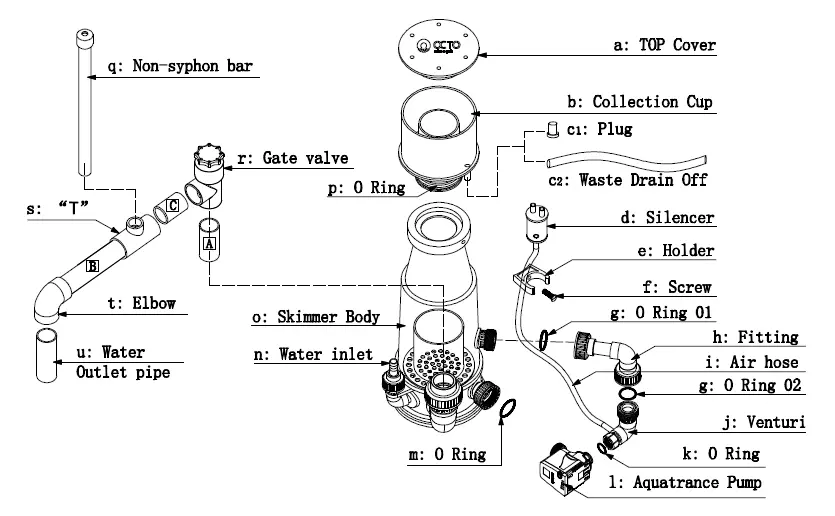

(1) Classic 110EXT External Skimmer Body
(1) Aquatrance 1000s Pinwheel Recirculation Pump
(1) Precision Output Gate Valve Assembly

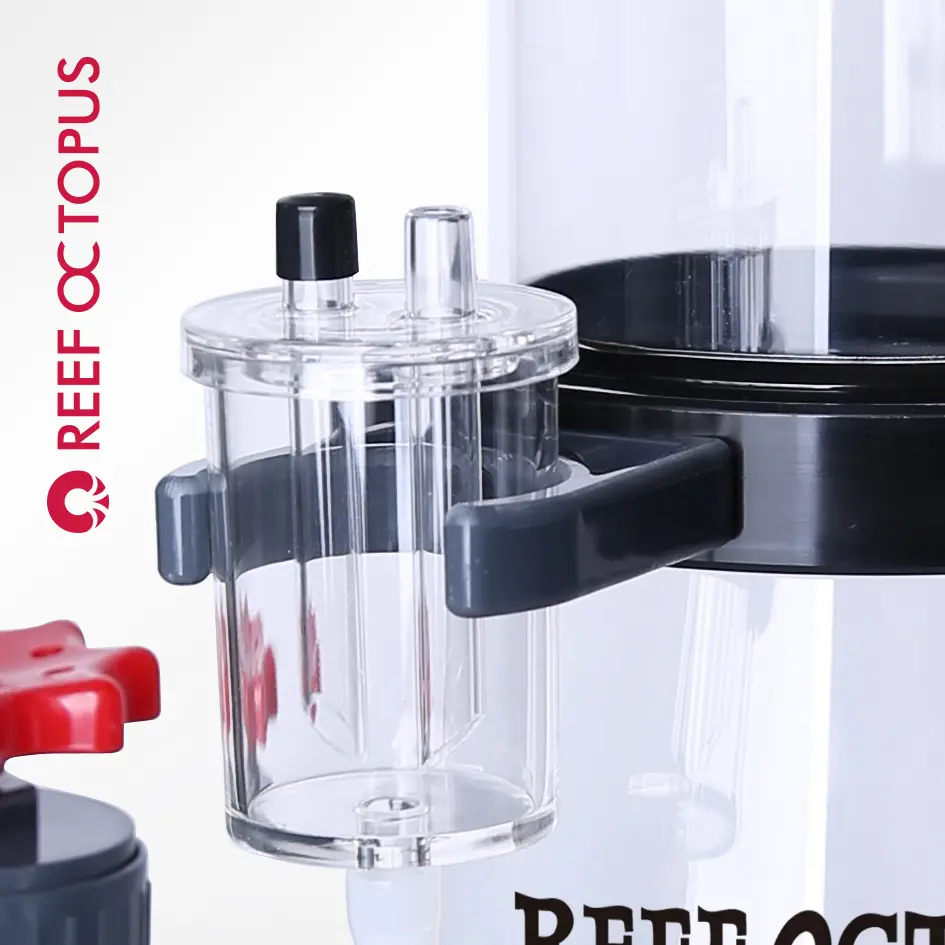

(1) High-Volume Air Silencer & Airline
(1) Metric to US Standard Plumbing Adapter Set
Technical Specs:
Model / SKU: CLSC-110EXT
Body Size: 5 in
Footprint: 10.4 in x 9.25 in
Total Height: 22.8 in
Neck Size: 2.5 in
Inlet Size: 0.5 in
Output Size: 40mm / 1.25 in PVC
Recommended Feed Flow Rate: 120 – 260 GPH
The Reef Octopus Classic 110EXT protein skimmer uses high-grade metric plumbing parts and includes US standard plumbing adapters for ease of installation.
Note: This skimmer requires additional plumbing and a feed pump with the suggested feed rate of 1.5-2 times the total system volume.
Reef Octopus Aquatrance 1000s Pinwheel Pump
Max Flow: 92gph
Max Air: 420L/H, 15SCFH
Power Consumption: 9watts
Dimensions:4.5in x 2.4in x 3.6in
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller

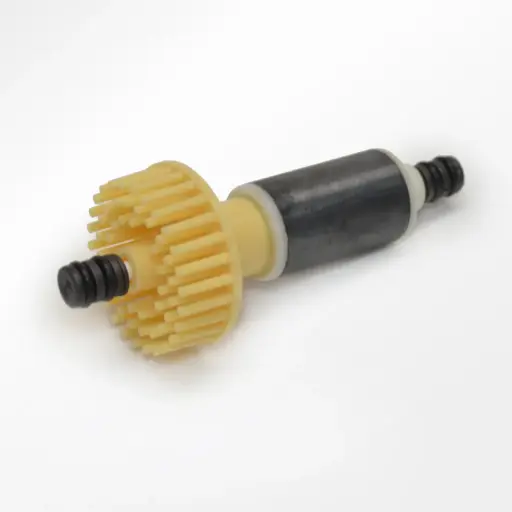

- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.

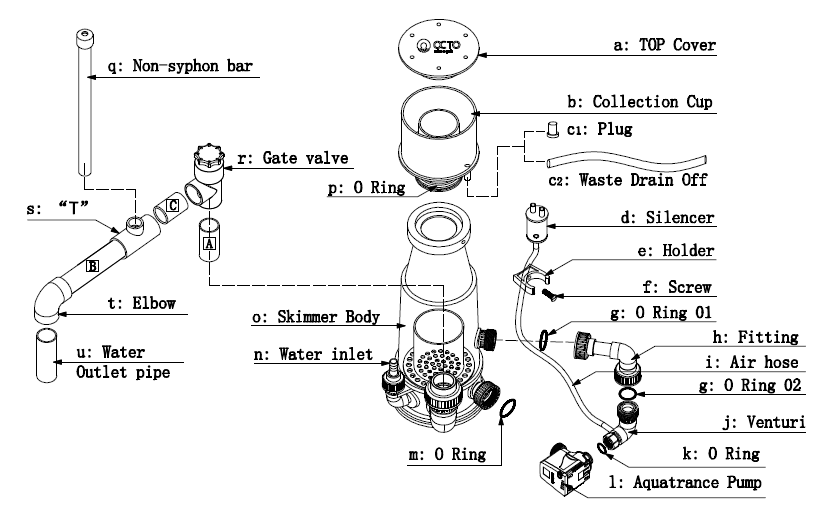

- Assemble the skimmer body unions, ensuring the internal bubble diffuser plate and all O-rings are securely seated.

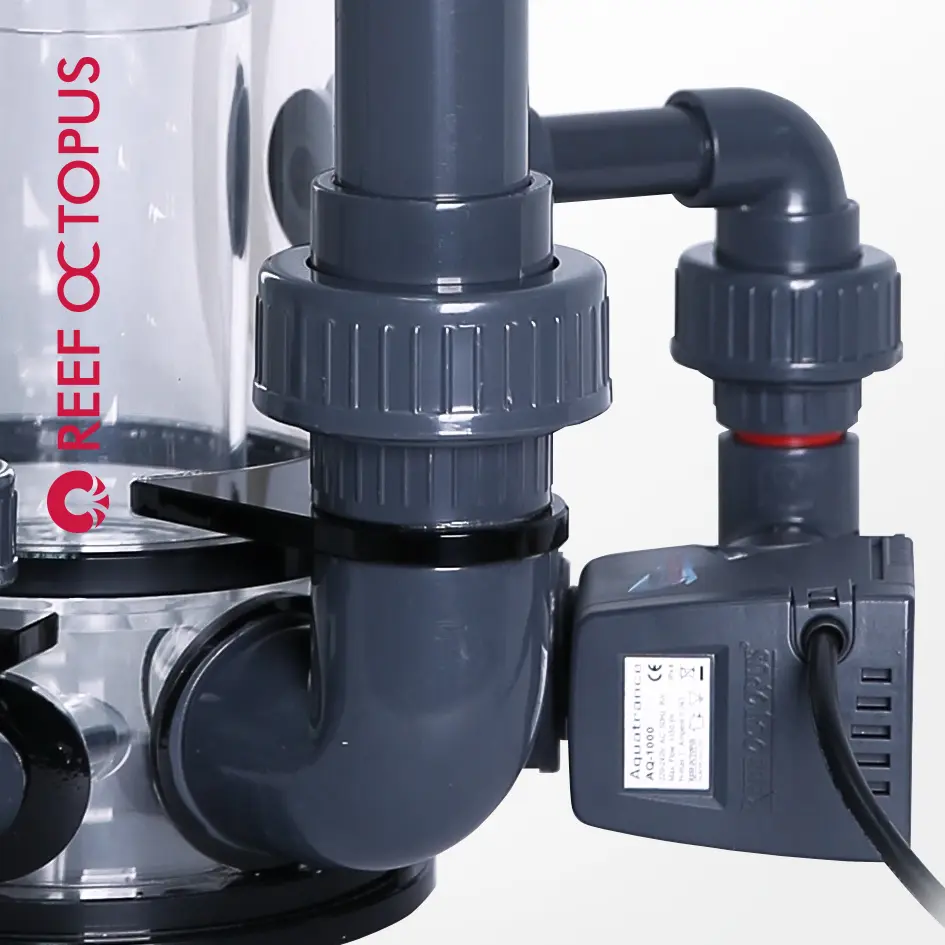

- Mount the Aquatrance 1000s recirculation pump to the lower exterior body plumbing using the integrated union locks.
- Position the skimmer on a level surface. It can be mounted inside a sump chamber or externally next to the sump setup.
- Connect a dedicated feed pump (120–260 GPH recommended) or standard manifold line to the 0.5-inch water inlet pipe.
- Turn on the feed water pump first to fill the skimmer reaction chamber entirely before activating the recirculation pump.
- Plug the Aquatrance 1000s into a GFCI outlet and adjust the gate valve until the internal foam line settles near the base of the neck.
Pro Tips:
- Fine-Tuning the Feed Rate. Because this is a recirculating external unit, balancing water turn-over is critical. For high-bioload reef setups, adjust your feed pump closer to 150 GPH. Slowing the water flow-through gives the internal bubble cloud more time to strip organic waste, resulting in much darker, thick skimmate.
- Plumbing for External Use. While the Classic 110EXT features high-grade watertight seals, always place any external filtration equipment inside a shallow plastic containment tray or near a dedicated fish room floor drain for peace of mind.
- In-Line Flow Control. We highly recommend placing a standard ball valve or gate valve on the input plumbing line from your feed pump. This allows you to smoothly regulate water volume tracking through the skimmer body without adding back pressure to the independent Aquatrance recirculation loop.
