Octo Classic 110INT Protein Skimmer
SKU: CLSC-110INT
MSRP: $ 326.85
-
Available Through Authorized Retailer
- In-Sump Filtration: Optimized internal configuration designed to drop straight into your sump chamber, keeping your display looking clean and clutter-free.
- Aquatrance 1000s Power: Driven by the highly efficient Aquatrance pinwheel pump, specifically engineered to shred air and water into a thick micro-bubble mist.
- Hybrid Cone Design: The 5-inch cylindrical body features a gentle conical transition to smoothly stabilize and concentrate foam as it moves toward the collection cup.

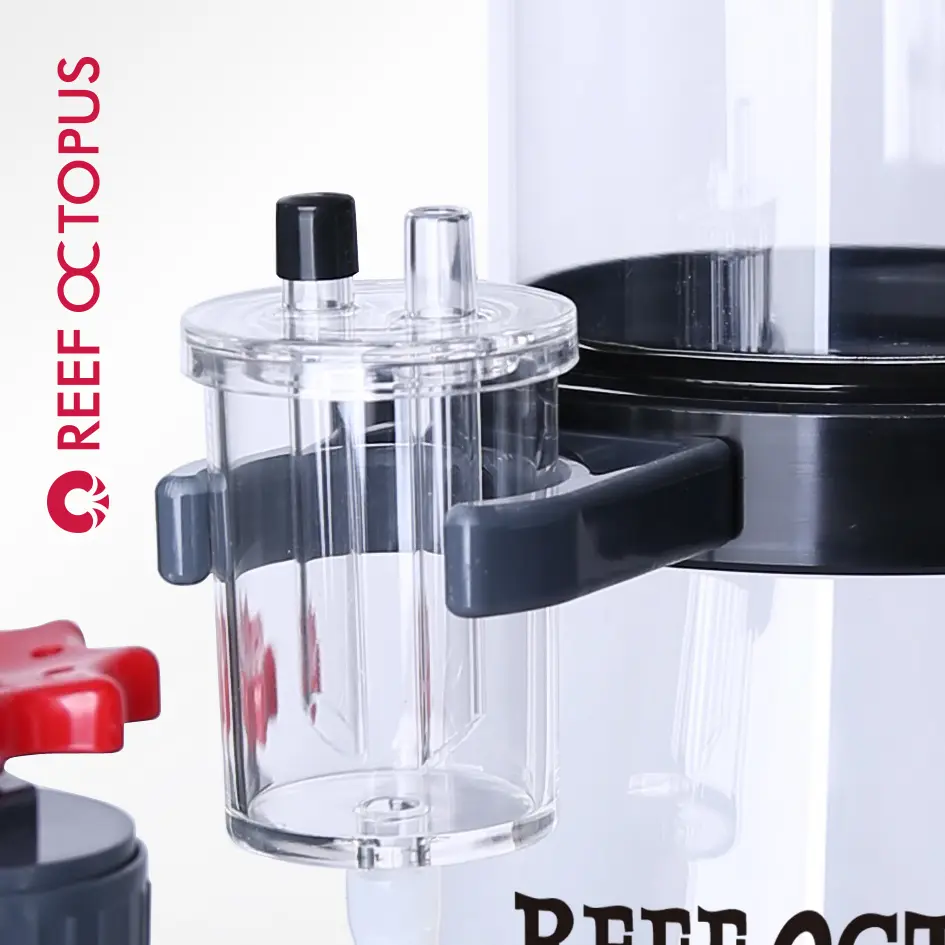

- Integrated Air Silencer: Outfitted with an attached air silencer that draws high air volume while minimizing ambient suction noise inside your cabinet.

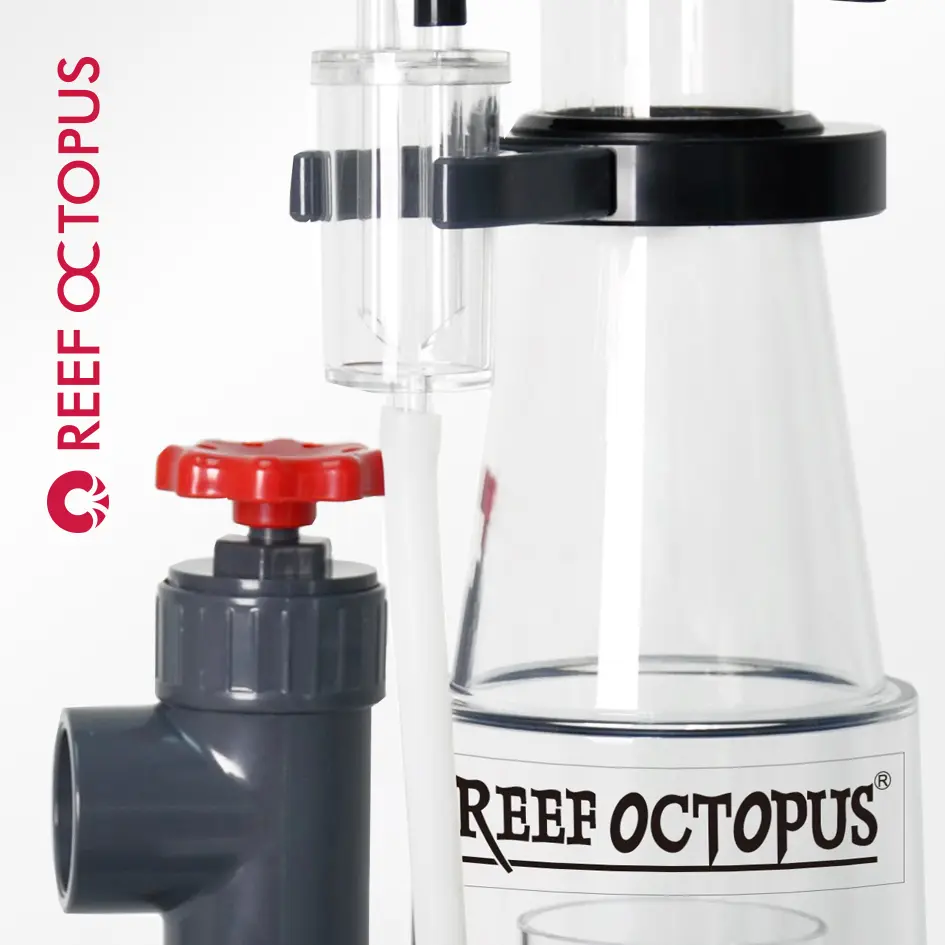

- Precision Gate Valve: Equipped with a fine-tuned gate valve mechanism for quick, effortless adjustments of the internal water level.
- Fully Removable Body: The entire skimmer can be completely disassembled for easy access and hassle-free deep cleaning over time.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

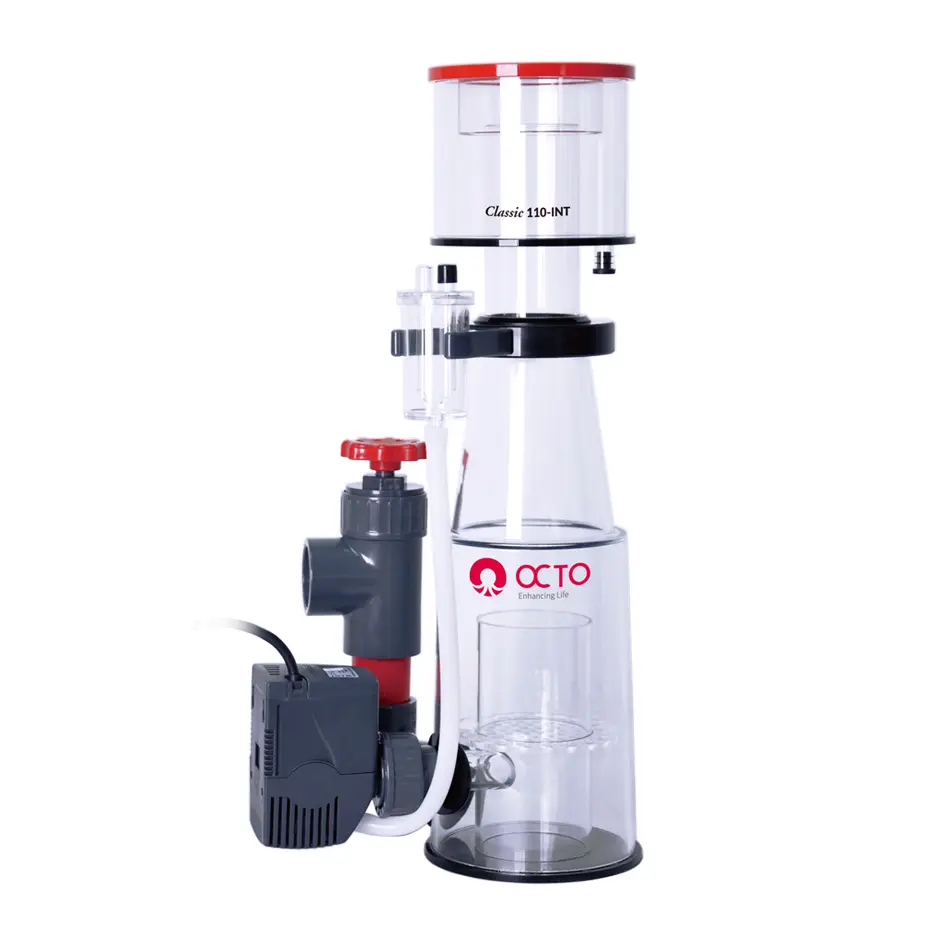

Reef Octopus Classic 110-INT In-Sump Protein Skimmer
The Reef Octopus Classic 110-INT is an incredibly popular, space-efficient in-sump protein skimmer designed to deliver high-performance organic waste removal for marine aquariums up to 130 gallons. Widely regarded as a workhorse filtration unit for entry-level and experienced reef keepers alike, the Classic 110-INT seamlessly balances cost-effectiveness with industrial-grade engineering. Powered by the specialized Aquatrance 1000s pinwheel pump, it draws a massive amount of air relative to its low power draw, producing the ideal bubble size needed to pull dissolved organic compounds from the water column before they can break down into unwanted nitrates and phosphates.
Constructed from premium, heavy-duty cast acrylic, this internal skimmer features a smart hybrid cone body that tapers toward the top. This specialized shape naturally reduces internal turbulence, allowing the rising foam to stabilize and concentrate as it journeys into the collection cup. A precision gate valve assembly gives you absolute control over the internal water line, allowing you to easily adjust between dry and wet skimming depending on your system's bioload. Backed by a bubble plate diffuser that reduces micro-bubble bypass into your return pump chamber, the Classic 110-INT is an exceptionally reliable asset for any standalone marine display.
Key Features
Reliable In-Sump Profile: Streamlined footprint leaves plenty of space in your filtration chamber for media reactors or refugiums.

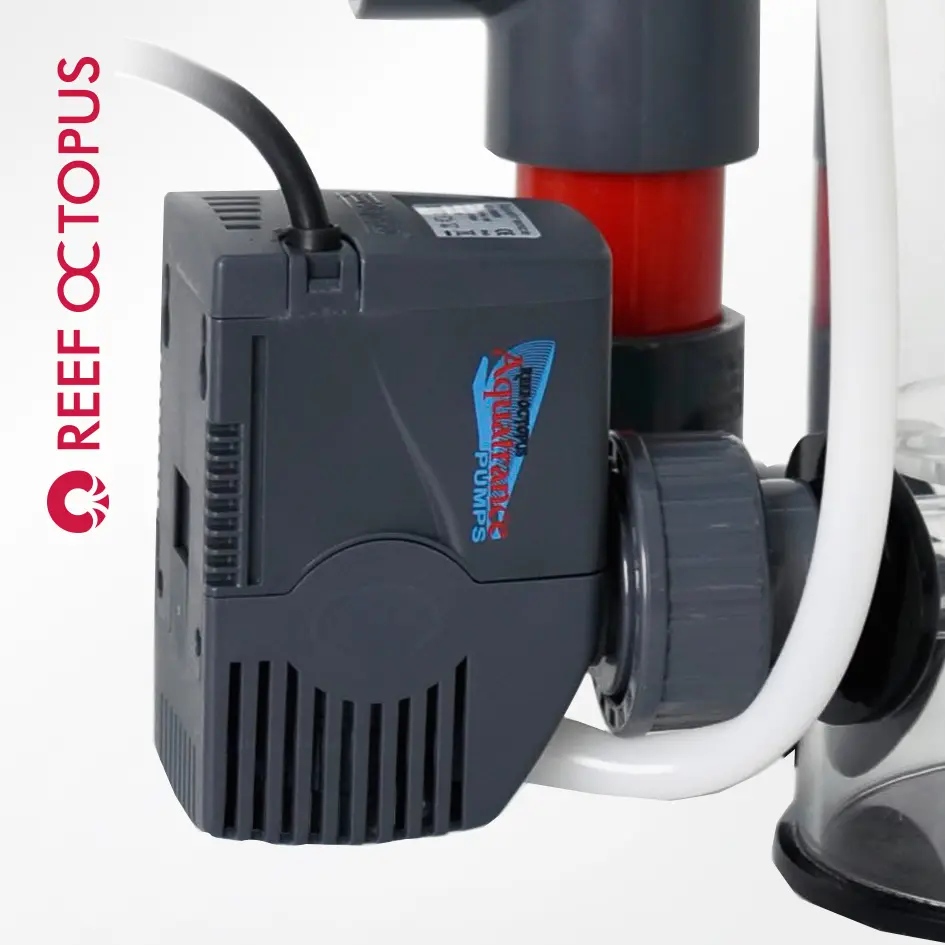

Aquatrance 1000s Pump: Draws a robust 420 L/H of air while consuming an energy-saving 9 Watts of electricity.
Bubble Diffuser Plate: Quiets the internal water churning, allowing bubbles to lift smoothly without popping prematurely.
Easy Adjustment Gate Valve: Raised gate valve system lets you make micro-adjustments to the internal water level without splashing.

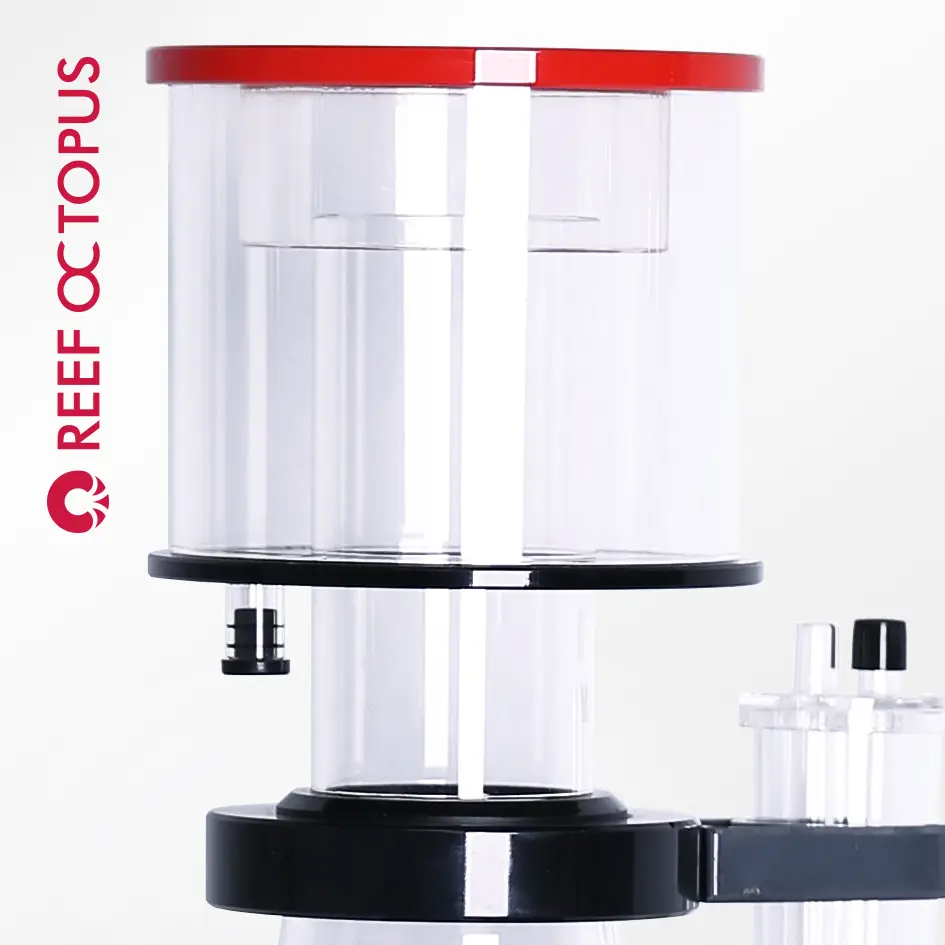

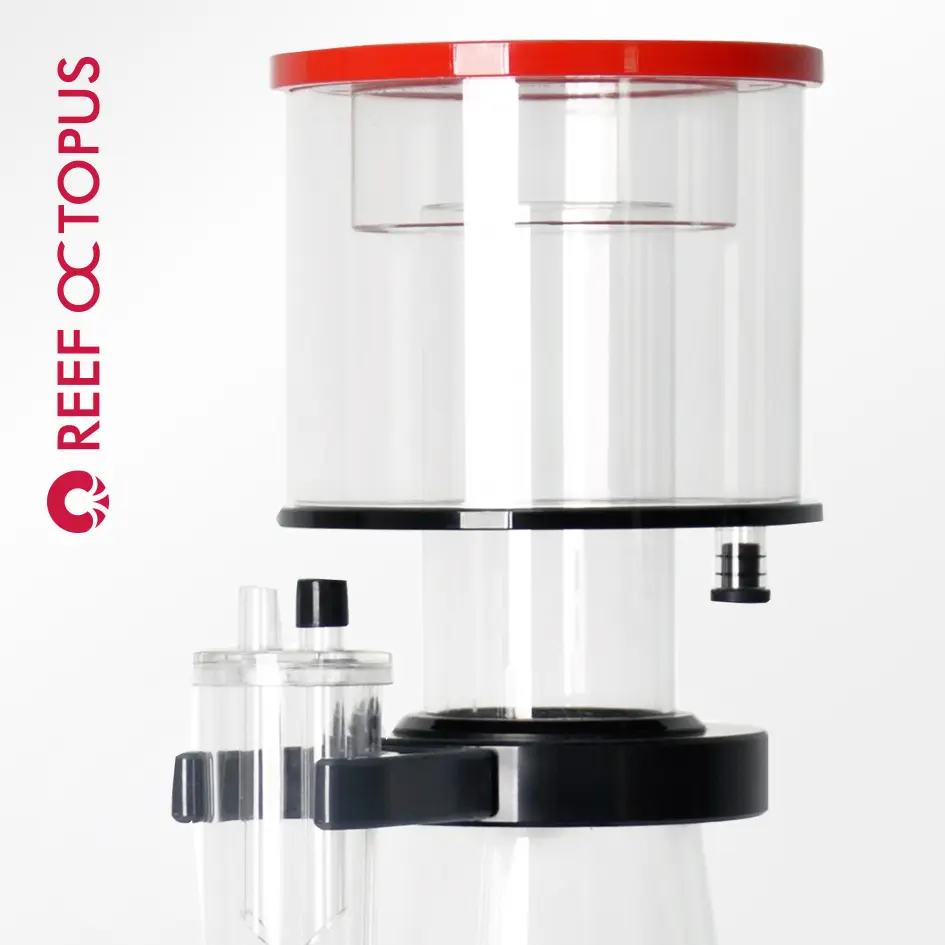

Effortless Cup Maintenance: Features a secure, quick-release neck seal so you can pull the cup for emptying without struggling.
Bioload Handling
Heavy Bioload: 60 Gallons
Medium Bioload: 90 Gallons
Light Bioload: 130 Gallons
Ideal For:
- Reef and saltwater systems from 60 to 130 gallons running a sump with 7–8 inches of available water depth.
- Hobbyists stepping up from a hang-on-back skimmer to their first in-sump unit.
- Sump builds where a compact-footprint in-sump skimmer with a reliable gate valve and quick-release cup is preferred.
- Systems where microbubble control is a priority, such as tanks with large open sump-to-display flow.
Pro Tips:
Set the gate valve slowly and give the skimmer time to respond. The gate valve controls the water level inside the skimmer body, and small adjustments have a delayed effect as the body stabilizes. Make a small adjustment, then wait 15–20 minutes before evaluating the result. Rapid back-and-forth changes during break-in are the most common cause of frustration with in-sump skimmers.
Measure your sump water depth before purchasing. The Classic 110-INT requires 7–8 inches of water in the skimmer chamber to operate correctly. Too shallow and the pump inlet comes out of the water; too deep and the body sits too high, pushing water over the neck. Most standard sumps accommodate this range, but verify before installation.
Use the cup drain to establish a routine emptying schedule. The drain port on the collection cup makes it practical to run a small-diameter tube from the cup to a waste container and empty it on a schedule rather than waiting for the cup to fill. This keeps skimmate from overflowing and keeps the neck cleaner, which improves foam consistency over time.

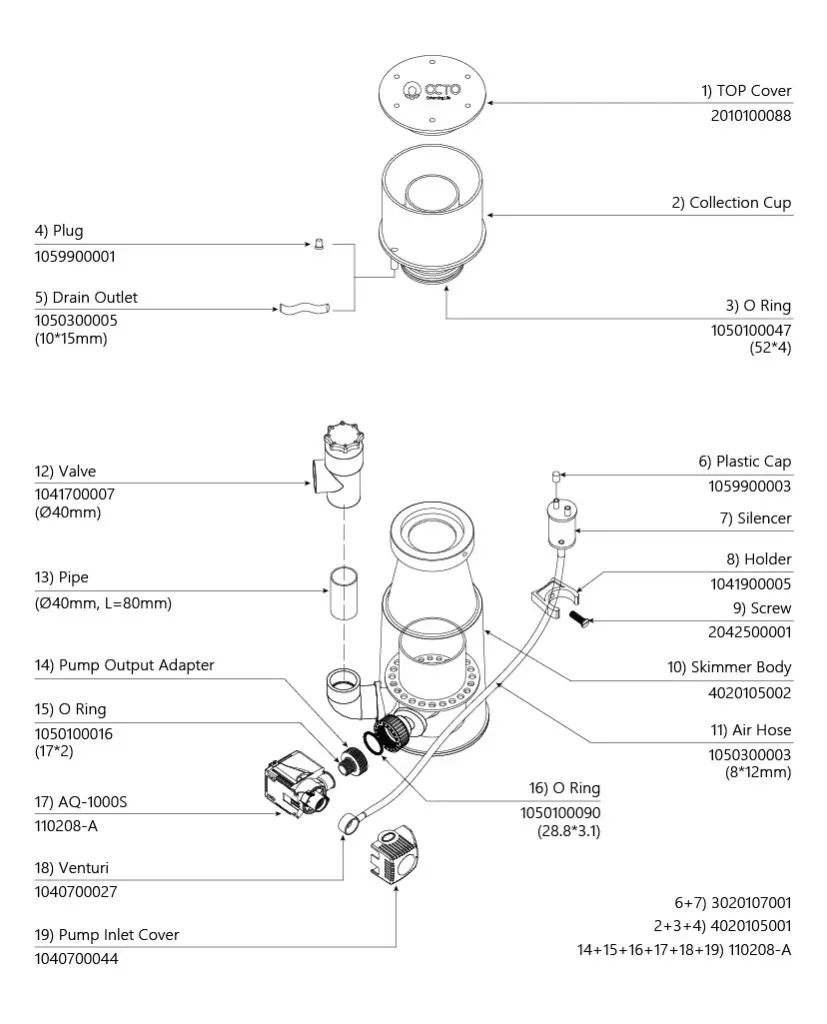

What’s Included:
(1) Classic 110-INT Skimmer Body & Bubble Plate
(1) Aquatrance 1000s Pinwheel Pump
(1) High-Volume Air Silencer with Airline
(1) Precision Output Gate Valve Assembly
Technical Specs:
Model / SKU: CLSC-110INT
Body Size: 5 in
Footprint: 10.4 in x 7 in
Total Height: 19.7 in
Neck Size: 2.3 in
Output Size: 40mm / 1.25 in PVC
Recommended Sump Water Depth: 7 – 8 in
Reef Octopus Aquatrance 1000S Pinwheel Pump
Wattage: 9w
Air Draw: 420lph / 15SCFH*
Water Draw: 350lph / 92GPH*
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Assemble the internal bubble plate diffuser and attach the Aquatrance 1000s pump to the skimmer body intake.
- Place the skimmer inside your sump chamber, verifying that your water depth sits between 7 and 8 inches.
- Route the airline from the pump venturi to the integrated air silencer, ensuring there are no sharp kinks.
- Open the precision gate valve completely before plugging the pump into a GFCI outlet.
- Once the water begins processing smoothly, gradually close the gate valve until the internal foam line sits at the base of the cup's neck.
- Allow 10–14 days for the new acrylic surfaces to fully break in before performing final precision tuning.
Pro Tips:
- Sump Depth Consistency. The Classic 110-INT relies on a constant external water level to maintain stable performance. If your sump water level fluctuates due to evaporation, the skimmer will fluctuate as well. We strongly advise pairing this in-sump unit with an Auto Top Off (ATO) system to keep your water depth perfectly locked at 7.5 inches.
- Simple Break-In Remedy. Brand-new skimmers frequently over-foam due to manufacturing oils left on the plastic. If your skimmer cup is immediately flooding with water upon startup, open the gate valve entirely and drop the pump speed (if controllable) or raise the skimmer up on an acrylic stand for the first week to minimize internal water pressure until it breaks in.
- Venturi Salt Check. If you notice that your skimmer is producing fewer bubbles or the water level inside the body keeps rising without adjustments, check the venturi nozzle where the airline meets the pump intake. Salt creep can slowly crystallize inside this port, blocking the air path. Simply clear it with a toothpick or dissolve it with a small splash of warm RO/DI water.
