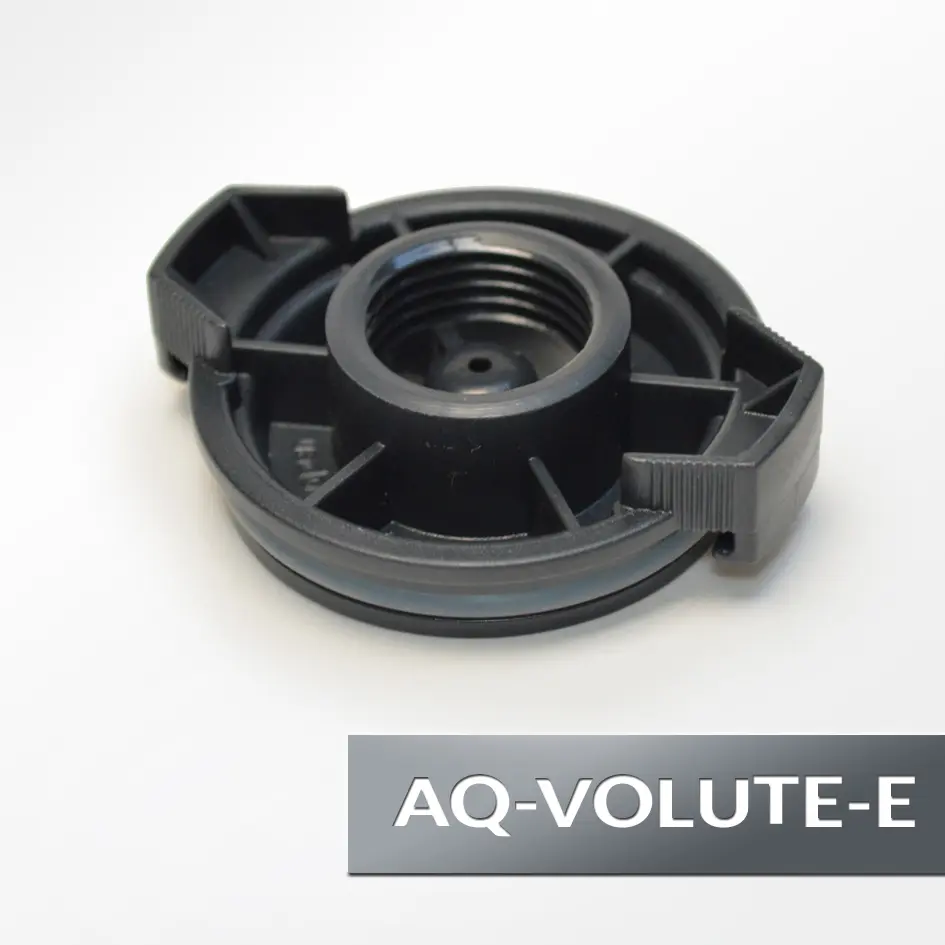

Octo Aquatrance 1000S Volute Cover E
SKU: ROP-AQ-VOLE
- Genuine OEM Factory Part: Crafted directly by Reef Octopus as an exact structural match to swap out cracked, warped, or leaking pump faceplates.
- Heavy-Duty Polymer Engineering: Injection-molded from a rugged, marine-grade plastic matrix to resist splitting under continuous system vibrations.
- Intake Optimization Design: Features the specific "E" series intake port geometry engineered to receive standard submersed or low-profile hang-on adapter fittings.
- Integrated Venturi Attachment Track: Seamlessly aligns with factory air-injection venturi tubes to maintain a steady micro-bubble froth volume.
- Quick Twist-Lock Alignment: Uses a low-friction locking track design that lets you remove the cover for quick cleaning without tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 1000S Replacement Volute Cover E (SKU: ROP-AQ-VOLE)
The Reef Octopus Aquatrance 1000S Replacement Volute Cover E (SKU: ROP-AQ-VOLE) is an authentic, structural OEM component distributed by CoralVue to preserve high-velocity water induction inside marine protein skimmers. The volute cover—or front pump faceplate—acts as the primary containment seal for the spinning needlewheel impeller assembly. Because protein skimmers rely entirely on a steady, perfectly proportioned ratio of air and water, maintaining a completely tight seal across the main pump housing is critical. Hairline fractures from dropping the pump during cleaning, or worn down twist-lock tracks from heavy calcium scaling, can cause the pump housing to draw air incorrectly or rattle, dropping organic waste extraction rates significantly.
The defining operational advantage of the ROP-AQ-VOLE configuration is its Explicit Letter Plumbing Profile. Reef Octopus manufactures several volute plates for the foundational Aquatrance 1000S motor block, labeled C through F. While the internal motor block engine dimensions remain identical, each letter represents a completely different external intake path. The Volute Cover E variation is custom-tailored to link seamlessly with specific compact footprints, making it the direct factory fit for the highly popular Classic 110-INT in-sump skimmer and the Classic 300-HOB hang-on-back model. Outfitted with precision alignment pins that seal tightly against factory rubber O-rings, this part serves as a drop-in update to keep your skimmer running at peak factory performance.
Key Features
Restores True Air Shredding: Seals the impeller chamber perfectly, forcing all incoming water and air directly through the needlewheel matrix to build a thick waste foam.
Resolves Pump Priming Faults: Creates a tight hydraulic seal that stops micro-air leaks from forming, ensuring your skimmer pump primes reliably after power cuts.
Glueless Maintenance Access: Twist-lock alignment pins slip smoothly into the pump stator frame, letting you take the pump apart for quick cleaning without tools.
(Note: This retail part contains (1) individual Aquatrance 1000S Volute Cover E. Internal needlewheel impellers, silicone rubber shaft end-caps, and rubber sealing O-rings are sold under separate product categories).
Reef Octopus Aquatrance 1000S Volute Variation Mapping
| Volute Configuration Scale | Material SKU Identifier | Onboard Connection Geometry Profile | Primary Skimmer Chassis Match |
|---|---|---|---|
| Aquatrance 1000S Volute C | ROP-AQ-VOLC | Sump-Ready Flanged Collar | Regal & In-Sump Space Saver Units |
| Aquatrance 1000S Volute D | ROP-AQ-VOLD | HOB Over-Rim Siphon Port Track | Classic 1000HOB, Classic 90HOB |
| Aquatrance 1000S Volute E | ROP-AQ-VOLE | Straight In-Sump / HOB Dedicated Port | Classic 110-INT (CLSC-110), Classic 300-HOB |
| Aquatrance 1000S Volute F | ROP-AQ-VOLF | Dual-Tier Multi-Diameter Thread | Classic 100HOB, Classic 100FHOB, BC-120int |
What’s Included:
(1) Reef Octopus Aquatrance 1000S Injection-Molded Replacement Volute Cover E
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance 1000s Volute Cover E
SKU / Factory Part Identifier: ROP-AQ-VOLE
Structural Housing Material Base: Saltwater-Safe Hardened High-Impact ABS Plastic
Locking Connection Interface: Direct Quarter-Turn Interlocking Tab Ring
Plumbing Alignment Profile Target: "E" Series Lettered Intake Induction Geometry
Chassis Platform Compatibility: Tailored for Reef Octopus Classic 110-INT (AQ-1000S) and Classic 300-HOB (AQ-1000S)
- Unplug your Reef Octopus protein skimmer pump from its electrical wall outlet. Remove the Aquatrance 1000S motor block from your skimmer chassis and transfer it to a dry workspace.
- Twist your old, damaged volute cover counter-clockwise roughly 15 degrees to disengage the locking tabs from the front of the motor block stator frame. Pull the cover straight away to expose the spinning pinwheel impeller.
- Check the internal rubber sealing ring tucked inside the pump face rim. Clean the track with a soft towel to clear away any loose salt crust or organic slime. Pro Tip: If your previous volute cracked because of heavy calcium buildup, soak the main pump face in a warm vinegar bath before mounting the new part.
- Align the locking ears of your new ROP-AQ-VOLE volute cover with the open slots on the front of the pump stator.
- Press the volute cover forward firmly against the sealing ring, and twist it clockwise until you feel it click into place. The intake port should point straight into its factory running position.
- Slide your venturi air-injection tube back onto its dedicated side inlet nipple, mount the pump back onto your skimmer body, and submerge the unit to resume normal protein skimming.
Pro Tips:
- Always Verify Your Skimmer Model Letters Before Completing Your Purchase. Because Reef Octopus uses the exact same Aquatrance 1000S motor block engine across their entire Classic skimmer collection, it is incredibly easy to order the wrong volute cover variant by mistake. Double-check your skimmer's official label before checking out. If you operate an in-sump Classic 110-INT or a hang-on Classic 300-HOB, this Volute Cover E is your exact factory part. However, if your tank runs a hang-on Classic 1000HOB, your pump needs Volute Cover D. Selecting the correct letter ensures your intake plumbing lines up perfectly without needing custom modifications.
- Apply a Thin Layer of Reef-Safe Silicone Grease to the O-Ring for a Perfect Seal. When mounting your new ROP-AQ-VOLE cover onto an older pump block, take a moment to pull out the large rubber sealing O-ring and wipe it down with a tiny dab of reef-safe silicone grease. Over years of continuous submersion, rubber seals can slowly dry out and become brittle. Lightly lubricating the ring helps the new volute tabs slide into place without binding, preventing micro-leaks and ensuring an airtight siphon lock.
- Never Force the Twist-Lock Rings If Calcium Buildup Blocks the Path. If you are taking your pump apart for routine maintenance and find that the volute cover is frozen shut or won't twist into place, stop and do not force the plastic tabs. Forcing a stuck volute will easily snap the locking ears off the plate or tear the tabs on the expensive motor block. Drop the entire pump block into a warm bath of water mixed with citric acid or white vinegar for 30 minutes. The acid safely dissolves the hard calcium scale, letting the parts slide apart and lock back together easily.
