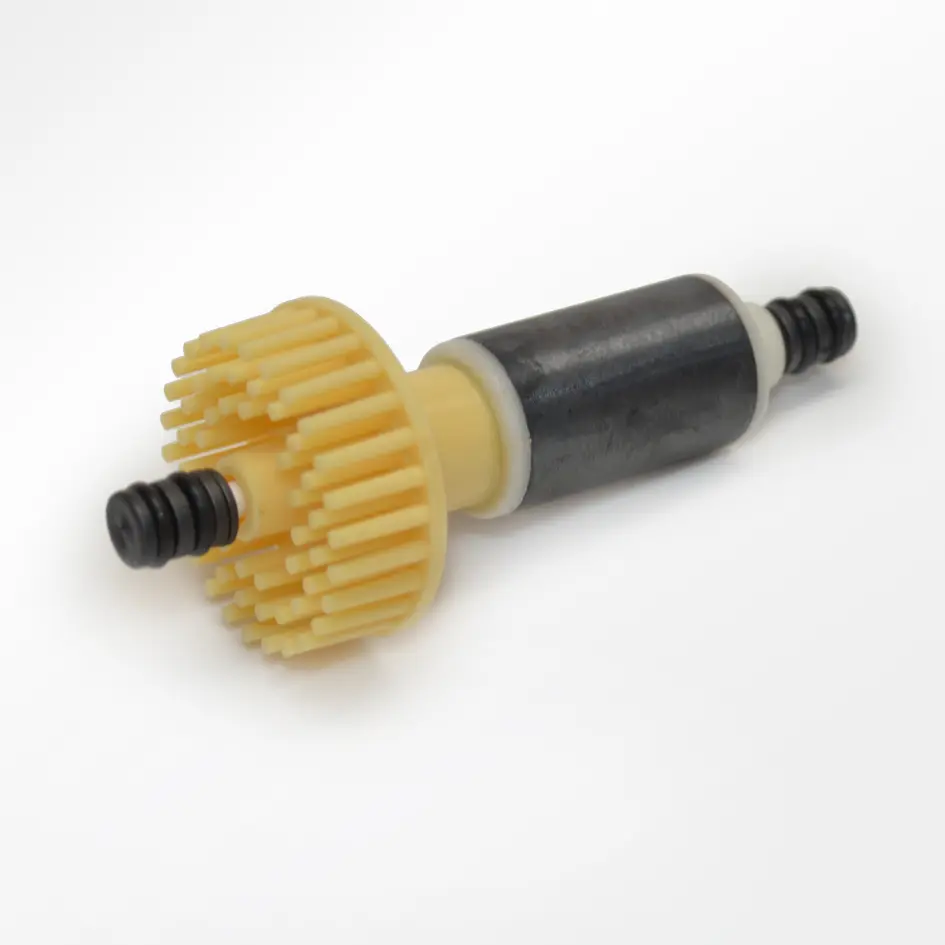

Octo Aquatrance 1000S Pinwheel Pump Impeller

1. Unplug your Reef Octopus skimmer from its electrical wall outlet. Remove the Aquatrance 1000S pump from your sump reservoir or hang-on chassis and transfer it to a dry workspace.
2. Twist the outer front volute cover counter-clockwise to unlock it, and pull it straight away from the main pump block to open the inner impeller chamber.
3. Grip the needlewheel plastic faceplate firmly and pull the old magnetic assembly straight out of the stator motor well. Warning: Neodymium magnets are highly powerful; grasp tightly to prevent the magnet from snapping back and pinching your fingers.
4. Check the deep inner well cavity using a flashlight. If your previous impeller shaft snapped, confirm that you have pulled out all old shards and the bottom rubber end-cap from the deepest point of the well.
5. Take your fresh ROP-AQ1000S-IMP impeller assembly out of its box and slide it straight down into the motor block cavity along its vertical axis until the magnetic field seats the rotor completely down.
6. Check that the front rubber end cap is securely sitting on the tip of the shaft. Line up the front volute cover, press it forward, and twist it clockwise to lock it shut. Reconnect your venturi airline and place your skimmer back into service.

Pro Tips:

• Never Run Your Skimmer Pump Dry to Avoid Melting Internal Components. Because pinwheel skimmer pumps are engineered with exceptionally tight tolerances around the spinning needle matrix, they depend heavily on the surrounding aquarium water to act as a lubricant and cooling thermal jacket. If you fire up your Aquatrance 1000S pump while dry—even for just a few seconds during a bench-top test—the extreme friction will cause the ceramic shaft to overheat rapidly. This intense localized heat can warp or melt the internal plastic pinwheel blades or lock up the motor block permanently. Always make sure the pump body is fully submerged before plugging it into power.
• Verify the Deep Motor Well is Empty Before Dropping In the New Assembly. When an old impeller shaft fails or snaps, one of the two small silicone rubber stabilization caps will almost always get left behind, jammed tightly down at the bottom of the deep motor well cylinder. If you drop your new ROP-AQ1000S-IMP assembly into the well while that old rubber cap is still stuck down there, the impeller will sit too high. This prevents the front volute cover from sealing correctly and can lock up the magnet or cause a loud rattling sound. Always use plastic tweezers or a flashlight to make sure the inner well is completely empty before dropping in your fresh part.
• Soak Your Pinwheel Assembly in Citric Acid Every 3 Months to Preserve Performance. Because your skimmer pump aggressively mixes ambient air with raw tank water, calcium carbonate and hard salt creep will naturally precipitate inside the hot motor block over time. This calcification forms a rough crust on the magnetic barrel and ceramic shaft, adding harsh friction that lowers air draw and degrades your skimmer's performance. Every 3 months, take the impeller out and soak it in a warm bath of water mixed with citric acid or white vinegar. This safely dissolves the hard mineral scale, keeping your needle-pins clean and ensuring your skimmer runs whisper-quiet.
