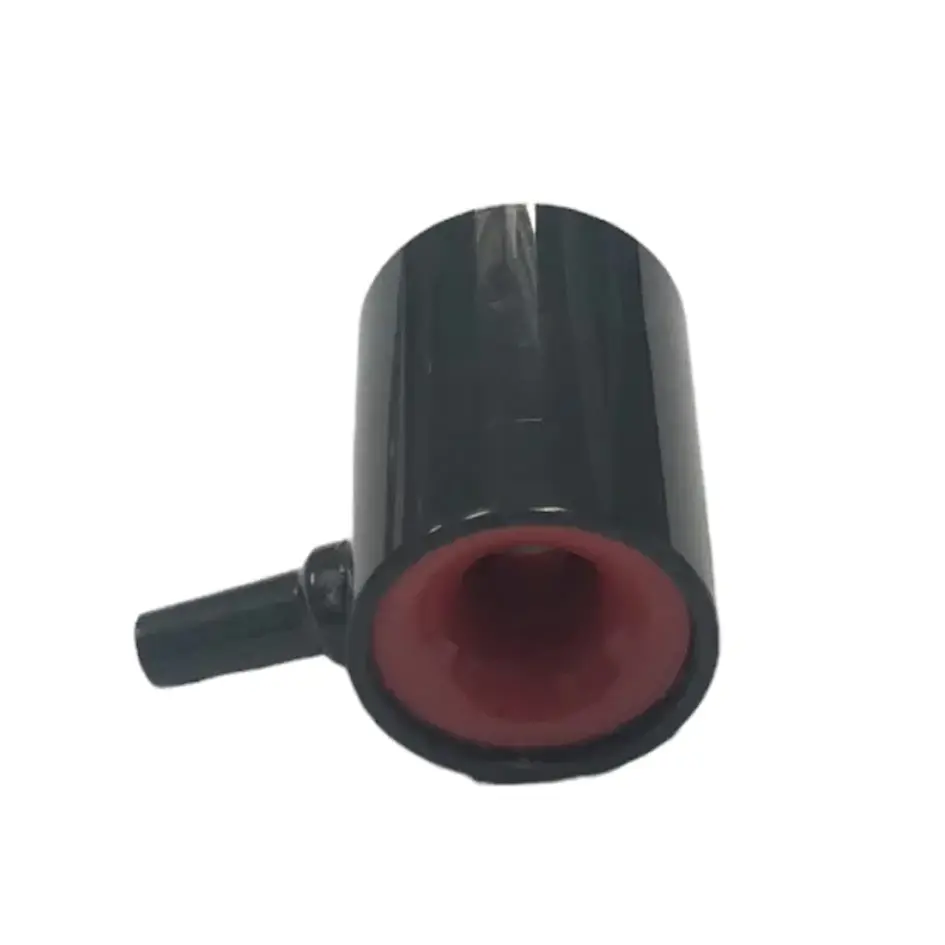

Octo CLSC-110SSS Aquatrance Venturi (AQ1000S)
SKU: ROP-AQ110S-V
- Genuine OEM Factory Part: Manufactured directly by Reef Octopus as an exact drop-in match to swap out cracked, loose, or mineral-blocked intake nozzles.
- Ultra-Compact Profile Mapping: Custom-shortened low-profile neck engineered exclusively to fit entirely inside tight internal space saver skimmer body hulls.
- Hydrodynamically Focused Constriction: Pinpoints internal fluid lines to exploit the Venturi effect, pulling up to 420 L/H of clean ambient air.
- High-Impact Saltwater-Safe ABS: Injection-molded from a dense, non-leaching polymer matrix that resists brittle stress fractures and salt creep breakdown.
- Integrated Airline Barbed Nipple: Features an integrated vertical air-intake port tailored to grab standard 1/4-inch flexible skimmer airline tubes.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Aquatrance 1000S Space Saver Venturi Adapter (SKU: ROP-AQ110S-V)
The Reef Octopus Aquatrance 1000S Space Saver Venturi Adapter (SKU: ROP-AQ110S-V) is an authentic, internal OEM air-induction component distributed by CoralVue to protect high-density bubble columns inside space-saving internal protein skimmers. In Space Saver (SSS) configurations, the pump engine is tucked directly underneath the bubble diffuser plate inside the primary skimmer body chamber to minimize the filter's footprint in crowded sumps. Because space inside the acrylic body is highly restricted, standard extended venturi horns will hit the interior walls. The ROP-AQ110S-V layout uses a specialized low-profile slide design that allows the pump to clear the curved acrylic shell while delivering identical vacuum properties.
Molded from high-grade, marine-strength ABS plastic, this venturi slides directly onto the faceplate casing of the Aquatrance 1000S (9W) skimmer pump. It stands as the direct factory-correct replacement for the highly popular Classic 110-SSS (Classic 110-S) Space Saver Skimmer, ensuring that air entering through your silencer line is cleanly mashed by the needlewheel matrix. By keeping an airtight connection on the suction side of your pump housing, this part guarantees a continuous column of waste-removing micro-bubbles.
Key Features
Corrects Dropped Air-Intake Rates: Rectifies weak foam production caused by loose or hair-fractured legacy fittings, keeping baseline air draw at 420 L/H.
Tool-Free Slide Fitting Updates: High-tolerance friction-slip geometry pushes directly into position over the factory pump volute, bypassing messy glues.
100% Inert Reef Safety Line: Formulated using pure injection structural polymers that will never leach manufacturing chemical stabilizers or toxins into delicate coral reef tanks.
(Note: This retail SKU contains (1) individual Aquatrance 1000S Space Saver Venturi Adapter nozzle. Silicone lines, air silencers, internal pinwheel impellers, and full pump stators are sold under separate product categories).
Reef Octopus Aquatrance Venturi Adaptation Matrix
| Component Classification Scale | Material SKU Identifier | Onboard Base Connection Track | Primary Target Skimmer Platform Match |
|---|---|---|---|
| Aquatrance Venturi AQ1000S | ROP-AQ1000-V | Standard Extended Slip | Classic 110-INT, Classic 110EXT Recirculating |
| Aquatrance Venturi AQ110S | ROP-AQ110S-V | Low-Profile SSS Slide | Classic 110-SSS (CLSC-110SSS), Classic 110-S |
| Aquatrance Venturi AQ150S | ROP-AQ150S-V | Low-Profile SSS Slide | Classic 150-SSS Space Saver Sump Lines |
| Aquatrance Venturi AQ2000S | ROP-AQ2000-V | Mid-Sized Extended Slip | Classic 150-INT, Classic 160-INT Sump Lines |
What’s Included:
(1) Reef Octopus Aquatrance Replacement 1000S Space Saver Venturi Adapter Nozzle for Classic 110-SSS
Technical Specs:
Official Manufacturing Title: Reef Octopus Aquatrance Venturi for AQ1000S (CLSC-110SSS)
SKU / Factory Part Identifier: ROP-AQ110S-V
Air Induction Connection Interface: Standard 1/4-Inch Integrated Slotted Barbed Nipple
Primary Structural Material Base: Saltwater-Safe Hardened High-Impact Injection ABS Plastic
Profile Geometry Dimensioning: Low-Profile Ultra-Short Intake Neck (Space Saver Clearance)
Chassis Platform Compatibility: Form-Fitted for Reef Octopus Classic 110-SSS (Space Saver) In-Sump Skimmers
- Unplug your Reef Octopus Classic 110-SSS protein skimmer pump from its electrical wall outlet. Lift the full skimmer out of your sump and move it to a clear workspace.
- Remove the collection cup, unthread the output wedge valve, and take off the internal bubble diffusion plate to expose the Aquatrance 1000S pump in the skimmer base.
- Pull the soft flexible silicone airline tubing away from the barbed intake nipple on your old, worn venturi nozzle. Slide the pump slightly out of its retention tracks if needed to gain clearance.
- Slide the old venturi straight out and away from the suction port of the front pump volute cover. Pro Tip: If dried salt creep or calcium scaling has locked the plastic parts together, soak the joint in warm water and white vinegar for 10 minutes before pulling.
- Push your fresh ROP-AQ110S-V space saver venturi nozzle firmly over the center intake ring of the volute cover until it sits squarely against the shoulder stop.
- Re-attach your silicone airline back onto the barbed vertical nipple, lower your bubble diffusion assembly back into place, slide the pump back down into its floor slots, and place the skimmer back into your sump.
Pro Tips:
- Never Mistake This Space Saver Adapter for the Standard ROP-AQ1000-V Version. Because Reef Octopus operates two distinct styles of the Aquatrance 1000S skimmer pump intake across their lines, it is incredibly easy to buy the wrong part by mistake. The standard Classic 110-INT in-sump skimmer uses an extended, long-necked venturi horn (ROP-AQ1000-V). If you try to force that standard long part inside an internal Classic 110-SSS Space Saver body, the horn will ram straight into the clear acrylic wall, making it impossible to drop the pump flat. Always select this short ROP-AQ110S-V variant if your pump is enclosed inside the body tower.
- Routinely Scrub the Internal Air Nipple to Eliminate Silent Salt Clogging. If you notice your space saver skimmer's performance dropping off over time, or if the water level inside the column keeps overflowing inexplicably, the problem is almost always a hard salt clog inside the venturi rather than a mechanical pump failure. Because the pump aggressively draws in ambient air, saltwater will naturally splash back into the line, drying out and creating a hard column of white calcium or salt creep inside the narrow intake nozzle. This restriction chokes off air draw, causing the pump to pull only water and flood the skimmer cup. Every 4 to 6 weeks, slide a small pipe cleaner or a stiff bristle brush through the air nipple to keep paths completely clear.
- Never Use Pliers or Hand Tools to Force the Venturi Onto the Volute Ring. Because this genuine OEM part is molded to exceptionally tight tolerances to form a perfect hydraulic vacuum seal, pressing the rigid plastic components together dry can sometimes feel very stiff. Avoid the temptation to grab a pair of household metal pliers to force the pieces together, as this will easily split the ABS plastic collar. Instead, wipe a tiny drop of fresh RO water inside the receiving sleeve of the new venturi. This acts as a safe, clean lubricant, allowing the adapter to slide into place smoothly without over-stressing the plastic structure.
