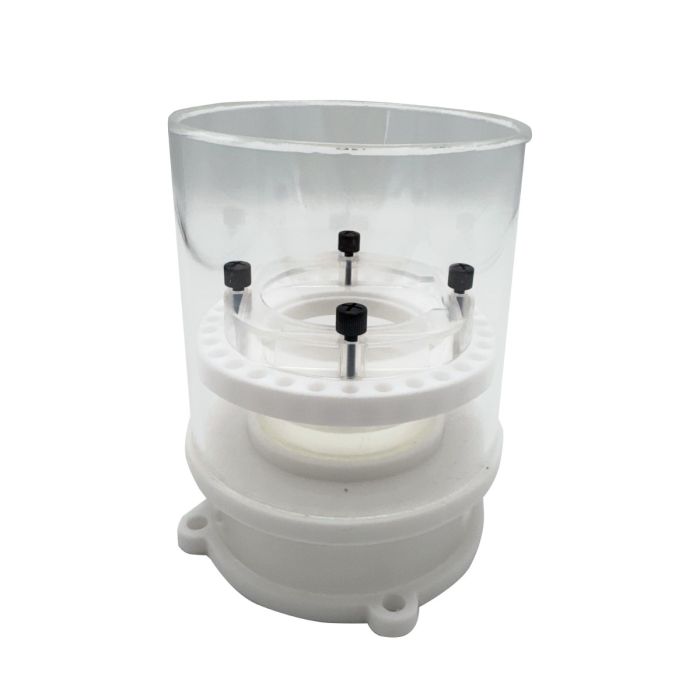

IceCap K3-160 OVP Replacement Bubble Chamber

IceCap K3-160 OVP Replacement Bubble Chamber

Key Features:

• OEM IceCap replacement part made to the same specification as the original
• Restores proper multi-stage air-water diffusion in the OVP reaction chamber
• Acrylic construction — marine-safe, durable, and corrosion-resistant
• Direct fit for the K3-160 OVP; no drilling, cutting, or modification required
• Significantly less expensive than replacing the full skimmer body

What's Included:

• 1× IceCap K3-160 OVP Replacement Bubble Chamber

Compatibility:

• IceCap K3-160 OVP In-Sump Protein Skimmer (IC-K3-160-OVP)
• Not compatible with K3-160 INT or any HOB model

Specifications:

• Material: Acrylic
• OEM replacement: Yes

Bubble Chamber Replacement — IceCap K3-160 OVP

1. Power off the DCAIR 2.5 pump and unplug the power supply before beginning any disassembly.
2. Loosen the four thumbscrews at the base of the skimmer body and rotate the body counterclockwise to lift it off the base.
3. Remove the DCAIR pump from the OVP volute by sliding the key over the pump, aligning it with the track on the side of the pump, and rotating counterclockwise to unlock.
4. Remove the damaged bubble chamber from the volute assembly.
5. Inspect O-rings and all mating surfaces for wear, cracking, or debris before installing the replacement.
6. Seat the new bubble chamber into the volute assembly, ensuring it is fully seated and properly aligned.
7. Reinstall the pump to the volute, rotate clockwise to lock, and confirm it is secure.
8. Reassemble the skimmer body onto the base, rotating clockwise, and gently tighten the thumbscrews; do not over-tighten.
9. Return the skimmer to the sump, ensuring the output valve is fully open (counterclockwise) before powering on.
10. Allow a minimum two-week break-in period before tuning the output valve.
