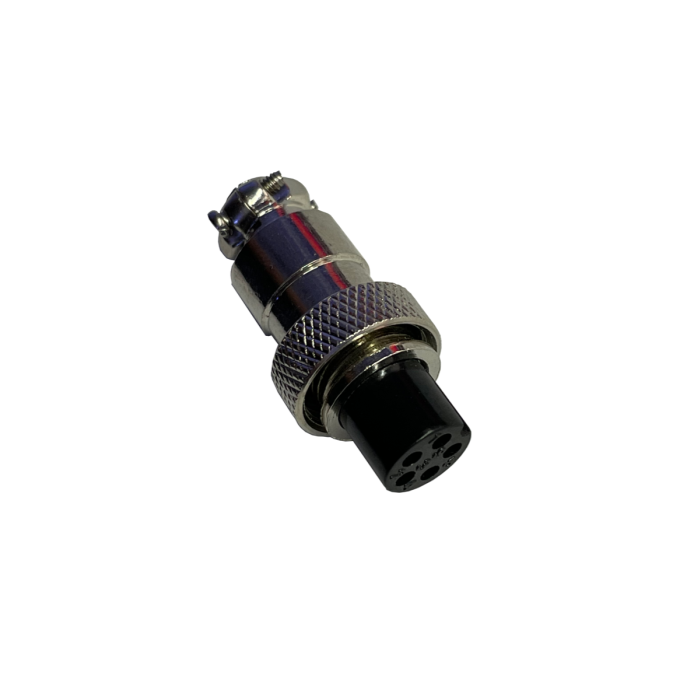

5-Pin Metal Female GX12 Connector for HYDROS Command Bus Port

SKU
HDRS-GX12-5
$3.00

This product is available at our retail partners. You can also find replacement parts and outlet items in our Outlet and Parts Store.


5-Pin Metal Female GX12 Connector for HYDROS Command Bus Port

Female HYDROS Connector mainly used for DIY Command Bus Port Cables.

Drive Port Pinout:

  • Pin 1: Ground
  • Pin 2: CanBus Signal H
  • Pin 3: CanBus Signal L
  • Pin 4: Ground
  • Pin 5: DC Power

Specification:

  • Pin: 5
  • Model: GX12-5
  • Contact diameter: 1.2mm
  • Contact impedance: 5MΩ
  • Insulation resistance: 1500MΩ
  • Rated current voltage: 5A-125V
  • Solder cup mouth aperture: 0.8mm
