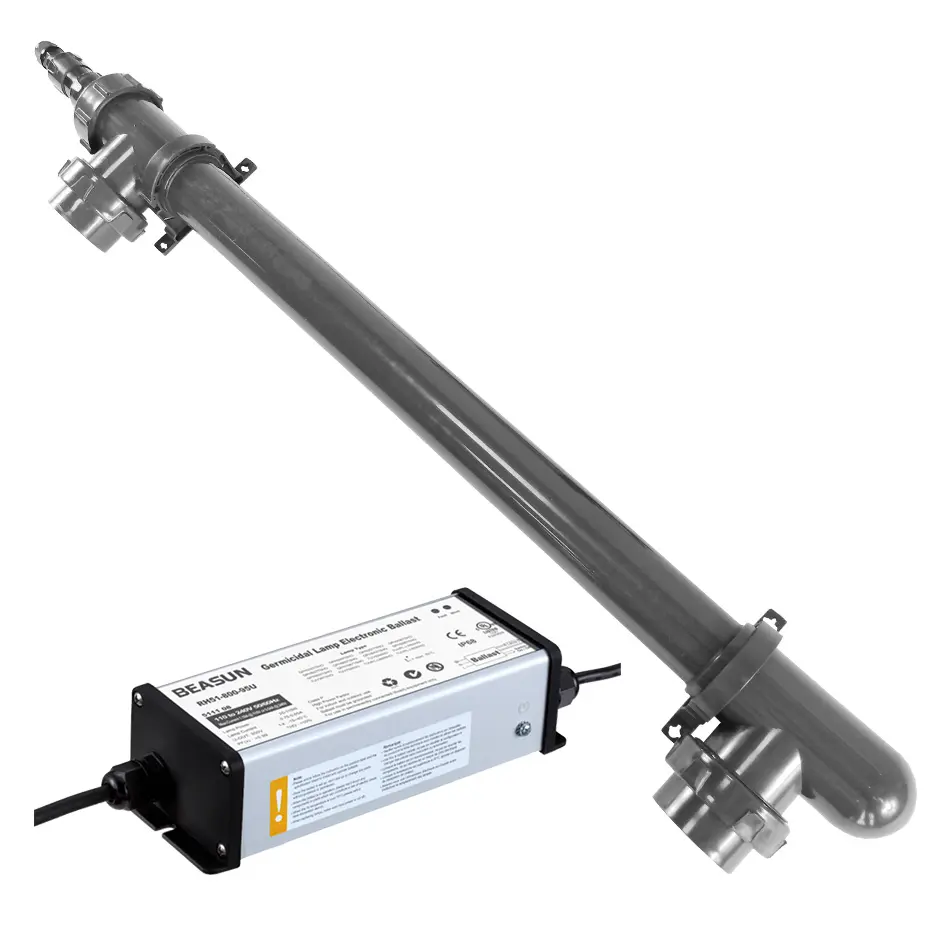

IceCap 90w High Output Inline UV Sterilizer
SKU: IC-HOUV-90W
MSRP: $ 519.74
-
Available Through Authorized Retailer
- Commercial-Grade Biological Sanitation: Emits high-intensity shortwave UVC radiation to permanently disrupt cellular DNA/RNA, neutralizing stubborn marine parasites and viral vectors.
- Heavy-Wall Inline Engineering: Formed with a massive, UV-stabilized black body vessel designed for out-of-sump placement with zero structural light bleed.
- Non-Restrictive 2-Inch Unions: Features massive 2-inch standard inlet and outlet ports to ensure maximum flow optimization with minimal head pressure drop-off.
- Dual-Installation Versatility: Arrives complete with heavy-duty structural mounting brackets to seamlessly secure the oversized vessel vertically or horizontally.
- Adaptable Plumbing Hardware: Includes a modular hardware pack with multi-tiered hose barbs and standard schedule 40 PVC slip adapters.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
IceCap 90W High Output External Inline UV Sterilizer (SKU: IC-HOUV-90W)
The IceCap 90W High Output External Inline UV Sterilizer (SKU: IC-HOUV-90W) is an authentic, commercial-grade water management system distributed by CoralVue to promote uncompromised biosecurity and crystal-clear water profiles in massive marine displays, multi-tank coral holding systems, and large freshwater aquaculture lagoons. Unlike typical consumer-grade clarifiers, the IceCap 90W High Output system utilizes an extended mercury-vapor arc tube to flood its high-velocity contact channel with an aggressive UVC energy payload (162 μW/cm2). As water-borne dinoflagellates, cloudy bacterial blooms, and free-swimming Cryptocaryon irritans (marine ich) tomonts pass tightly against the internal quartz sleeve matrix, the concentrated light exposure instantly disrupts their reproductive structures, shattering infection tracking lines.
Plumbed directly inline, the IC-HOUV-90W handles immense flow volumes up to 12,000 GPH for freshwater clarification and 3,000 GPH for critical marine parasite mitigation loops. Its heavy-wall, UV-shielded resin body protects your eyes and surrounding equipment from radiation degradation while radically improving your system's overall Oxidation-Reduction Potential (Redox). Whether attached to a dedicated commercial central filtration loop, a high-volume bypass manifold, or a main display return run, this high-performance sterilizer provides an uncompromised biological shield without modifying structural pH lines or introducing chemical residuals into the loop.
Key Features:
Halts Nuisance Algae & Parasite Outbreaks: Provides an industrial-strength defense line against free-floating parasites, destructive viruses, and cloudy green water.
Zero Impact on Reef Chemistry: Safely decontaminates the open water column while leaving your sand, rock, and media-bound beneficial nitrifying bacteria colonies unhindered.
Heavy-Duty Electronic Ballast Logic: Driven by a steady, regulated power harness configured to supply uniform current streams, maximizing the lamp's 10,000-hour useful lifespan.
Note: This retail SKU contains (1) complete operational inline system, including the commercial body vessel, 90W bulb, quartz sleeve, electronic ballast, mounting clips, and stepped hose barbs. High-flow feed pumps and PVC solvent glues are sold under separate product categories.
IceCap High-Output External Inline UV Catalog
What’s Included:
(1) IceCap External 90W High-Output UV Sterilizer Body Vessel Casing
(1) IceCap 90W 35.2-Inch High-Output Germicidal UV Replacement Lamp

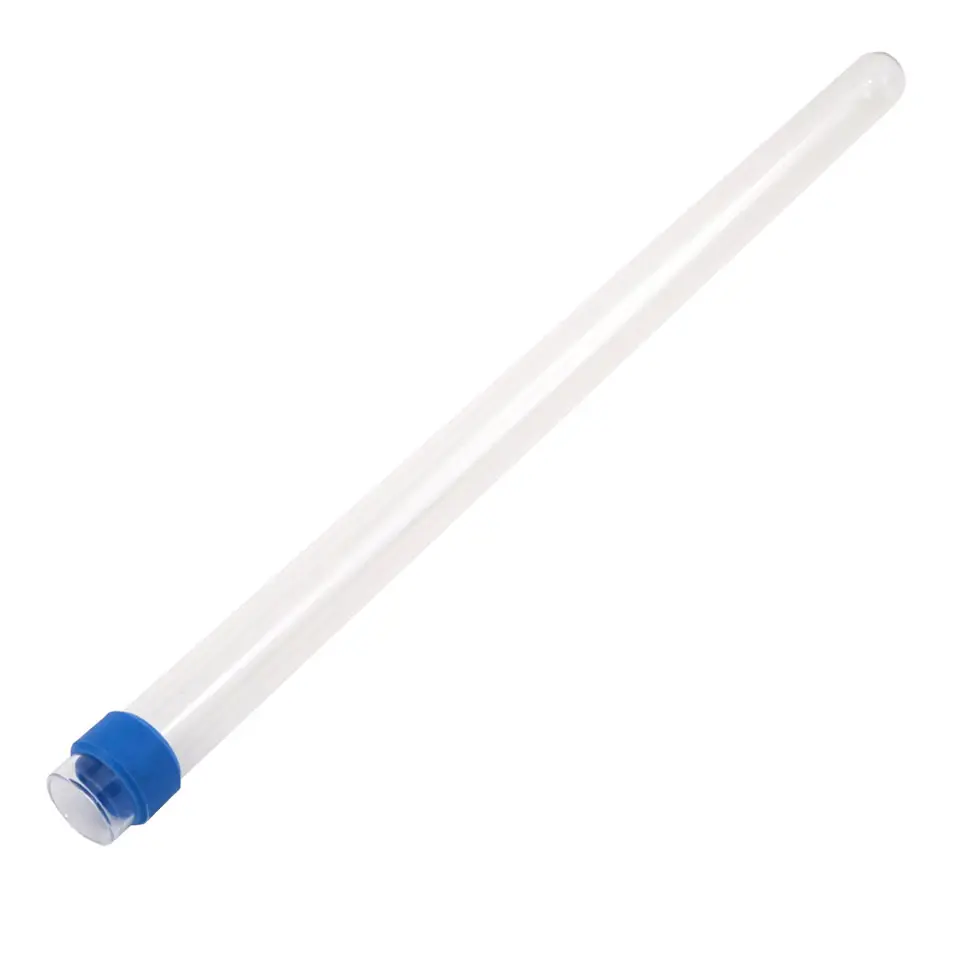

(1) Commercial High-Transmission Fused Quartz Glass Sleeve Tube
(1) Electronic Low-Heat Control Ballast Power Assembly

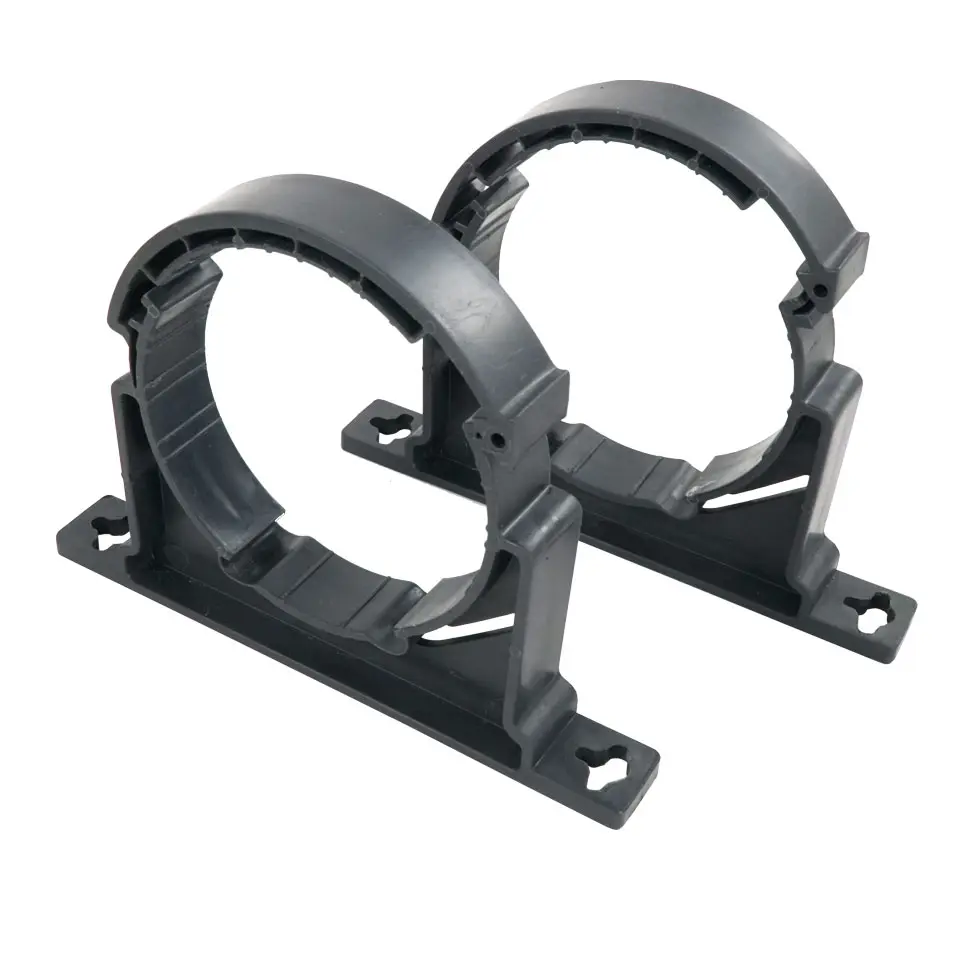

(2) Quick-Snap Commercial Mounting Wall Brackets

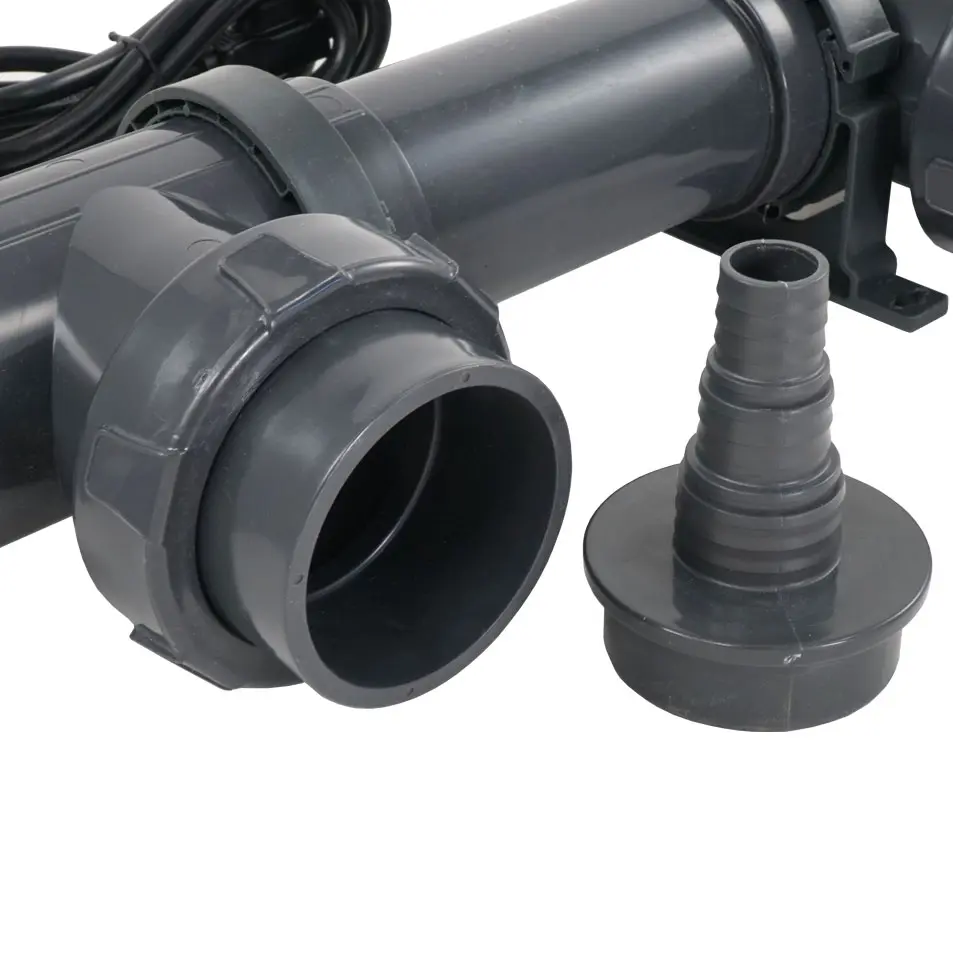

(2) 2-Inch Standard Slip PVC Adapters & Stepped Hose Barb Kits
Technical Specs:
Official Manufacturing Title: IceCap 90w High Output UV Sterilizer
SKU / Factory Part Identifier: IC-HOUV-90W
Total Operating Power Draw: 90 Watts @ 120V Line Input
Peak Germicidal Energy Node: 254 Nanometers (UVC Waveband Spectrum)
Estimated Functional Useful Lifespan: 10,000 Total Continuous Hours (Approx. 1 Year)
Native Port Geometry Profiles: Dual 2-Inch Threaded Slip Unions
Saltwater Tank Sizing Scope: Recommended for Marine Volumes up to 900 Gallons
Freshwater Tank Sizing Scope: Recommended for Freshwater/Pond Volumes up to 9,000 Gallons
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Instructions:

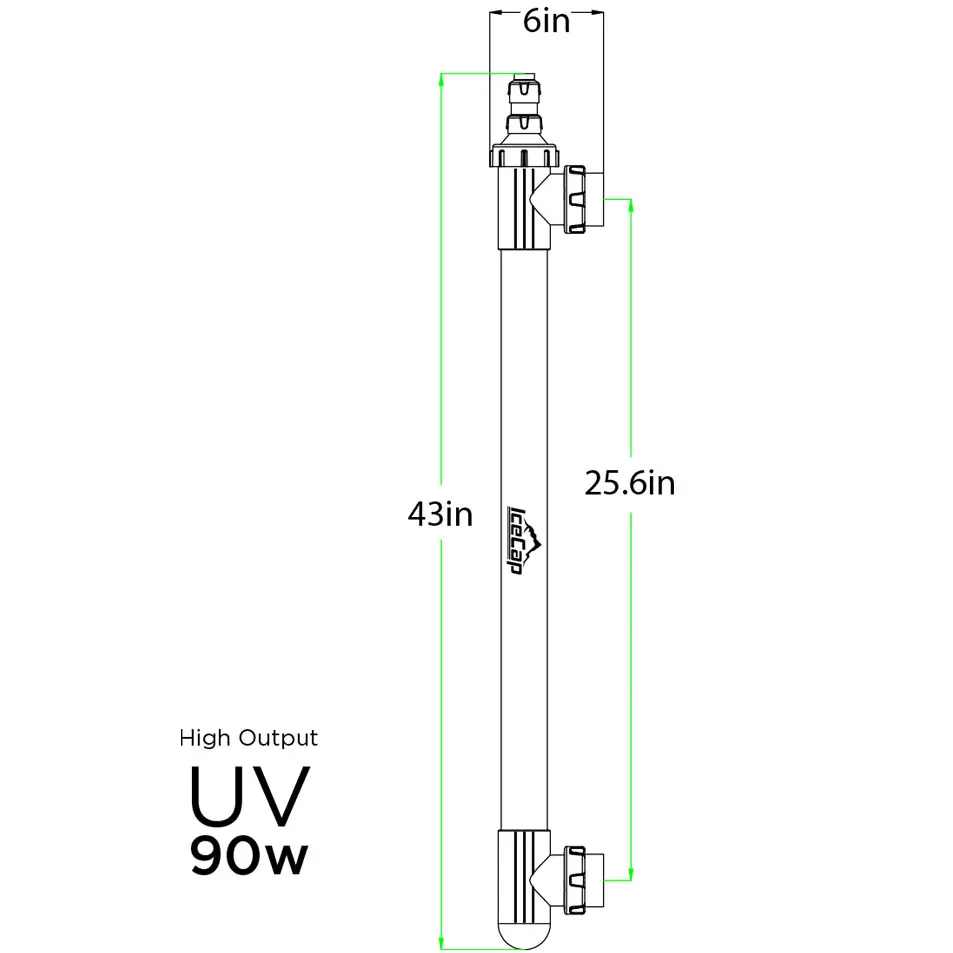

- t your plumbing layout, accounting for the vessel's 43-inch length. Mount the structural wall brackets to your wall stud frames or heavy cabinet framework using appropriate fasteners. Clip the empty UV vessel firmly into place.

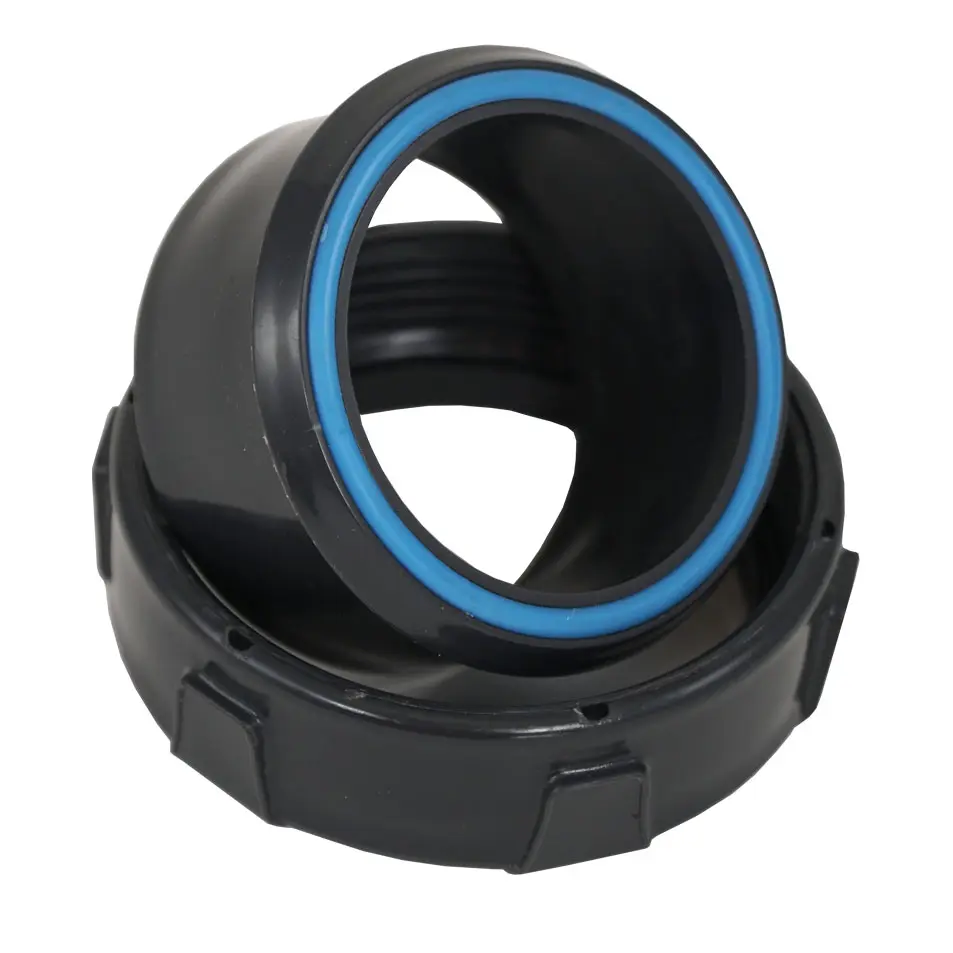

- Unbox the long clear quartz sleeve. Ensure the rubber sealing rings are positioned perfectly level with the rim. Gently slide the sleeve down the center of the vessel and thread the master compression collar cap clockwise entirely by hand until tight.
- The Essential Leak Test Step: Prior to inserting the electrical components, temporarily plumb the unit to your water source or run an active pressure test. Check all seals for 15 minutes to guarantee the dry quartz sleeve chamber remains 100% moisture-free.
- Slide the massive 90W lamp carefully out of its cardboard sleeve, holding it only by the white ceramic base with a clean cloth. Do not touch the clear glass with bare hands, as skin oils can degrade the quartz tube under high operating heat.
- Push the lamp prongs securely into the matching pin receiver on the ballast cord harness. Lower the bulb completely down the core of the dry quartz sleeve.
- Hand-tighten the upper ballast cord retainer cap to lock the wiring down. Connect your plumbing lines to the 2-inch unions, ensure your water loop is flowing continuously to expel air pockets, and plug the power cord into a GFCI-protected outlet.
Pro Tips:
- Balance Flow Speeds Precisely to Target Algae vs. Heavy Marine Parasites. To unlock maximum performance from your IC-HOUV-90W system, you must adjust your feed rate based on your target filtration goal. For water clarity and eliminating green water algae blooms on large ponds or aquariums, run a higher turnover rate matching a flow speed up to 12,000 GPH. However, if you are actively combating stubborn pathogens like marine ich (Cryptocaryon) or velvet across commercial holding facilities, you must slow the water down significantly, ensuring the flow never carbonizes past 3,000 GPH. Slower speeds maximize the UVC contact time required to tear through tough parasite walls.
- Execute an Annual Full Component Refresh to Avoid Performance Drop-Offs. While a high-output UVC lamp will continue to glow a visible blue color for multiple years, its hidden, germicidal pathogen-killing energy decays steeply after a year of continuous use. After 10,000 operating hours (roughly 12 months), the lamp's UVC output drops below functional levels. For a reliable annual maintenance baseline on high-bioload systems, always replace the 90W UV Lamp, the Quartz Glass Sleeve, and the Internal Gasket Seals at the same time. This resets your biological barrier back to factory-spec parameters and eliminates micro-fissure leakage risks.
- Never Plug in the Ballast or Look at the Lamp Face While Out of the Vessel Casing.
- WARNING: Direct exposure to shortwave ultraviolet (UVC) radiation is incredibly dangerous to human vision and bare skin. Never plug the replacement lamp into your ballast socket to check if it fires while it is sitting loose on your workbench. Looking directly at an unshielded active UV bulb can cause painful, irreversible corneal eye damage and instant skin irritation. Always ensure the lamp is fully lowered inside its opaque engineering polymer vessel with all retention tracking collars locked down tight before connecting the ballast plug to power lines.
