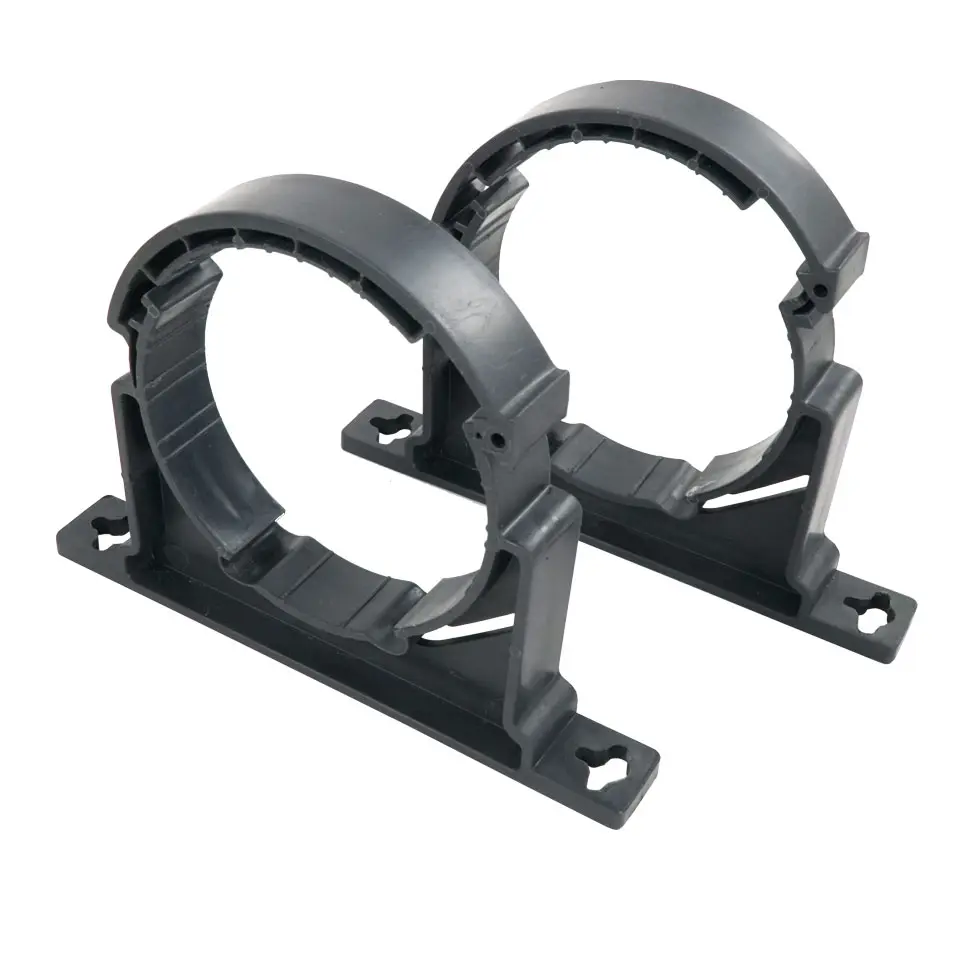

IceCap Inline UV Mounting Bracket Set
SKU: IP-UV-BRACK
- 100% Genuine OEM Factory Part: Manufactured directly by IceCap as an exact physical diameter match to snap smoothly onto original casing hulls.
- Complete Dual Hardware Set: Arrives from the factory as a full structural mounting loop containing (2) dedicated heavy-wall retention clamps.
- Corrosion-Proof ABS Construction: Forged from a dense, salt-air impervious polymer matrix that completely eliminates rusting, fading, or brittle structural fractures.
- Universal Shell Accommodation: Universally compatible across the 18W, 27W, and 40W In-Sump series alongside the 27W, 40W, and 90W High-Output External Inline UV sterilizers.
- Pre-Drilled Back Anchor Flanges: Built with integrated center-bore eyelets to accept standard mounting screws for clean plumbing alignment.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
IceCap High-Output UV Sterilizer Replacement Mounting Bracket Set (SKU: IP-UV-BRACK)
The IceCap High-Output UV Sterilizer Replacement Mounting Bracket Set (SKU: IP-UV-BRACK) is an authentic structural OEM hardware kit distributed by CoralVue to preserve clean plumbing lines and secure stable out-of-sump equipment configurations. Inline ultraviolet sterilizers are heavy, highly dynamic filtration cylinders that handle continuous high-velocity water currents. When plumbed horizontally or vertically inside a stand or utility closet, the continuous vibration from high-turnover return pumps can cause unsecured housings to shift, sag, rattle, or chafe against nearby framework. This persistent motion stresses hard-plumbing PVC weld joints or flexible vinyl lines over time, creating a risk of trace leaks. The IP-UV-BRACK set provides a secure anchoring system, wrapping tightly around the main chamber to absorb pump vibrations and keep your system firmly in place.
Molded to meet meticulous manufacturing thresholds, these structural components sit as Part 17 in the master engineering layout. Unlike rigid, custom aftermarket pipe hangers that scratch clear acrylic or pinch polymer shells, this flexible quick-snap bracket is contoured precisely to slide over the standard IceCap UV Casing Vessel diameter. Injection-molded from a dense, saltwater-inert polymer compound, the brackets handle prolonged exposure to high-humidity sump environments and salt spray without degrading or losing their shape. Upgrading to a fresh factory clip set re-establishes an organized, professional presentation while safeguarding your primary filtration circuit from accidental drops during a bulb refresh.
Key Features
Eliminates Plumbing Stress Points: Firmly anchors the weight of water-filled UV contact chambers to prevent sag or pressure cracks on surrounding line manifolds.
Provides Quick-Release Servicing Access: The flexible snap-open architecture allows operators to pull the entire sterilizer out of the closet tabs in seconds for annual bulb changeouts.
Tool-Free Modular Body Shell Integration: Snaps cleanly over the main barrel tracking lines without requiring alignment pins or compression collar pins.
(Note: This retail SKU contains (2) individual black mounting bracket clamps. Wall-mounting screws, hard PVC slip adapters, stepped hose barbs, clear quartz sleeves, and high-output UVC lamps are sold under separate product categories).
What’s Included:
(2) IceCap Replacement High-Output UV Sterilizer Vessel Snap Mounting Bracket Clamps
Technical Specs:
Official Manufacturing Title: IceCap UV Mounting Bracket
SKU / Factory Part Identifier: IP-UV-BRACK
Structural Hardware Configuration: Curved Open-Jaw Tension Flex Anchor Loop
Housing Material Composition: Non-Leaching High-Impact Injection ABS Polymer
Primary Shell Color Finish: Deep Marine Matt Black
Chassis Platform Compatibility: Form-Fitted for IceCap In-Sump and External Inline UV Systems (18W, 27W, 40W, 90W Body Shells)
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
- Map out your plumbing path inside your aquarium cabinet or wall space, ensuring the power cord will easily reach a GFCI outlet with an integrated drip loop.
- Hold one of the fresh IP-UV-BRACK modules against your mounting board, pass a wood screw (not included) through the pre-drilled back flange slot, and tighten it down with a manual screwdriver.
- Use a level to line up the second bracket at a distance that matches the smooth tracking lanes of your UV housing body. Secure the second clamp tightly into place.
- Take your assembled IceCap UV Sterilizer body vessel and align it with the open jaws of the mounted brackets.
- Press the body barrel firmly into the brackets until the flexible polymer jaws flex outward and snap completely around the diameter of the cylinder.
- Verify that the ports point in the correct direction for your plumbing layout, link your intake/discharge plumbing lines to your water loop, and proceed with system operation.
Pro Tips:
- Mount the Sterilizer with the Electrical Ballast Cord Facing Upward to Expel Trapped Air. If you are using this bracket set to mount your inline UV sterilizer vertically on a cabinet wall, always orient the body shell so that the electrical wire end faces straight up toward the ceiling. Plumb your plumbing source so that water enters at the bottom port and exits through the top port. This layout forces any trapped micro-bubble air pockets inside the vessel to naturally purge back into your display tank. If you mount it upside down, air pockets can become trapped around the top of the quartz sleeve, causing internal hot spots that can warp the plastic casing and cause seals to fail prematurely.
- Hand-Tighten Mounting Screws to Avoid Cracking the ABS Base Flange. When attaching your fresh IP-UV-BRACK set to wooden stand panels or wall tracks, always sink your mounting screws using a manual hand screwdriver. Avoid using high-torque electric drills or power drivers. Over-driving a long metal screw into the recessed back slot with a power tool can easily crack or shear the plastic ABS mounting tab off the back of the bracket, rendering the clamp useless before it even holds water weight.
- Ensure At Least 12 to 36 Inches of Overhead Clearance for Stress-Free Maintenance. Before drilling your new brackets into a permanent position inside your stand, double-check your clearance room. Remember that every 12 months, you will need to slide the elongated high-output lamp out of the top core to change the bulb. If you mount the brackets right up against the ceiling of your cabinet stand, you will be forced to un-snap and replumb the entire sterilizer every time you perform a routine bulb change. Leaving a clear path above the unit allows for smooth, stress-free maintenance down the road.
