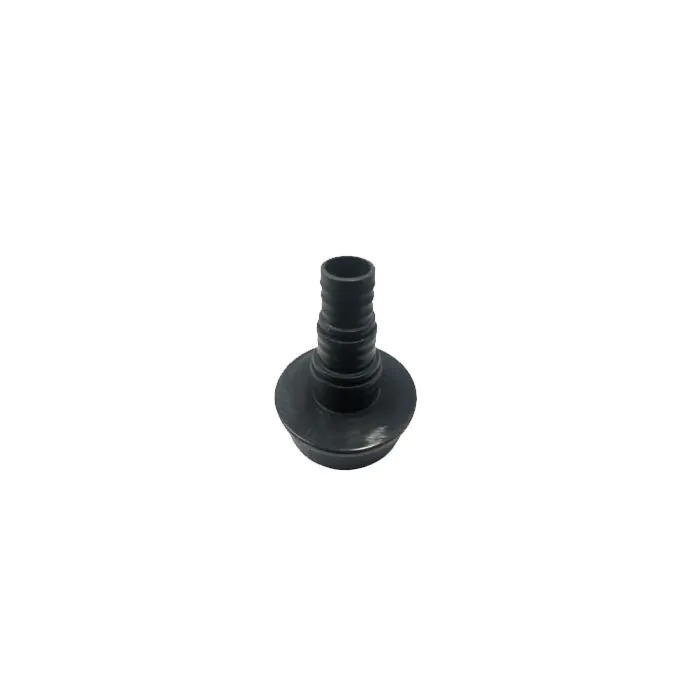

IceCap Inline UV Sterilizer Barb

1. Shut down your central aquarium return pump or the dedicated feed line supplying your inline UV bypass loop. Close upstream and downstream ball valves to isolate the circuit, and drain the water column completely.

2. Unthread the large threaded quick-disconnect union nuts counter-clockwise on the port of your UV sterilizer body to pull the spent fitting line away from the main casing.

3. The High-Flow Trimming Step: Determine your soft hose inner diameter. If you are using 1-inch hosing, use a standard hacksaw or sharp serrated knife to cut completely through the narrow 1/2-inch and 3/4-inch upper plastic tiers at the gap. This prevents the smaller steps from choking down your water flow.

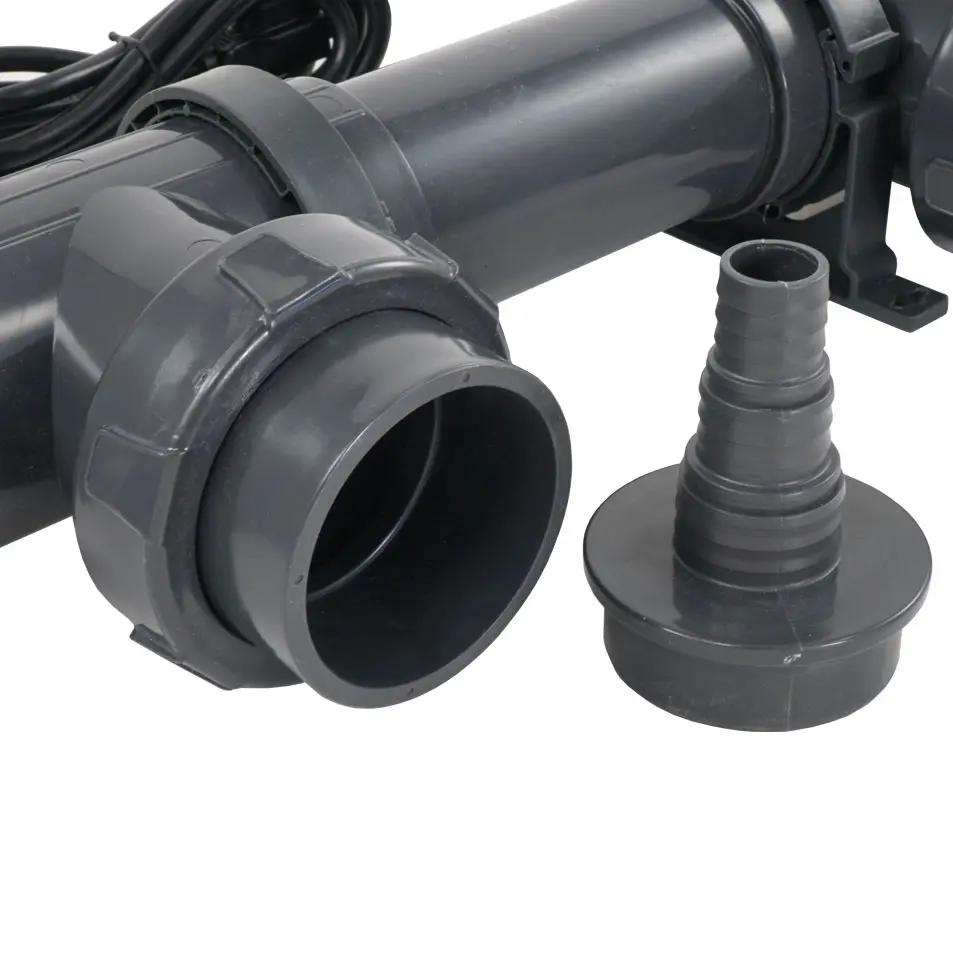

4. Slide your factory threaded union nut (Part 14) onto the back of your 2-inch PVC slip adapter (Part 13) prior to gluing, then use standard PVC purple primer to clean the interior of the slip adapter socket and the exterior of the new IP-UV-BARB shoulder.

5. Apply a thin layer of PVC solvent cement to both primed tracks, push the barb's slip shoulder firmly into the PVC slip adapter with a quick 1/4-turn twist, and hold it steady for 15 seconds to form a permanent solvent weld.

6. Push your flexible vinyl tubing over the matching barb steps until it sits flush, lock it down tight using a heavy-duty plastic or marine-grade stainless steel hose clamp, check that your internal port O-ring is inside the union nut, and thread the collar clockwise back onto the housing port until hand-tight.

Pro Tips:

• Always Trim Off Unused Smaller Barb Steps to Stop Heavy Flow Choking. If you are plumbing your inline UV sterilizer using larger 3/4-inch or 1-inch flexible vinyl hosing, always saw off the smaller, narrower barb steps before installing the fitting. Leaving the narrow 1/2-inch step intact inside a 1-inch hose line creates a massive internal restriction. This restriction drastically cuts down your pump's flow volume, spikes back-pressure along your lines, and drops your total tank turnover below the parameters required to effectively neutralize waterborne parasites.
• Never Forget to Secure Every Flexible Hose Connection with a Secondary Hose Clamp. While flexible vinyl hosing can feel quite tight when pushed over the ridges of your fresh IP-UV-BARB adapter, never run your system without adding a secondary heavy-duty plastic snap-clamp or marine-grade stainless steel hose clamp over the tube. Over months of continuous operation, warm water cycles can soften vinyl hosing, causing it to expand. Without a mechanical clamp locking the tube down, the continuous pressure from high-turnover pumps can easily pop the line right off the smooth barb steps, leading to a catastrophic equipment room blowout.
• Always Solvent-Weld the Barb and the 2-Inch Slip Adapter Together Before Assembly. The slip shoulder on the base of this barb fitting is designed to be chemically welded directly inside your system's primary 2-inch PVC Slip Adapter (Part 13) using standard aquarium-safe PVC primer and solvent cement. Never attempt to simply push the barb loose into the housing connection or rely on teflon tape to hold the joint under pressure outside of your sump box. Skipping the proper solvent weld step will lead to a high-pressure line failure the second your system handles active pump flow.
