  • Maxspect Turbine Duo 9K Pump

Maxspect Turbine Duo 9K Pump

Maxspect
SKU
MAX-TD-9K

Multi Application and Expandable Water Pump

The first water pump that is configurable to the typical single input/output pump configuration as well as a dual input/output for additional flow reaching 2500gph!

Available Output Configurations

Single IN/OUT - Flow: 1,320gal    |    Head: 9ft    |    Wattage: 45w
Double IN/OUT -  Flow: 2,500gal    |    Head: 8ft    |    Wattage: 68w
Combined OUT -  Flow: 2,250gal    |    Head: 7.5ft    |    Wattage: 68w

For submerged applications only!

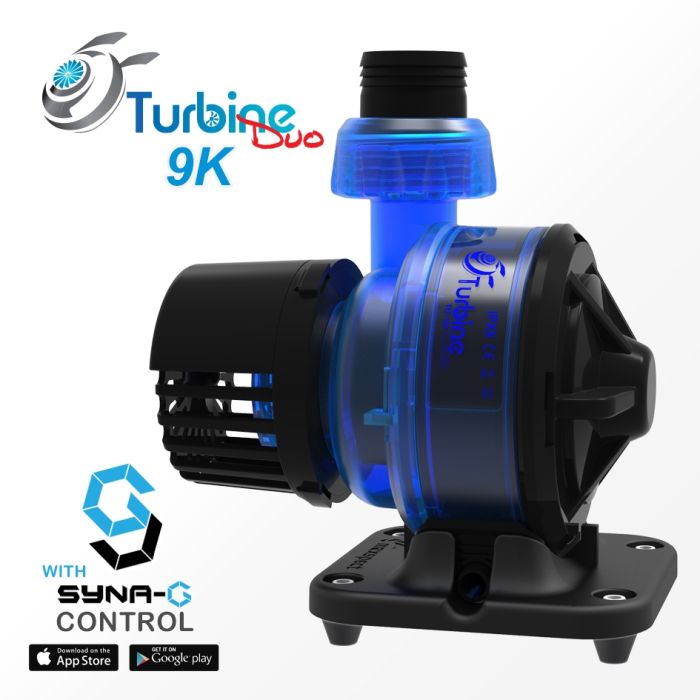

main product photo

The First Expandable DC Water Pump

The Maxspect Turbine Duo is the first EXPANDABLE water pump available for both freshwater and marine hobbyists.

It is capable of pushing 1,300 GPH using a single output or, best of all, add a second intake and output to the same pump and increase your flow to 2,500 GPH!  That is a total of 1,250 GPH per output.  Even better, combine the two outputs into a single output (adapter included) and get 2,250 GPH from a single output!

Versatile and Multi-purpose

The dual output design makes the Turbine Duo an ideal pump for multi-purpose applications such as a return pump(s) AND feed manifolds.  Or use the pump as a return pump AND media reactor OR chillers OR UV, etc


Compact Performance

The Turbine Duo features three (3) separate configurations. I can replace two "regular" pumps.  Break down the pump to an ultra-compact powerhouse using far less space within your sump.


Outstanding Efficiency

The Turbine Duo offers high performance while consuming less energy than the competition.  It is incredibly quiet!


Complete Set of Accessories

Each Turbine Duo comes with a complete set of adapters and accessories for simple to install to almost any system right out of the box.


Multi-Application DC Water Pump

  • Expandable to TWO Outputs
  • Capable of Multiple Configurations
  • Super Efficient Performance
  • Utilizes Sine Wave Technology for Silent Operation
  • Ultra-Compact Flow
  • Multi-Directional Output(s)
  • Complete with Accessories and Adapters
  • Wireless Control with easy-to-use Syna-G app*

*Maxspect Connect ICV6 and smart device are required, but not included, for wireless wifi connection and advanced controllability.

Turbine Duo 9k Water Pump Specifications

Type: Internal Return / Flow Pump

Max Flow: 2,500gph
Max Head:13ft

Voltage: 24v DC
Wattage: 8-66w
Dimensions: 5.5 x 3.8 x 5.7in
Weight: 2.65lbs

Included Fittings

Intake x2: Intake screens w/ shield, 1in PVC slip fitting, nut, seal
Output x2: 3/4in PVC slip fitting, 1/2-3/4 transitional barb fitting, 1-1 1/4 stepped barb fitting, nut, seal
Y-Tubing: Y Tube, 1in PVC slip fitting, 1-1 1/4in stepped barb fitting, nut, seal
Dual Outlet: Volute, Propeller

Duo Output Flow Specifications

Zero Head

Max Flow: 2,500gph
Max Wattage: 68
Max Head: 8ft

5 Ft Head

Max Flow: 1,200gph
Max Wattage: 60w
Efficiency: 26 G/w

Single Output Flow Specifications

Zero Head

Max Flow: 1,320gph
Max Wattage: 45
Max Head: 9ft

5 Ft Head

Max Flow: 925gph
Max Wattage: 40w
Efficiency: 24 G/w

Combined Output Flow Specifications

Zero Head

Max Flow: 2,250gph
Max Wattage: 68
Max Head: 7.5ft

5 Ft Head

Max Flow: 1,320gph
Max Wattage: 60w
Efficiency: 24 G/w


WARRANTY

CoralVue, Inc. and Maxspect hereby guarantee this product to be free from defects in material and workmanship for a period of:

  • 90 Days

Warranty is activated on the date of purchase.

This Standard Limited Warranty applies and is limited as follows:

  • To the product only as long as it remains in the possession of the original purchaser.
  • To the product that has not been subject to accident, misuse or abuse.
  • To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
  • That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
  • That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
  • Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.

Click here to learn more.

PRODUCT SUPPORT

To submit a warranty claim, please visit our CoralVue Support Portal.
