Octo VarioS 10 (Pressure Rated) Controllable Return Pump
SKU: VARIOS-10
MSRP: $ 1,154.99
-
Available Through Authorized Retailer
- Flagship Commercial Performance: Industrial-class variable speed DC water pump engineered specifically for large-scale multi-tank systems, public aquaria, and high-pressure manifold loops.
- Elevated 36V Power Architecture: Driven by an advanced 36-volt brushless motor core that safely handles extreme head height pressures while remaining exceptionally energy-efficient.
- Massive Volume Output Profile: Generates a maximum volumetric delivery rate of up to 4,226 gallons per hour (GPH) with an ultra-potent maximum shut-off head height rating of 29.5 feet (9.0 m).
- Intelligent 5-Speed Smart Controller: Includes a dedicated water-resistant touchpad driver featuring dual pre-programmed feed pause windows (15 or 60 minutes) and soft-start ramp logic.
- 0-10V Third-Party System Hookup: Outfitted with an isolated analog control port, enabling complete automation syncing via popular aquarium computers like the Neptune Systems Apex or GHL Profilux.
- Submersible or Dry Inline Deployment: Dual-configuration volute body design functions flawlessly as a fully submersed sump pump or as a high-pressure, dry external circulation engine.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

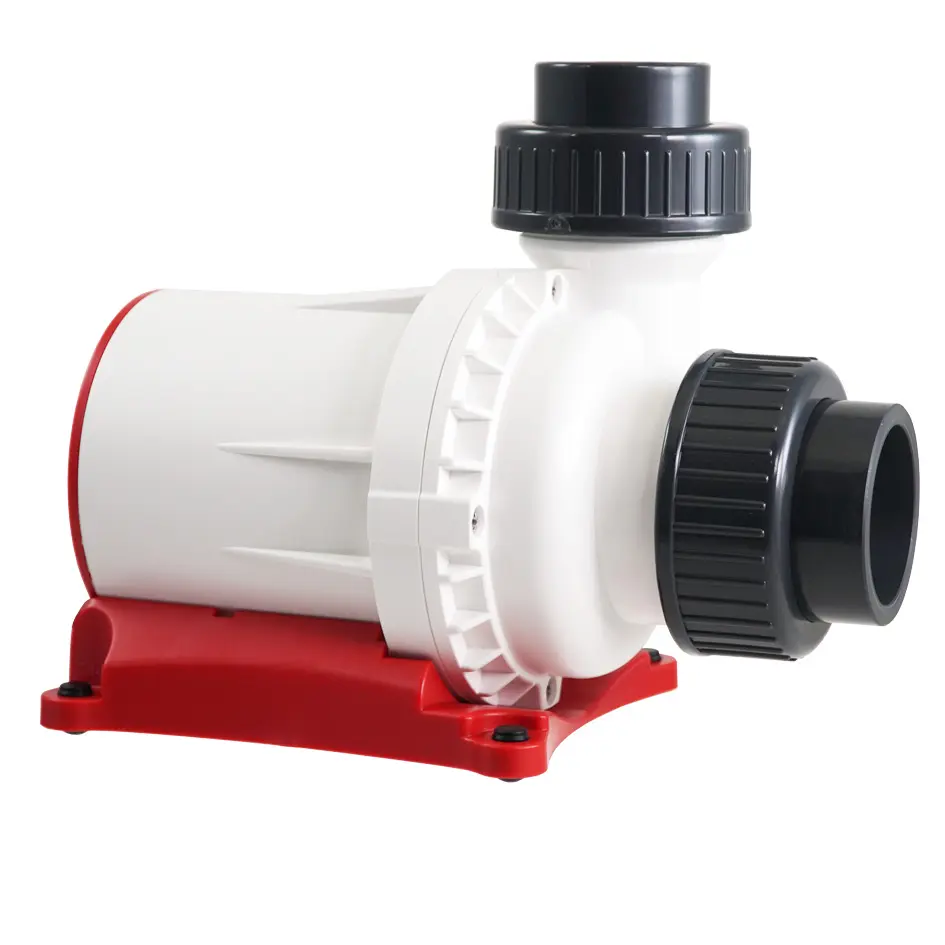

Reef Octopus VarioS-10 Controllable DC Return Pump (Pressure Rated)
The Reef Octopus VarioS-10 Controllable DC Return Pump (SKU: VarioS-10) represents the absolute pinnacle of high-volume, pressure-rated aquarium circulation engineering distributed by CoralVue. While typical 24-volt DC aquarium pumps easily lose performance when fighting gravity up tall cabinet pipes or pushing through complex filtration manifolds, the VarioS-10 runs on an industrial-tier 36-volt DC power grid. This increased electrical volume allows the brushless motor block to develop immense torque, making it a true pressure-rated circulation engine. Delivering up to 4,226 GPH of water transit and conquering an extreme 29.5-foot maximum vertical head height barrier, this flagship model is built for heavy-duty applications like basement multi-tank systems, dedicated fish-room distribution loops, or driving massive commercial protein skimmers.
At the core of the VarioS-10 is absolute system protection and customization. The pump comes bundled with a dedicated smart controller that features a water-resistant membrane touchpad, letting you scroll through 5 distinct preset speed settings to precisely match your overflow draining capacities without using restrictive mechanical ball valves. The controller includes a dedicated 0-10V input port for third-party automation hookups, and a safety float switch jack that allows you to establish an automatic shut-off safety loop if a collection cup fills or a sump section drops too low. Outfitted with an ultra-durable polished ceramic shaft and an internal heat-dissipating housing, the VarioS-10 runs cool and whisper-quiet, bringing heavy commercial fluid dynamics to high-end marine environments.
Key Features

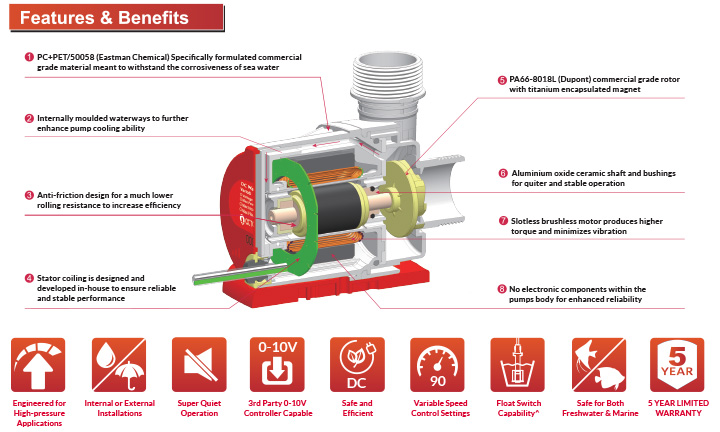

True Pressure-Rated Impeller Geometry: Features a custom-sculpted closed impellor profile designed to maintain high flow velocities even when working against heavy plumbing backpressure.
Livestock & Overfill Safety Loops: Direct connection port for an electronic float switch safely cuts off all motor power before a skimmer over-foams or a sump basin runs completely dry.
Soft-Start Internal Logic: Gradually ramps the motor from zero to your preferred operational speed over several seconds, eliminating damaging pipe hammer and structural line rattling.
Premium Thermal and Ceramic Components: Utilizes a highly polished structural ceramic shaft and specialized heat-sink tracks to keep the motor running perfectly cool under nonstop, high-amperage usage.
Verified Hardware Configuration
Suction Input Port Sizing: Features an oversized 50mm (1.5-inch) metric male threaded intake bay to guarantee un-constricted water induction.
Discharge Output Port Sizing: Formed with a 40mm (1.25-inch) metric male threaded discharge port engineered to handle high-velocity output vectors seamlessly.
Enhanced Control

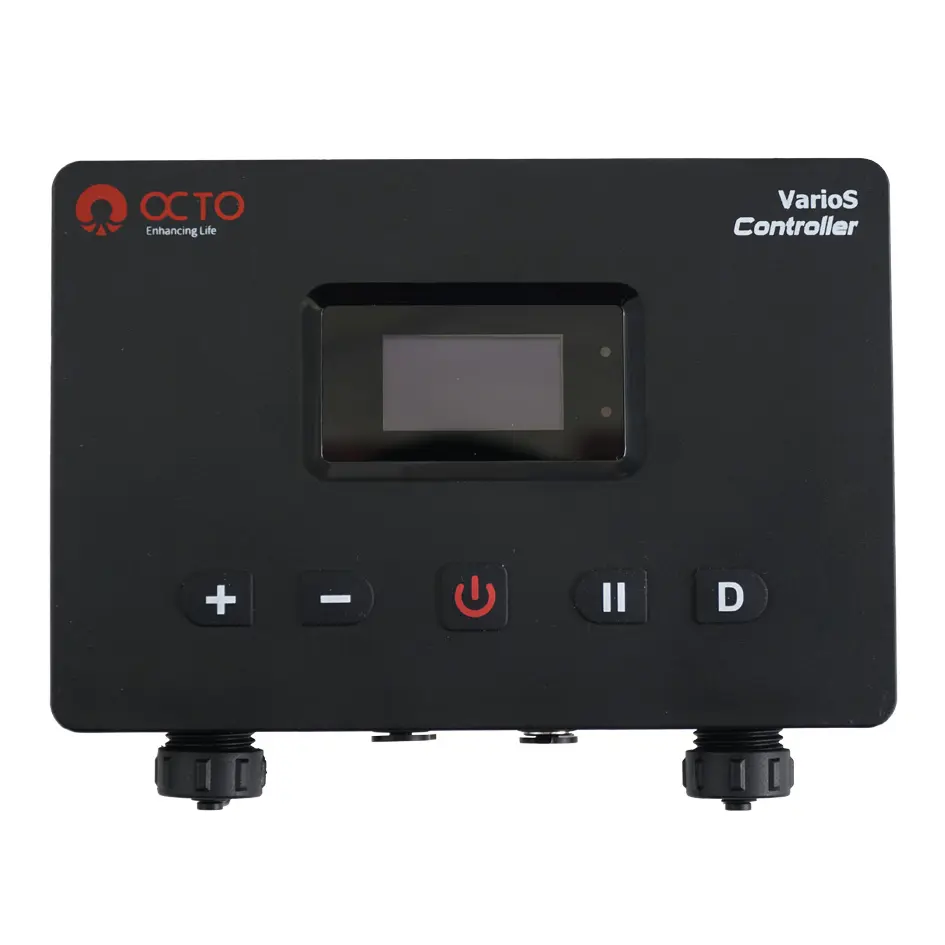

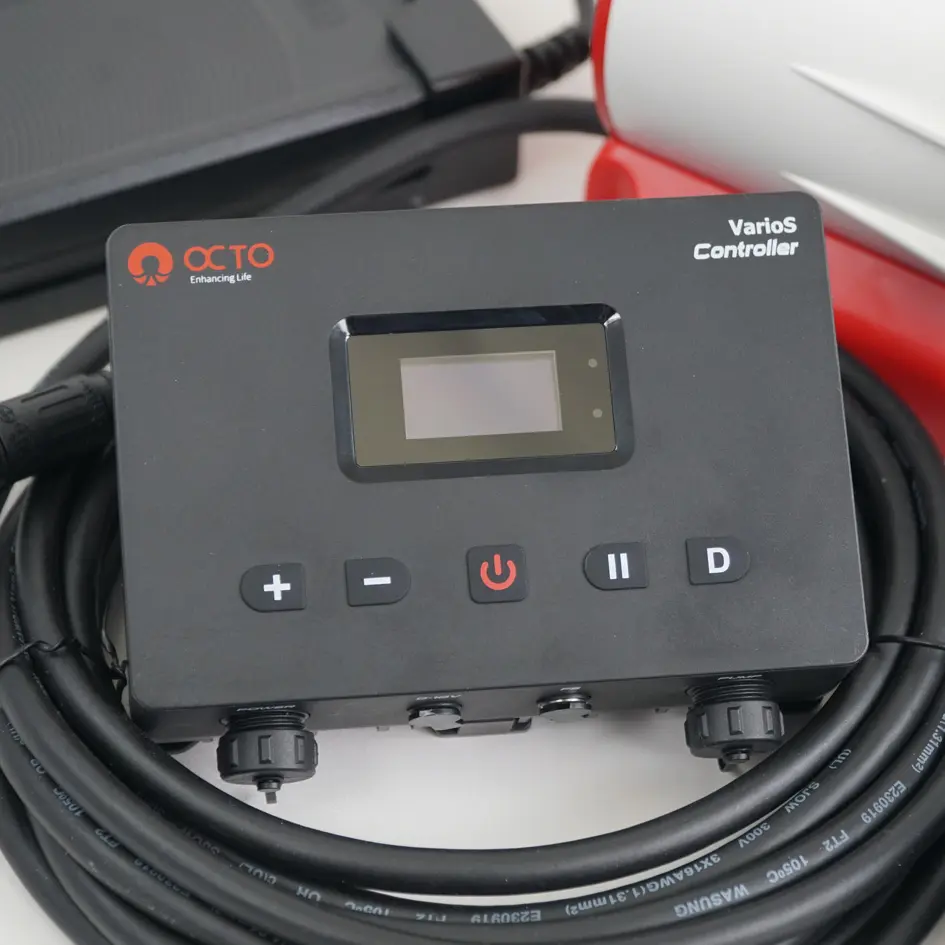

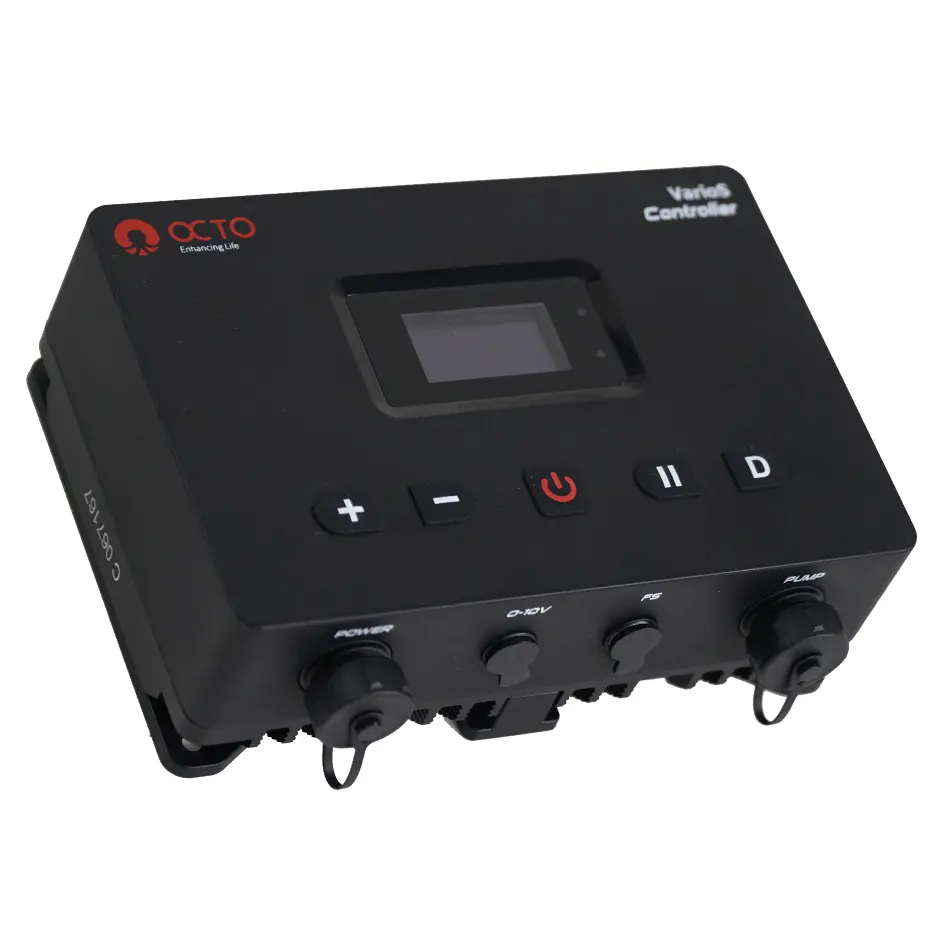

With the bespoke controller, users have full control over the flow rates by selecting 90 preset speed settings, indicated by its built-in display panel, which also allows the user to view both the wattage and RPM of the pump in real-time. A 15 or 60-minute feed mode can also be engaged or disengaged with the push of a button.

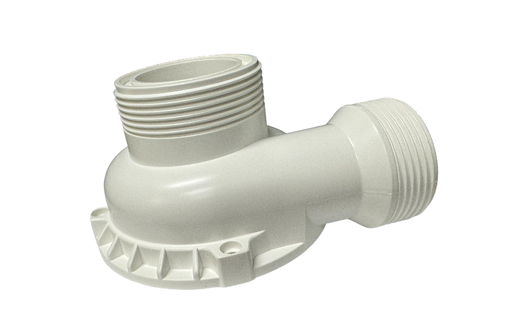

In addition, a rotatable volute allows the user to adjust the output orientation horizontally or vertically, making this pump very versatile in its applications.
Under normal usage, our entire range VarioS pumps has an expected lifespan/product life expectancy of 10 years.

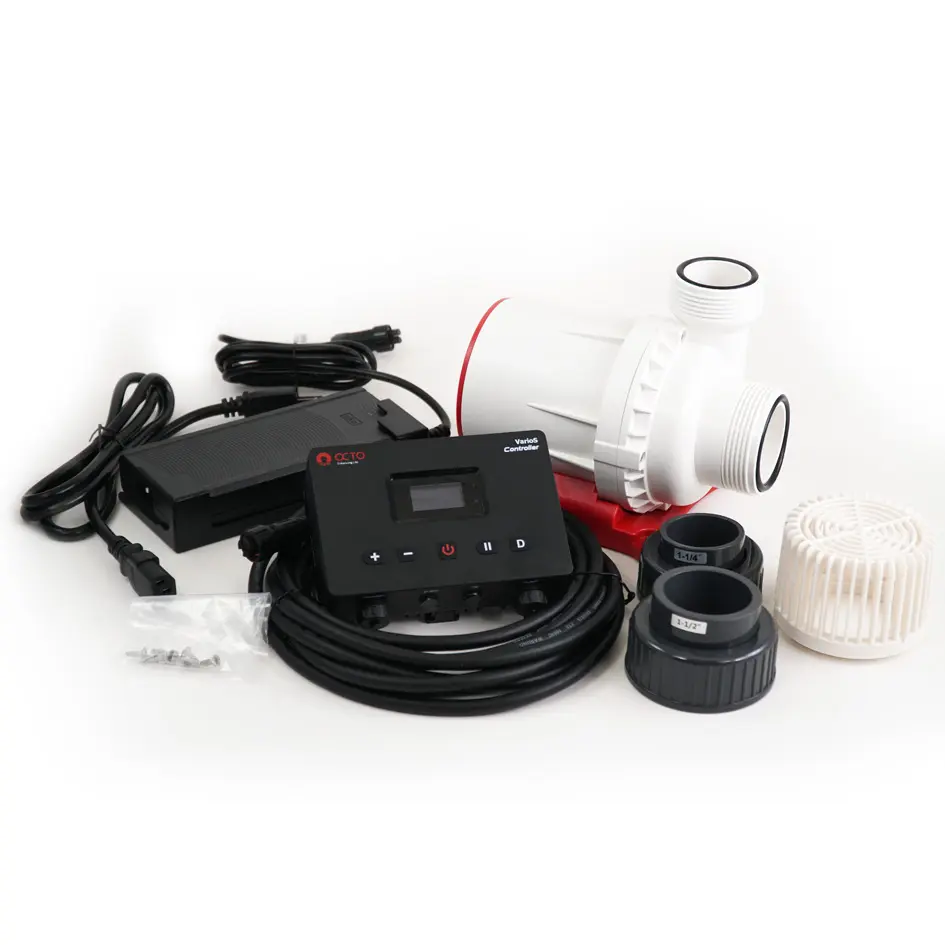

What’s Included:

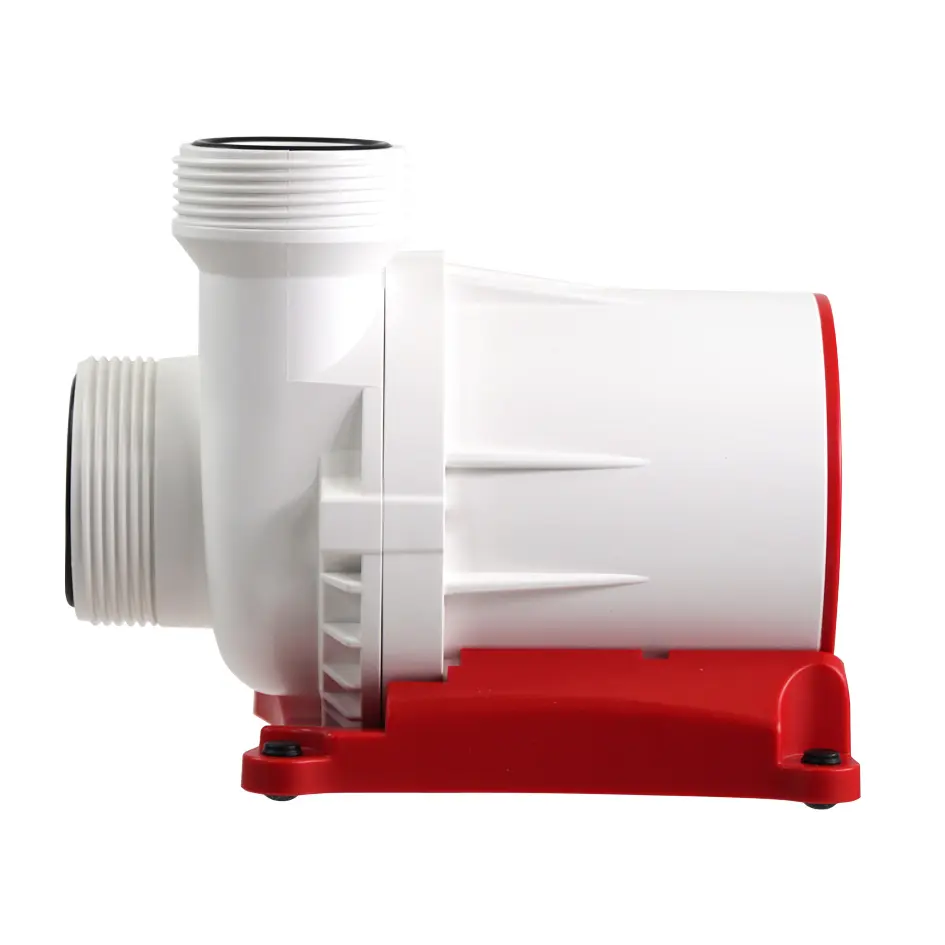

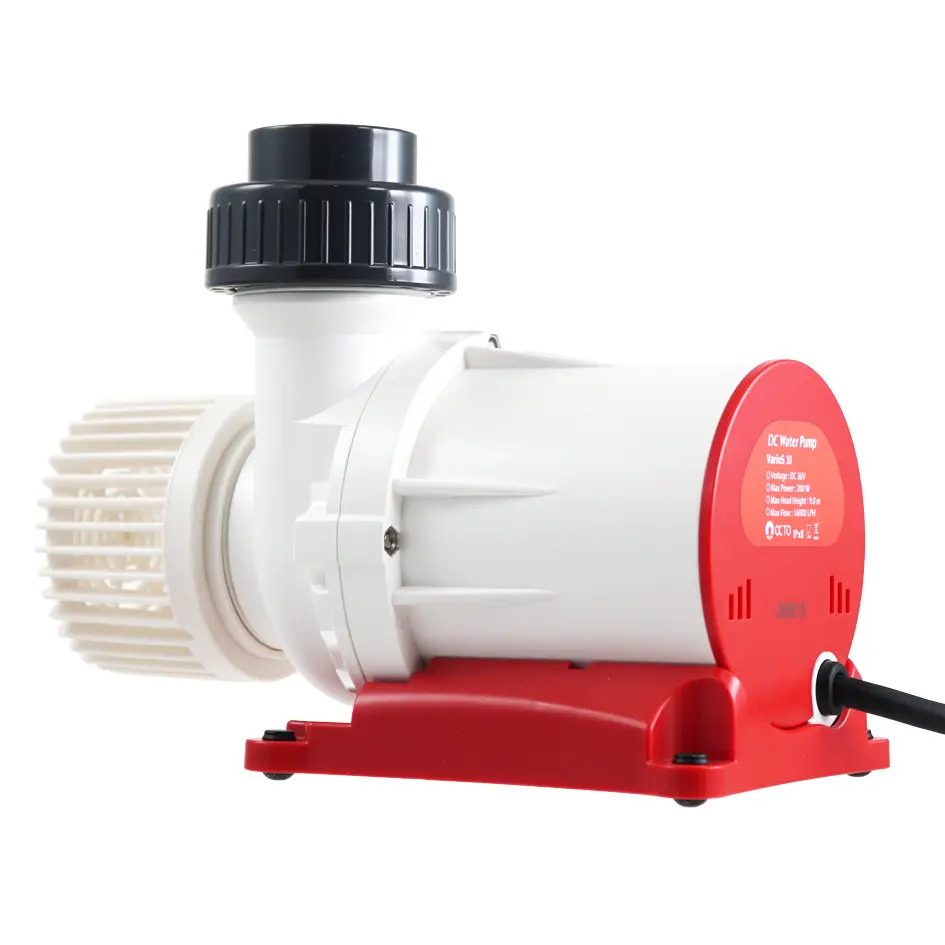

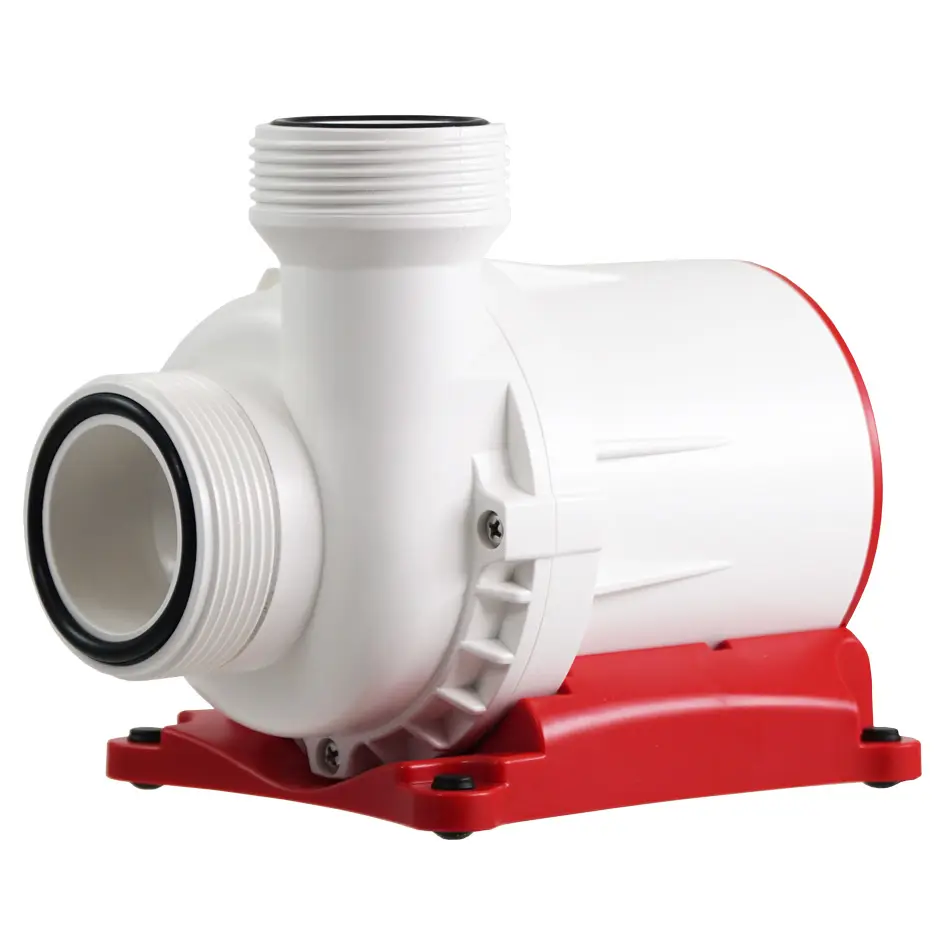

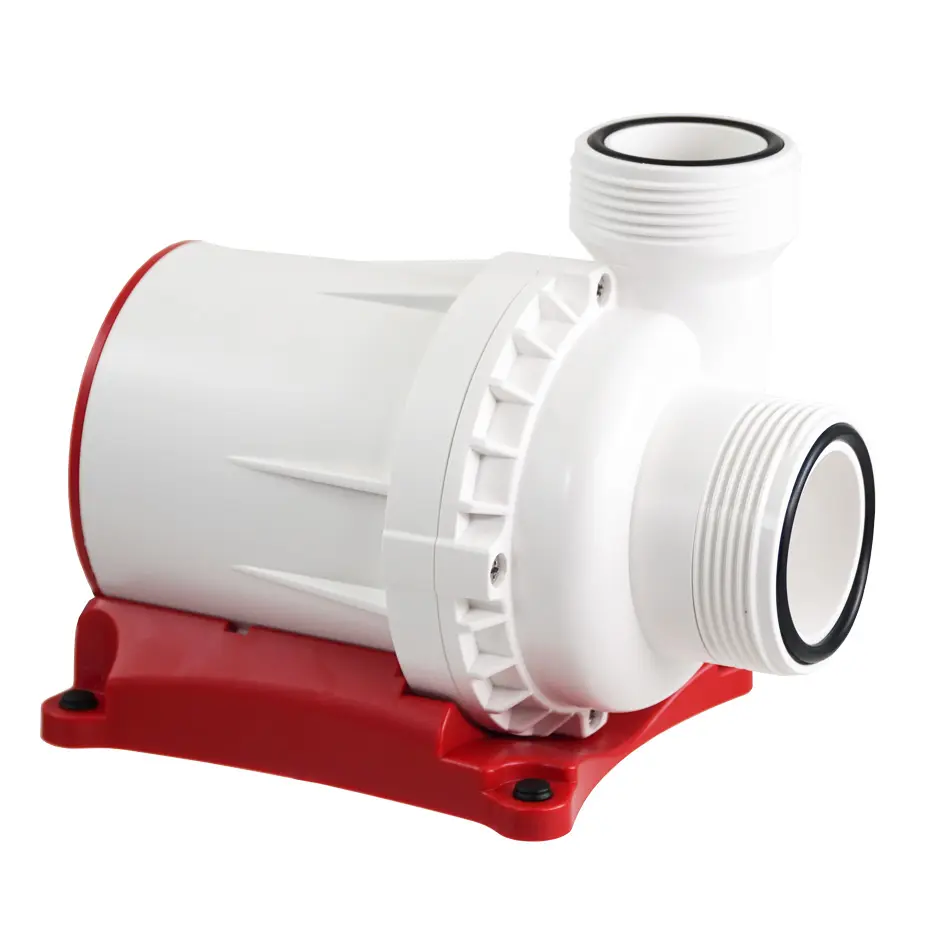

(1) Reef Octopus VarioS-10 Pressure-Rated Brushless DC Motor Block

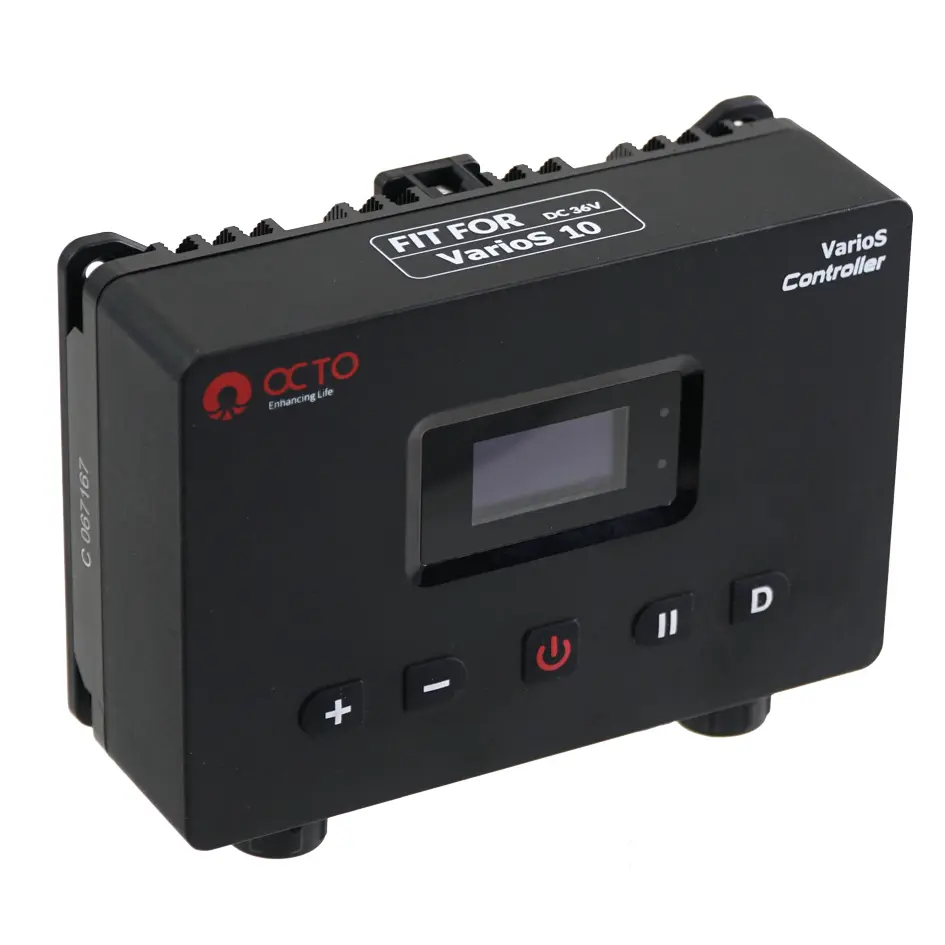

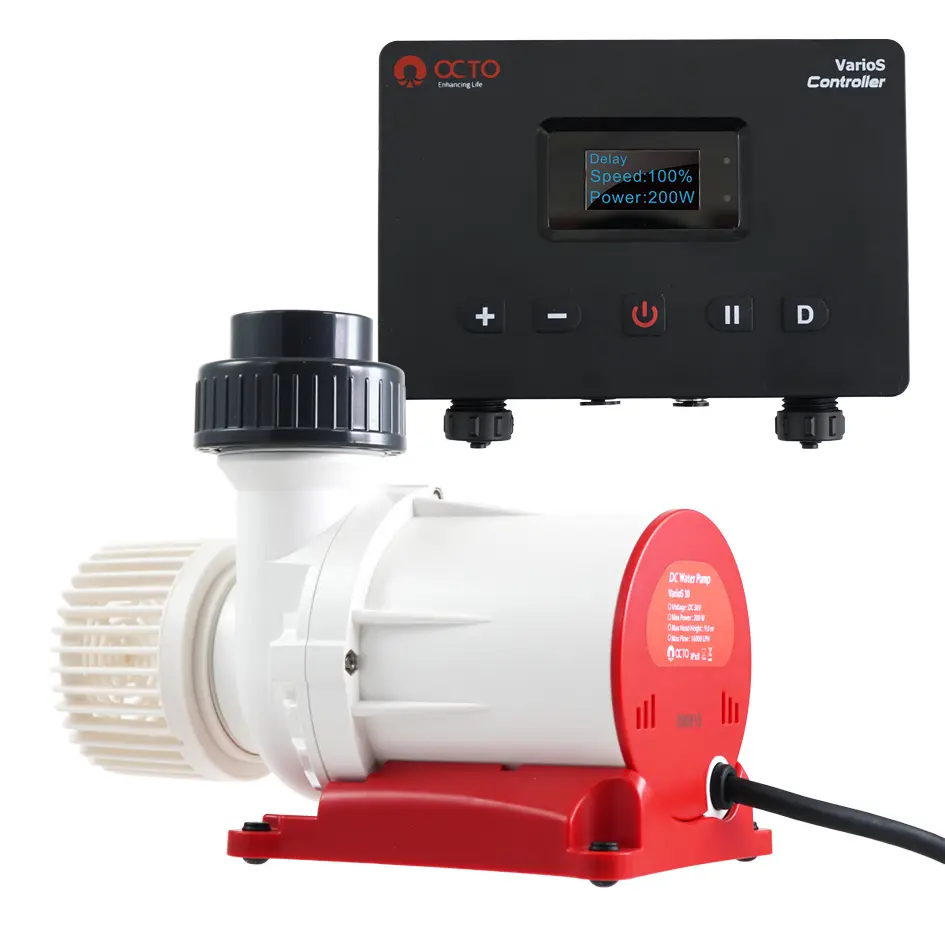

(1) VarioS-10 Variable-Speed Electronic Smart Controller Module

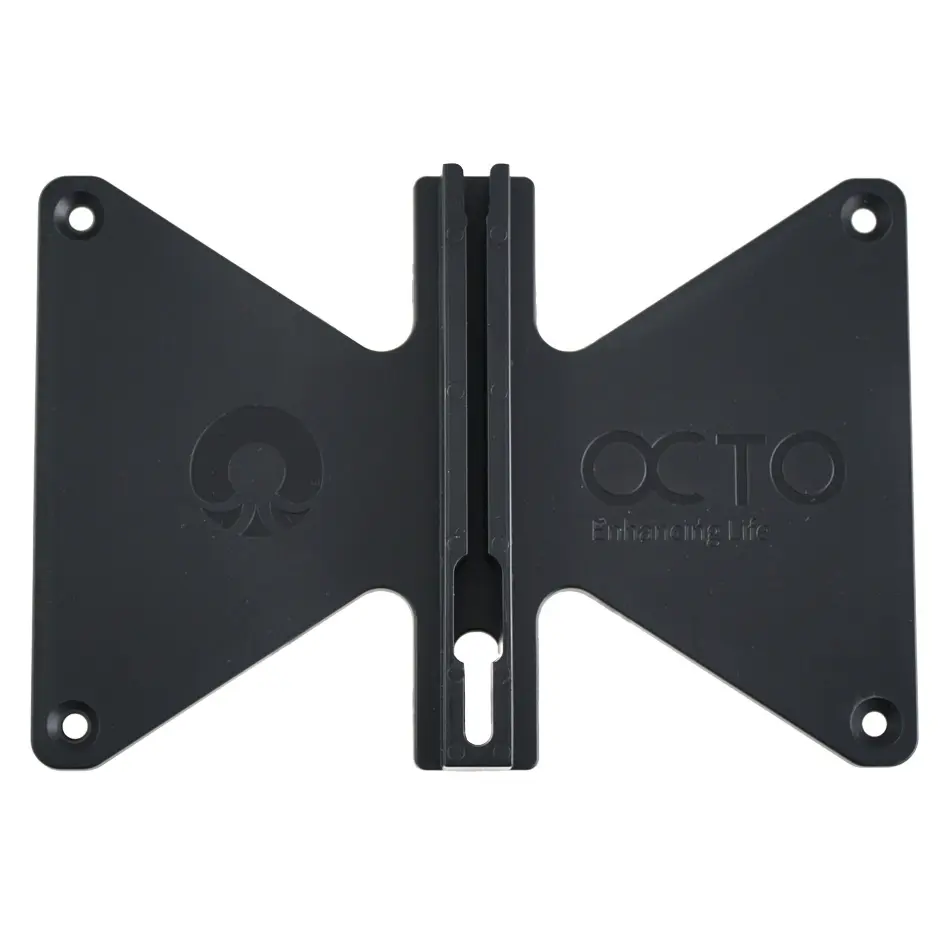

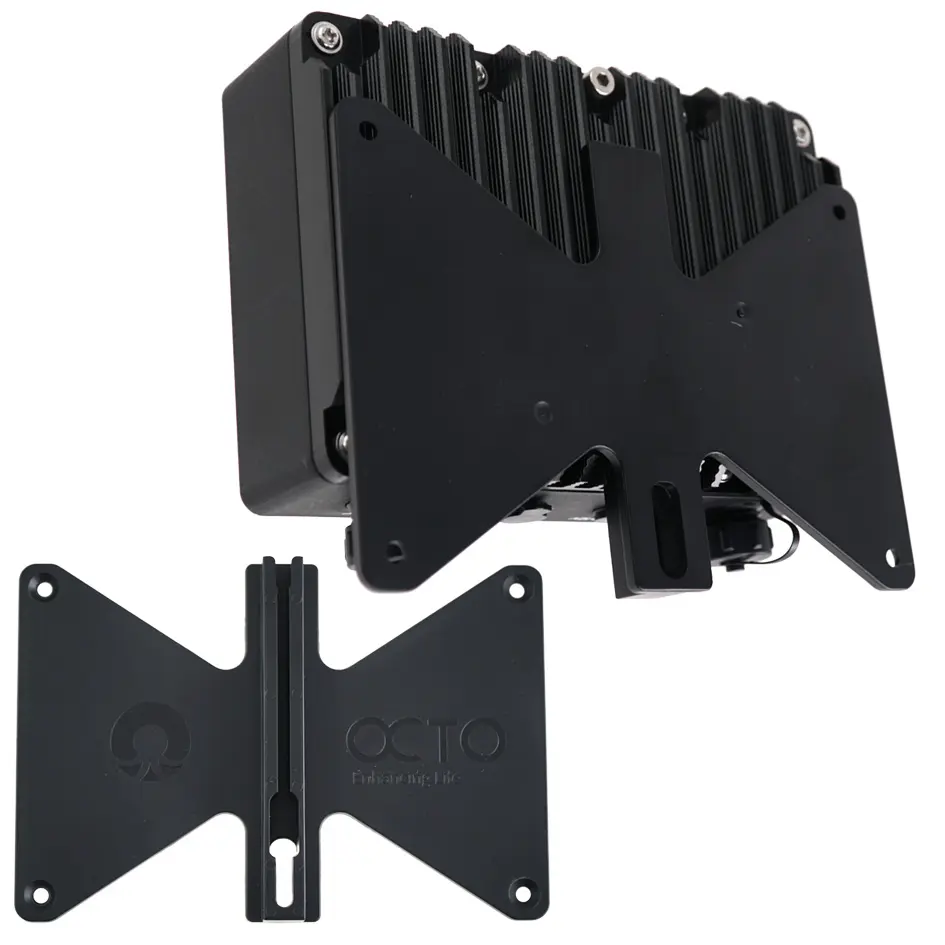

(1) Form-Fitted Aluminum Controller Mounting Bracket Array

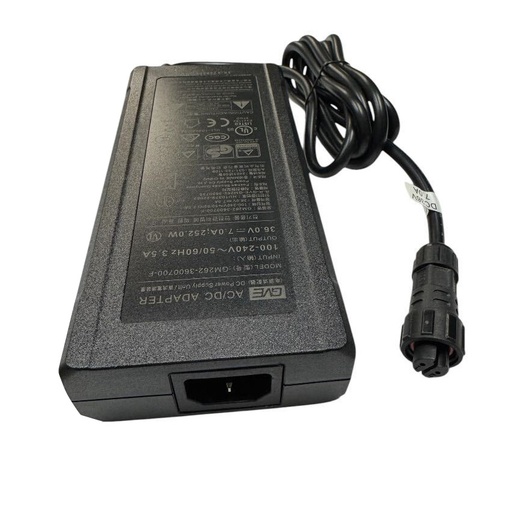

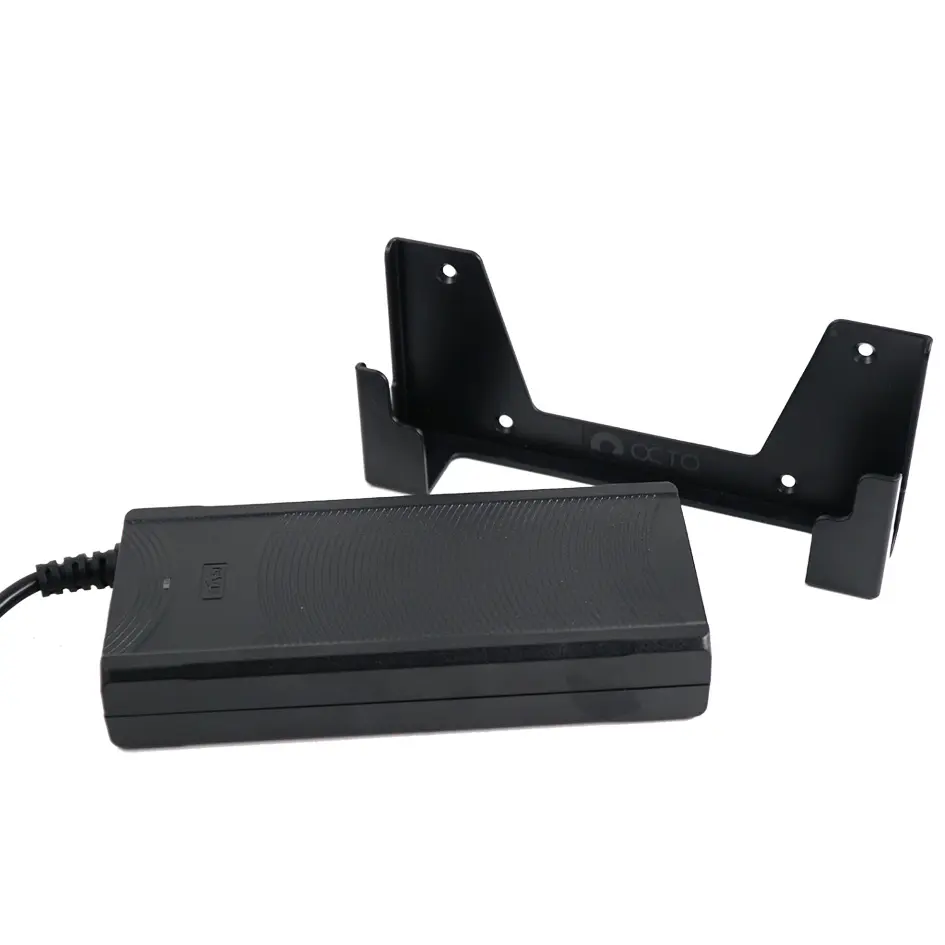

(1) High-Capacity External 36V AC/DC Power Supply Transformer Brick

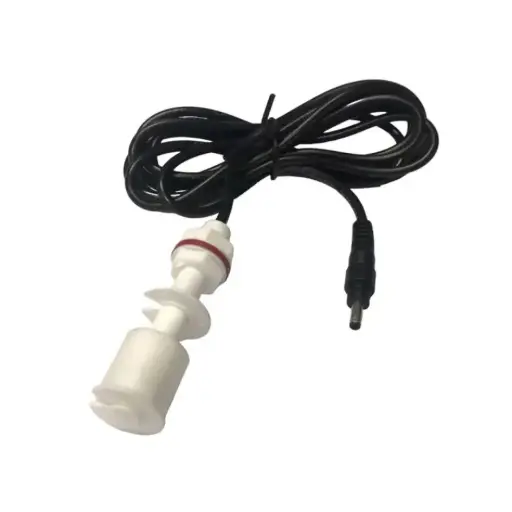

(1) Waterproof Electronic Float Switch with Acrylic Mounting Bracket

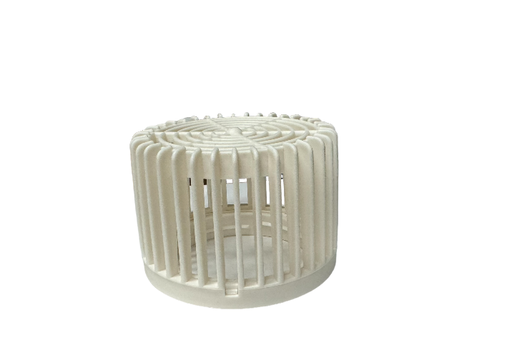

(1) 50mm (1.5") Threaded Submersible Intake Strainer Basket

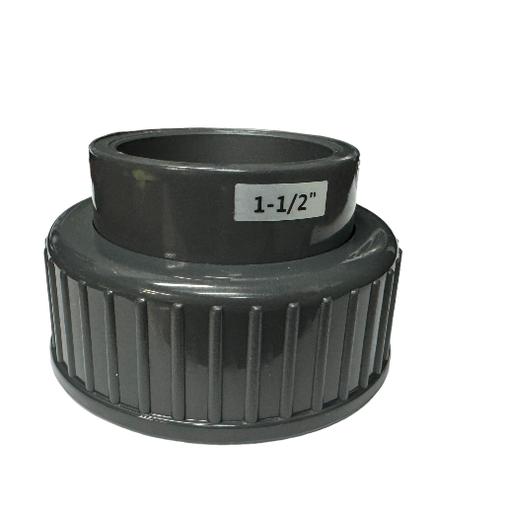

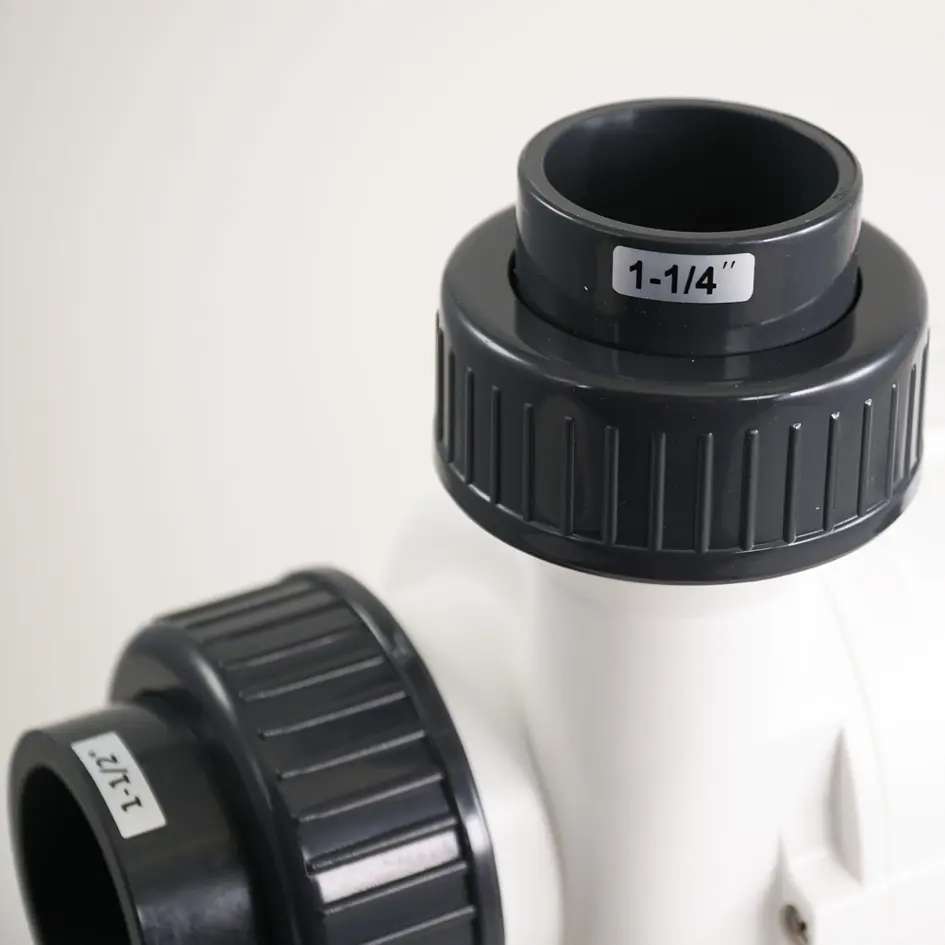

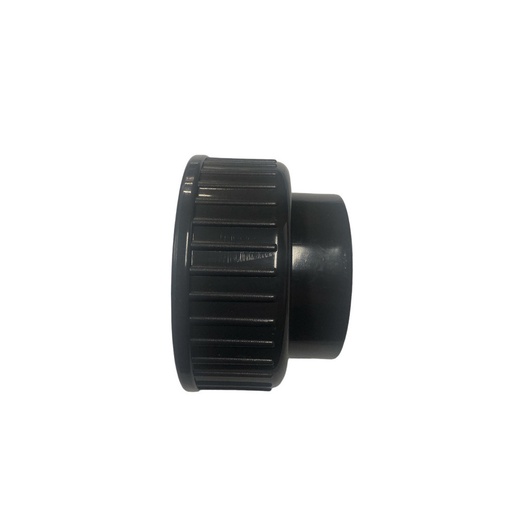

(1) 50mm (1.5") Slip-Style PVC Input Union Adapter Flange
(1) 40mm (1.25") Slip-Style PVC Output Union Adapter Flange
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-10 Controllable Return Pump
SKU / Factory Part Identifier: VarioS-10

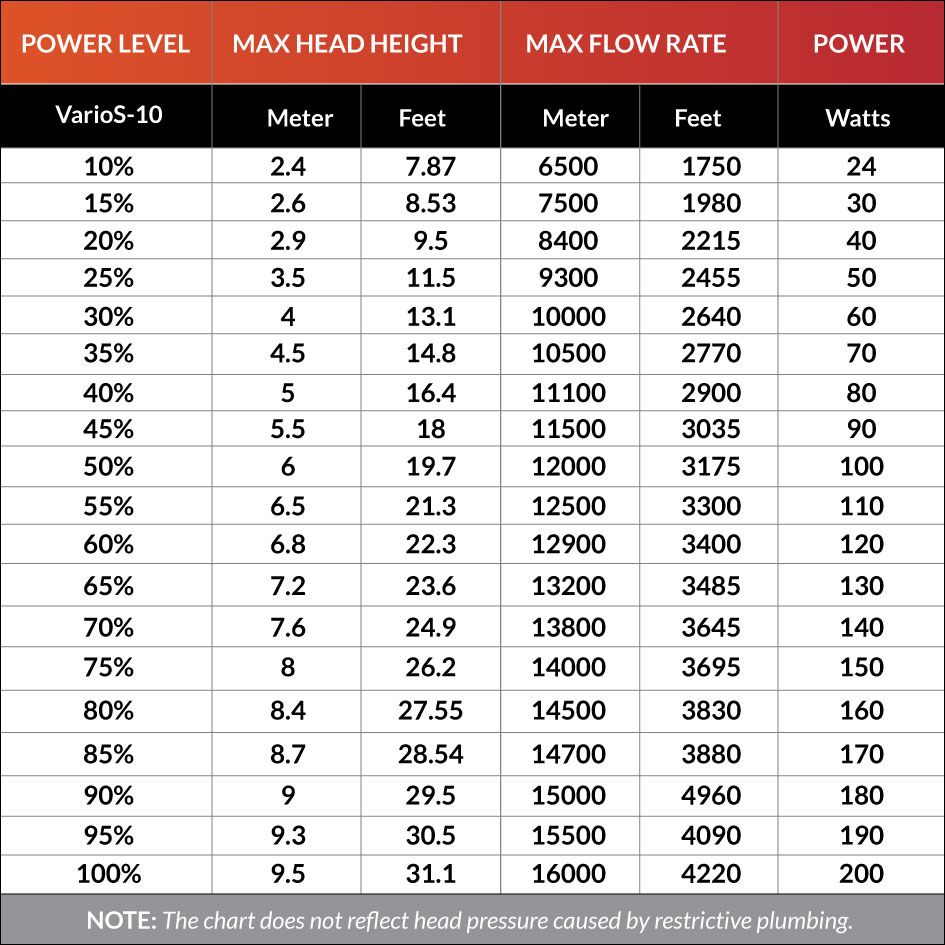

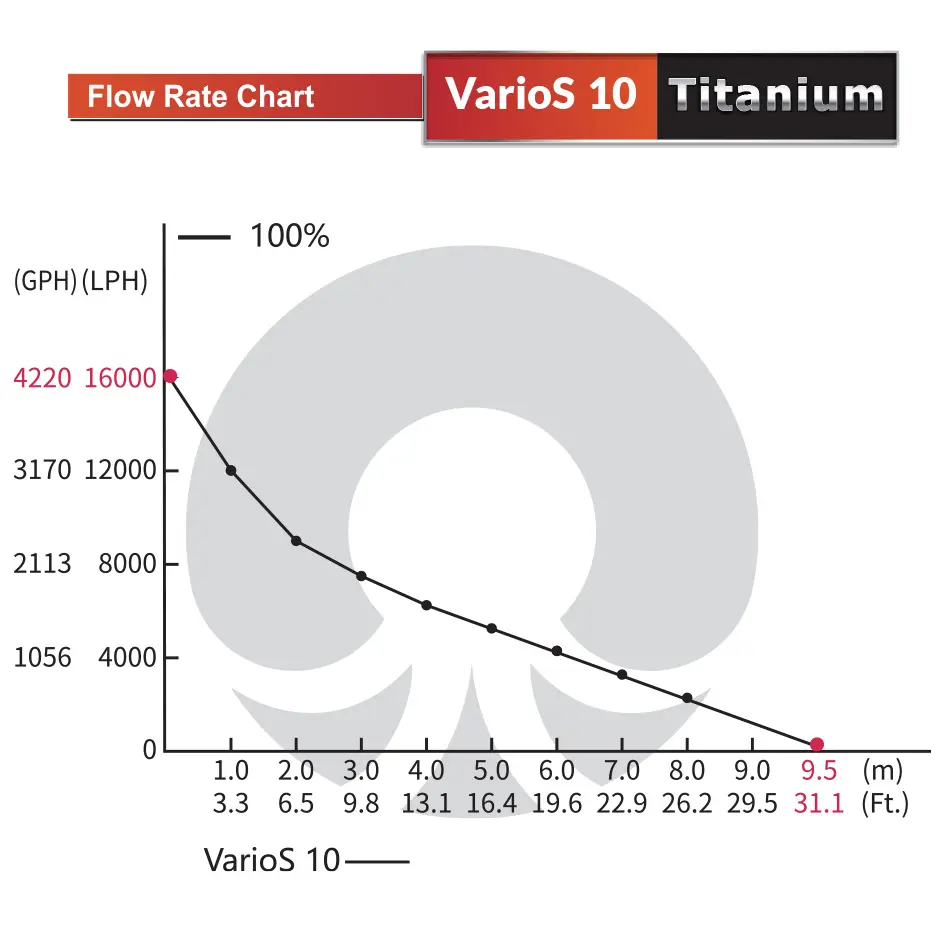

Maximum Volumetric Delivery Flow: 4,226 Gallons Per Hour (GPH) / 16,000 Liters Per Hour (LPH)
Maximum Static Shut-Off Head Height: 29.5 Feet / 9.0 Meters
Electrical Operating Current Matrix: 36V DC | 5.5 Amps Peak

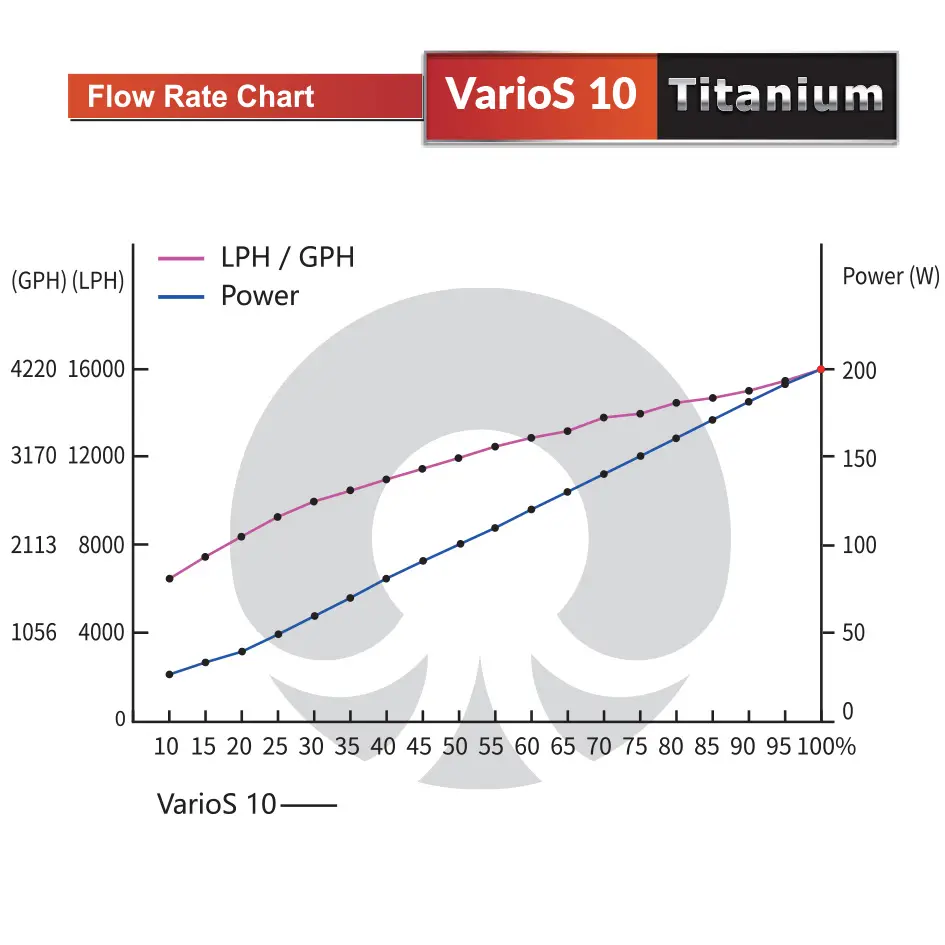

Maximum Total Power Consumption: 200 Watts at Full Scale Output

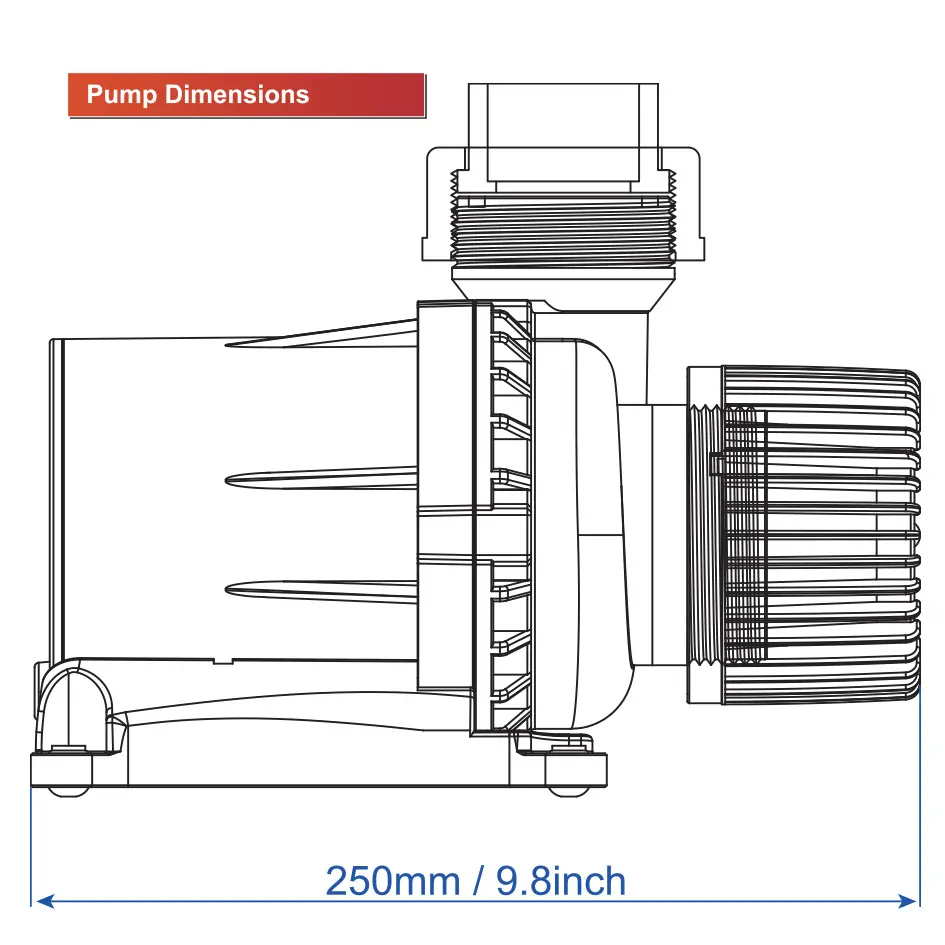

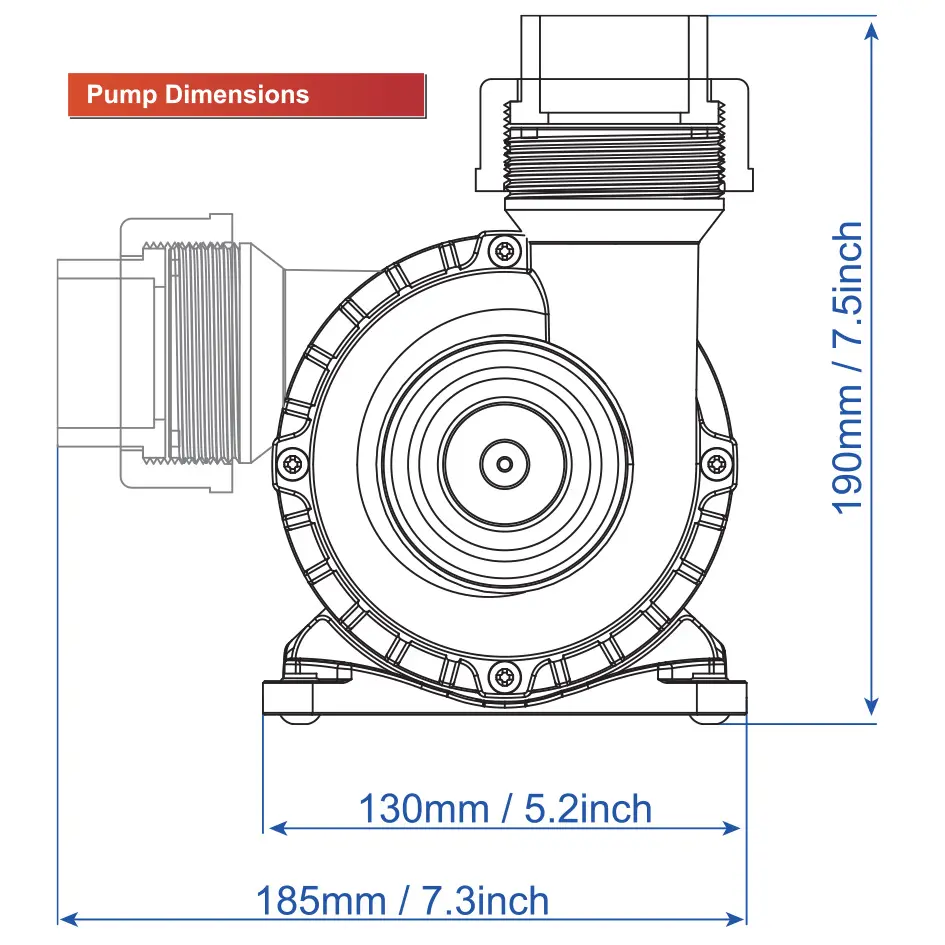

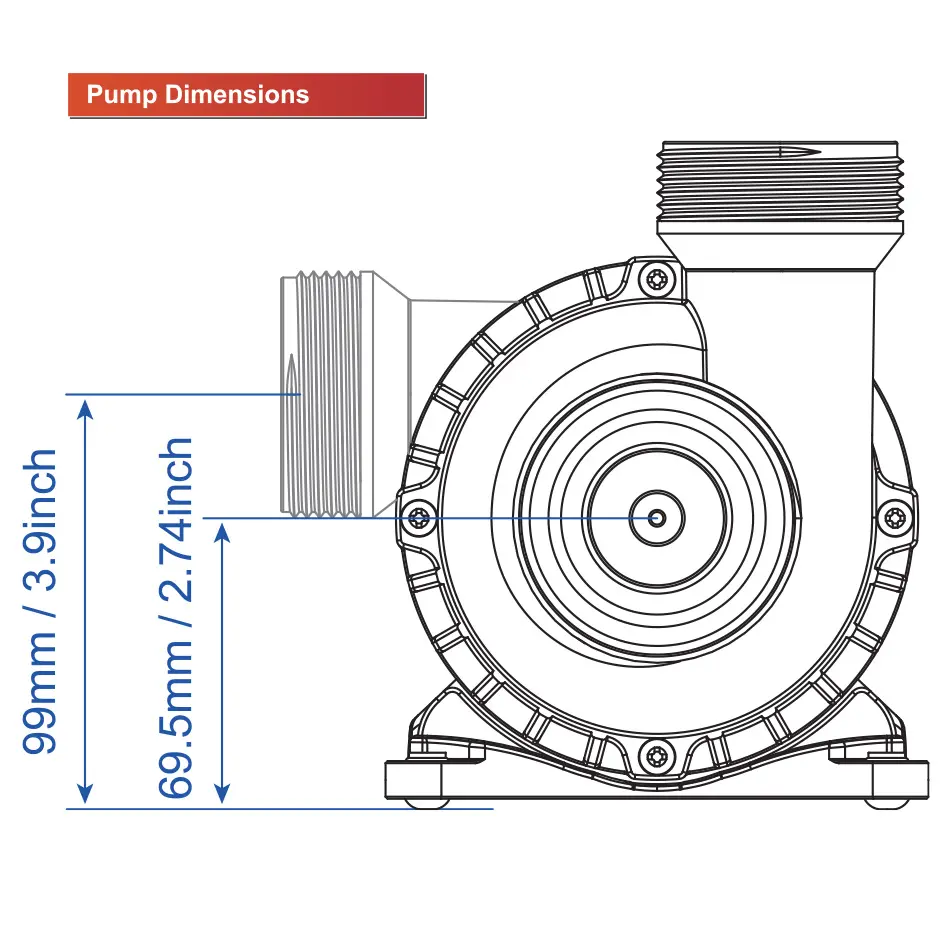

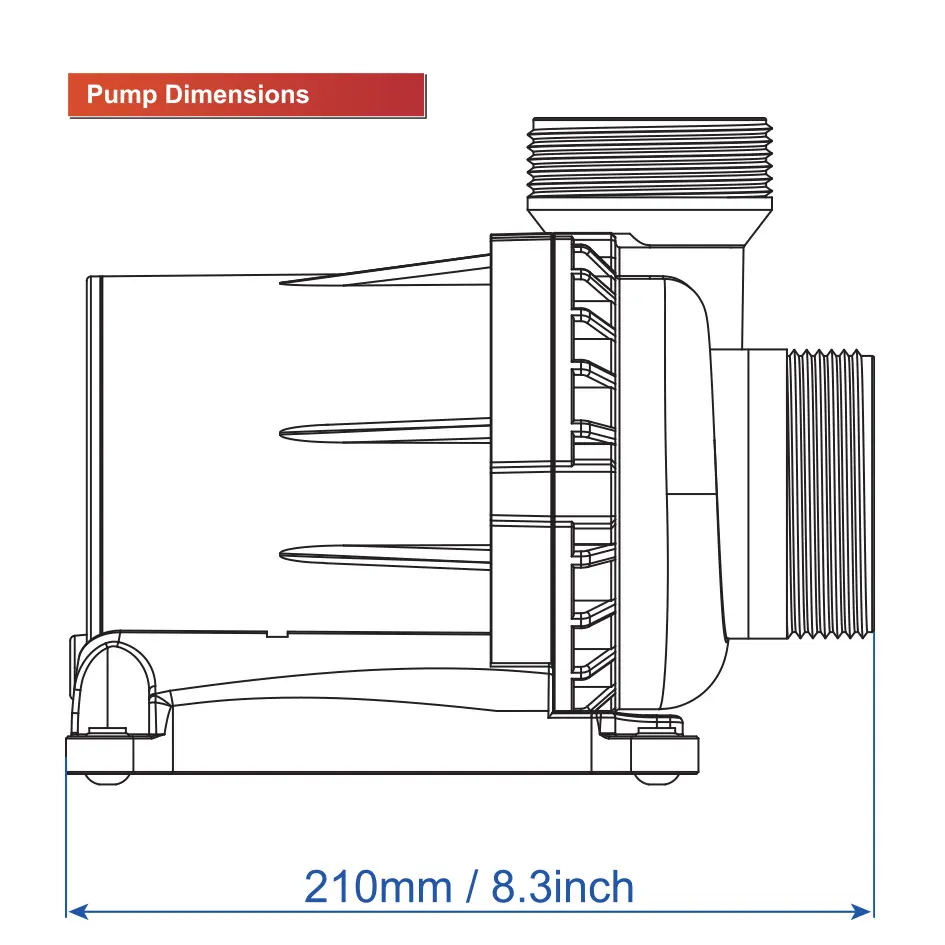

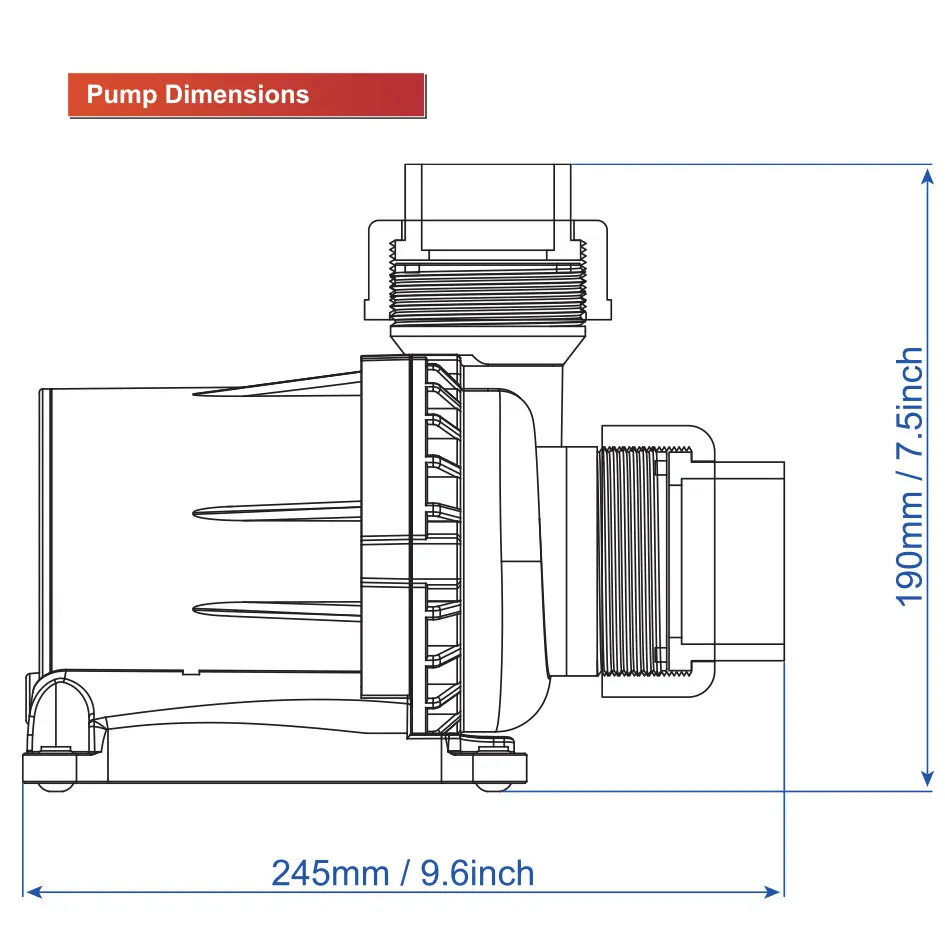

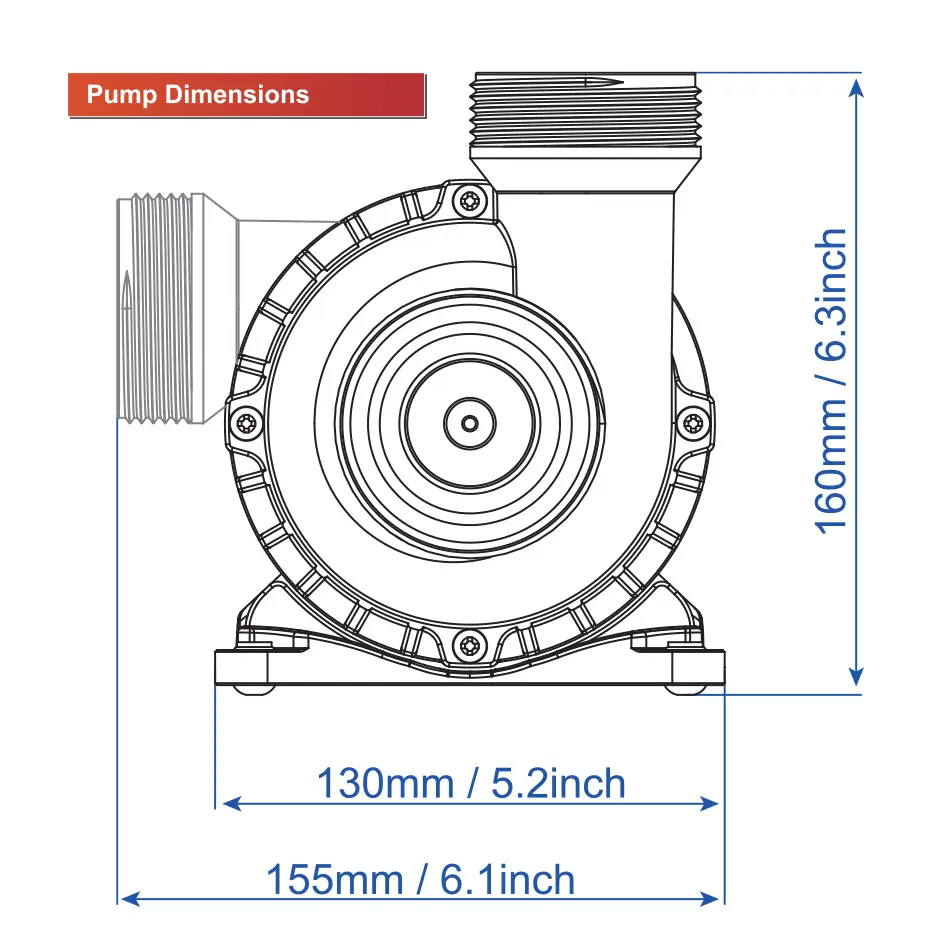

Primary Dimensions: 8.3" L x 5.2" W x 6.3" H
Cable Length: 15 FT
4 Other VarioS Models are Available – VarioS 2 (24V), VarioS 4 (24V), VarioS 6 (36V), and VarioS 8 (36V).
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller

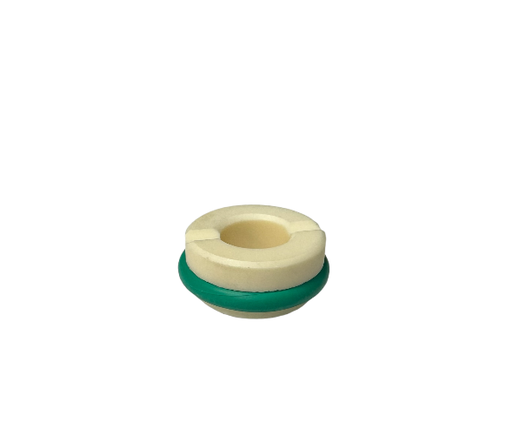

- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Determine whether your configuration requires a Submerged installation inside your sump or a Dry, external layout inline with your plumbing.

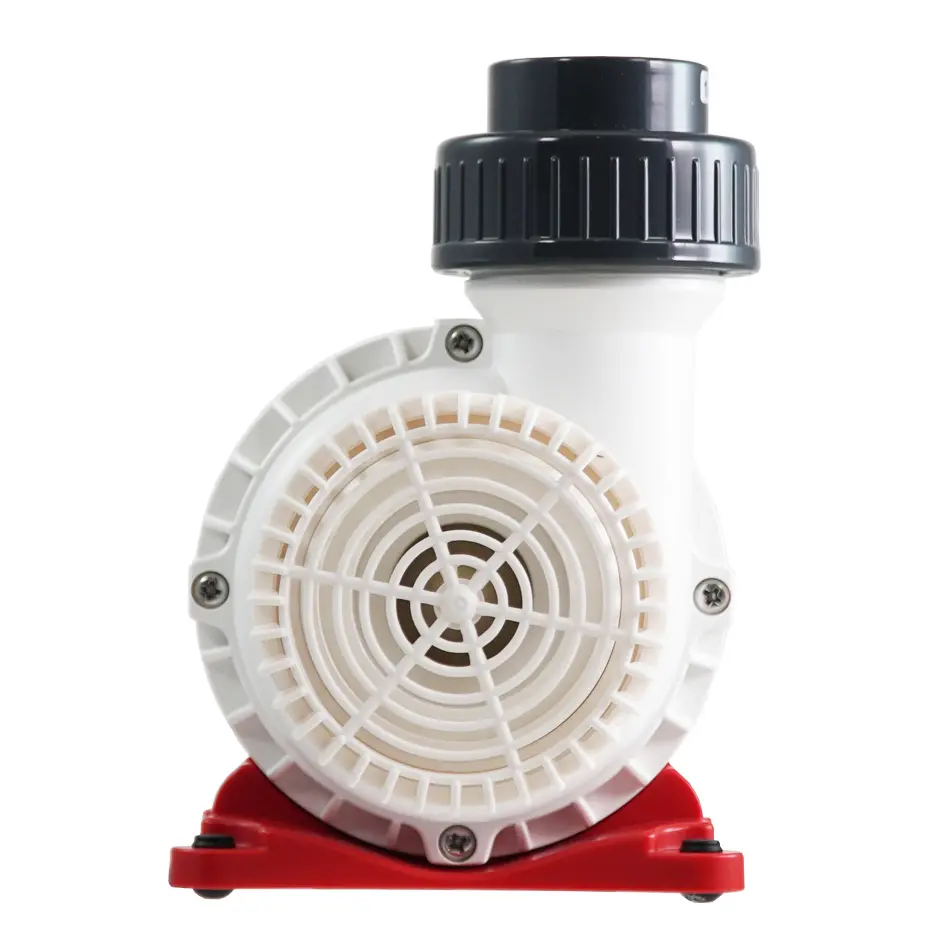

- For submerged use, screw the included 50mm intake strainer onto the front volute mouth. For external dry configurations, remove the strainer and glue a rigid 50mm metric intake pipe directly to the input union adapter.
- Glue your primary 40mm metric return line into the smooth slip socket of the output adapter, place the silicone O-ring in its seat, and hand-tighten the union collar clockwise over the pump discharge port.
- Mount your VarioS-10 smart controller and heavy 36V power transformer brick onto a dry equipment panel located away from any water spray.
- Securely plug the multi-pin motor cord into the base of the controller driver, lock the waterproof ring, connect your safety float switch line, and plug the power supply into the wall.
- Press the speed buttons to ramp up the motor slowly, verify that air vents smoothly through your return manifold, and check all plumbing points for an absolute leak-free seal.
Pro Tips:
- Always Use the Included 36V Power Transformer Exclusively. Because the VarioS-10 pump block is an industrial-class system engineered to drive immense water weight over steep head heights, it functions on a highly specialized 36-volt electrical platform. Never attempt to splice this pump cord or plug it into common 24V power adapters from smaller return pumps or wavemakers. Running this high-torque motor under a lower voltage profile will starve the internal processor, trigger immediate driver error loops, and permanently warp the internal windings.
- Never Allow a Dry-Plumbed External Pump to Starve for Water. If you choose to plumb this unit externally as a dry inline pump, ensure that your suction plumbing line is located completely below your sump's resting water level so gravity can keep the pump chamber continuously flooded. Centrifugal return pumps are not self-priming. If you start the VarioS-10 dry or allow an air lock to isolate the impeller bay, the friction generated by spinning the ceramic shaft at full speed without water will heat up the bearing sleeve instantly, melting the internal plastic volute and ruining the motor.

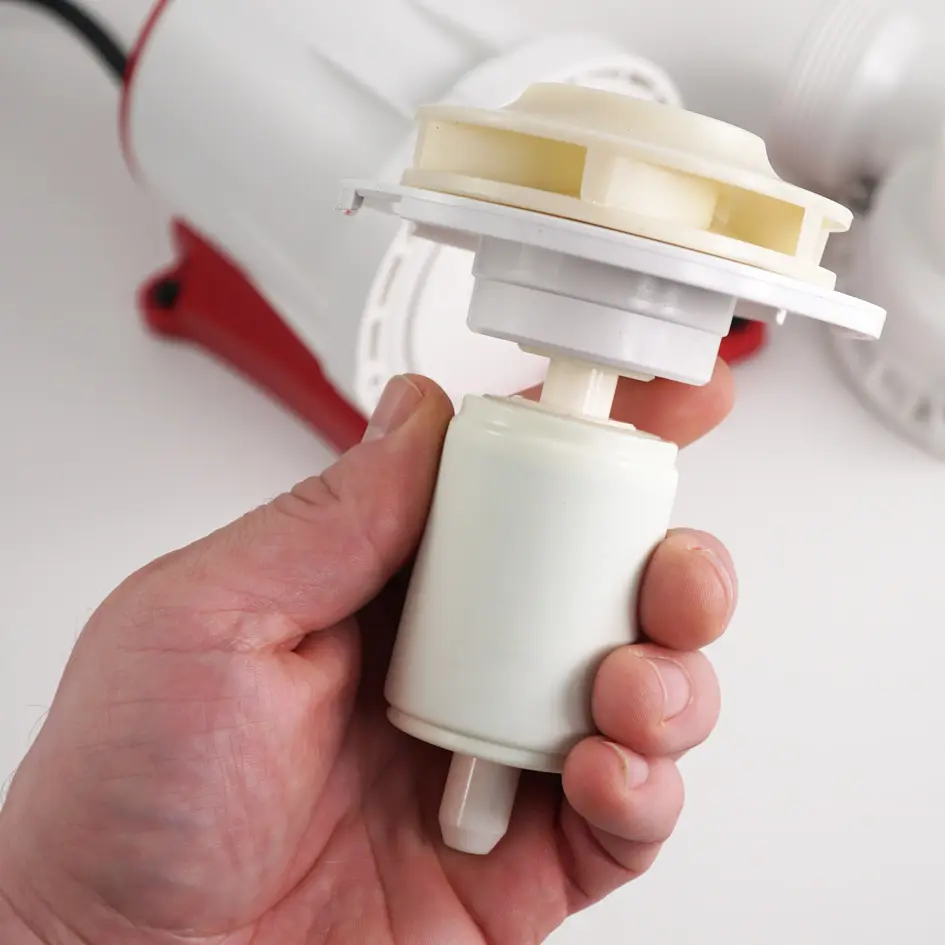

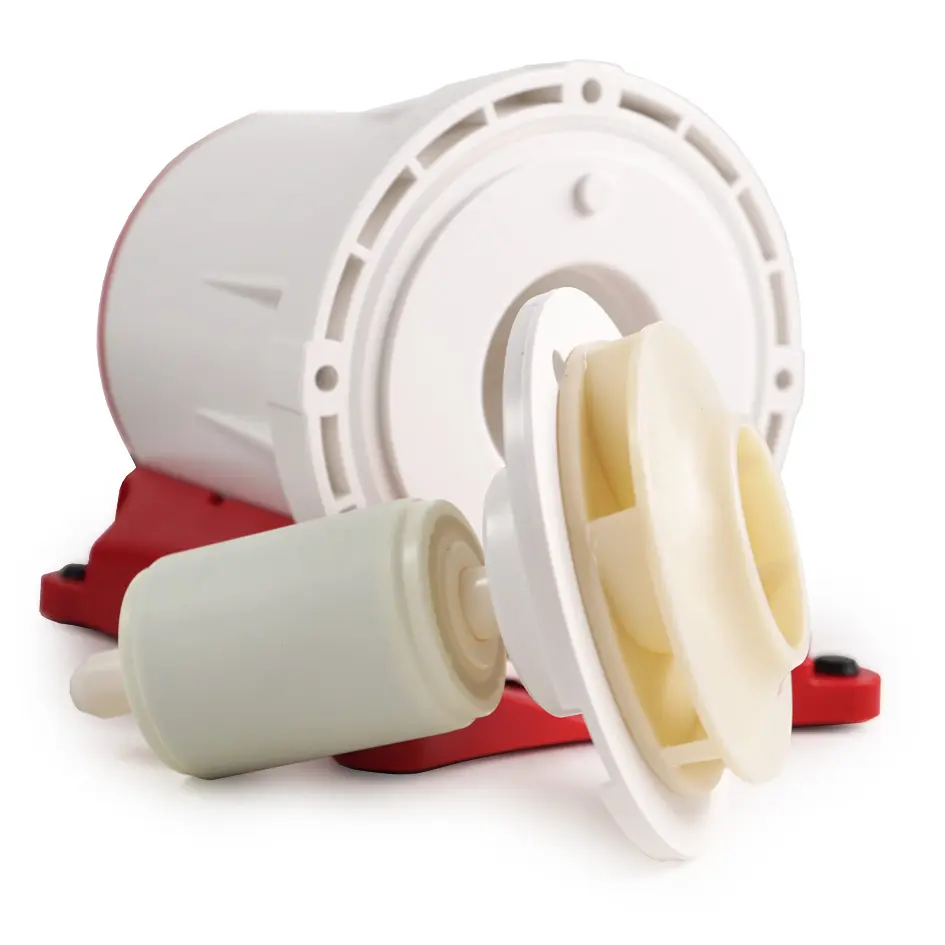

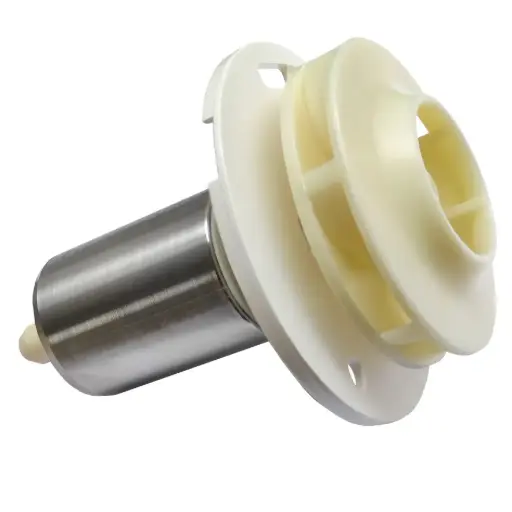

- Clean the Magnetic Rotor Assembly Quarterly. Given that a pressure-rated pump works significantly harder than standard utility pumps to overcome plumbing friction, calcium carbonate and hard magnesium scale will naturally bake onto the warm internal ceramic shaft over time. Left uncleaned for six months, this rough crust will drag on the motor, raising its temperature and dropping its total flow output. Pull the front volute cover off every three months and soak the magnetic rotor assembly in a warm bath of citric acid powder to dissolve the scale completely.
