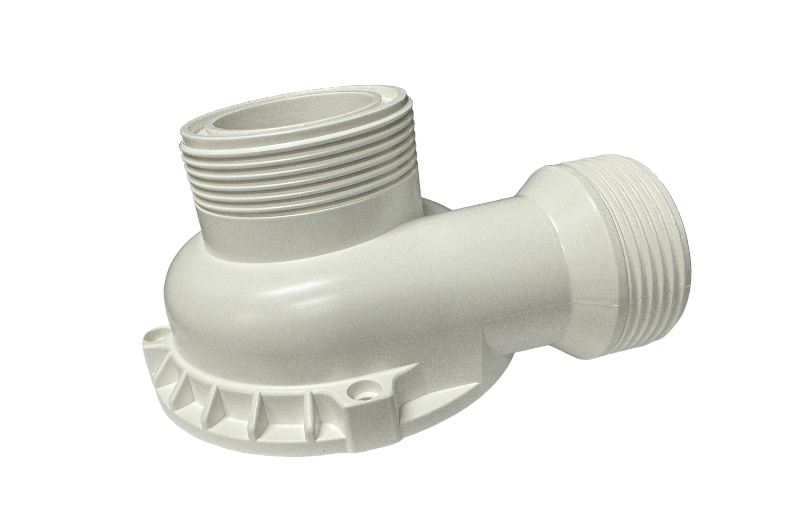

Octo VarioS 10 Pump Volute Cover
SKU: ROP-VAR10-VOL
- Genuine OEM Direct Replacement: Authentic factory-spec front wet-end impeller chamber housing cover designed exclusively for the flagship Reef Octopus VarioS-10 controllable pump.
- Dual Metric Plumbing Connections: Outfitted with an integrated, wide-bore 50mm (1.5-inch) threaded suction input and a 40mm (1.25-inch) threaded discharge exit port.
- Rotatable Directional Orientation: Designed to lock onto the motor block array at multiple angle configurations, allowing you to route discharge lines horizontally or vertically.
- Hydrodynamically Optimized Impeller Bay: Precision-contoured interior expansion chamber maximizes velocity conversion while drastically lowering cavitation resistance.
- Heavy-Wall Molded Polymer Composition: Fabricated from commercial-grade, injection-molded PVC composite engineered to handle intense manifold backpressure and vibrations.
- Toolless Twist-and-Lock Fitment: Features an interlocking bayonet-style flange rim that mounts securely to the primary motor block without requiring external steel screws.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-10 Pump Replacement Volute Cover (ROP-VAR10-VOL)
The Reef Octopus VarioS-10 Pump Volute Cover (SKU: ROP-VAR10-VOL) is an authentic factory-spec replacement front housing component distributed by CoralVue to preserve the intense water movement and pressure dynamics of your central filtration network. The flagship VarioS-10 is an industrial-tier 36V circulation pump built to push up to 4,226 GPH of water against steep vertical head heights. Because it manages heavy volumetric output and high static pressures, the front volute chamber (the "wet end" of the pump) is subjected to continuous internal hydraulic friction, mechanical pipe torque, and localized physical strain.
This specialized replacement volute cover seals the spinning magnetic impeller assembly inside a watertight, pressure-optimized chamber. Over years of heavy-duty performance, rough calcium scale can bake onto the internal walls, causing friction drag, or the plastic threads can become cross-threaded or split during intensive seasonal cleanings. Running a high-amperage return pump with a warped, gouged, or hairline-fractured volute cover is a severe hazard—it will continuously bleed pressure, bleed microbubbles into the display, or trigger a pressurized spray leak inside your equipment bay. Swapping out a compromised faceplate with this genuine OEM structural cover completely restores factory performance tolerances, ensuring an absolute airtight seal to protect your facility from unexpected water loss.
Key Features
True Factory Sizing Tolerances: Engineered with precise original molding metrics to interlock perfectly flush against the VarioS-10 motor block shoulder.
Integrated O-Ring Compression Groove: Features a smooth, machined tracking channel built to seat the primary silicone housing gasket without pinching or slipping.
Saltwater-Inert Resilience: Fabricated entirely from premium high-density polymers that will never degrade under continuous ozone exposure or low-pH maintenance baths.
Directional Manifold Adaptability: Features a modular locking design that allows you to turn the discharge nozzle facing left, right, or straight up to optimize direct pipe routing.
Verified Hardware Compatibility
Reef Octopus VarioS Pump Infrastructure: Sized exclusively as the correct replacement front volute cover plate for the Reef Octopus VarioS-10 Controllable Circulation Pump.
(Note: This oversized commercial volute cover is dedicated solely to the 36V VarioS-10 pump block footprint. Smaller 24V return pump units, such as the VarioS 2, 4, 6, or 8 models, utilize much smaller impeller profiles and require their respective model-specific replacement volutes).
What’s Included:
(1) Reef Octopus Replacement VarioS-10 Threaded Plastic Pump Volute Cover Face
(Note: Primary rubber sealing O-rings, internal magnetic impeller rotors, union collar locking nuts, and electronic motor blocks are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-10 Pump Volute Cover
SKU / Factory Part Identifier: ROP-VAR10-VOL
Suction Input Specification: 50mm / 1.5-Inch Metric Male Threaded Port
Discharge Output Specification: 40mm / 1.25-Inch Metric Male Threaded Port
Material Matrix Composition: High-Impact Heavy-Wall Injection-Molded Gray PVC
Primary Function: Impeller Containment, Flow Volumetric Direction, & Pressure Compression Seal
Turn off your VarioS-10 pump controller and unplug the main 36V power transformer brick from the wall socket to stop all live electricity.
Close all inline plumbing valves along your intake and return lines to isolate the pump wet end and prevent siphoning from the aquarium.
Unscrew the large intake and discharge union collar nuts counter-clockwise to clear your rigid PVC plumbing lines away from the pump body.
Rotate the old, cracked, or mineral-scaled volute cover counter-clockwise across the interlocking bayonet tracking to slide it off the motor face.
Extract the primary rubber housing O-ring, clean it of any sand grit or calcified build-up, and seat it carefully into the tracking groove of the new ROP-VAR10-VOL cover.
Align the new volute cover over the magnetic impeller rotor, press it firmly against the motor housing face, and twist it clockwise until it clicks into place. Reattach your plumbing unions and restore power.
Pro Tips:
- Never Use Metal Tools to Tighten Plumbing Adapters to the Volute. When reinstalling your 50mm input strainer or hard-plumbed 40mm output adapters onto the external threads of this new volute cover, always spin them down by hand. Never use metal pipe wrenches, channel locks, or heavy pliers to crank the plastic connections tighter. Because the threads are molded out of polymer composite, the brute-force leverage of metal tools will easily cross-thread or cleanly shear off the intake/discharge nozzles, instantly ruining the replacement volute cover.
- Lubricate the Housing O-Ring for a Flawless Pressure Seal. When seating your rubber sealing gasket into the new volute face tracking, never allow the rubber ring to compress completely dry against the fresh plastic walls. Dry-tightening can cause the rubber ring to pinch, bunch up, or roll slightly out of its channel when you twist the volute locked. This distortion will lead to a steady, high-pressure drip leak once the pump ramps up. Rub a microscopic smear of 100% pure silicone plumbing grease onto the ring to help the plastic glide into position safely.
- Soak the Volute in Citric Acid to Dissolve Calcified Scale. Because return pumps work hard to push water, the internal friction and warmth generated in the impeller bay naturally causes calcium carbonate and hard mineral scale to bake onto the interior walls of the volute over time. If left uncleaned, this rough crust acts like sandpaper against the spinning blades, reducing your GPH velocity and overheating the motor. Remove the volute cover every 3 to 4 months and give it a quick soak in a warm bath of citric acid powder to dissolve the buildup without scratching the plastic.
