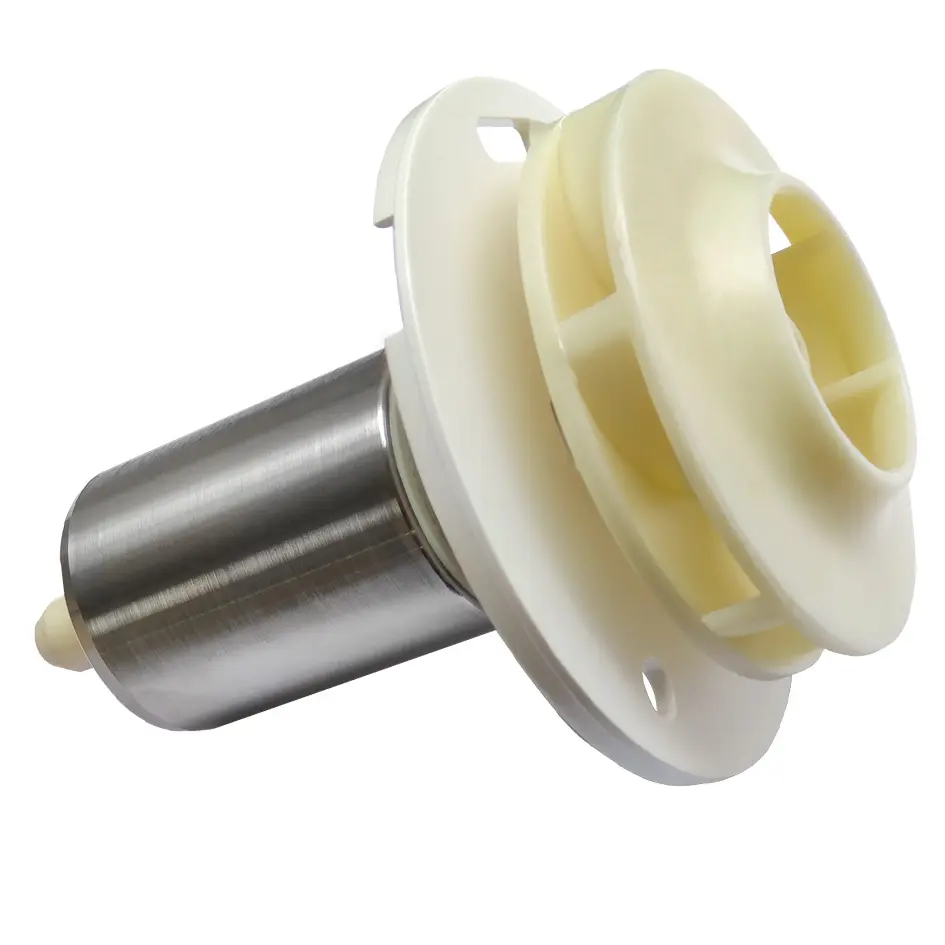

Octo VarioS 10 Water Pump Impeller
SKU: ROP-VAR10-IMP
- Genuine OEM Direct Replacement: Authentic factory-spec water-propelling magnetic rotor assembly engineered explicitly for the flagship 36V Reef Octopus VarioS-10 return pump.
- Pressure-Rated Closed Impeller Geometry: Features a closed curved-vane blade design that maximizes velocity conversion to maintain strong flow profiles against extreme pipe head pressures.
- Integrated Blended Magnet Rotor: Heavy-duty, high-magnetic-flux permanent magnet core encapsulated in a seamless, balanced protective polymer shell.
- Ultra-Smooth Ceramic Bearing Interface: Includes matching low-friction industrial bearing points built to slide effortlessly over your existing polished ceramic axle shaft.
- Reestablishes Peak Flow Rates: Instantly cures lost velocity, poor head height pushing performance, and dynamic motor rattles caused by aged or scored rotators.
- Drop-In Mechanical Restoration: Slides directly into the center of the pump stator bay, requiring zero specialized calibration or structural alignment tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-10 Pump Replacement Water Impeller (ROP-VAR10-IMP)
The Reef Octopus VarioS-10 Replacement Water Pump Impeller (SKU: ROP-VAR10-IMP) is an authentic factory-spec internal drive component distributed by CoralVue to completely revitalize the heavy fluid-pushing capacity of your flagship return system. The industrial-class VarioS-10 pump block relies on an intensive 36V electrical matrix to drive up to 4,226 GPH of water turnover and master vertical head pressures reaching nearly 30 feet. Because the physical strain of moving high-pressure water columns rests entirely on the spinning blades of the rotor, the impeller assembly is considered the hardest-working mechanical element inside your entire filtration manifold loop.
Over years of nonstop aquarium runtime, fine sand grains from the display, calcified mineral crystals, and organic debris can get drawn into the wet end of the pump. This debris creates intense abrasion that slowly pits the plastic blades, creates deep score marks on the interior magnet face, and ovalizes the inner bearing column. When an impeller suffers from physical imbalances or mineral scaling, you will experience loud, chattering motor rattle, excessive operational heat buildup, and a sharp drop in water velocity. Swapping out a compromised or worn drive core with this genuine OEM closed-propeller assembly instantly restores original factory head-height thresholds, reducing ambient operational vibration while returning your central filtration system to quiet, peak performance.
Key Features
Engineered for High-Pressure Resistance: Stiff, reinforced paddle vanes prevent blade flexing or speed deceleration under high structural backpressure manifold networks.
Seamless Corrosion-Resistant Shelling: Completely isolates the strong internal permanent magnets from aggressive saltwater exposure, preventing swelling and internal motor lockouts.
Dynamic Factory Balancing: Every rotor core undergoes electronic vibration balancing to ensure smooth axial rotation, preserving your pump's internal bearing tracks.
(Note: This replacement assembly includes the integrated magnetic rotor body and internal bearing sleeves only. Polished ceramic axle shafts, rubber isolation bushings, volute covers, and main pump motor blocks are sold separately).
Verified Hardware Compatibility
Reef Octopus VarioS Pump Infrastructure: Form-cut exclusively as the native replacement water impeller for the Reef Octopus VarioS-10 Controllable Circulation Pump (Water/Normal Propeller Configuration).
(Note: This industrial-scale impeller is designed solely for the high-power 36V VarioS-10 circulation motor bay. It will not fit smaller 24V skimmer pump configurations or alternative low-flow return pump families such as the VarioS 2, 4, 6, or 8 lines).
What’s Included:
(1) Reef Octopus Replacement VarioS-10 Water Pump Closed-Vane Magnetic Impeller Assembly
(Note: High-clarity ceramic axle shafts, rubber end cushion bushings, front volute plates, and electronic motor stators are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-10 Water Impeller
SKU / Factory Part Identifier: ROP-VAR10-IMP
Impeller Profile Configuration: Closed-Face Multi-Vane Pressure-Rated Water Blade
Material Composition: Saltwater-Safe High-Flux Magnet Matrix Wrapped in Dense Inert Polymer
Primary Function: Water Kinetic Propulsion, Pressure Stabilization, & Hydraulic Turnover
Power down your VarioS-10 controller and pull the main 36V electrical plug from the wall socket to completely eliminate live electricity before handling internal mechanics.
Disconnect your intake and output plumbing unions, lift the pump out of your sump tray, and twist the front volute cover counter-clockwise to open the wet end chamber.
Firmly grasp the front plate of the old impeller and pull it straight out of the motor block cavity. Caution: The powerful internal magnetic pull will resist release—hold tight to prevent pinching your fingers.
Inspect your existing central ceramic shaft and the deep rear bushing seat to confirm they are completely free of cracks, scoring lines, or rough calcium deposits.
Take your new ROP-VAR10-IMP impeller, align its internal bearing channel over the center axle shaft, and slide it straight back into the open motor cavity carefully.
Verify the impeller can spin freely by hand, line up your rubber housing gasket, secure the front volute cover clockwise, lock your plumbing lines, and restore system power.
Pro Tips:
Mind the Intense Magnetic Snap When Inserting the Rotor. The permanent magnet integrated into this commercial-class VarioS-10 impeller core possesses an exceptionally strong industrial magnetic attraction. When sliding the replacement core back into the metal-lined stator housing, the magnetic pull will aggressively yank the impeller out of your fingertips to snap it inward. Hold the assembly firmly by its plastic front edges and lower it back into the chamber slowly to keep from slamming the ceramic shaft or pinching your fingers against the motor wall.
Perform a Citric Acid Descaling Soak Every Quarter. Because return pumps create minor localized thermal energy during heavy high-pressure operation, calcium carbonate and hard magnesium minerals will naturally drop out of your saltwater column and bake onto the warm walls of the impeller magnet core over time. If left uncleaned for months, this rough scale behaves like coarse sandpaper, grinding down your bearings and cutting your GPH output down significantly. Every 3 to 4 months, soak the rotor in a warm bath of citric acid powder to dissolve the buildup safely.
Always Check Your Axle Shaft and Bushings Concurrently. When diagnosing a failing or noisy pump layout, don't just replace the impeller core on its own. Take an extra moment to run your fingernail along the length of your central ceramic axle shaft to check for deep scratching, and inspect your rear rubber alignment bushing for signs of ovalization. Operating a brand-new factory impeller on a warped axle or a chewed-up rear bushing will quickly degrade the fresh bearing walls of your new rotor, shortening its service lifespan prematurely.
