Octo Pulse 4+ Wave Pump
SKU: OCT-OP4PLS
MSRP: $ 461.99
-
Available Through Authorized Retailer
- Massive Broad Flow: Pushes an exceptional 4,500 GPH of water using a wide-aspect impeller matrix that blankets large environments without tissue-damaging hot spots.

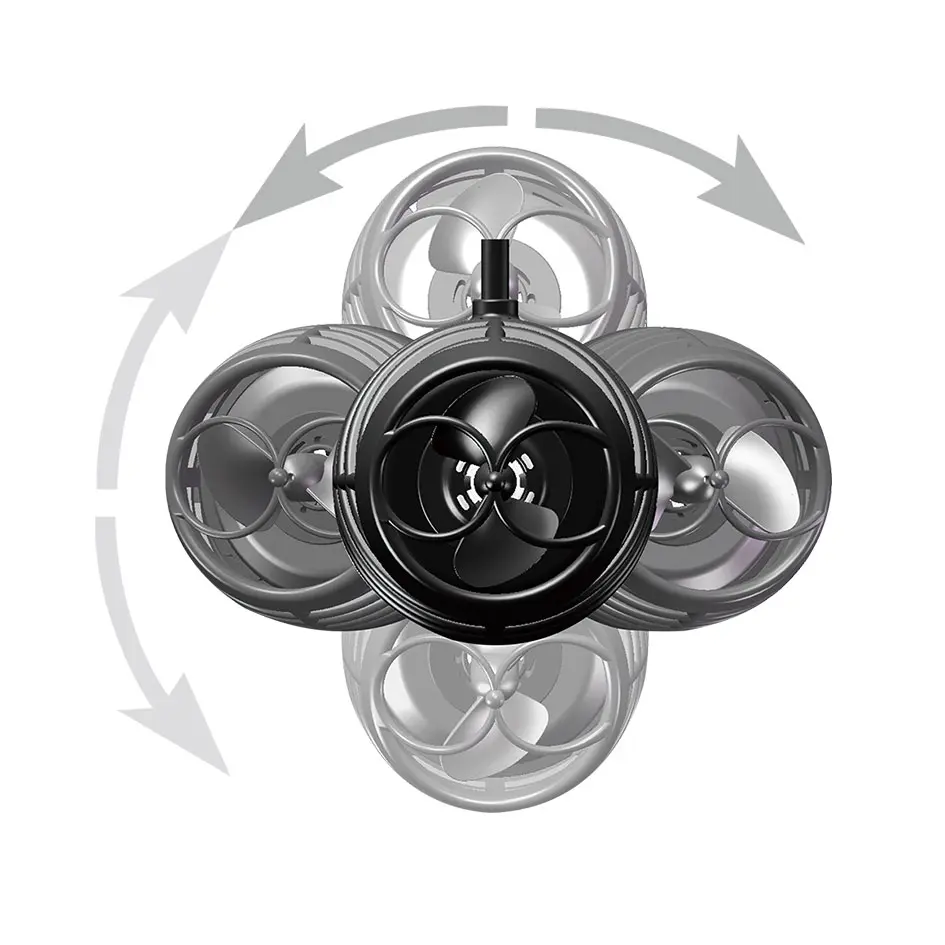

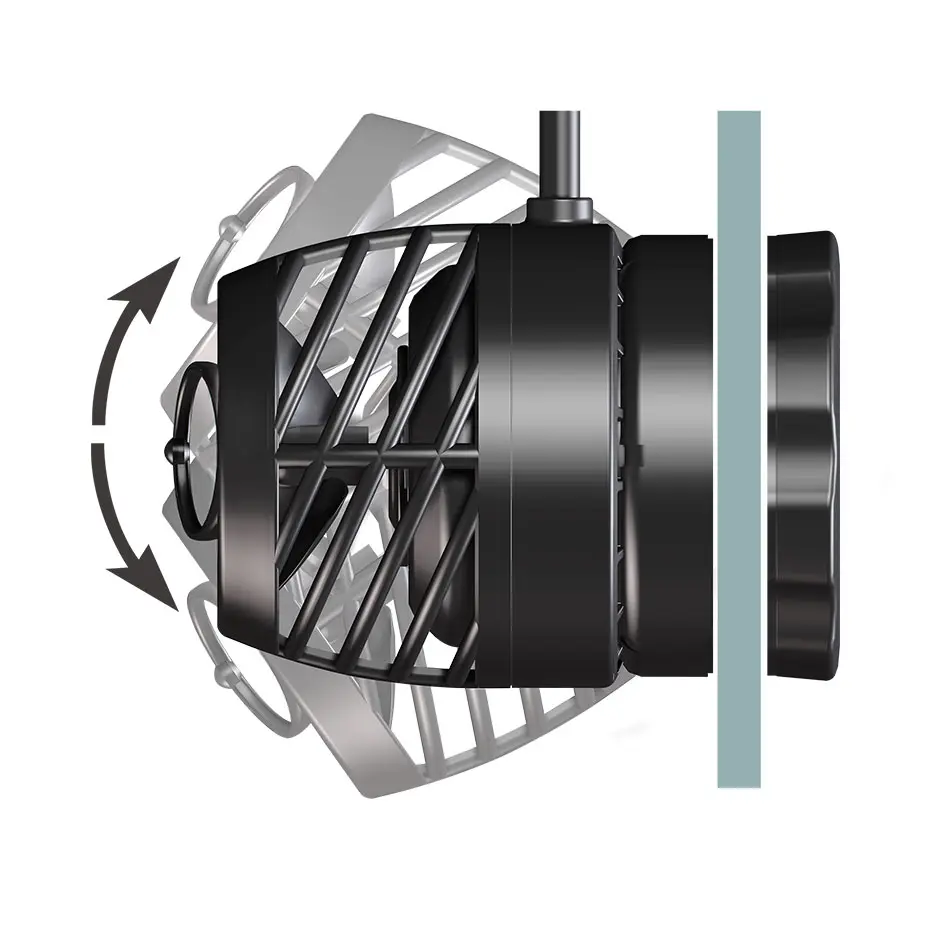

- 360° Articulating Mount: Features an innovative convex rounded rear housing that pairs with a concave magnetic mount, providing a 25-degree range of gimbal gyration and full 360-degree rotation.

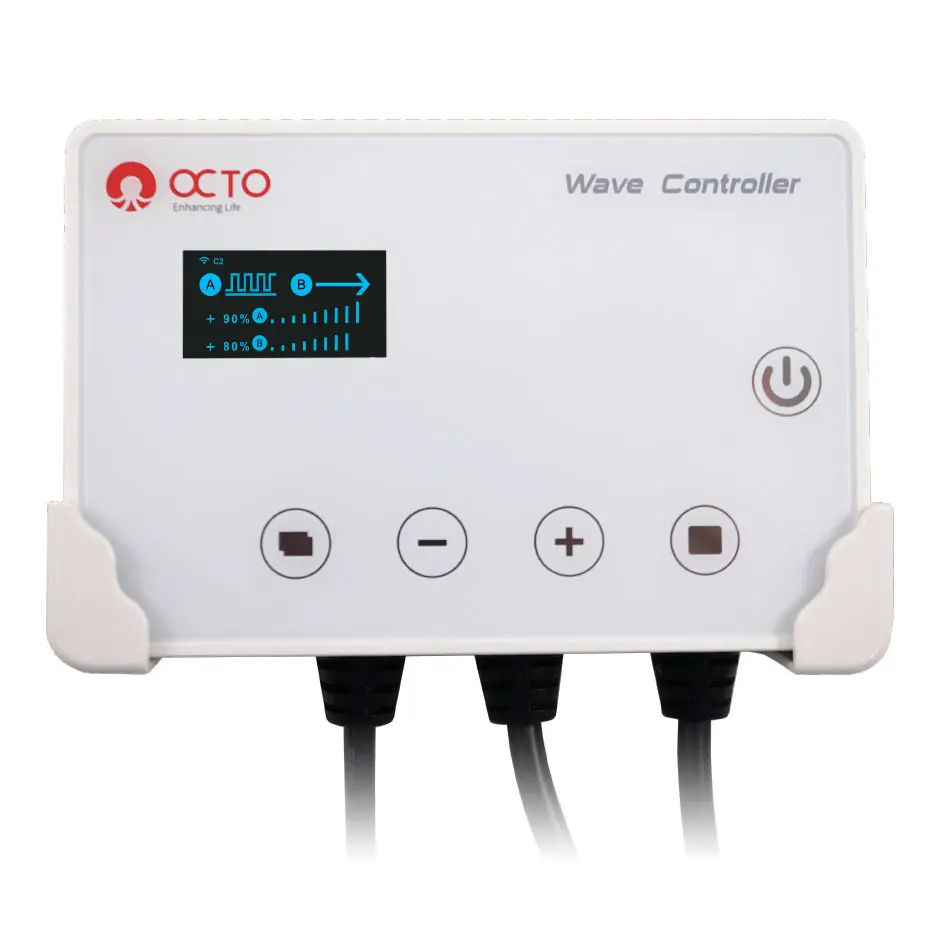

- Multi-Function WiFi Controller: Outfitted with an upgraded dual-pump controller that can simultaneously power and program two separate wave pumps via manual buttons or the intuitive OCTO mobile app.
- Ultra-Low Energy Footprint: Incorporates high-torque electronic components that draw a maximum of 32 Watts of electricity at peak execution.
- Third-Party 0-10V Ready: Includes a universal 0-10V input port, ensuring seamless connection and automation with external controllers like the HYDROS Control, Neptune Apex, or Reef Angel.
- Waterproof Rare-Earth Magnets: Utilizes fully sealed, high-strength magnetic mounts safe for glass or acrylic aquarium panes up to 5/8 inch thick.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

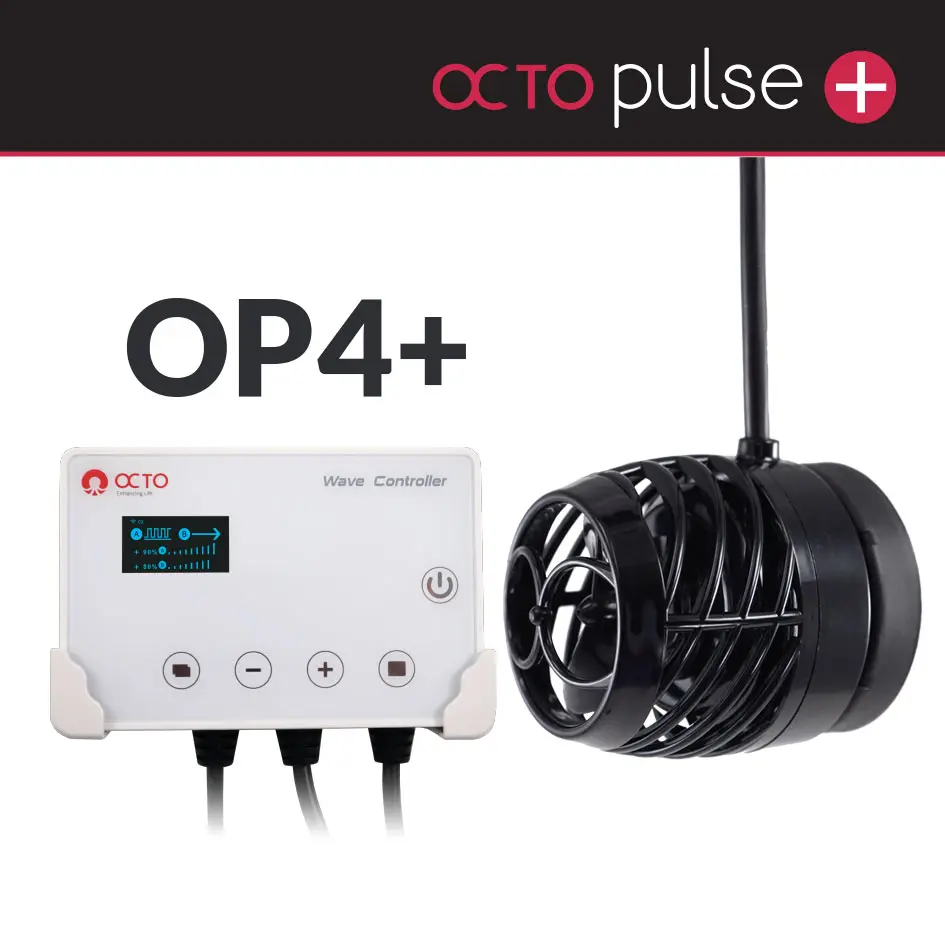

Reef Octopus Octo Pulse 4+ Controllable WiFi Wave Pump
The Reef Octopus Octo Pulse 4+ (SKU: OCT-OP4+) is a high-capacity, intelligent in-tank flow pump engineered to supply natural, high-volume water movement to large marine reef aquariums from 80 to over 200 gallons. Recreating authentic oceanic wave energy inside a glass or acrylic display is crucial for coral respiration, waste export, and health. While traditional powerheads blast narrow, high-velocity streams that easily strip delicate coral tissue, the Octo Pulse 4+ relies on a custom-shaped housing and wide-aspect impeller matrix. This configuration projects a massive, sweeping cone of current that gently blankets your aquascape without creating destructive hydraulic hot spots.

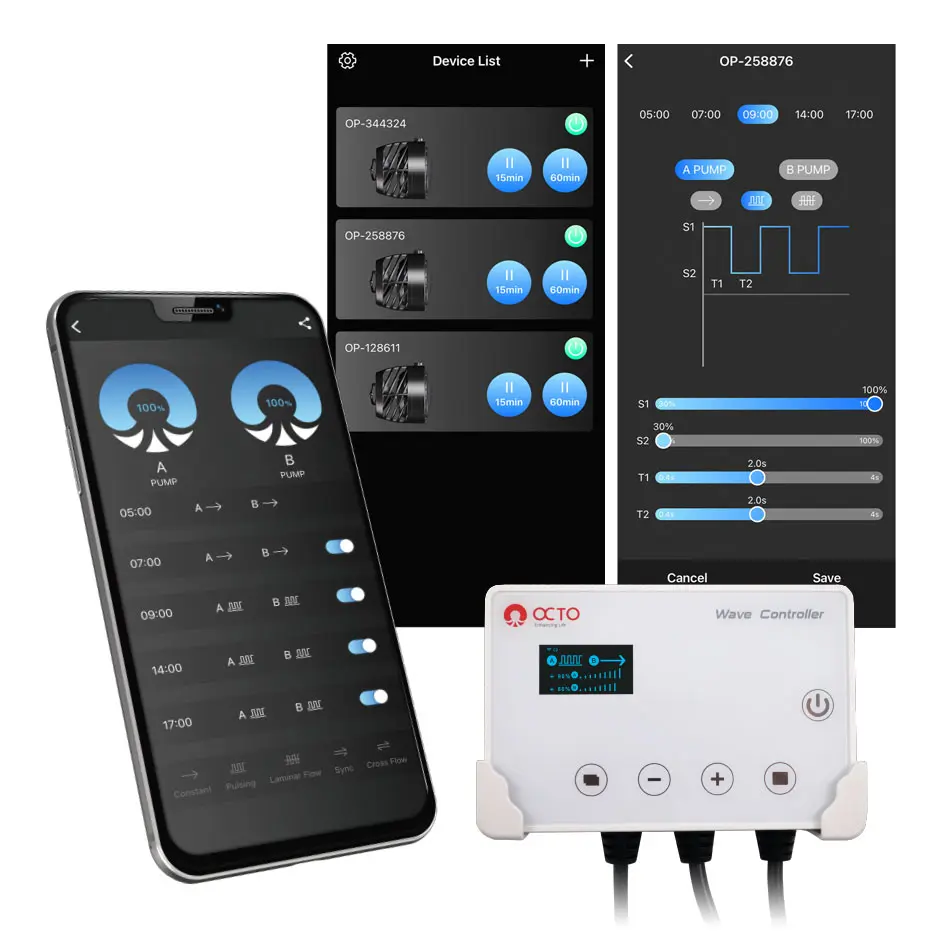

The premium defining attribute of the "Plus" edition is its advanced Dual-Pump WiFi Controller. This centralized module allows you to plug in and manage two separate Octo Pulse pumps (OP-2+ or OP-4+ models) from a single power brick and interface. Using the native OCTO Mobile App (available for iOS and Android), you can easily coordinate complex flow schedules, customize minimum/maximum intensity boundaries, or set localized feed timers. Built with a compact footprint that effortlessly hides against your background glass, the Octo Pulse 4+ delivers high-fidelity water dynamics with near-silent mechanical operation.
Key Features
Gimbal Positioning Flexibility: The articulating magnetic mounting structure lets you angle the pump exactly where your system requires flow.
4 Pre-Programmed Wave Modes: Quickly choose between Constant Flow, Pulse Mode, Gyre Mode, or Random Stream patterns.
Configurable Dual Feed Delays: Features a specialized 15-to-60-minute pause window, allowing you to feed fish or delicate corals without losing food down your overflow drain.
App and Onboard Interface: Seamlessly edit settings using the manual physical buttons on the face of the cradle or unlock total cloud automation via WiFi.
Industrial Ceramic Core: Built using rare-earth magnet impellers running on high-purity bushings to prevent mechanical friction noise and heat accumulation.
Aquarium Application
Medium Reefs: 80 – 120 Gallons (Provides full, high-turnover wave action)
Large Reef Systems: 150 – 200+ Gallons (Excellent for targeting local dead zones or augmenting primary flow)
Universal 0-10v Control
For all those that desire more versatility, the Octo Pulse can link up to most 3rd Party Controllers by using an available 0-10v port. This makes the pump very versatile and almost universally compatible with most system controllers, including the HYDROS Control 4, HYDROS WaveEngine, APEX by Neptune Systems, or the Reef Angel, among many others.

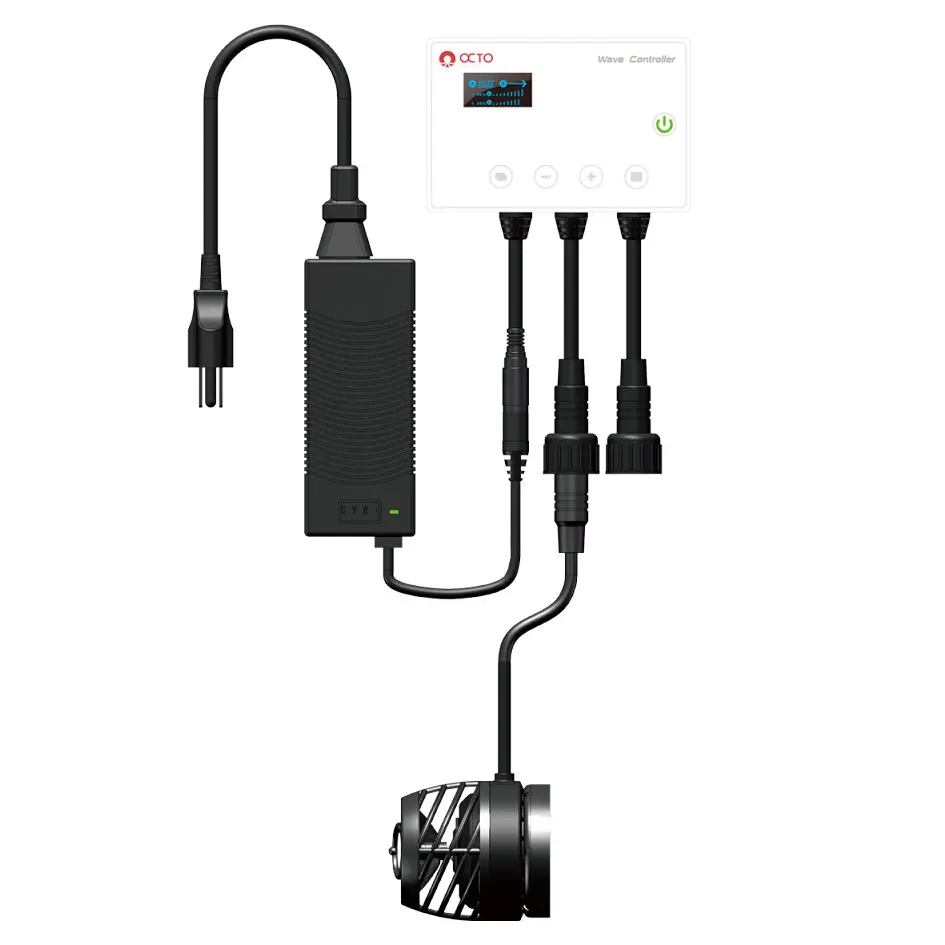

What’s Included:
(1) Octo Pulse 4 Wave Pump Unit
(1) Articulating External Magnetic Mount Assembly

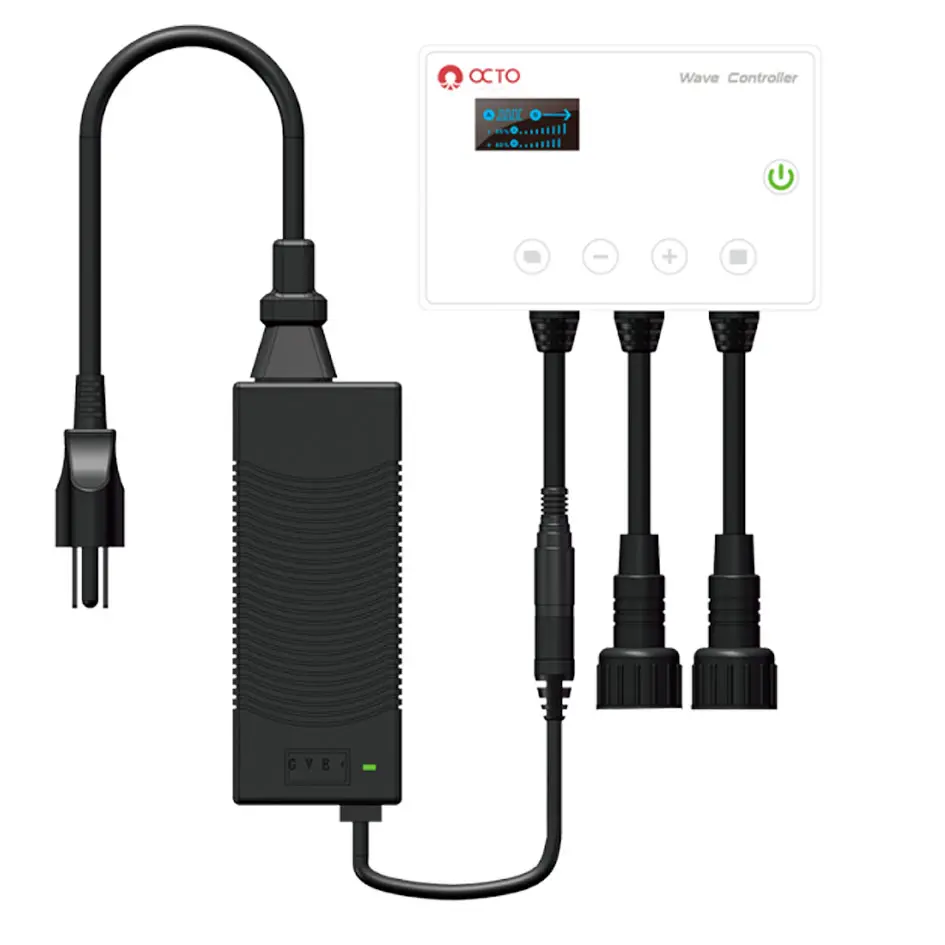

(1) Dual-Pump Multi-Function WiFi Controller with Mounting Cradle
(1) Universal Power Supply (PSU) with Cable
Technical Specs:

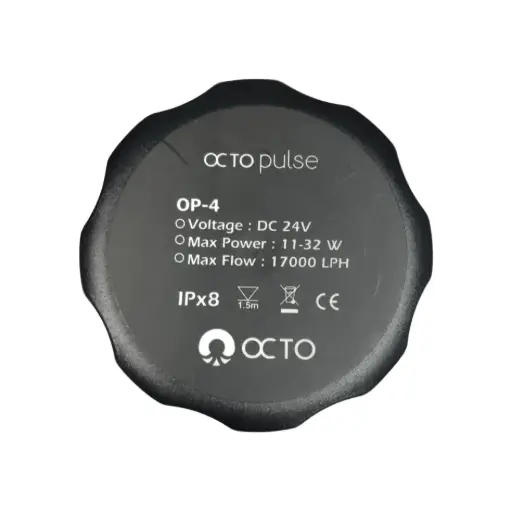

Model / SKU: Octo Pulse 4+ / OCT-OP4+
Maximum Flow Rate: 4,500 GPH
Power Draw Range: 11 – 32 Watts

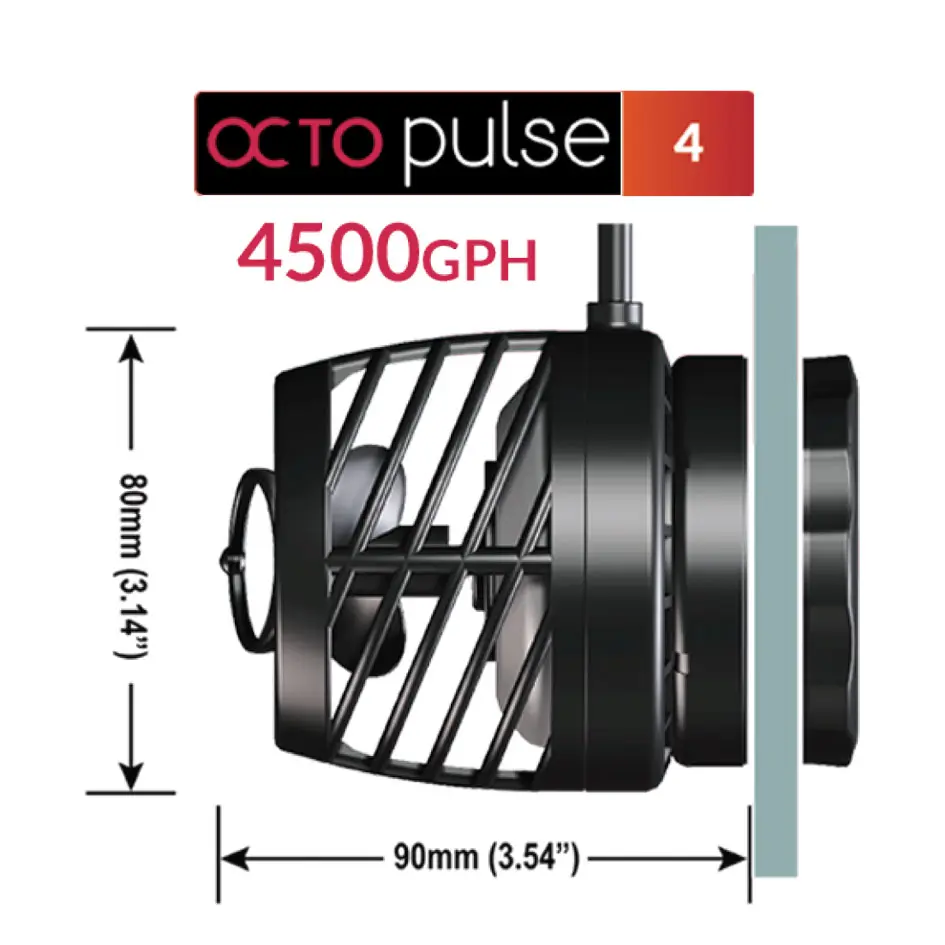

Pump Dimensions: 3.54 in W x 3.14 in H
Maximum Tank Thickness Limit: 0.625 in (16mm)
Working Voltage: 24V DC
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Separate the internal pump wet side from the external dry side magnetic mount.
- Position the Octo Pulse 4+ inside your display tank, sliding the external dry magnet into position on the outer glass to secure it.
- Pivot the pump body within its concave magnetic ring to guide the impeller nozzle toward your primary rock layout or back wall.
- Plug the waterproof pump lead into Port 1 or Port 2 at the base of the WiFi Controller module.
- Download the OCTO App to your smartphone, connect to your home's 2.4GHz WiFi network, and follow the basic screen prompts to sync the controller.
- Power up the system and select your preferred wave mode, tailoring the peak intensity percentage to accommodate your coral layout.
Pro Tips:
- Clean the Impeller Bushing. To preserve near-silent performance and extend the lifespan of your pump, disassemble the front wet-side shroud every 2 to 3 months and soak the impeller assembly in a bath of warm white vinegar or a dedicated citric acid solution. Calcium carbonate scale can precipitate inside the rear bushing wall, causing increased friction, slow startup issues, and audible ticking noises.
- The Anti-Sync Effect. If you hook up two Octo Pulse pumps to the shared WiFi controller, configure them in Anti-Sync Mode. Set Pump 1 to ramp up to peak power while Pump 2 drops to minimum speed, then alternate the cycle. This creates a natural back-and-forth sloshing motion across your aquascape, completely eliminating stagnant detritus zones behind your rocks.
- Secure Your Cable Paths. When setting up your powerhead, always create a "drip loop" along the electrical cord right before it plugs into the controller or wall outlet. This simple dip in the wire guarantees that if water accidentally creeps down the power line during tank maintenance, it will harmlessly drip onto the floor rather than traveling directly into sensitive electronic circuitry.
