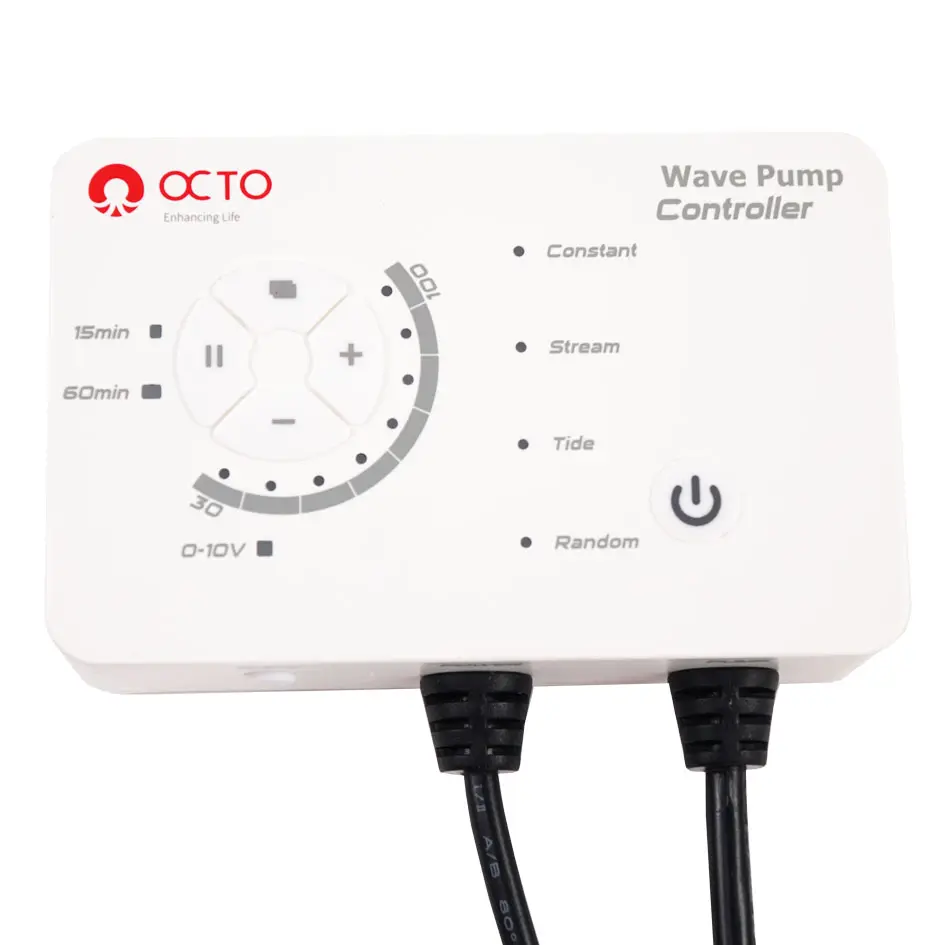

Octo Pulse 4 Standard Controller
SKU: ROP-OP4-CNTL
- Genuine OEM Replacement Module: Direct factory-spec standard interface designed specifically to program and drive the Reef Octopus Octo Pulse 4 wavemaker pump.
- Eight Preset Speed Settings: Bespoke physical onboard panel configuration enables incremental variable control over flow volume via high-visibility lit LEDs.
- Four Pre-Programmed Tidal Modes: Access diverse pre-configured flow styles instantly, including standard pulse, surge, and random current patterns.
- Dual-Interval Feed Pauses: Features an integrated timer module that pauses pump movement for either 15-minute or 60-minute windows for seamless feeding.
- Universal 0-10V Automation Port: Seamlessly interfaces with major third-party aquarium controllers like the Neptune Apex to execute custom script programming.
- True Slow-Start Protection: Automatically ramps internal rotor velocity from zero to preset speed targets over a 10-second window to prevent motor strain.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Octo Pulse 4 Replacement Standard Controller (ROP-OP4-CNTL)
The Reef Octopus Octo Pulse 4 Standard Controller (SKU: ROP-OP4-CNTL) is an authentic factory-spec replacement module distributed by CoralVue to re-establish complete operational command over your high-volume wavemaker. Managing a complex marine aquascape requires continuous, highly adjustable water movement to keep debris suspended and deliver nutrients directly to live coral tissues. Because electronic control boxes under aquariums face high humidity, moisture exposure, or occasional button fatigue from manual interactions, they can occasionally fail. Swapping a damaged interface out for this original factory driver allows you to maintain your current 4,500 GPH output without purchasing an entirely new motor block bundle.
This specialized standalone module provides refined direct current (DC) variable speed control over your pump. The layout features a straightforward layout containing eight preset speed tracking settings indicated by high-contrast indicator LEDs. It comes loaded with four unique pulsing patterns designed to mirror real oceanic wave energy. Additionally, the unit incorporates a true slow-start ramp-up script that gradually spins up the internal magnetic rotor over approximately 10 seconds. This critical feature minimizes severe internal alignment shifting, eliminates torque rattling, and extends the physical lifespan of your impeller assembly.
Key Features
Seamless Device Integration: Connects directly to your original Octo Pulse 4 power transformer and wet-side motor cords via an integrated, moisture-sealed 3-conductor union terminal.
Advanced Third-Party Compatibility: Employs a built-in 0-10V interface port, allowing full external control override via major system controllers like the Apex or Reef Angel.
One-Touch Feed Pausing: Quick-access dual-interval modes turn the pump off for 15 or 60 minutes, letting fish graze quietly before automatically restarting normal operation.
Sturdy Compact Footprint: Enclosed in a sleek, resilient polymer framework designed to mount easily inside cabinet equipment setups.
Verified Hardware Compatibility
Reef Octopus Wavemaker Series: Engineered exclusively for the standard standalone edition of the Octo Pulse 4 (OP-4) wave pump system.
(Note: This standard physical control interface does not feature direct onboard native app-based smartphone WiFi tracking capabilities. If you are upgrading or maintaining a cloud-managed setup, please reference the distinct multi-pump Octo Pulse+ WiFi Controller module).
What’s Included:
(1) Reef Octopus Octo Pulse 4 Replacement Standard Control Module Interface
(Note: Wall mounting brackets, 24V DC power transformer bricks, extension wiring harnesses, and submerged motor bodies are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Wave Pump Controller (OctoPulse 4 Version)
SKU / Factory Part Identifier: ROP-OP4-CNTL
Variable Control Output Range: 8 Manual Preset Speed Increments
Integrated Native Wave Programs: 4 Pre-Configured Dynamic Marine Patterns
External Command Interface Terminal: 0-10V Analog Port
Connection Profile Requirements: 3-Conductor Waterproof Union Joiner
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Unplug your wavemaker’s primary 24V power supply from the wall socket to completely cut voltage to the active lines.
- Unscrew the threaded waterproof locking collars to detach the damaged controller from the pump's power line and the power supply barrel cord.
- Take your new ROP-OP4-CNTL module and align the interior indexing pins of your pump cord with the receiving 3-conductor port.
- Push the wire connections together firmly and spin the locking plastic collar clockwise until it is fully sealed hand-tight.
- Plug the male power adapter lead from your 24V transformer into the controller's dedicated power input jack.
- Return your main power cord to the wall outlet, click through the push-buttons to test your favorite wave mode, and confirm the indicator LEDs illuminate cleanly.
Pro Tips:
- Hand-Tighten Cords to Protect the Waterproof Seals. The 3-conductor connection terminal on your new Octo Pulse 4 controller uses a plastic locking nut paired with an internal rubber O-ring to keep out moisture. When connecting your pump lead, make sure to screw this collar down firmly using your fingers only. Never use tools like metal pliers or adjustable wrenches, as they can easily strip the plastic threads or crack the underlying connection collar, allowing humid air to leak into the pins.
- Isolate the Unit from Direct Aquarium Sump Humidity. Even though the connection points themselves are waterproofed, the main housing of your standard control box contains open ventilation gaps and precise circuit elements that can degrade over time if exposed to heavy salt spray. Avoid mounting the controller box directly over an open filter sump or right against the rim of your water lines. Use hook-and-loop strips to attach the module higher up on your stand's wall panel to keep it out of splash zones.
- Configure Your System for Smooth 0-10V System Transitions. If you are linking this module up to an external third-party automated system (like a Neptune Apex) using the 0-10V port, verify your programming script matches the hardware's capabilities. For the smoothest operation, write your custom command parameters to work with the pump's built-in 10-second slow-start feature. Avoid programming instant cycles from 0% to 100% back-to-back every few seconds, as letting the controller use its native ramp cycles prevents unnecessary wear on your impeller shaft.
