Octo Pulse+ Controller WIFI
SKU: OCT-OPPLS-CNTL
- Dual-Pump Connectivity: Features dual connection ports to power, orchestrate, and program two separate Octo Pulse wave pumps simultaneously from a single hub.
- OCTO Cloud Automation: Unlocks wireless remote access through the native OCTO mobile app, enabling complex flow schedule configurations from anywhere.
- Onboard Manual Override: Integrated with physical tactile push-buttons and a localized LED indicator display on the faceplate for instant manual parameter adjustments.
- Universal 0-10V Interface: Equipped with a standard 0-10V input line, allowing seamless integration with external third-party control hubs like the Neptune Apex or HYDROS.
- Multiple Preset Surge Modes: Supports instant deployment of Constant Flow, Pulse, Gyre, and Random Stream wave dynamics across paired powerheads.
- Magnetic Cradle Mount: Includes a dedicated, screw-mount plastic docking cradle that safely secures the control interface to your dry cabinet wall.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

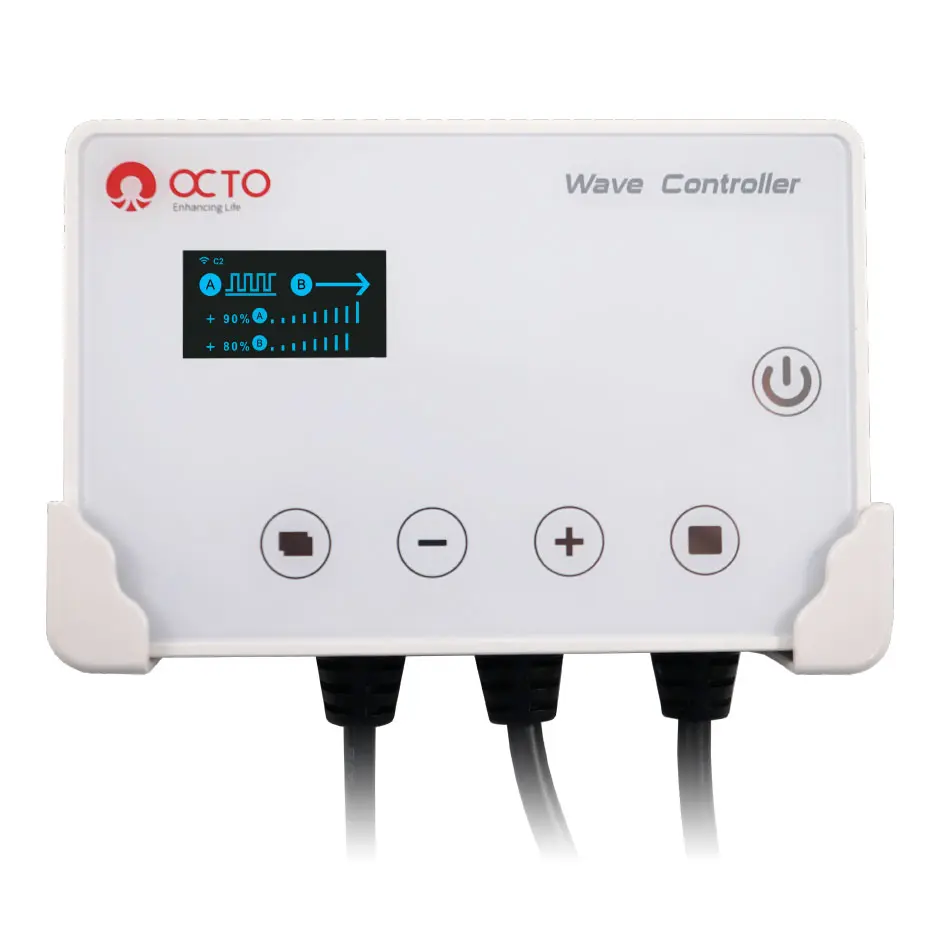

Reef Octopus Octo Pulse+ Dual Pump WiFi Controller
The Reef Octopus Octo Pulse+ WiFi Controller (SKU: OCT-OP-CONT) is an intelligent, high-performance central command module designed as a direct replacement or upgrade for the Octo Pulse series wavemaker pumps. Rather than restricting you to primitive mechanical dials, this advanced replacement interface serves as a dual-pump automated driver. It manages up to two separate Octo Pulse powerheads (compatible with both Octo Pulse 2 and Octo Pulse 4 pump heads) simultaneously. By consolidating your powerheads into a singular automated hub, it removes equipment overlap under your aquarium stand and establishes seamless synchronization across your display's water columns.

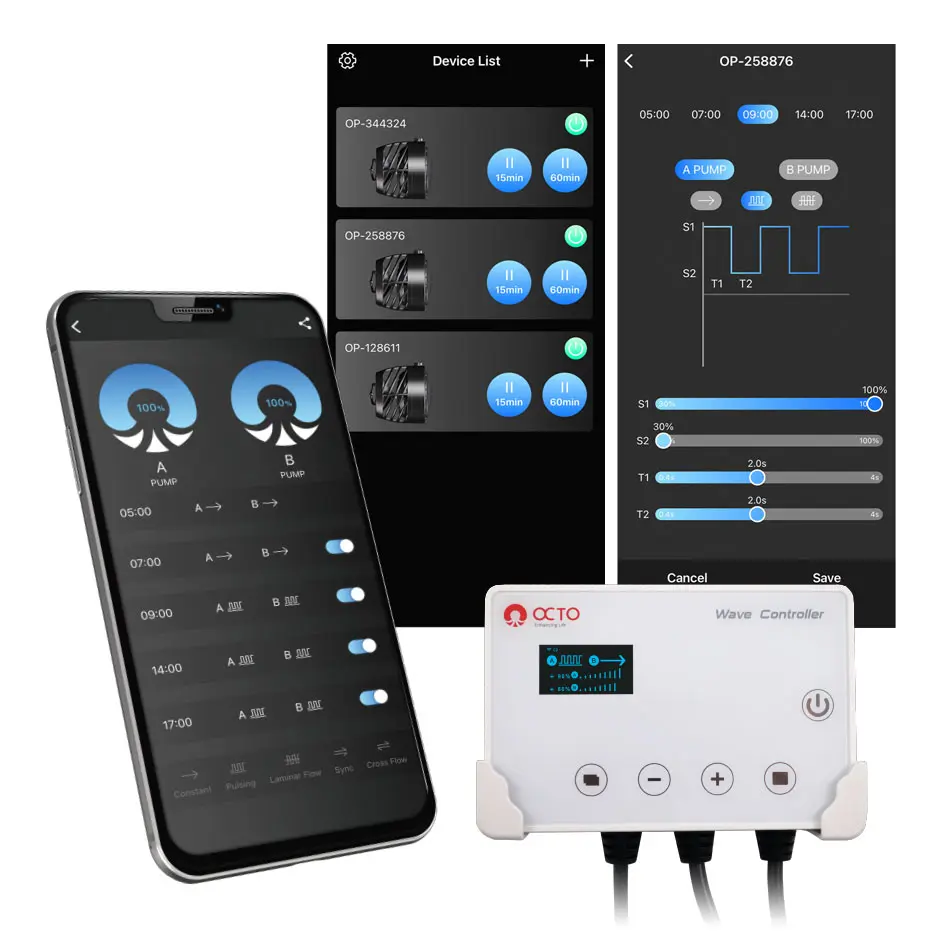

Through embedded 2.4GHz WiFi cloud connectivity, this controller interfaces directly with the intuitive OCTO Mobile App (available for iOS and Android devices). Within the app interface, you can build intricate 24-hour flow schedules, adjust minimum and maximum motor percentages, and coordinate natural ocean patterns. The controller fully supports multi-pump operational rules, allowing you to run paired pumps in perfect synchronization or alternating anti-sync configurations. Backed by a universal 0-10V interface for third-party automated system integration and a manual controller faceplate for quick localized adjustments, this module offers complete mastery over your aquarium's kinetic dynamics.
Key Features
Dual Port Architecture: Powers and sequences two independent wave pump heads using a single incoming power supply line.
Cloud App Calibration: Coordinates fluid velocity, custom wave frequency intervals, and global schedule profiles over local or remote networks.
Four Preset Wave Frameworks: Easily toggle between stable Constant current, rhythmic Constant Pulse, alternating Gyre paths, or chaotic Random reef streams.
Smart Local Feed Pauses: Features integrated feed-pause options directly on the control panel to briefly stall flow during livestock feeding windows.
Durable Industrial Housing: Compact, heavy-duty ABS plastic enclosure designed to withstand humid, under-cabinet environments.
Component Compatibility
Octo Pulse 2 Pump Heads: Direct execution (Powers up to 2 units simultaneously)
Octo Pulse 4 Pump Heads: Direct execution (Powers up to 2 units simultaneously)
(Note: Requires your existing Octo Pulse power supply brick to feed the controller module)
What’s Included:
(1) Reef Octopus Octo Pulse+ WiFi Dual-Pump Controller
(1) Screw-Mount Controller Wall Docking Cradle
(Note: Power supply brick and wave pump heads are NOT included)
Technical Specs:
Model / SKU: Octo Pulse+ Controller / OCT-OP-CONT
Max Supported Pump Channels: 2 Independent Ports
Wireless Protocol Required: 2.4GHz WiFi (Not compatible with 5GHz networks)
External Inputs Supported: Universal 0-10V Port
Working Supply Voltage Compatibility: 24V DC
Enclosure Composition: Reinforced Impact-Resistant ABS Plastic
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Secure the plastic wall docking cradle to the interior dry wall of your equipment cabinet using standard mounting screws.
- Slide the Octo Pulse+ WiFi Controller safely into the mounted cradle clips.
- Plug your existing Octo Pulse wave pump waterproof connections into Port 1 and Port 2 located at the bottom base of the controller.
- Insert your default 24V DC power supply adapter line into the central power receptacle of the controller.
- Download the OCTO App to your smartphone, verify your phone is connected to a 2.4GHz home network, and launch the configuration wizard to pair the device.
- Once synced, name your pump channels and configure your custom speed rules, intervals, and feed modes within the mobile dashboard.
Pro Tips:
- Utilize Anti-Sync Configuration. When operating two Octo Pulse pumps via this shared controller, always set them up in an Anti-Sync sequence inside the app. By programming Pump 1 to ramp up to peak velocity while Pump 2 drops to low idle, you generate a natural back-and-forth sloshing movement across your rockwork, completely eliminating stubborn detritus dead spots.
- Drip Loops Save Electronics. Always shape a pronounced "drip loop" along every power line and pump connection wire right before it enters the controller ports. This simple physical curve ensures that if any salt water or moisture accidentally runs down the cables during routine tank maintenance, it will harmlessly drip onto the floor instead of migrating straight into sensitive electronic boards.
- 2.4GHz Network Mandatory. Like most automated smart aquarium components, the Octo Pulse+ Controller requires a true 2.4GHz WiFi connection to pair. If your home router broadcasts a combined single "Dual-Band" 2.4GHz/5GHz mesh signal, temporarily log into your router's administrative backend to separate the bands or disable the 5GHz broadcast for a few minutes while running the initial device handshake.
