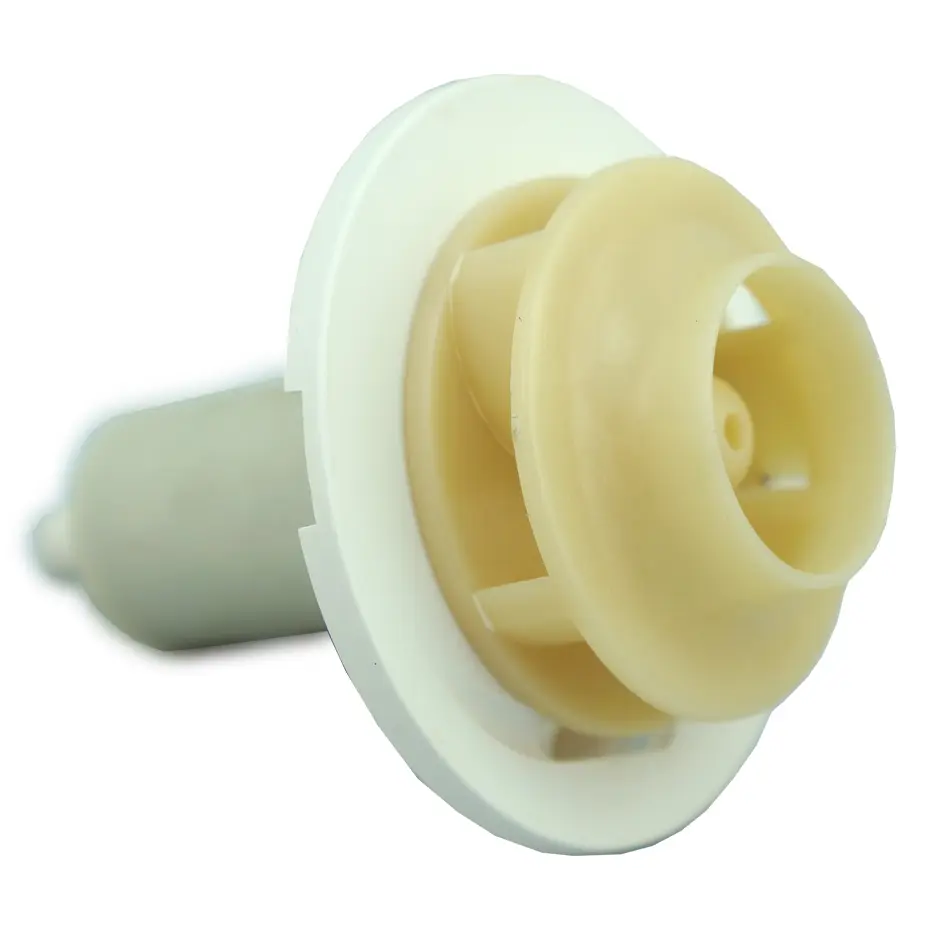

Octo VarioS 8 Water Impeller
SKU: ROP-VAR8-IMP
- Genuine OEM Direct Replacement: Authentic factory-spec standard water-moving propeller rotor assembly engineered explicitly for extra-large frame 36V Reef Octopus controllable return circulation pumps.
- Hydrodynamically Tuned Normal Propeller: Features balanced curved paddle blades designed to maximize hydraulic pressure and volume translation without slicing or fractionating fluid columns.
- Integrated Blended Magnet Rotor: Heavy-duty, permanent magnet core encapsulated in a seamless protective polymer shell to prevent raw saltwater contact, swelling, or blistering.
- Ultra-Smooth Ceramic Bearing Interface: Includes internal low-friction bearing points built to slide effortlessly over your existing polished ceramic axle shaft.
- Cures Cavitation & System Pressure Drops: Instantly rectifies lagging turnover metrics, baseline line velocity loss, and physical motor tremors caused by warped, worn, or uncalibrated rotor blades.
- Drop-In Mechanical Restoration: Slides directly into the center of the pump stator cavity, requiring zero specialized calibration or structural alignment tools.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-8 Replacement Water Impeller (ROP-VARIOS8-IMP)
The Reef Octopus VarioS-8 Replacement Water Impeller (SKU: ROP-VARIOS8-IMP) is an authentic factory-spec internal drive component distributed by CoralVue to completely revitalize the head pressure and volume delivery of your flagship return circulation loop. Unlike fractionating needlewheel impellers designed for protein skimmers, a dedicated water pump driver functions under heavy hydraulic lift loads. This technical rotor utilizes a robust "normal prop" configuration with smooth, curved paddle blades. As water fills the extra-large volute chamber, these rigid vanes capture the energy from the high-capacity 36V motor and convert it into a smooth, steady stream of water capable of pushing up to 2,700 GPH across your aquarium's manifold.
Operating 24 hours a day under a continuous load can eventually lead to natural wear on this core driving unit. Over multiple years of constant rotation, the internal polarity of the permanent magnet can steadily weaken, leading to performance lags. Additionally, fine substrate sand grains, fragments of filter media, or calcium scaling can bypass your intake screen and get trapped inside the spinning wet well, creating friction that slowly scores the smooth walls of the magnet or damages the blade edges. When a heavy water propeller becomes imbalanced, it creates mechanical vibrations that manifest as an audible hum, increases running temperatures, and causes a significant drop in head-height velocity. Swapping out a compromised drive core with this genuine OEM replacement immediately realigns your internal tolerances, ensuring whisper-quiet performance and restoring full flow to your filtration setup.
Key Features
Engineered for Flagship High-Volume Flow: High-durometer paddle blade design resists flexing or structural distortion under heavy plumbing back-pressure or during rapid controller ramp cycles.
Seamless Corrosion-Resistant Encapsulation: Fully shields the strong internal magnets from aggressive saltwater exposure, preventing core swelling and structural motor lockouts.
Dynamic Factory Balancing: Every circulation propeller undergoes electronic calibration to guarantee perfect axial rotation, preserving your pump's internal bearing sleeves.
(Note: This replacement assembly includes the integrated magnetic rotor body and paddle wheel faceplate only. Polished ceramic axle shafts, spacing shims, rubber end cushions, and main pump motor blocks are sold separately).
Verified Hardware Compatibility
Reef Octopus Controllable DC Return Pumps: Sized explicitly as the native matching replacement water impeller for the extra-large frame Reef Octopus VarioS-8 Controllable Circulation Pump.
(Note: This is a standard smooth-blade paddle impeller designed strictly for water movement and filtration return loops. It cannot be used with fractionating skimmer pumps, which require fine pinwheel arrays to shred air lines. It is an extra-large component built for the 8-series body and is not compatible with smaller VarioS-2, VarioS-4, or VarioS-6 pump frames).
What’s Included:
(1) Reef Octopus Replacement VarioS-8 Water Pump Paddle-Blade Magnetic Impeller Assembly
(Note: Ceramic axle shafts, friction spacing washers, rubber end cushion bushings, and white PVC volute covers are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-8 Water Impeller
SKU / Factory Part Identifier: ROP-VARIOS8-IMP (Cross-Reference Item Code: CV25217-IMP)
Impeller Profile Configuration: Smooth-Vane Continuous Velocity Normal Propeller Profile
Material Composition: High-Flux Magnet Matrix Wrapped in Dense Inert Polymer with Polycarbonate Vanes
Primary Function: Continuous Fluid Transport, Pressure Head-Height Driving, & Flow Optimization
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Power down your pump controller and pull the main AC/DC power supply from the wall socket to completely eliminate live electricity before handling internal mechanics.
- Close all inline plumbing valves to isolate the pump, unscrew your union collars, lift the pump out of your sump, and twist the front white volute cover plate counter-clockwise.
- Firmly grasp the front plate of the old water impeller and pull it straight out of the motor block cavity. Caution: The internal magnetic pull will resist release—hold tight to prevent pinching your fingers.
- Inspect your existing central ceramic shaft, the small plastic spacing shim washer, and the deep rear bushing seat to confirm they are completely free of cracks, scoring lines, or rough calcium deposits.
- Take your new ROP-VARIOS8-IMP impeller, align its internal bearing channel over the center axle shaft, and slide it straight back into the open motor cavity carefully.
- Verify the propeller can spin smoothly by hand, line up your rubber housing gasket, secure the front volute cover clockwise, lock your plumbing lines, and restore power.
Pro Tips:
- Mind the Magnetic Snap When Reinserting the Rotor. The permanent magnet integrated into this controllable DC return impeller core possesses an exceptionally strong magnetic attraction. When sliding the fresh replacement core back into the metal-lined stator housing, the magnetic pull will aggressively pull the impeller out of your fingertips to snap it inward. Hold the assembly firmly by its plastic front edges and lower it back into the chamber slowly to keep from slamming the delicate propeller face or pinching your fingers against the motor wall.
- Perform a Citric Acid Descaling Soak Every Quarter. Because return pumps work hard to push water, the internal friction and warmth generated in the impeller bay naturally causes calcium carbonate and hard magnesium minerals to bake onto the warm blades and magnet over time. If left uncleaned for months, this rough crust behaves like coarse sandpaper, grinding down your bearings and creating micro-abrasions along the magnet's shell. Every 3 to 4 months, soak the rotor in a warm bath of citric acid powder to dissolve the buildup safely.
- Always Check Your Spacing Shim Washer and Axle Concurrently. When replacing a worn return propeller core, always verify that the tiny, clear plastic spacing shim washer is placed back onto the ceramic shaft right behind the impeller hub. Running a brand-new normal prop without this micro-spacer will cause the spinning blades to physically rub against the front volute casing or sit too deep in the stator well. This rubbing will chew off the plastic paddles, cause severe operational vibration, and quickly degrade your new investment.
