VarioS 2S
$219.99

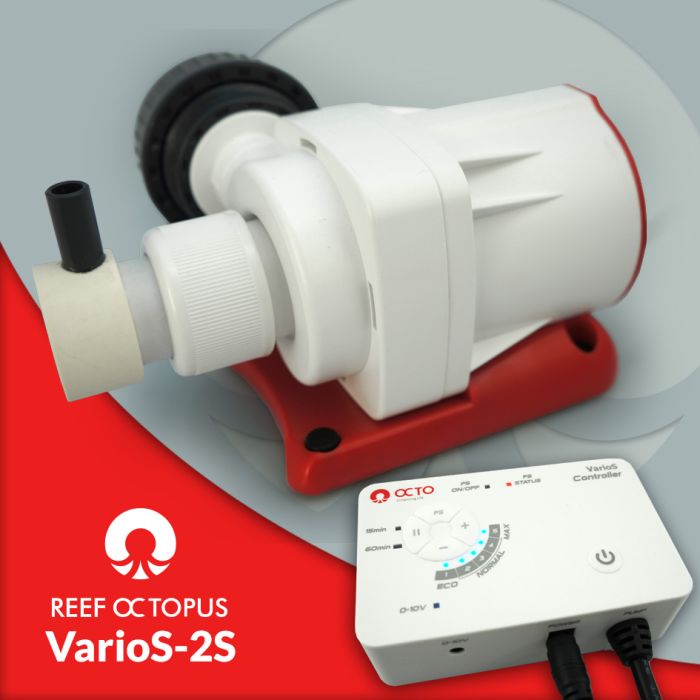

VarioS-2S Controllable Skimmer Pump

  • SKU: VARIOS-2S

FREE SHIPPING on orders over $50

ApexReady

Max Flow: 238gph / Max Air: 900 L/H (31 SCFH)*

  • Efficiency: 24V / 25watts
  • Dimensions: 4.75in(W) x 5.7in(L) x 4in(H)
  • Controller Features: multiple pause times, float switch safety and 0-10v input for 3rd party controller
  • Replacement pump for Reef Octopus: Diablo DCS 150int, Classic 150int, SRO 2000int, Regal 150(int,sss)
$219.99

* Required Fields

Features
Overview

Advanced Control Skimmer Pump

The Reef Octopus controllable Direct Current “DC” pinwheel skimmer pumps are the latest in variable speed flow technology and allows for refined control, enhanced performance and efficiency. The vast majority of skimmer pumps available to hobbyist are alternating current "AC" pumps (the type of power that comes out of your wall outlet).  Direct current pumps have several key advantages over traditional AC pumps.  Most notably, you can control the rotational speed of the motor, thus electronically control air and water flow rates into the skimmer.  Now the user can have the skimmer process more or less water just by the push of a button!!!

REFINED CONTROL

In addition to allowing the pump to run at 5 different speeds, the new VarioS Controller takes the pump to a new level featuring:

  1. A float switch connection, which allows you to connect a float switch (included in the box) to the controller. This is an added security feature that allows you to shut off the skimmer pump when your waste collector is full or shut off your water pump when your sump water has reached a high or low level. In all, you don’t need another module or controller to add a float switch to your system.
  2. Two different pause/feed modes that will shut off the pump for either 15 or 60 minute intervals. These come handy when you are feeding the tank or conducting regular maintenance such as a water change.
  3. And the best feature of the VarioS controller is… a 0-10v input which will allow a 3rd party controller such as Neptune System’s APEX or Reef Angel to take over the pump and tell it what to do. In this mode, the new VarioS controller becomes an interface between the system controller and the pump allowing you to create intricate programs using your system controller native language. This is unprecedented controllability on a skimmer or water pump. In essence, you can use your system controller as your DC pump controller!

The VarioS pump features a true slow startup where the pump slowly ramps up from zero RPM to the full preset speed over a period of approximately 10 seconds.

The pump and controller are connected via a waterproof 3-conductor union.  The detachable controller will allow for a simple waterproof union. The volute can rotate to change the pump's output orientation in 90 degree intervals, meaning users can output water vertically (up or down) as well as horizontally.

Includes a VarioS 2S pump, VarioS controller, power supply, venturi, airline and 1in output union.

REPLACEMENT PUMP FOR

Diablo DCS 150int, Classic 150int, SRO 2000int, Regal 150(int,sss)

*There is an addition part needed to convert the pump to the skimmer body for some models that must be requested at the time of purchase due to the added cost of the part.

MORE DETAILS

RO-DC-3500S Skimmer Pump Specs

Output thread size: 1in male
Inlet thread size: 1.25in male
Dimensions: 4.75in(W) x 5.7in(L) x 4in(H)

Output union size available: 32mm
Voltage: DC 24V
Power Consumption: 25w watts at max power
Max Air Draw: 900L/H (31 SCFH)*

*Air and water results will vary depending on aquarium setup



Warranty

- 2 year coverage on pump/1 year on rotor

Reef Octopus can not be responsible for consequential damages arising from installation or use of this product. Reef Octopus warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase. CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.

NOTE: This warranty is void if the product is damaged through abnormal operating conditions, accident, abuse, misuse, unauthorized alteration or repair. This warranty is valid only in North America and is non-transferable. Consumable spare parts are not applicable to the warranty.

FAQS
If you have troubles with the pump starting please remove the volute cover from the pump to expose the pumps rotor. Then remove the impeller and reseat the front rotary bearing. Please see the following video for further guidance. http://d.pr/v/1bPxa
