Octo Regal 250SSS Protein Skimmer
SKU: REGAL-250SSS
MSRP: $ 1,097.24
-
Available Through Authorized Retailer
- Super Space Saver (SSS): The internal pump configuration places the VarioS-6S inside the 10-inch body, drastically reducing the footprint for large systems with limited sump space.
- VarioS-6S DC Power: Offers high-volume air processing with 5 variable speed settings and a soft-start feature for maximum stability and control.

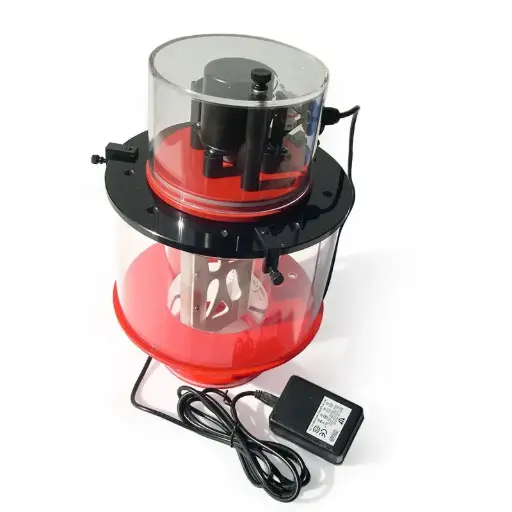

- Automated Safety: Equipped with a waste collector float switch that integrates with the controller to shut off the pump instantly if the collection cup reaches capacity.
- Premium Wine-Glass Design: The 10-inch tapered body stabilizes foam and increases contact time, ensuring maximum organic extraction in high-volume tanks.
- Full Automation Support: Includes a 0-10V input port for direct integration with aquarium computers like the Neptune Apex or GHL Profilux.

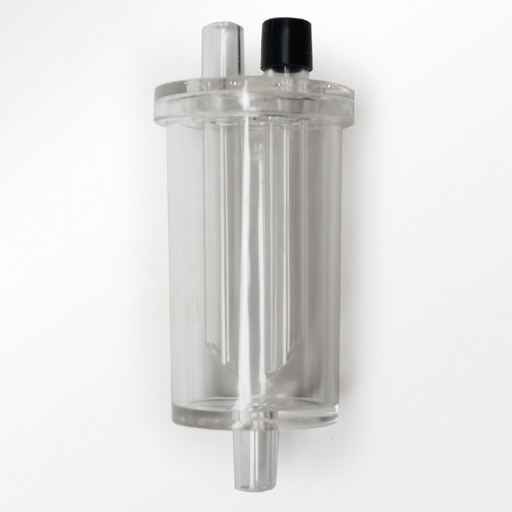

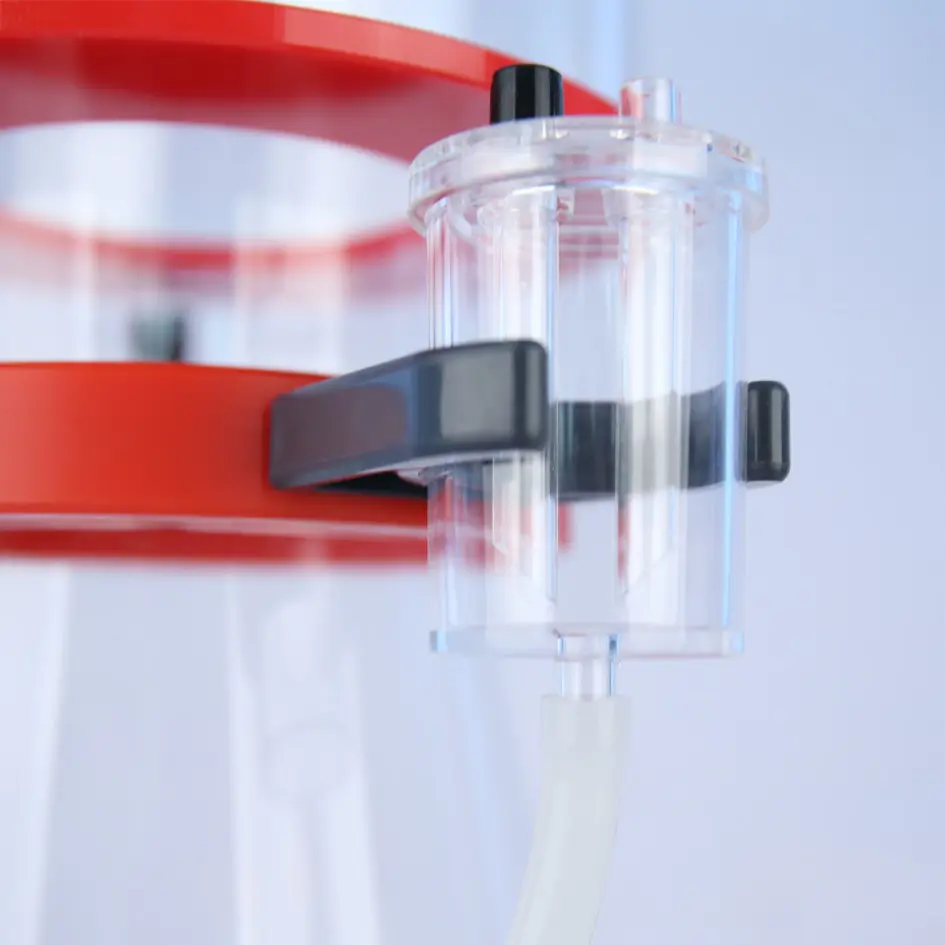

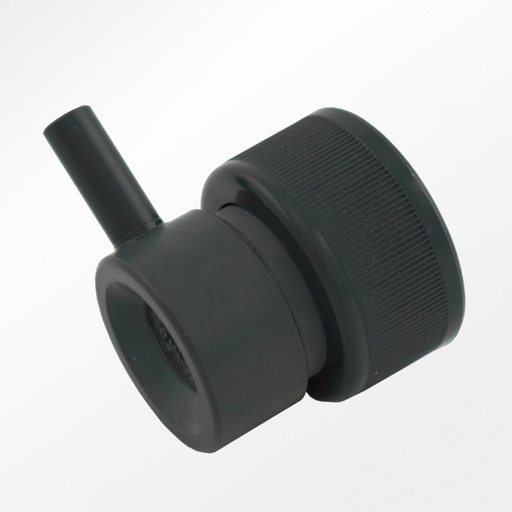

- Silent Performance: Large air silencer and vibration-dampening feet significantly reduce noise levels, making it ideal for in-home installations.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

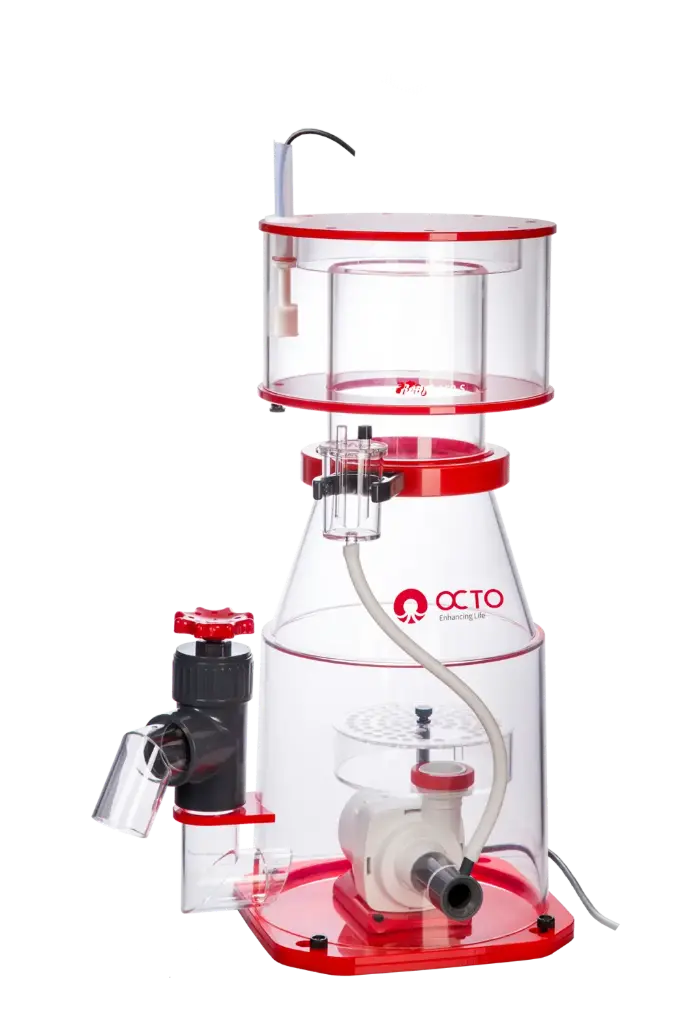

Reef Octopus Regal 250-SSS Protein Skimmer
The Reef Octopus Regal 250-SSS (Super Space Saver) is a high-performance in-sump protein skimmer designed for large reef systems up to 600 gallons where filtration space is restricted. By integrating the powerful VarioS-6S DC controllable pump directly inside the massive 10-inch skimmer body, Reef Octopus has managed to fit professional-grade filtration into a footprint typically reserved for much smaller units.
The Regal 250-SSS combines heavy-duty build quality with the surgical precision of digital DC control. The included VarioS controller allows for the precise adjustment of air and water flow, while the integrated safety float switch protects your system from messy collection cup overflows. Constructed from high-quality cast acrylic and featuring a high-precision geared gate valve, the 250-SSS is the premier choice for large-scale reef keepers who refuse to compromise on performance or space efficiency.
Key Features
Internal Pump Design: Maximizes the internal reaction volume while keeping the exterior dimensions compact for crowded sumps.

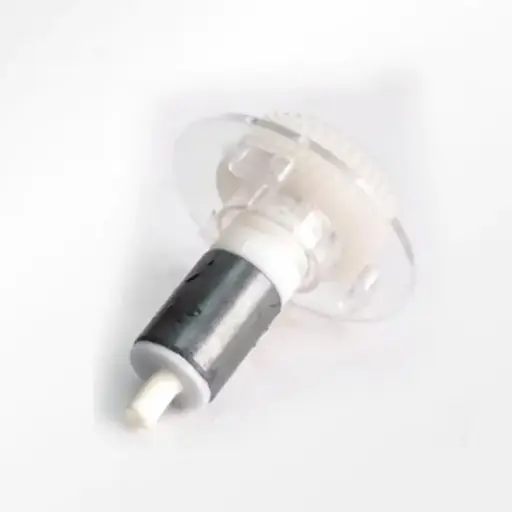

VarioS-6S Controllable Pump: Features a high-flow pinwheel impeller and a ceramic shaft for silent, long-lasting industrial use.

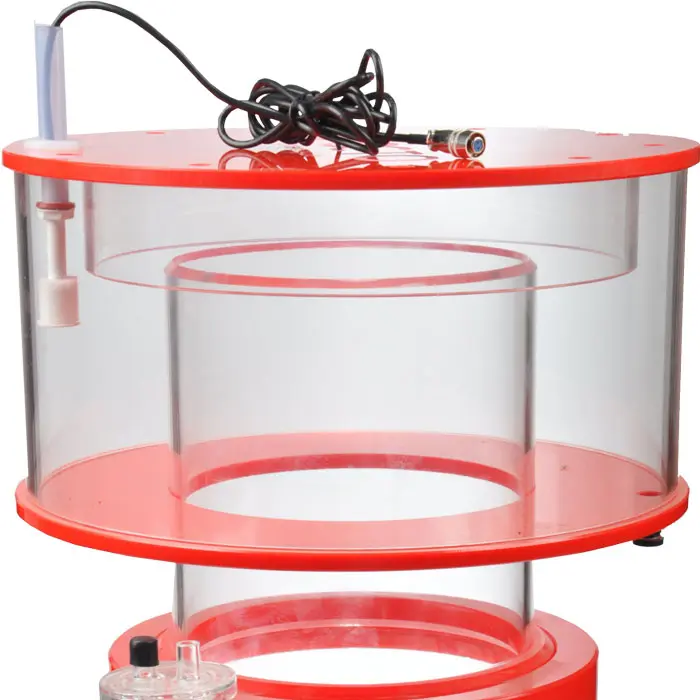

Integrated Overflow Protection: Float switch sensor included standard to safeguard against cup overflows and salinity fluctuations.
0-10V System Integration: Ready for advanced control, allowing third-party computers to manage pump speed throughout the day.
Geared Gate Valve: Offers the most precise water level control available, ensuring you can dial in exactly the consistency of foam you desire.
Bioload Handling
Heavy Bioload: 317 Gallons
Medium Bioload: 475 Gallons
Light Bioload: 600 Gallons
(1) Regal 250-SSS Protein Skimmer
(1) VarioS-6S Controllable Pinwheel Pump

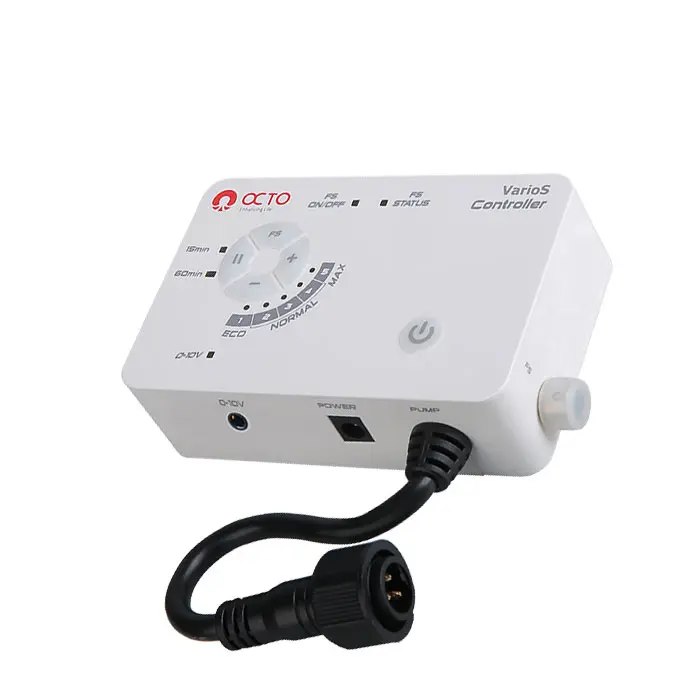

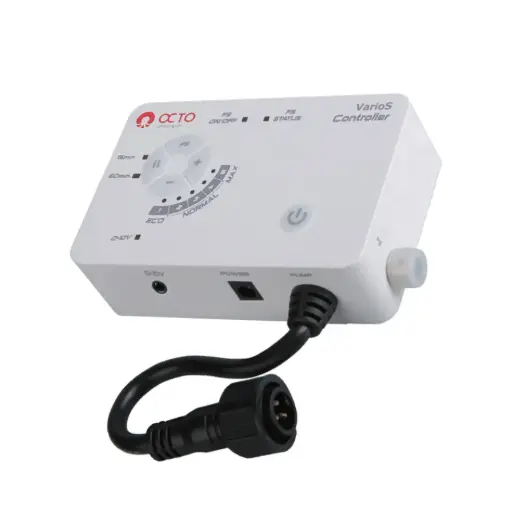

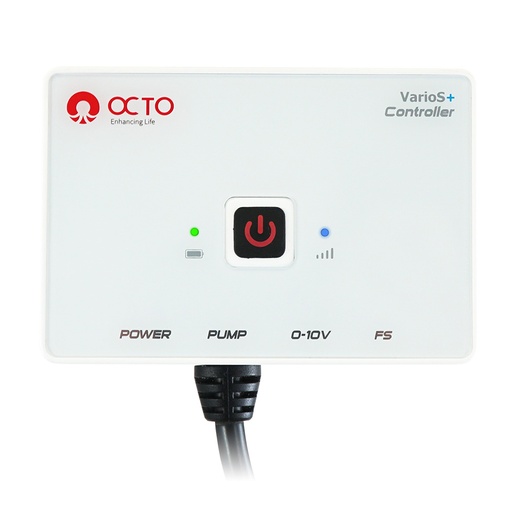

(1) VarioS Controller with Float Switch

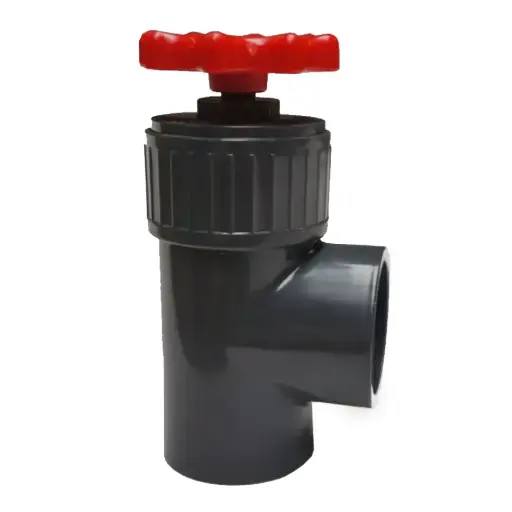

(1) Precision Geared Gate Valve
Technical Specs:
Body Size: 10 in
Footprint: 13 in x 11.4 in
Total Height: 24 in
Neck Size: 5.5 in
Output Size: 50mm / 1.5 in
Recommended Sump Water Depth: 7 – 8.5 in
Power Consumption: 35-70watts
DC Voltage: 24V
Air Draw: 1200-2400lph / 42-84 SCFH*
Water Draw: gph
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Verify the VarioS-6S pump is seated securely inside the body and the venturi is properly attached.
Place the skimmer in your sump, maintaining a water depth between 7.5 and 8 inches.
Mount the float switch into the collection cup lid and connect it to the VarioS controller.
Connect the pump to the controller and plug in the power supply.
Set the pump speed to Level 3 for the initial break-in period.
Adjust the geared gate valve until the water level reaches the transition point of the neck.
Allow 14–21 days of break-in time before final performance tuning.
Pro Tips:

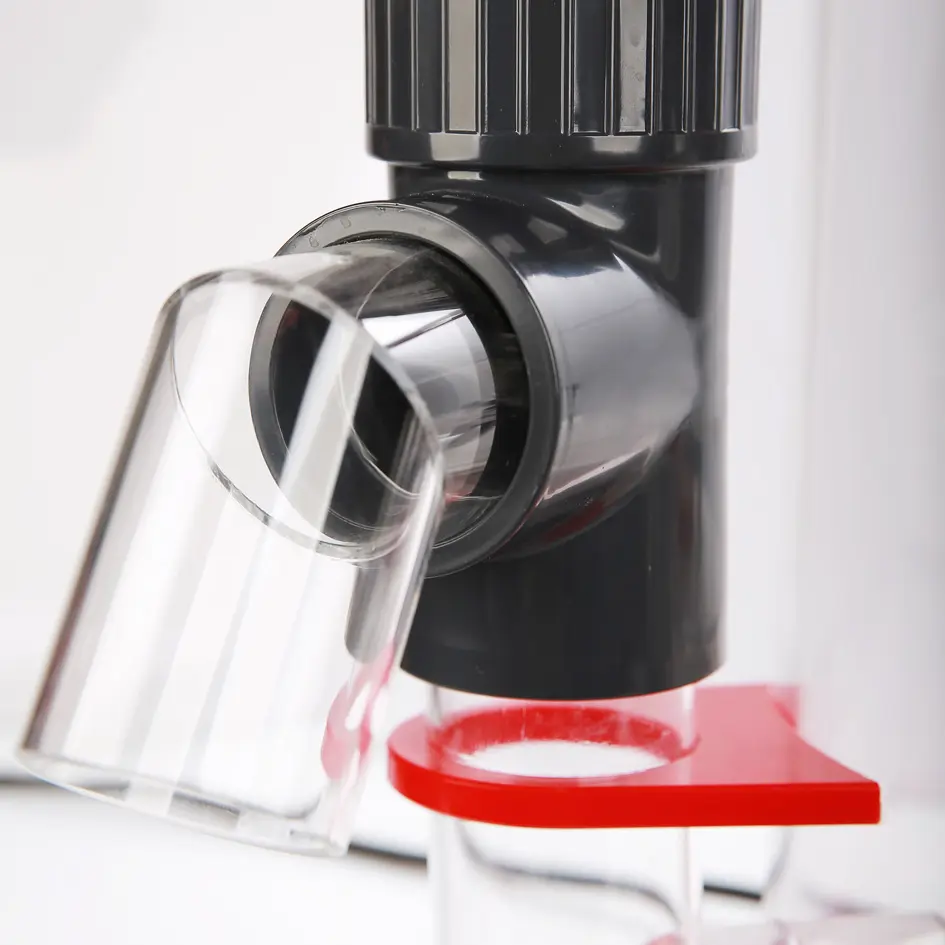

- Hard Plumbing Note. The Regal 250-SSS uses a 50mm Metric output. To ensure the easiest maintenance in tight sumps, we recommend using a 50mm Metric Union to connect the skimmer's drain to your sump plumbing.
- Pump Maintenance. Because the pump is housed inside the body, organic debris or small snails can sometimes get trapped. We recommend a full teardown and vinegar soak of the VarioS-6S every 6 months to ensure the motor remains silent and at peak efficiency.
- Controller Calibration. If using a 0-10V controller, remember that speed 1 on the VarioS is roughly 2V. Calibrate your Apex or GHL profile to operate within the 2V–10V range to ensure the pump always maintains a stable head of pressure.
