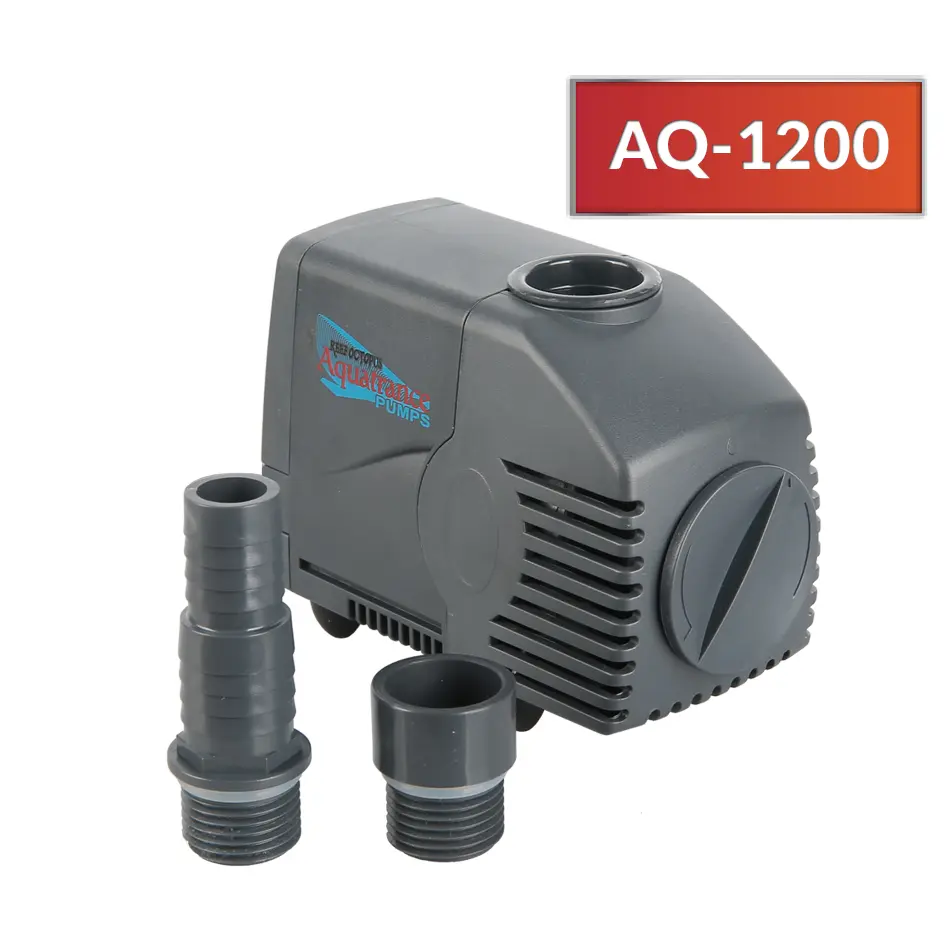

Octo Aquatrance 1200 Water Pump
SKU: AQ-1200
MSRP: $ 105.09
-
Available Through Authorized Retailer
- High-Efficiency Multi-Utility Drive: Functions seamlessly as a reliable, standalone return pump, utility transfer pump, or dedicated pressure feed for fluidised media reactors.
- Low-Wattage Economic Motor: Outfitted with an eco-conscious motor block that draws a mere 15 watts of power while pushing high-volume turnover loops.
- Dual Application Architecture: Engineered with complete water-tight potting to support fully submerged operations or dry, external inline configurations.
- Balanced Propeller Impeller: Employs a premium, factory-calibrated standard propeller rotor that optimizes water movement velocities across low-head applications.
- Standard Plumb Interfacing: Features standard 1/2-inch male NPT inlet and outlet snouts to easily splice into hard-plumbed PVC configurations.

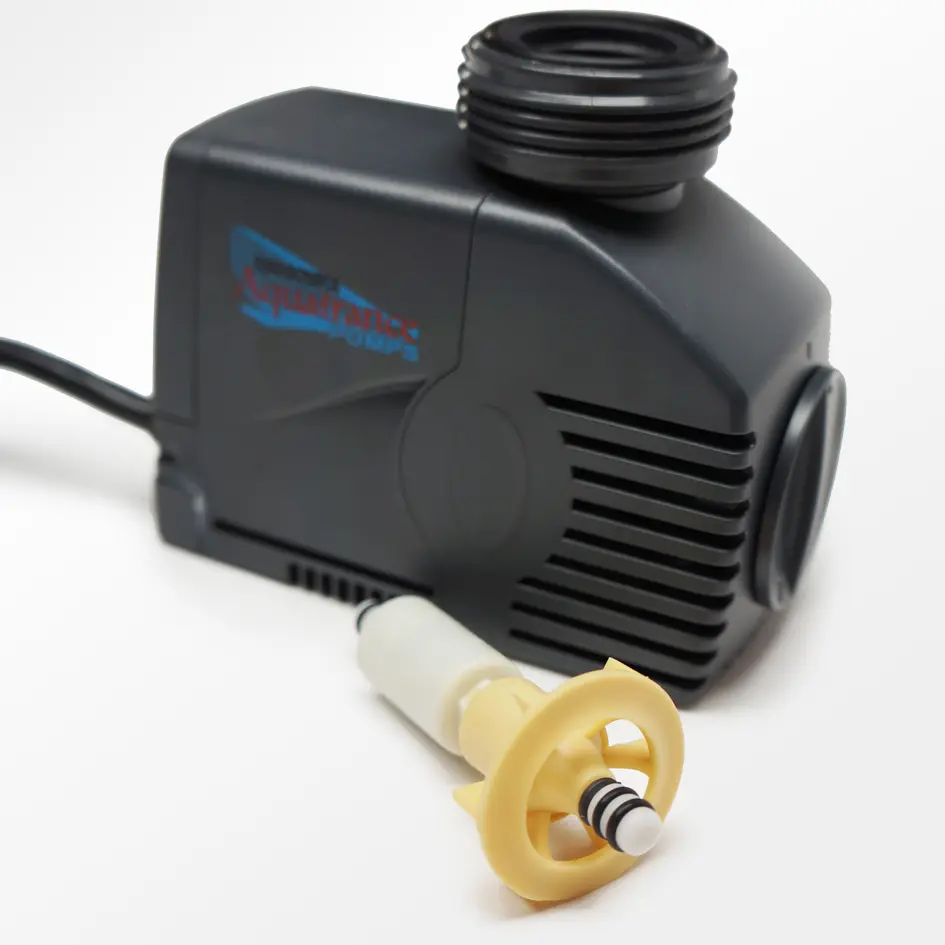

- Whisper Quiet Ceramics: Utilizes a wear-resistant polished ceramic shaft core to lower friction levels and eliminate harsh metallic mechanical hums.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

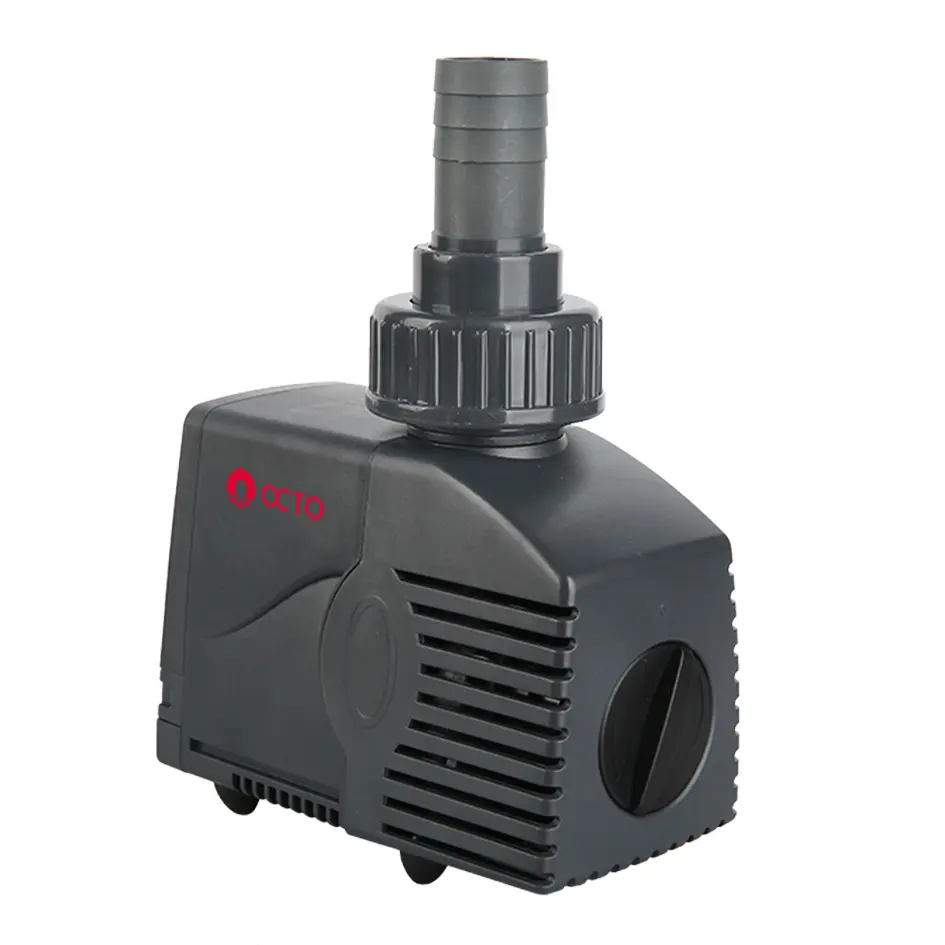

Reef Octopus Aquatrance 1200 Submersible & External Utility Water Pump
The Reef Octopus Aquatrance 1200 Water Pump (SKU: AQ-1200) is a highly efficient, versatile utility pump engineered to provide dependable fluid circulation across fresh and saltwater ecosystems. While pinwheel skimmer pumps are restricted exclusively to foam fractionating, the Aquatrance 1200 utilizes a standard open-blade propeller impeller. This design makes it a superb choice for driving low-head return lines, delivering continuous influent to media or carbon reactors, or acting as the internal recirculation core for specialized hardware like the Reef Octopus CR100 calcium reactor.
Operating on a highly economical 15-watt power grid, the AQ-1200 manages an impressive maximum water turnover rate of 340 gallons per hour. Its completely sealed, epoxy-potted motor housing operates entirely submerged inside a sump pump compartment or placed externally as an inline dry pump. Built around a precision-ground ceramic shaft paired with protective composite end bushings, this utility pump minimizes heat transfer to your water column while defending against the hard calcium scaling and salt friction that often plague generic utility pumps.
Key Features
Versatile Fluid Delivery: Perfectly optimized for low-pressure reef automation loops, reactor arrays, and standalone small-tank return configurations.
Flexible Hose Attachment: Arrives complete with targeted stepped barb adapters to connect easily with standard soft vinyl hobby tubing runs.
Adjustable Intake Screen: Includes a removable front suction plate with a manual slider to customize your incoming flow rates.
Robust Hardware Isolation: Heavy-duty rubber mounting suction cups cushion the base frame, neutralizing rattling vibrations against glass or acrylic sump walls.
Genuine Factory OEM Part: Distributed directly by CoralVue, making it an exact replacement core for multi-stage Reef Octopus commercial reactor packages.

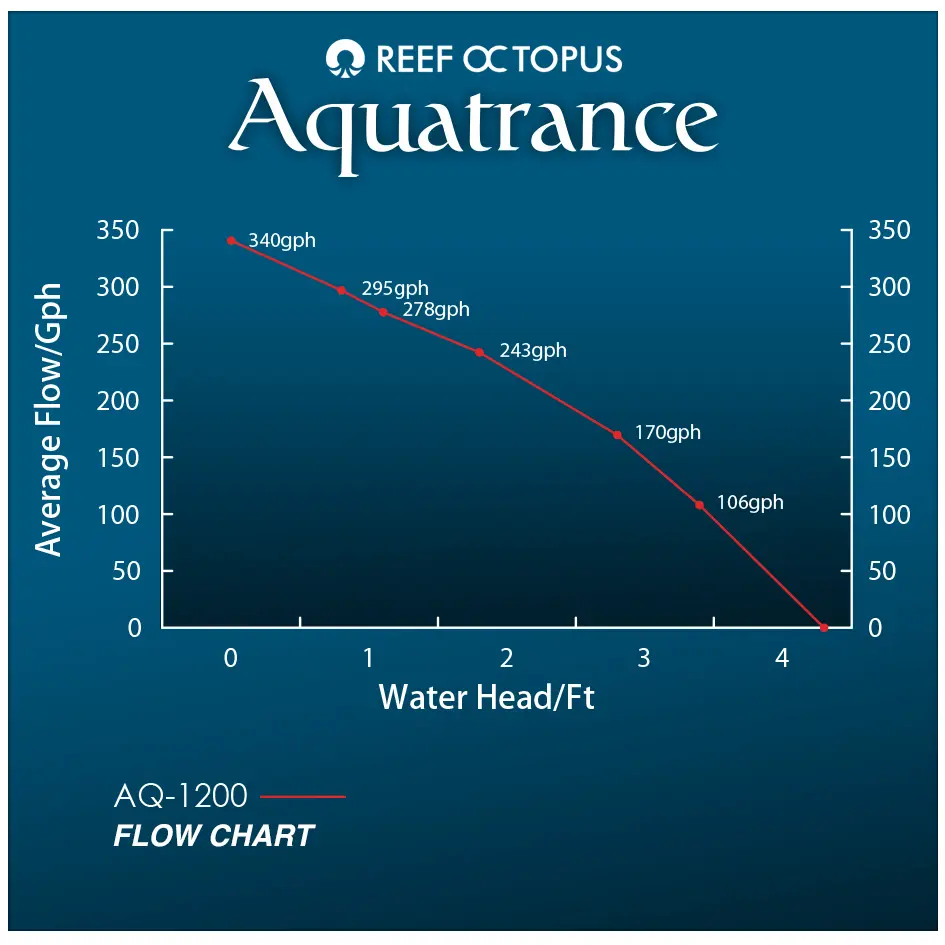

Operational Performance Metrics
Maximum Volumetric Flow Rate: 340 GPH (1,200 LPH)
Maximum Dynamic Head Height: 4.0 Feet (51 Inches)
Standard Hard Plumb Interface: 1/2-Inch Slip/Threaded Sockets
Included Barb Step Adapters: Fits 0.67-Inch and 0.79-Inch Inner Diameter Vinyl Hoses
(Note: This is a non-pressure-rated utility pump; it is not intended for high-head multi-floor basements or high-resistance downdraft filtration configurations)
What’s Included:
(1) Reef Octopus Aquatrance 1200 Water Pump Unit
(1) Removable Adjustable Front Intake Screen Cover
(1) High-Performance Propeller Impeller Assembly (Pre-Installed)
(1) Stepped Hose Barb Output Adapter Set (0.67 in / 0.79 in)
(4) Vibration-Dampening Rubber Suction Cup Feet
Technical Specs:
Official Model Name: Aquatrance AQ-1200 Utility Water Pump
SKU / Part Number: AQ-1200 (Product Code: RCV25002)
Operating Electrical Grid: 120V / 60Hz (Standard Wall Outlet)
Power Consumption Rating: 15 Watts
Physical Boundary Dimensions: 4.50 in L x 2.40 in W x 3.60 in H
Inlet / Outlet Snout Sizes: 1/2-Inch Male NPT Threaded Matrix
Official Structural Warranties: 5-Year Factory Warranty on Pump Body Housing / 1-Year on Rotor Assembly
- Unplug all active electrical connections in your filtration area before installing or servicing your aquarium water line.
- If installing submersed, press the pump firmly onto the bottom floor of your sump glass to let the suction cups lock.
- For hard plumbing setups, thread your standard 1/2-inch female PVC union couplers clockwise straight onto the pump's inlet and outlet snouts until hand-tight.
- For soft plumbing setups, screw the provided stepped barb adapter onto the output, soften your vinyl hose with warm water, and slide it tightly over the barbs.
- Fill your sump or plumbing loop completely with water to prime the lines; never operate the internal propeller dry.
- Connect the main power line to a GFCI-protected safety wall bank, and adjust the front slider nozzle to hit your desired GPH target.
Pro Tips:
- Always Avoid Dry Running. Never power on the Aquatrance 1200 unless the internal impeller chamber is completely flooded with water. Because this is a standard magnetic-drive utility pump, it relies on surrounding water to lubricate the spinning ceramic shaft assembly. Running the pump dry causes immediate friction heat, warping the plastic impeller blades and permanently damaging the motor block.
- Keep the Front Screen Free of Macroalgae. If you run this pump inside a refugium zone containing loose macroalgae like Chaetomorpha, check the adjustable front intake screen every week. The high suction velocity will pull loose plant strands and detritus mats directly against the intake slits. If left uncleaned, this blockage starves the pump of water, causing it to run hot and shortening its lifespan.
- An Easy Upgrade Path for Legacy OTP Return Pumps. If you are using this pump to replace an older, discontinued Reef Octopus OTP-1000 water pump inside a tight cabinet stand, consider ordering the custom CoralVue CR100 output adapter kit concurrently. Because the Aquatrance line utilizes a highly compact, modernized motor block footprint, using the official transition coupler lets you drop the new pump into your existing layout with zero pipe modification.
