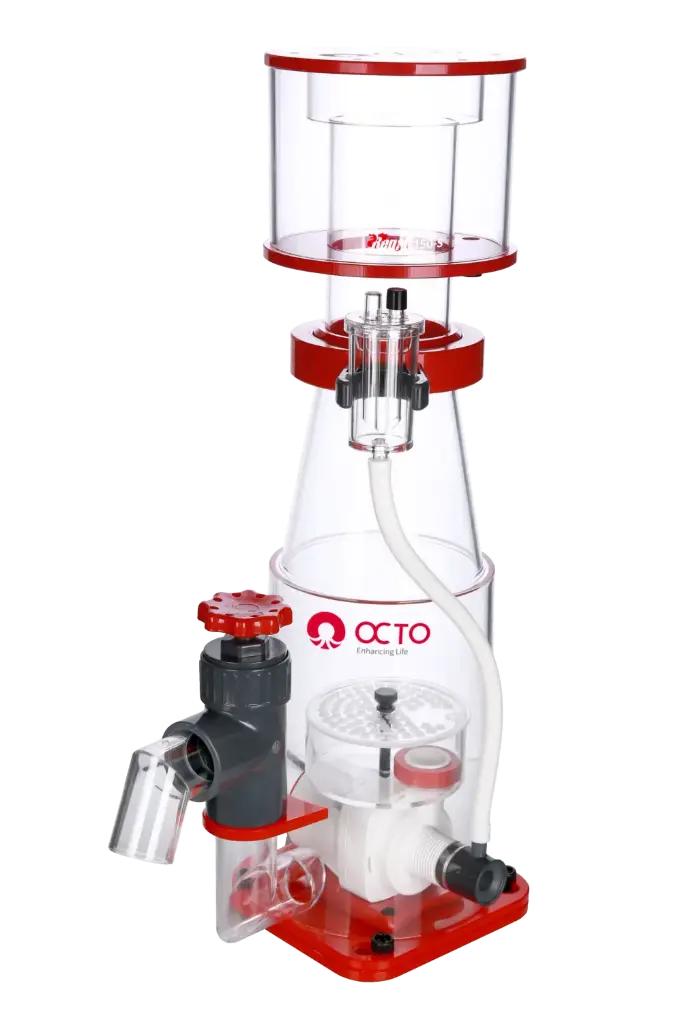

Octo Regal 150SSS Protein Skimmer
SKU: REGAL-150SSS
MSRP: $ 716,09
-
Available Through Authorized Retailer

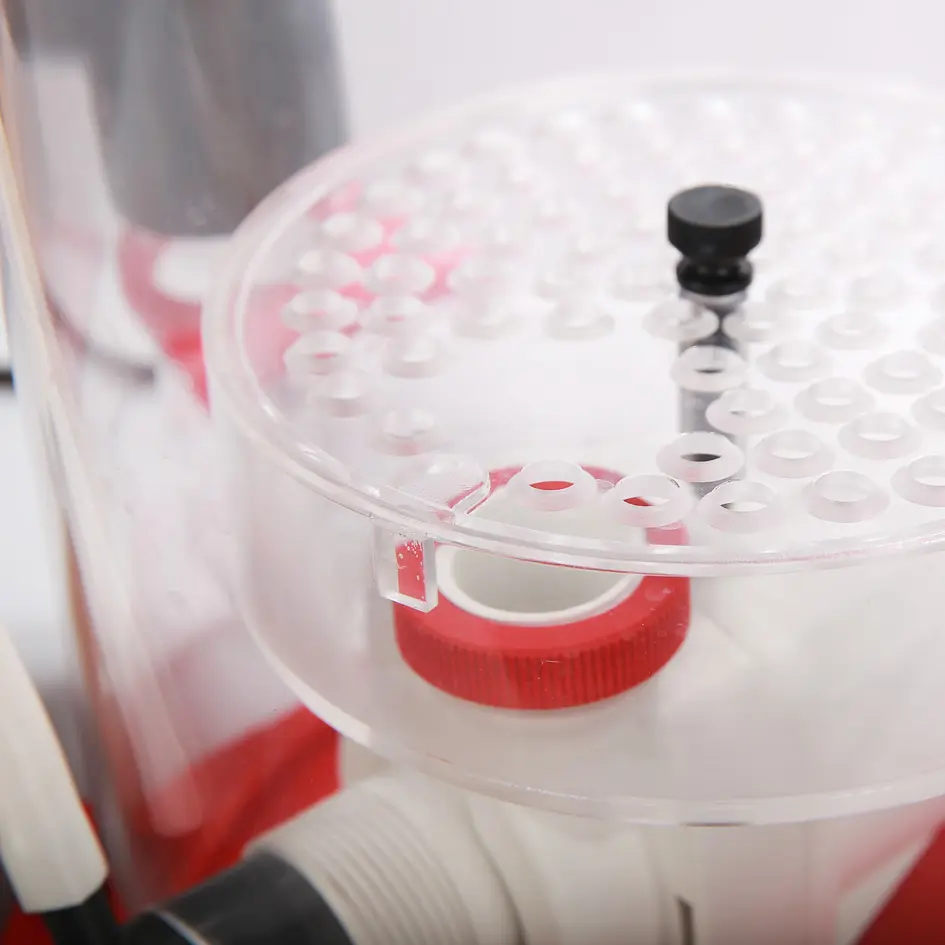

- Space-Saving Design: The "SSS" (Super Space Saver) configuration houses the pump inside the skimmer body, dramatically reducing the footprint for tight sumps.
- Controllable DC Pump: Powered by the VarioS-2S pinwheel pump, featuring 5 variable speed settings for complete control over filtration intensity.

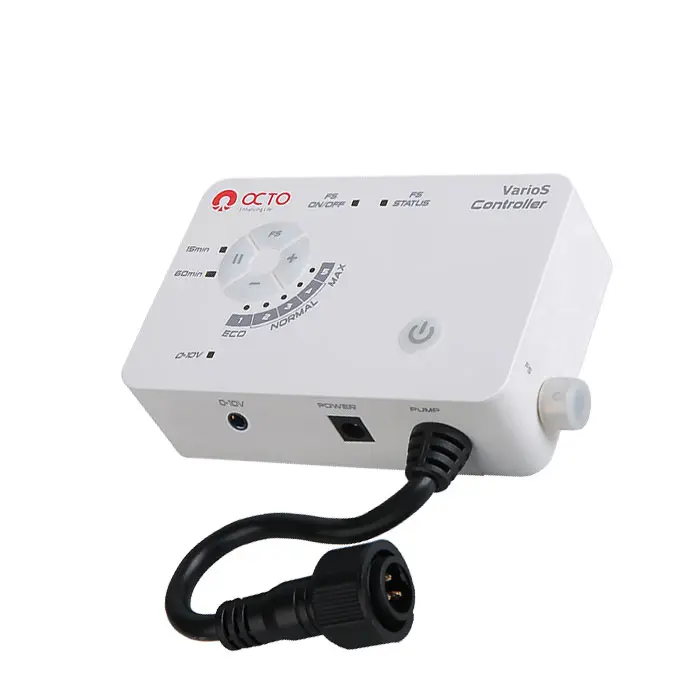

- Intelligent Safety Controller: Includes a dedicated controller with a 15/60 minute feed mode and a waste collector float switch to prevent cup overflows.
- High-Quality Cast Acrylic: Constructed from durable, high-visibility cast acrylic with a wine-glass body for optimized foam concentration.
- Automation Ready: Equipped with a 0-10V input port for direct control via Neptune Systems Apex or GHL Profilux aquarium computers.

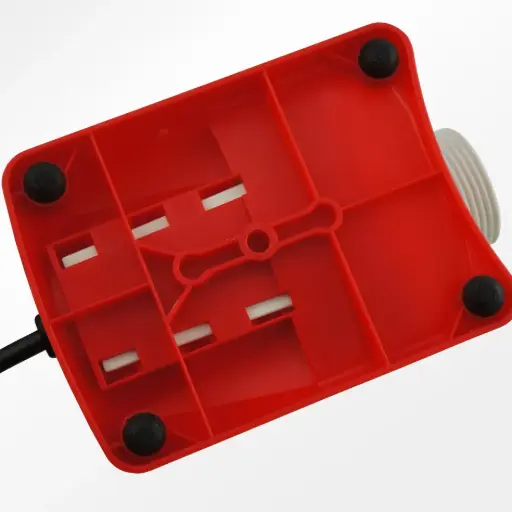

- Near-Silent Operation: Integrated air silencer and vibration-dampening feet ensure the unit runs quietly within your cabinet.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Regal 150-SSS Protein Skimmer
The Reef Octopus Regal 150-SSS (Super Space Saver) is engineered for the modern reef hobbyist who demands high-performance filtration but is limited by sump real estate. By integrating the VarioS-2S DC controllable pump directly inside the 6-inch skimmer body, Reef Octopus has created a powerhouse filter with one of the smallest footprints in its class. This design allows you to fit a professional-grade wine-glass skimmer into compact filtration chambers without sacrificing processing power.
The Regal 150-SSS doesn't just save space; it provides intelligent control over your water quality. The included VarioS controller allows you to digitally adjust the air and water mix across five speed settings. Furthermore, safety is built-in: the included float switch sensor monitors your collection cup level and shuts down the pump instantly if it reaches capacity, preventing messy overflows. With its refined wine-glass shape that reduces turbulence and stabilizes foam, the Regal 150-SSS delivers the perfect balance of compact size and high-end performance.
Key Features
Internal Pump Configuration: Maximizes filtration volume while minimizing the physical space required in the sump.
VarioS-2S Controllable Pump: Offers energy-efficient operation and a "soft start" to protect the motor and prevent initial overflows.

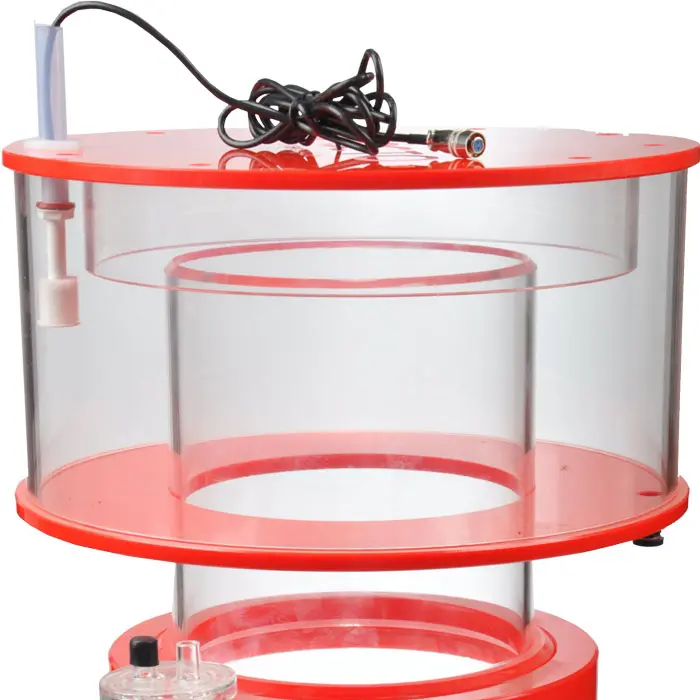

Integrated Overflow Protection: Float switch sensor included to safeguard against collection cup mishaps.
0-10V System Integration: Ready to connect to third-party controllers for advanced reef automation.

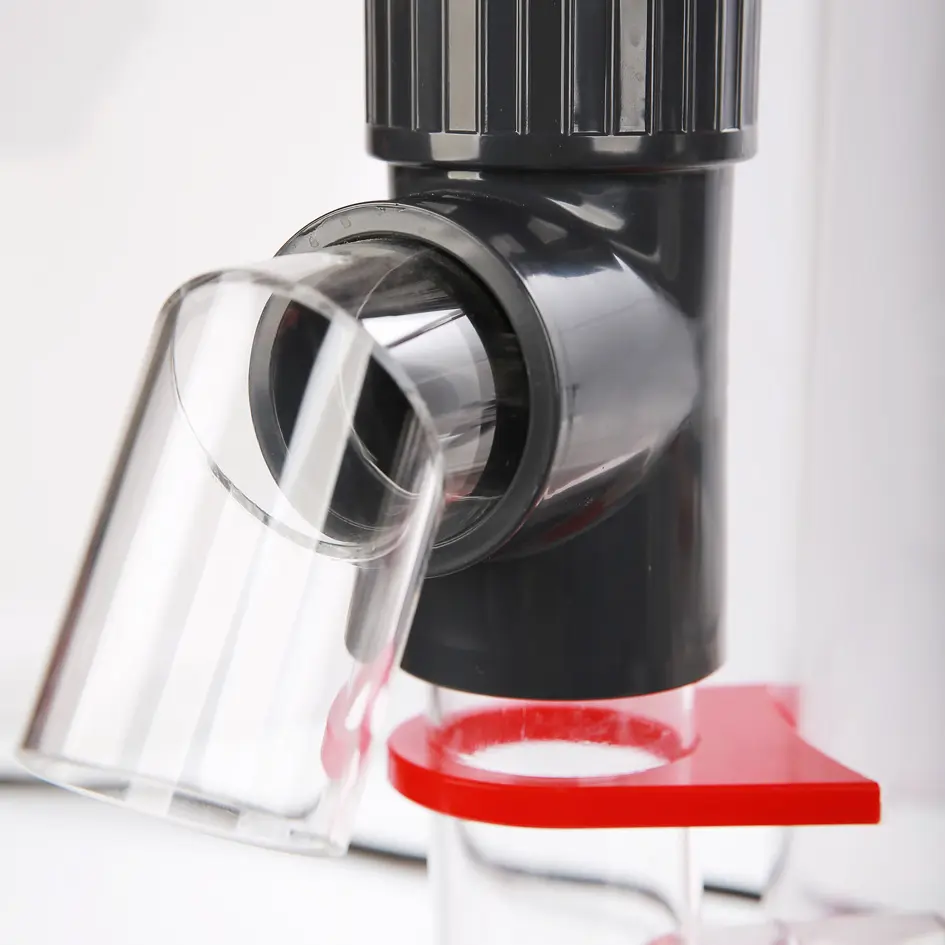

Precision Gate Valve: Easy-to-adjust output valve for fine-tuning the internal water level for wet or dry skimming.
Bioload Handling
Heavy Bioload: 100 Gallons
Medium Bioload: 160 Gallons
Light Bioload: 210 Gallons
Compact In-Sump Skimmer Rated for Aquariums of 100 to 210 Gallons
What’s Included:
(1) Regal 150-SSS Protein Skimmer
(1) VarioS-2S Controllable Pinwheel Pump
(1) VarioS Controller with Float Switch

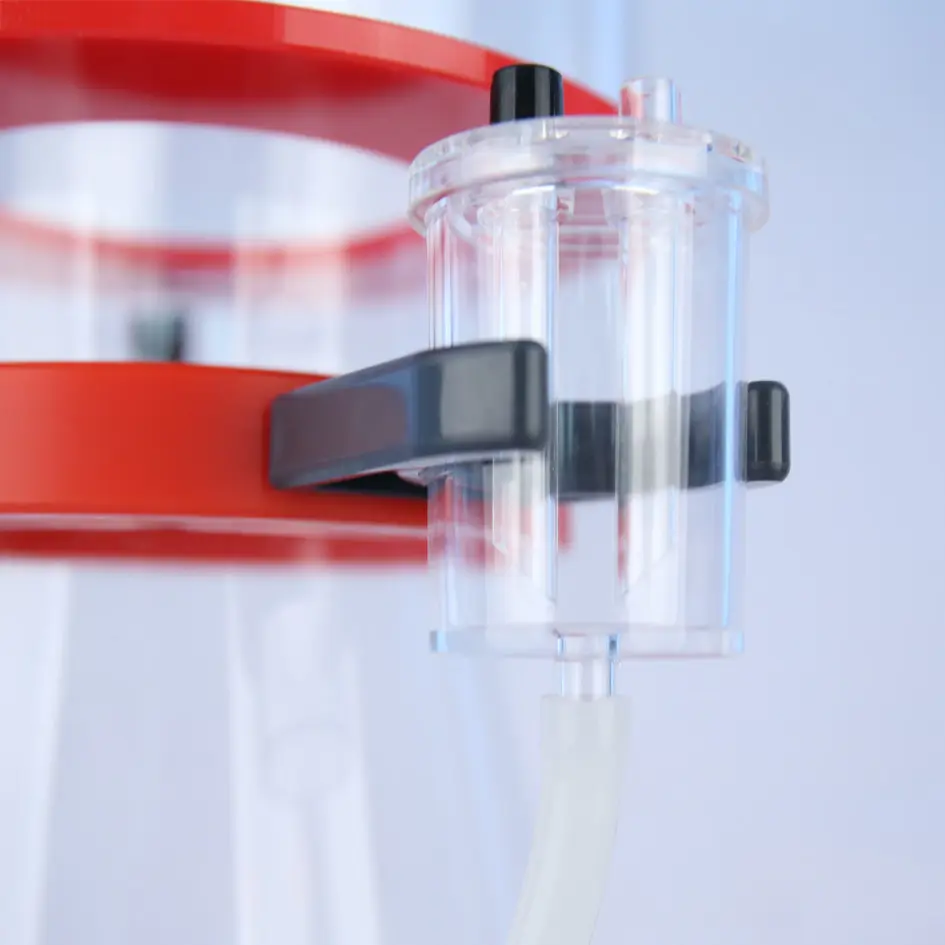

(1) High-Performance Air Silencer
Technical Specs:
Body Size: 6 in
Footprint: 8.7 in x 7.5 in
Total Height: 22.6 in
Neck Size: 3 in
Output Size: 40mm / 1.25 in
Recommended Sump Water Depth: 7 – 8 in
Controller Features: Multiple pause times, float switch safety, and 0- 10V input for 3rd party controller
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.

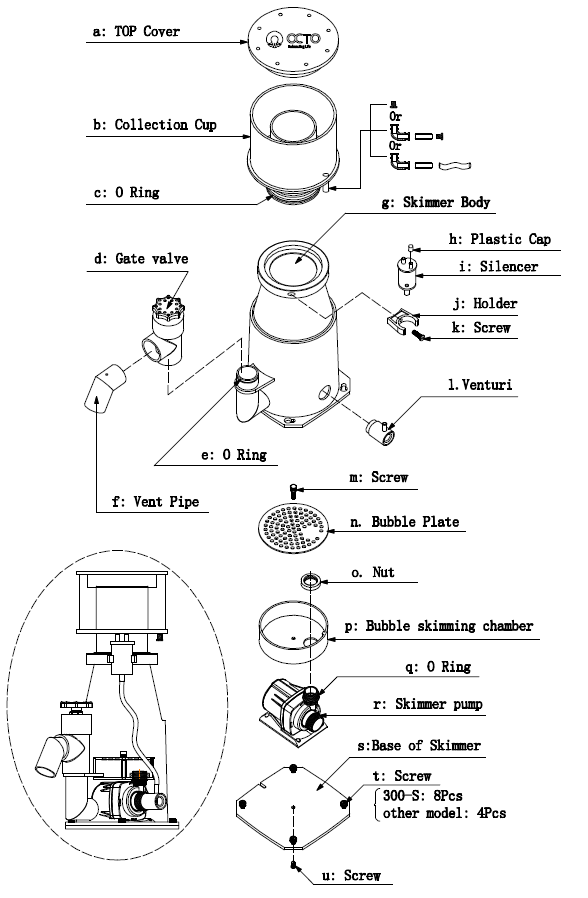

- Assemble the skimmer body, ensuring the internal VarioS-2S pump is seated securely on its mounts.
- Place the skimmer in your sump; the ideal water depth is 7.5 inches.
- Install the float switch into the collection cup lid and connect it to the controller.
- Plug the pump into the controller and connect the power supply.
- Open the gate valve fully and power on the unit.
- Adjust the gate valve until the foam line reaches the base of the neck.
- Allow a 2-week break-in period for the acrylic to cure and the foam to stabilize.
Pro Tips:
- Small Sump, Big Results. The 150-SSS is specifically designed for tight spaces. If you find the output creates too many microbubbles in a small sump, ensure your output is directed toward a baffle or use a small piece of coarse foam to break the surface tension at the exit.
- Maintenance Advantage. Because the pump is internal, periodically check the intake for small snails or debris that may bypass the pump screen. Every 6 months, perform a full teardown and soak the VarioS pump in a 50/50 vinegar/water solution to maintain its silent operation.
- Metric Output Note. This skimmer uses a 40mm Metric output. If you choose to hard-plumb the discharge, use a 40mm Metric Union to ensure you can still easily remove the skimmer for annual maintenance.
