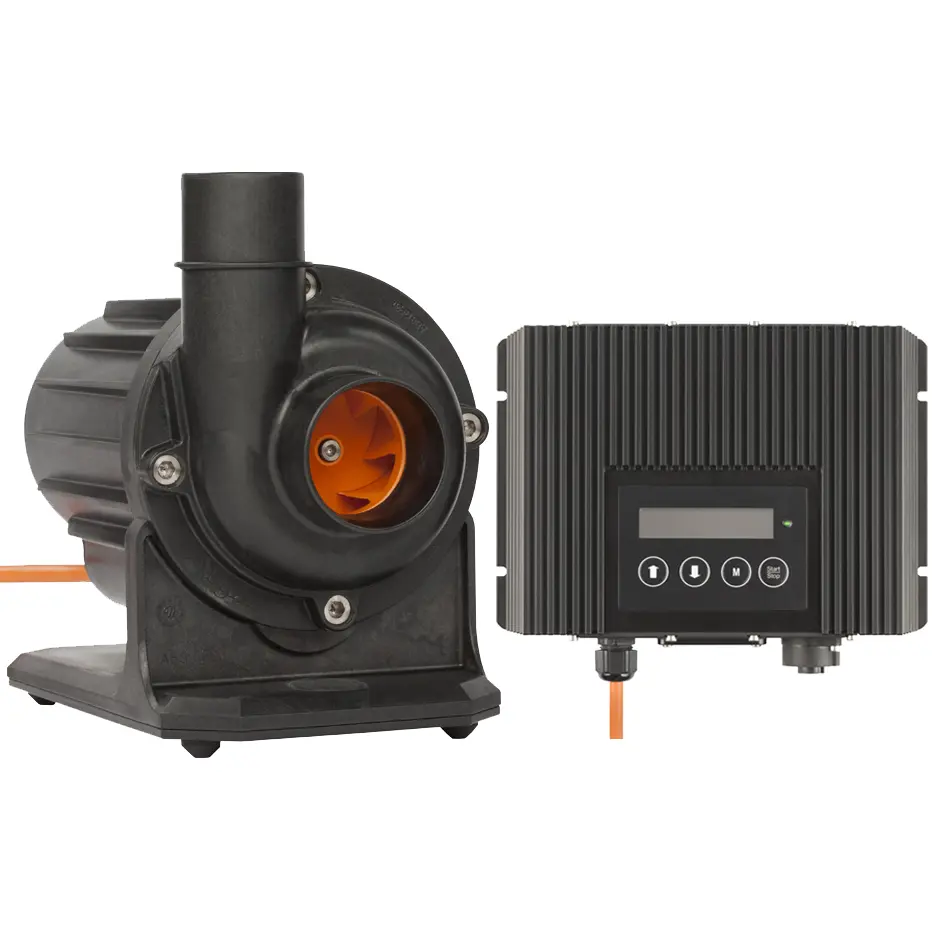

Abyzz A400IPU 3M 4,900 GPH Pump
SKU: VA-A400IPU-3
MSRP: $ 4,273.49
-
Available Through Authorized Retailer
- The Abyzz A400 IPU is a 4,900 GPH commercial-grade DC pump with an IP65-rated splash-proof driver and controller.
- The 3-meter cable version suits most residential and commercial installations where the driver mounts nearby.
- Pushes flow up to a 41-foot maximum head suits basement sump and remote installations.
Abyzz
German-made controllable pumps for aquatic use, built with premium materials and tested for efficiency and reliability.

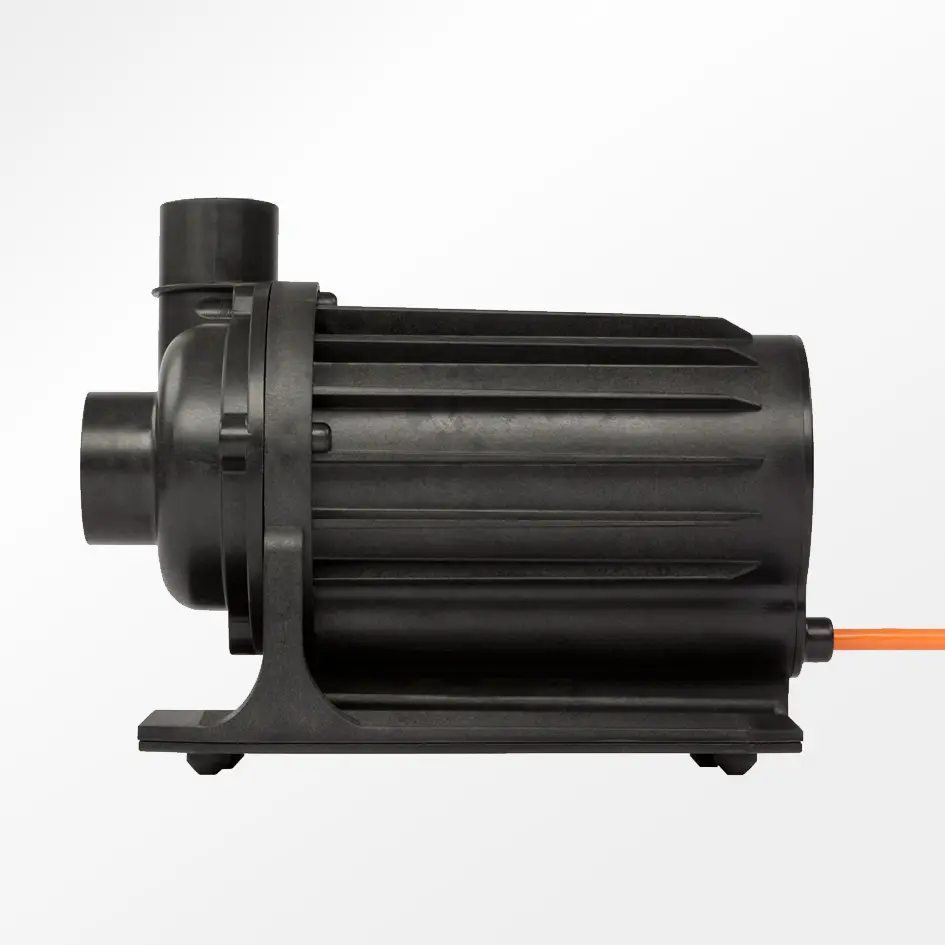

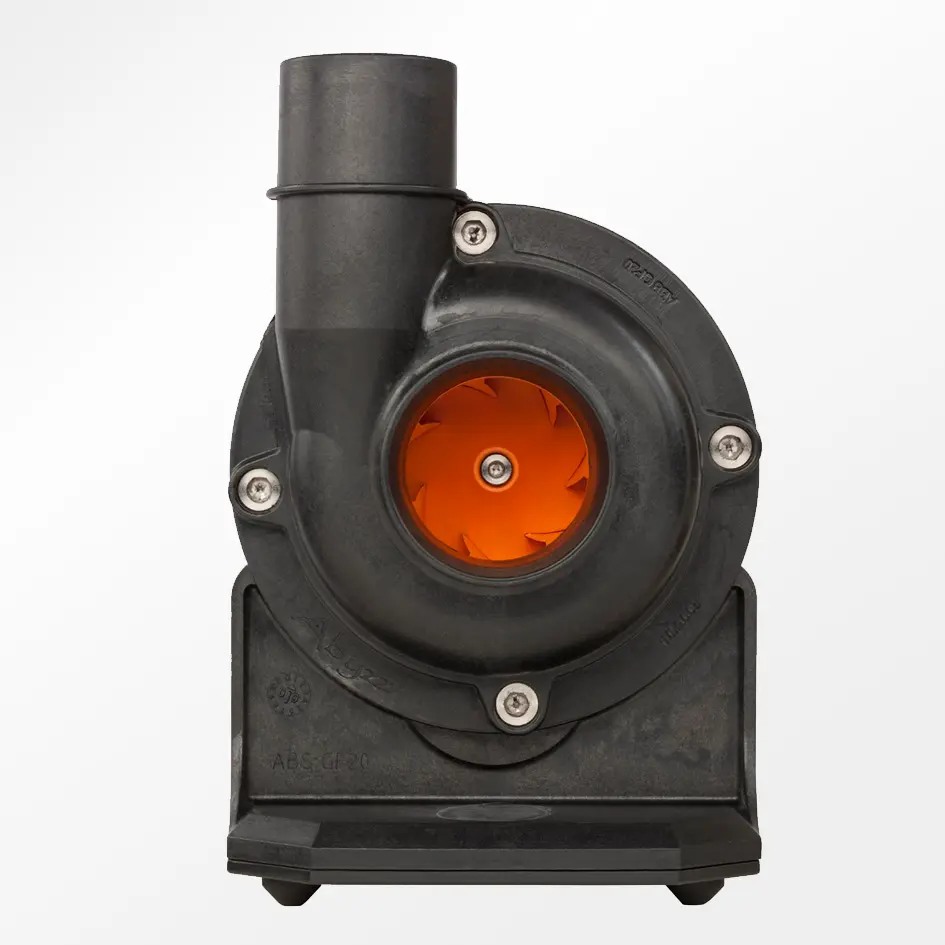

Abyzz A400 IPU-3M 4,900GPH Pump
The motor operates at an efficiency factor of over 90%, which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.
The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits - CaCO3). In conjunction with the silicon carbide bearings and special Tungsten carbide shaft, this feature provides for low-maintenance operations.
The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, ensurea long operational lifetime, and meet the most demanding requirements and highest quality standards.
Here are some of our favorite features of the Abyzz A400 IPU Pump:
- Variable speed range (0.0 - 100.0%)
- Precise speed adjustment in steps of 0.1%
- Integrated programming to generate waves, bursts, and random flow patterns with additional BOOSTMODE to override actual programming (MCFS - Menu Controlled Flow Sequencer)
- Comprehensive safety functions, such as dry run warning, temperature alert, overcurrent protection, speed zero alert)
- Soft startup
- Auxiliary port for future modules and interfacing (software upgrade might be required)
- Available with a 3m or 10m Driver/Controller Connecting Cable
- Lockable cables and plug connections
- Remarkably low-noise operation

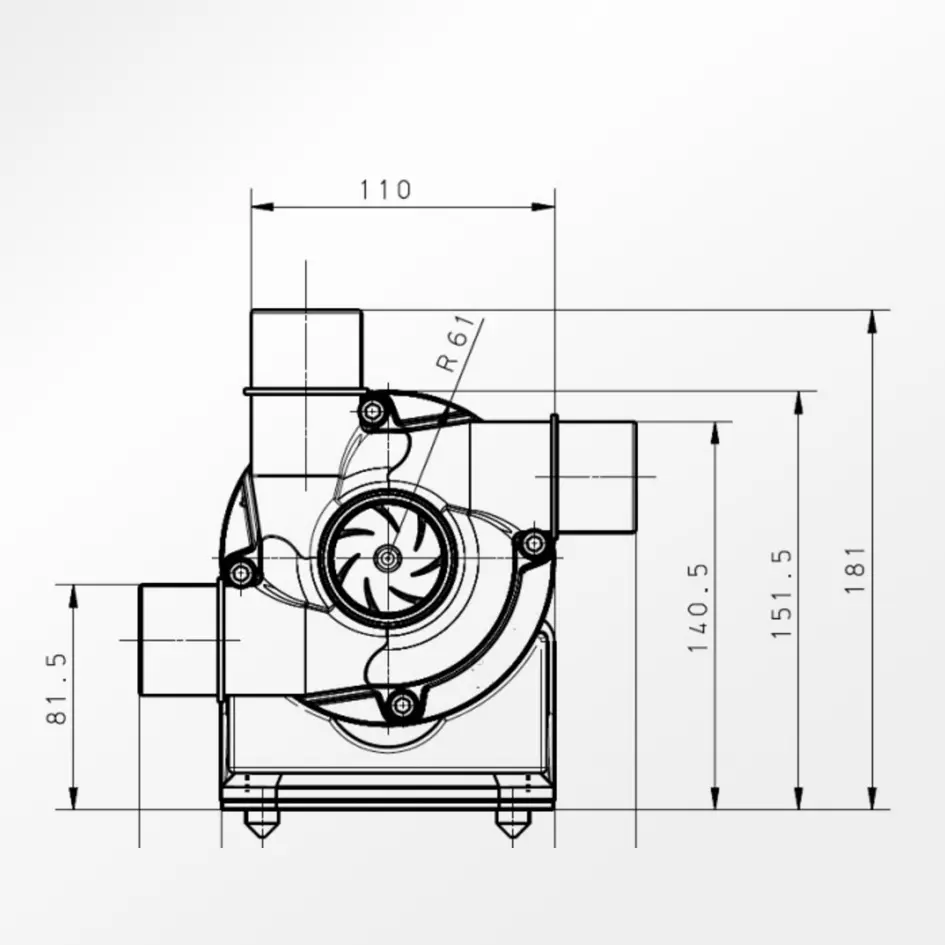

- Removable motor stand and rotatable volute
- Multicolor background LCD display
- Splashproof driver (IP65)
- High quality IP65 motor cable connector
- Wide range input with active power factor correction
- Optimized heat sink design
- Can be used internally or externally
- 10-year warranty
Applications
- Freshwater and Saltwater Aquaria
- Ponds
- Creeks
- Pools
- Spas
- Hydroculture
- Aquaculture
This product was developed and is manufactured in Germany by Venotec.
Abyzz A400 IPU Pump Specs:

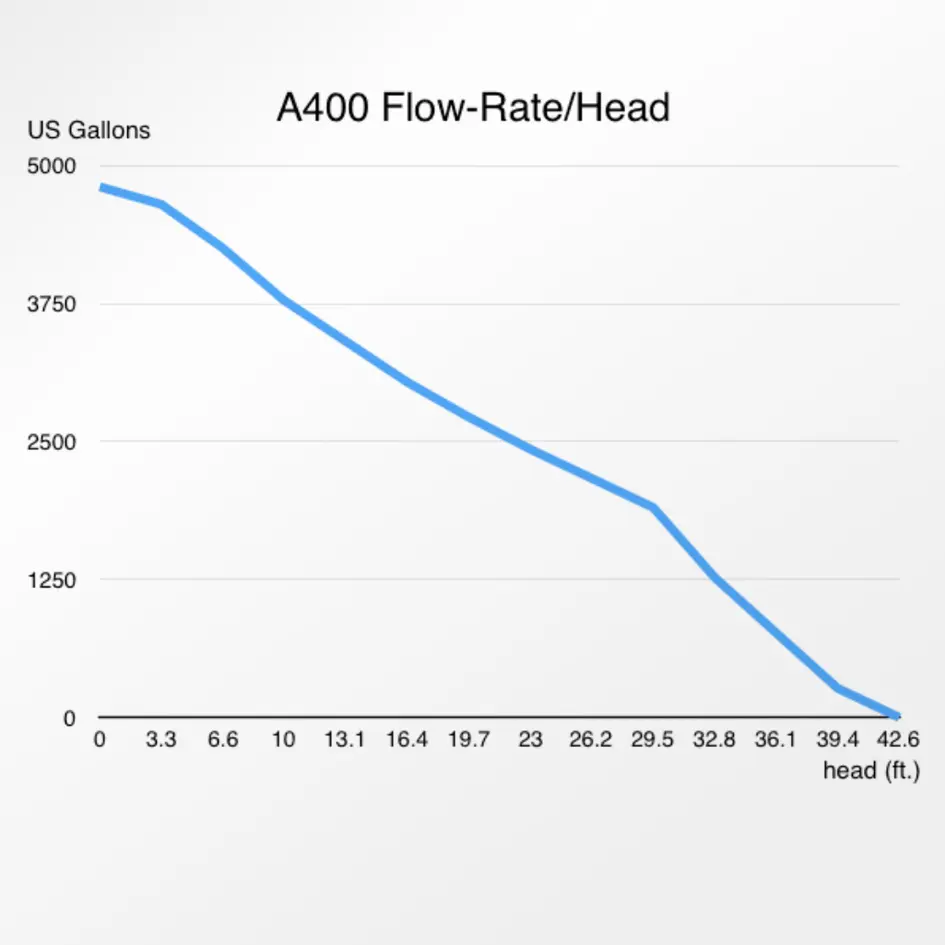

- Powerful Performance: 4,900 GPH rated flow
- Max Head Height: 41ft
- Premium Construction: Titanium impeller, silicon carbide bearings, hardmetal shaft for maintenance-free operation

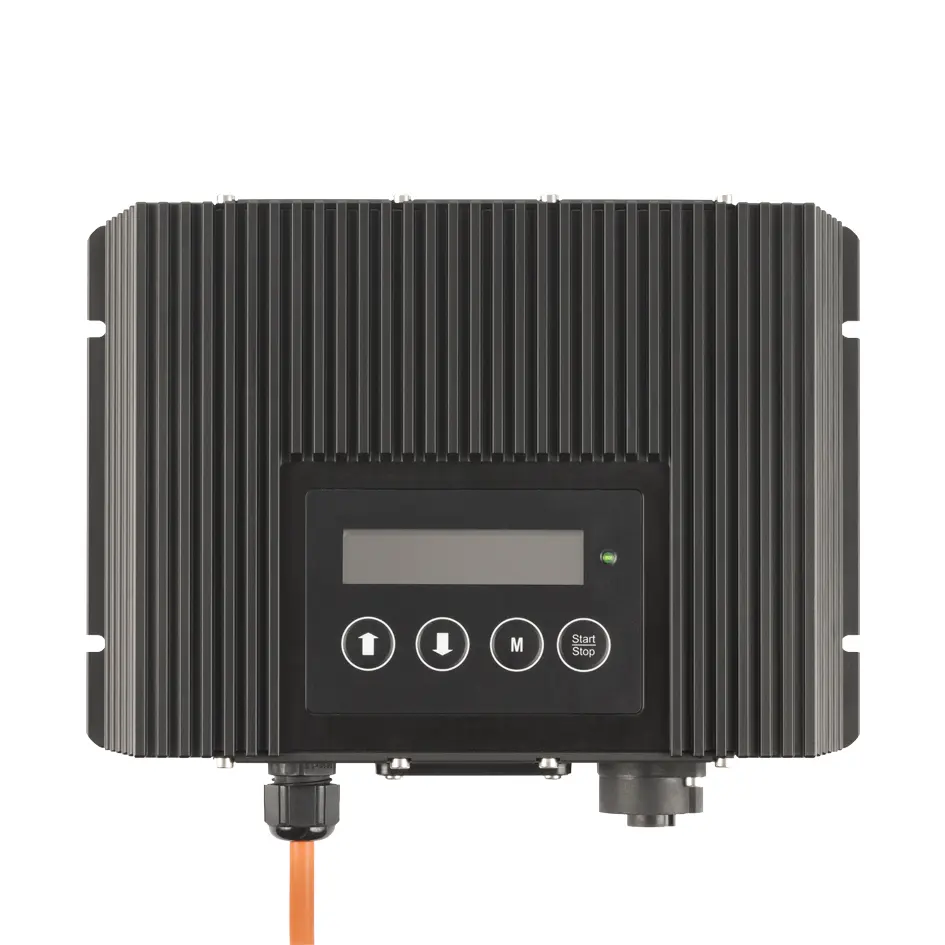

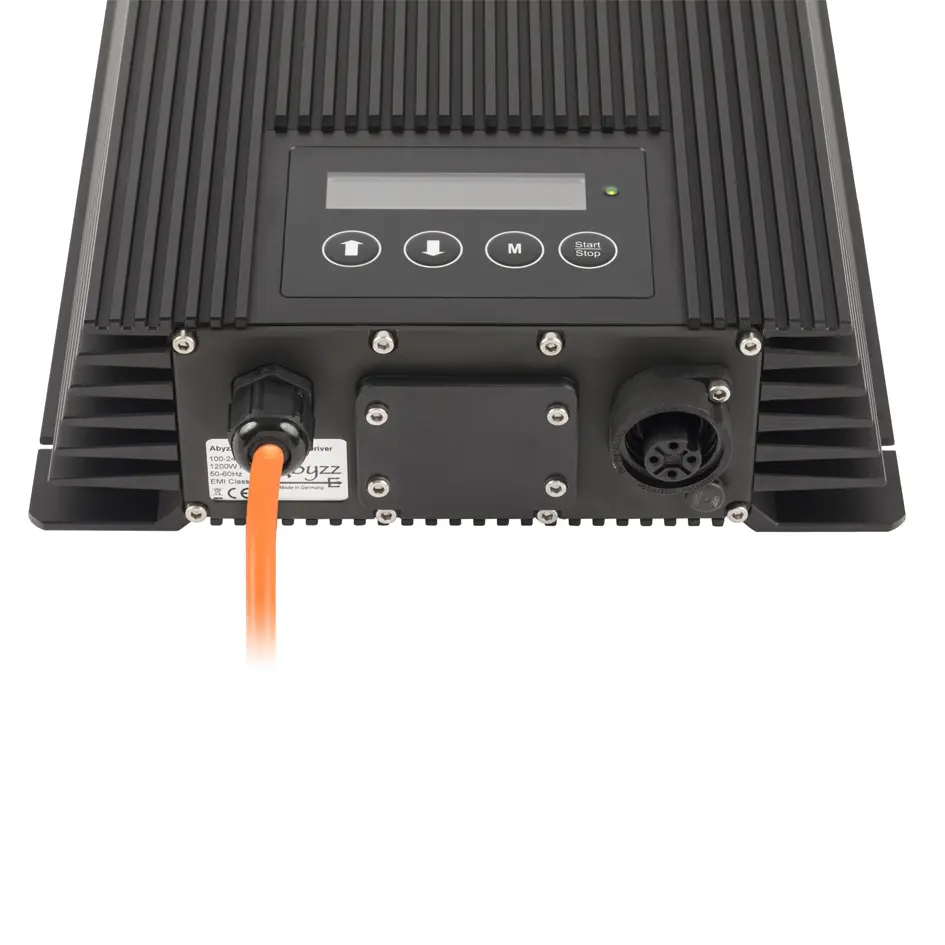

- IP65 Splash-Proof Controller: Weather-resistant design perfect for harsh aquatic environments
- Advanced Programming: MCFS (Menu Controlled Flow Sequencer) with customizable waves, bursts, and random flow patterns

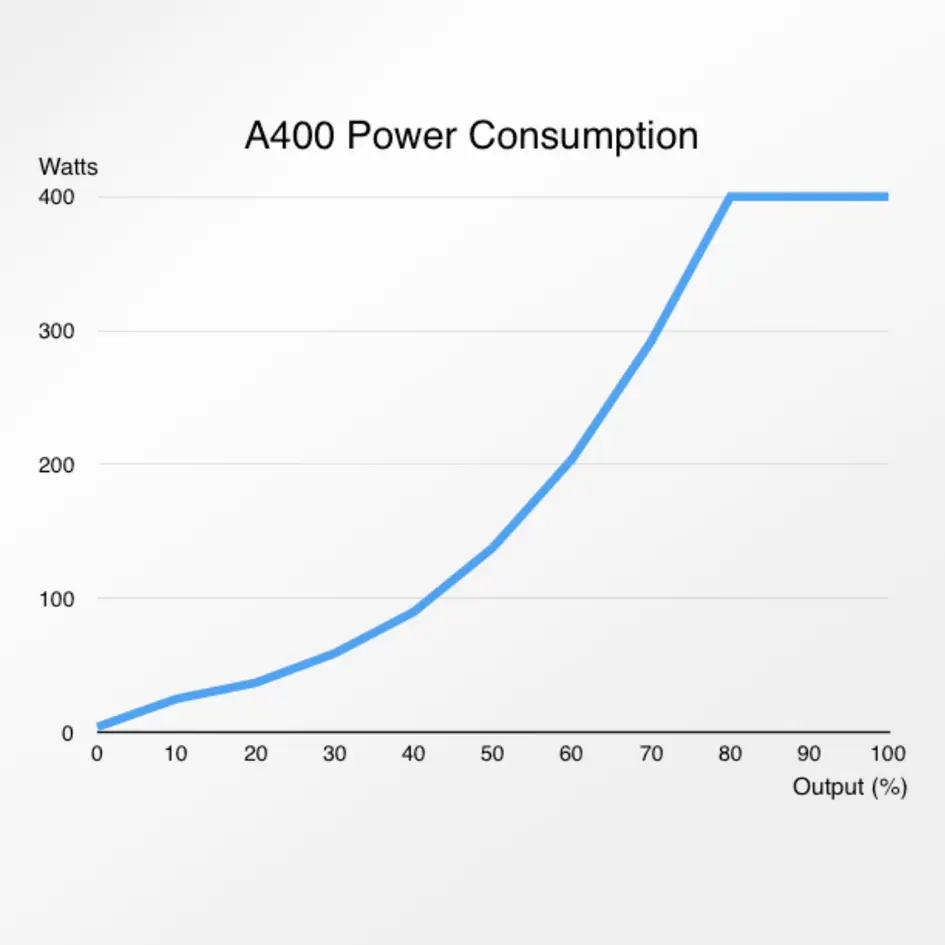

- Energy Efficient: >90% motor efficiency with variable speed control (0-100% in 0.1% increments)
- Versatile Installation: Submersible or external mounting (non-self-priming, must be below water level)
- Smart Integration: 0-10V port compatible with CoralVue HYDROS
- Comprehensive Protection: Dry run warning, temperature alert, overcurrent protection, soft startup
- German Engineering: Designed and manufactured in Germany with premium materials
Pump Cable Length Options:
3 m (10 ft)
10 m (30 ft)

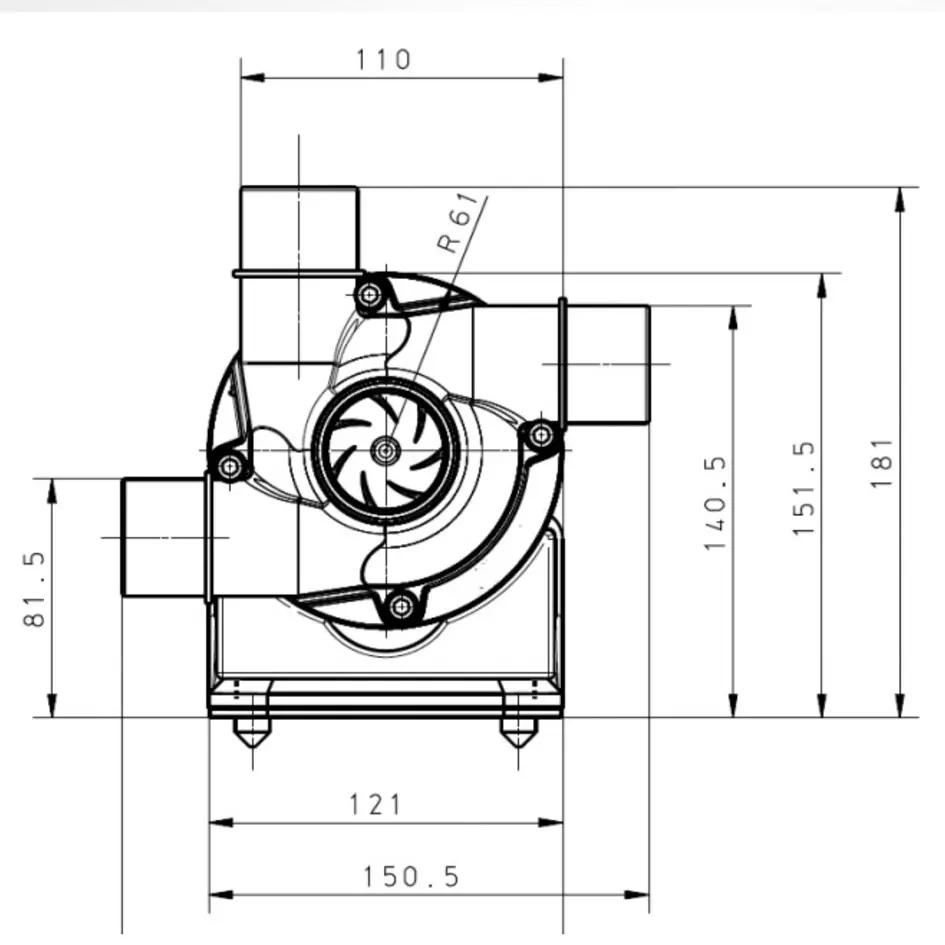

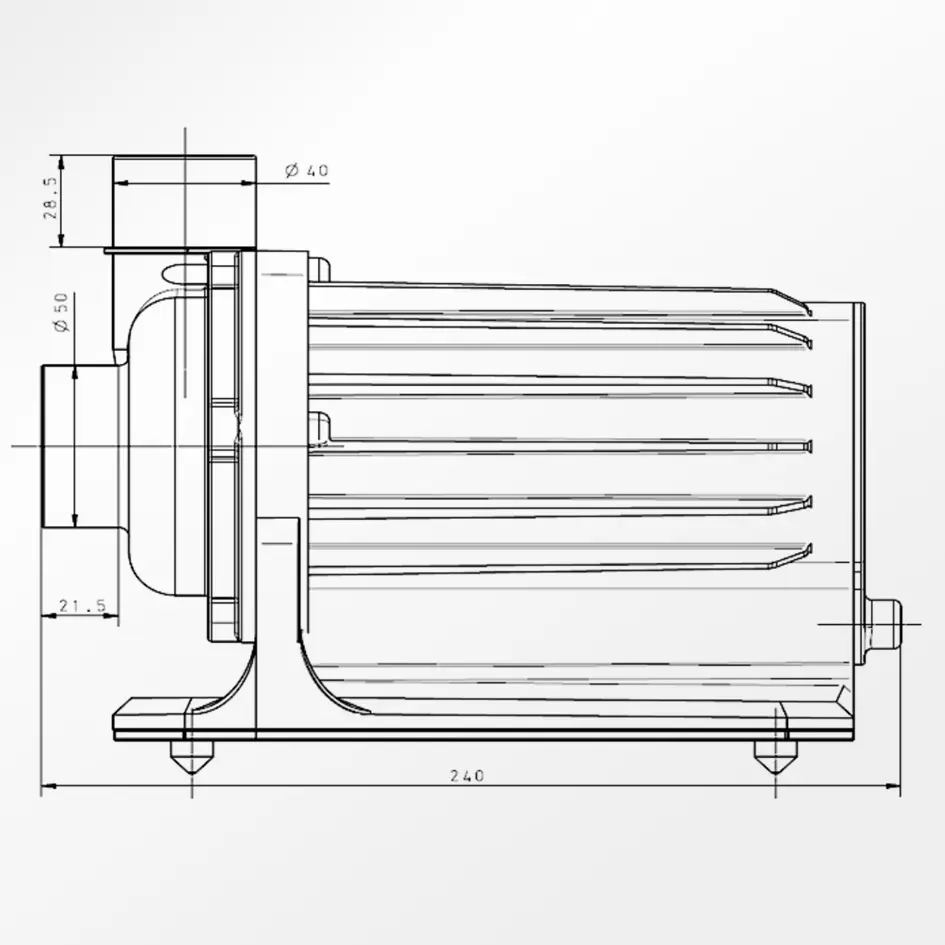

Inlet / Outlet Connections (Metric):
50 / 40 mm
Suitable for PVC / AVB adhesive fittings
Imperial adapters available
- 10-Year Warranty: Industry-leading manufacturer coverage with outstanding customer support
WARRANTY & SUPPORT
Abyzz Pumps Limited Warranty
Thank you for choosing Abyzz Pumps. We are committed to providing you with high-quality products and exceptional customer support. To ensure you receive the full benefits of our product warranty, please read the following information carefully.
1. Warranty Coverage
Abyzz Pumps (motor block and driver ONLY) are backed by a 10-year limited warranty that covers defects in materials and workmanship under normal use and maintenance. This warranty provides repair or replacement of the defective motor block and driver ONLY at Abyzz's discretion.
Our warranty policy ensures the quality and durability of our products; however, it does not extend to wearable parts that naturally degrade over time due to regular use. Wearable parts include, but are not limited to, filters, seals, gaskets, volutes, fuses, adapters, bearings, impeller wheels, mounting brackets, and other components subject to routine wear and tear. These items are considered maintenance components and require periodic replacement to ensure optimal performance. For further details on which parts are classified as wearable, please refer to our product manual or contact our customer support team.
2. Warranty Registration
To activate your 10-year limited warranty, you MUST register your pump directly with Abyzz. Warranty registration is mandatory; pumps not registered within 30 days of purchase are not eligible for warranty coverage.
To Register Your Pump:
- Visit our website at https://abyzz.com/en/pages/contact.
- Complete the online registration form with your pump's serial number, purchase date, and other required details.
- Alternatively, you can contact our customer service team at [email protected] for assistance with registration.
3. Warranty Terms
- Duration: The warranty is valid for 10 years from the date of purchase, provided the pump is registered as required.
- Coverage: The warranty covers defects in material and workmanship. It does not cover damage caused by misuse, neglect, unauthorized modifications, or failure to follow the provided installation and maintenance instructions.
- Non-Coverage: This warranty does not cover consumable parts or items damaged due to improper installation, environmental factors, or accidents.
4. Warranty Claims
To make a warranty claim, please contact Abyzz Pumps Customer Service. You will need to provide proof of registration and proof of purchase. If the claim is valid, Abyzz will repair or replace the defective part or pump at no charge.
5. Non-Transferable Warranty
Please note that this warranty is non-transferable. It is only valid for the original purchaser of the pump and cannot be transferred to subsequent owners.
6. Limitations of Liability
Abyzz Pumps' liability under this warranty is limited to the repair or replacement of defective parts. We are not liable for any indirect, incidental, or consequential damages arising from the use of the pump.
7. Contact Abyzz
For any questions or to initiate a warranty claim, please contact:
Abyzz Pumps Customer Service
Email: [email protected]
Website: www.abyzz.com
