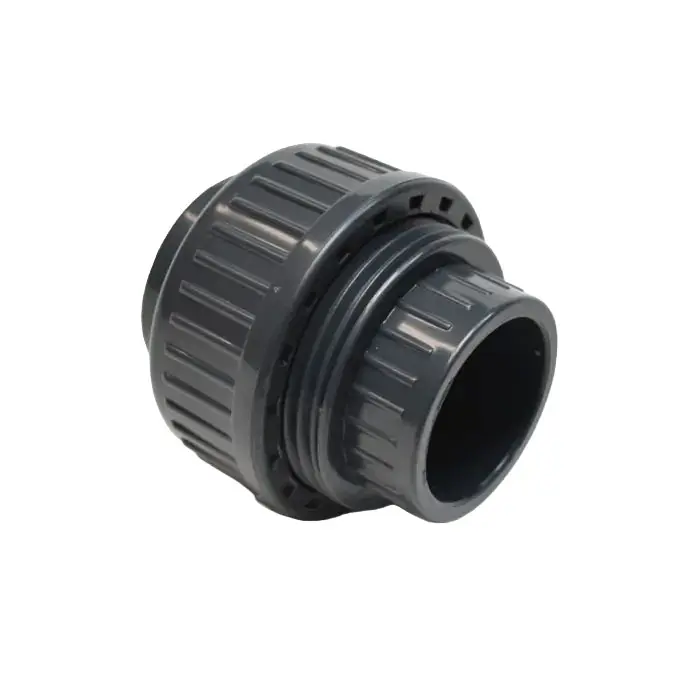

63mm Metric Union Coupling
SKU: PVC-UNCPLG-63
- Serviceable Connection: Allows for the rapid, tool-free disconnection of 63mm metric plumbing lines for cleaning or system modification.
- Metric Precision Fit: Specifically sized for 63mm metric PVC pipe (approx. 2.5" OD), the standard for commercial Reef Octopus and large-scale aquarium returns.
- Leak-Proof Seal: Features a high-grade EPDM O-ring that creates a bubble-tight seal without the need for Teflon tape or thread sealant.
- Industrial Build: Constructed from thick-walled, high-impact grey UPVC for superior pressure resistance and long-term durability.
- Stress-Free Repairs: Enables "drop-in" repairs in rigid 63mm plumbing runs where a standard slip coupling cannot be used due to pipe rigidity.
- Ideal For: Connecting high-output commercial pumps; large-scale manifold service points; UV sterilizer isolation.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
63mm Metric Union Coupling
The 63mm Metric Union Coupling is a critical industrial component designed for the modular assembly and maintenance of high-volume water distribution systems. Precision-molded for 63mm Metric PVC pipe, this union provides a high-pressure, removable connection point, allowing significant plumbing sections to be serviced, cleaned, or reconfigured without cutting the pipe.
In professional life support engineering, 63mm lines carry substantial hydraulic volume and weight. Incorporating a union near primary pumps or heavy filtration equipment is essential for operational maintenance, as it allows for the removal of components without dismantling the entire plumbing array. This union features a heavy-duty threaded collar and a precision-seated O-ring that ensures a 100% water-tight seal under commercial flow rates. Manufactured from industrial-grade grey UPVC, it matches the professional "factory" aesthetic of Reef Octopus commercial equipment and is built to withstand the rigors of high-pressure pump rooms.
Key Features
True Metric Calibration: Fits 63mm OD metric pipe—the standard for Reef Octopus commercial-spec and European large-scale hardware.
Tool-Free Disassembly: The oversized threaded collar can be hand-tightened and loosened, facilitating rapid maintenance of pumps and valves.
High-Flow Interior: The internal bore is designed to match the 63mm pipe ID, minimizing turbulence and friction loss across the joint.
Marine-Grade Material: 100% non-corrosive construction with a chemical-resistant EPDM O-ring for permanent use in saltwater environments.
Structural Reliability: Heavy-wall UPVC construction resists deformation and water hammer in high-pressure applications.
Ideal For
Pump Isolation: Installing on the intake and discharge of 63mm pumps for effortless removal and impeller service.
Modular Manifolds: Creating removable sections in 63mm distribution blocks for easier cleaning and system upgrades.
Equipment Integration: Providing a break-down point for large-scale UV sterilizers or commercial protein skimmers.
What’s Included:
(1) 63mm Metric Union Coupling (2 Tailpieces, 1 Collar, 1 O-Ring)
Specifications:
Size: 63mm
Connection Type: Slip x Slip (Socket) with Threaded Disconnect
Material: Industrial Grade Grey UPVC
Seal Material: EPDM O-Ring
Compatibility: 63mm Metric Pipe ONLY
- Ensure both 63mm metric pipe ends are cut perfectly square and thoroughly deburred.
- Important: Disassemble the union and slide the threaded collar over one pipe end before gluing the tailpiece.
- Clean the pipe ends and the internal sockets of both tailpieces with a dedicated PVC cleaner.
- Apply PVC primer and heavy-duty solvent cement to the pipe ends and tailpiece sockets.
- Push the tailpieces onto the pipes until they seat fully. Hold for 60 seconds.
- Once the glue has cured, ensure the EPDM O-ring is seated cleanly in its groove and is free of debris.
- Align the two tailpieces and thread the collar onto the opposite side, tightening by hand until firm.
Pro Tips:
- Metric vs. Standard 2.5-Inch. A 63mm metric union will not fit standard US 2.5-inch pipe. 63mm is approximately 2.48 inches, while US 2.5-inch pipe has a 2.875-inch OD. Always confirm your pipe diameter with a caliper before beginning a permanent installation.
- O-Ring Maintenance. For a perfect seal every time, apply a small amount of food-grade silicone grease to the O-ring. This prevents the rubber from drying out and ensures the collar can be easily unscrewed after years of saltwater exposure.
- Hand Tighten Only. Even at 63mm, these unions are designed to be hand-tightened. Avoid using large pipe wrenches, as over-torquing can crack the UPVC collar or distort the O-ring, leading to persistent leaks. If a leak occurs while hand-tight, check the O-ring for alignment or trapped salt crystals.
