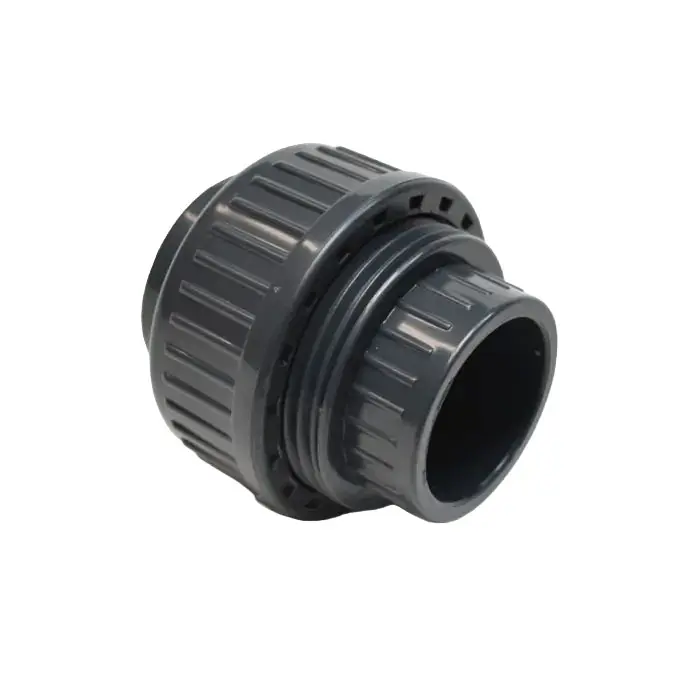

40mm Metric Union Coupling
SKU: PVC-UNCPLG-40
- Serviceable Connection: Allows for the rapid, tool-free disconnection of 40mm metric plumbing lines for cleaning or system modification.
- Metric Precision Fit: Specifically sized for 40mm metric PVC pipe (approx. 1.5" OD), the standard for high-flow Reef Octopus Regal and Elite drainage.
- Leak-Proof Seal: Features a high-grade rubber O-ring that creates a bubble-tight seal without the need for Teflon tape or thread sealant.
- Industrial Build: Constructed from thick-walled, high-impact grey UPVC for superior pressure resistance and long-term durability.
- Maintenance Essential: Enables "drop-in" repairs and equipment removal in rigid 40mm plumbing runs where pipes cannot be flexed.
- Ideal For: Connecting primary drain lines; high-volume manifold service points; large-scale equipment isolation.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
40mm Metric Union Coupling
The 40mm Metric Union Coupling is a heavy-duty plumbing component designed to bring modularity and ease of maintenance to advanced aquarium life support systems. Precision-molded for 40mm Metric PVC pipe, this union provides a secure, high-capacity connection point that can be easily unscrewed by hand, allowing large-diameter plumbing sections to be serviced without cutting the pipe.
In professional reef systems, 40mm lines are commonly utilized for primary gravity drains and high-volume return manifolds. By installing a union near essential equipment such as high-output pumps or large UV sterilizers, you facilitate rapid maintenance and troubleshooting. The fitting consists of two socket tailpieces, an oversized threaded collar, and a precision-seated O-ring that ensures a 100% water-tight seal even under the vibration and hydraulic stress of high-performance filtration. Its industrial grey finish matches the professional "factory" aesthetic of Reef Octopus and European filtration hardware.
Key Features
True Metric Calibration: Fits 40mm OD metric pipe—essential for maintaining factory Reef Octopus and European-spec hardware.
Tool-Free Disassembly: The heavy-duty threaded collar can be hand-tightened and loosened, facilitating rapid access to pumps and valves.
High-Flow Interior: The internal bore matches the 40mm pipe ID, ensuring zero restriction and maintaining optimal hydraulic efficiency.
Marine-Grade Material: 100% non-metallic construction; will not rust, pit, or leach chemicals into sensitive reef environments.
High-Pressure Rating: Engineered to handle the output of commercial-grade return pumps while remaining easy to service.
Ideal For
Main Drain Isolation: Installing on 40mm drain lines for easy cleaning of salt creep or blockages.
High-Volume Manifolds: Creating removable sections in a 40mm manifold system for system upgrades.
Equipment Integration: Providing a break-down point for large-scale industrial UV sterilizers or commercial reactors.
What’s Included:
(1) 40mm Metric Union Coupling (2 Tailpieces, 1 Collar, 1 O-Ring)
Specifications:
Size: 40mm
Connection Type: Slip x Slip (Socket) with Threaded Disconnect
Material: Industrial Grade Grey UPVC
Seal Material: High-Grade Rubber O-Ring
Compatibility: 40mm Metric Pipe ONLY
- Ensure both 40mm metric pipe ends are cut perfectly square and thoroughly deburred.
- Crucial Step: Disassemble the union. Slide the threaded collar over one pipe end before gluing the tailpiece.
- Clean the pipe ends and the internal sockets of both tailpieces with a dedicated PVC cleaner.
- Apply PVC primer and solvent cement to both the pipe ends and the tailpiece sockets.
- Push the tailpieces onto the pipes until they seat fully. Hold for 45 seconds.
- Once the glue has cured, ensure the O-ring is seated cleanly in its groove and is free of debris.
- Align the two tailpieces and thread the collar onto the opposite side, tightening by hand until firm.
Pro Tips:
- Metric vs. Standard 1.5-Inch. A 40mm metric union will not fit standard US 1.5-inch pipe. 40mm is approximately 1.57 inches, while US 1.5" pipe has a 1.90-inch OD. Always confirm your pipe diameter with a caliper before beginning a permanent solvent weld.
- O-Ring Maintenance. To ensure the union remains easy to open after months of saltwater exposure, apply a tiny amount of food-grade silicone grease to the O-ring. This keeps the rubber supple and prevents "salt creep" from seizing the threads.
- Hand Tighten Only. Unions are designed to be hand-tightened. Avoid using pipe wrenches or pliers, as over-torquing can crack the UPVC collar or distort the O-ring. If it leaks when hand-tight, check the O-ring for alignment or trapped salt crystals.
