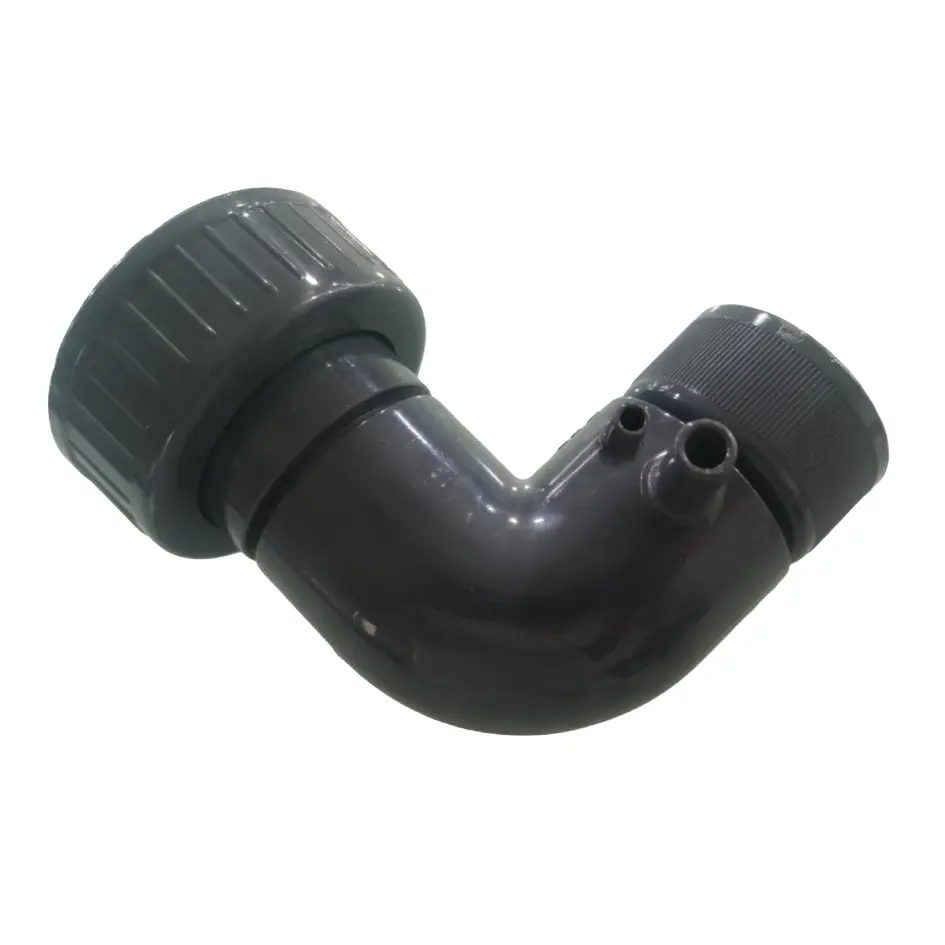

Octo VarioS 6S Air Venturi Elbow with Ozone Port (Regal 250/300EXT)
SKU: ROP-VNTR-REGAL300EOZ
- Genuine OEM Direct Replacement: Authentic factory-spec intake air venturi elbow designed explicitly for heavy-duty Reef Octopus Regal 250EXT and 300EXT external skimmers running VarioS-6S pumps.
- Integrated Secondary Ozone Port: Features a dedicated auxiliary intake barb to inject ozone gas safely and directly into the high-shear mixing zone without degrading the main lines.
- Maximization of Air-to-Water Ratios: Custom internal venturi geometry maximizes the air-draw capability of the high-power DC controllable pinwheel pump for rich, microbubble foam.
- Ozone-Resistant Engineering: Molded from premium, heavy-duty industrial polymers engineered to resist oxidation and brittle fracturing from long-term ozone exposure.
- Snug Slip-Fit Precision: Manufactured with strict dimensional tolerances to ensure an airtight, vacuum-sealed link onto the pump inlet without unmetered bypass air.
- Toolless Inline Assembly: Press-fits directly onto your skimmer pump assembly loop in seconds, getting your large-scale filtration system back to maximum skimming velocity instantly.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-6S Air Venturi Elbow with Ozone Port (ROP-VS6S-ELB)
The Reef Octopus VarioS-6S Air Venturi Elbow with Ozone Port (SKU: ROP-VS6S-ELB) is an authentic factory-spec replacement air-induction component distributed by CoralVue to maintain the heavy performance benchmarks of your Regal 250EXT and 300EXT external protein skimmers. The venturi elbow is the mechanical heart of a skimmer's bubble production loop; it sits directly on the intake mouth of the VarioS-6S DC controllable pump, using a vacuum effect to violently pull atmospheric air into the rushing water column. Because commercial-scale external recirculating skimmers like the Regal 250EXT and 300EXT process massive volumes of water across heavy bio-load displays, even minor imperfections in the venturi alignment can strangle the air intake. Over years of operation, salt creep can calcify inside the air paths, or cleaning the pump with tools can stress and crack the plastic air barb, causing unmetered ambient air leaks that drop internal bubble density.
Replacing your worn or obstructed intake piece with this genuine OEM adapter fully optimizes your skimmer's fractionating capability. This specialized elbow comes standard with an integrated secondary auxiliary port tailored for ozone (O3) injection. In advanced reef systems, ozone gas is widely utilized to sterilize water, break down yellowing pigments, and eliminate organic compounds. Standard plastics will rapidly oxidize, yellow, crumble, and fail when exposed to pure ozone. This factory unit is built out of specialized, highly dense, ozone-safe polymers that hold up flawlessly under continuous gas saturation, preventing environmental leaks and protecting your cabinet interior.
Key Features
Dual Air-Stream Inputs: Features a primary high-draw atmospheric air silencer port alongside a localized, isolated auxiliary ozone barb.
VarioS Internal Fluid Profiles: Internally shaped with a specific taper that converts incoming water velocity into suction vacuum, maximizing bubble output.
Strict Chemical Resistance: Engineered from non-leaching, non-corrosive polymers that handle harsh saltwater, low-pH acids, and chemical gas streams safely.
Airtight Joint Engineering: Precision slip joints seat completely flush against the pump housing face, eliminating performance-robbing vacuum drops.
Verified Hardware Compatibility
Reef Octopus External Skimmers: Regal 250-EXT and Regal 300-EXT (External Space-Saving Recirculating Skimmers).
Native Controllable Pumps: Built specifically to slide onto the inlet of the Octo VarioS-6S Controllable Skimmer Pump.
(Note: This adapter is calibrated strictly for the high air-draw volumes of the VarioS-6S platform. If your skimmer uses a smaller VarioS-2S or VarioS-4S pump, please select their dedicated matching model variations to ensure correct fitting dimensions).
What’s Included:
(1) Reef Octopus Replacement VarioS-6S Air Venturi Elbow with Secondary Ozone Barb
(Note: VarioS-6S DC pumps, flexible silicone air silencer lines, ozone generators, check valves, and clear Regal skimmer bodies are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Air Venturi Elbow with Ozone Port for VarioS-6S / Regal 250 & 300EXT
SKU / Factory Part Identifier: ROP-VS6S-ELB
Primary Atmospheric Port: Calibrated for Standard 1/4" Inner Diameter Skimmer Air Lines
Auxiliary Port Function: Dedicated Ozone (O3) Injection Input Barb
Material Matrix Composition: Ozone-Inert High-Impact Engineered Plastic
- Turn off your VarioS-6S pump controller and unplug the power transformer supply from the wall outlet to halt water movement.
- If you are injecting ozone, switch off the ozone generator power line and safely close the gas feed valves.
- Gently slide the flexible silicone air intake tubing off the old venturi elbow's primary air nipple.
- Twist and pull the old, clogged venturi elbow away from the front suction face of the VarioS-6S skimmer pump.
- Take your new ROP-VS6S-ELB venturi elbow and press the metric slip socket firmly onto the pump's inlet mouth until it bottoms out securely.
- Re-attach your main air silencer hose to the primary barb. If using ozone, plug your ozone-safe feed line into the secondary port (if not using ozone, leave the secondary plug capped or sealed).
Pro Tips:
- Cap the Ozone Port if It Is Not in Use. If you are operating your Regal 250EXT or 300EXT as a standard skimmer without an ozone generator, ensure the secondary auxiliary ozone barb is completely sealed off. If left wide open, the massive suction vacuum from the VarioS-6S pump will drag unmetered, turbulent room air straight through that small opening. This disrupts the venturi's internal pressure matrix, causing your skimmer to produce uneven, coarse bubbles and making the water line jump up and down inside the body.
- Use a Carbon Block Post-Filter on Your Collection Cup. When injecting ozone gas directly into the VarioS-6S venturi elbow, a small portion of unreacted ozone gas will inevitably escape out of the ventilation holes on the top of your skimmer collection cup lid. Ozone gas inside a home can irritate your lungs and degrade nearby rubber equipment wires. Always place a small mesh bag filled with fresh, high-grade activated carbon pellets right over the collection cup lid vents to trap and neutralize escaping ozone before it enters your room air.
- Dissolve Salt Encrustation Without Scrubbing. Because raw atmospheric air and moist salt water collide directly inside the mouth of this venturi elbow, a hard ring of white salt crust will naturally accumulate right at the tip of the air barb over time. Never shove drill bits or metal wire brushes down the delicate air pathways to scrape it out, as scratches will ruin the smooth airflow. Instead, pull the elbow off the pump and soak it in a warm bath of water mixed with citric acid powder for 15 minutes to instantly melt away the blockage.
