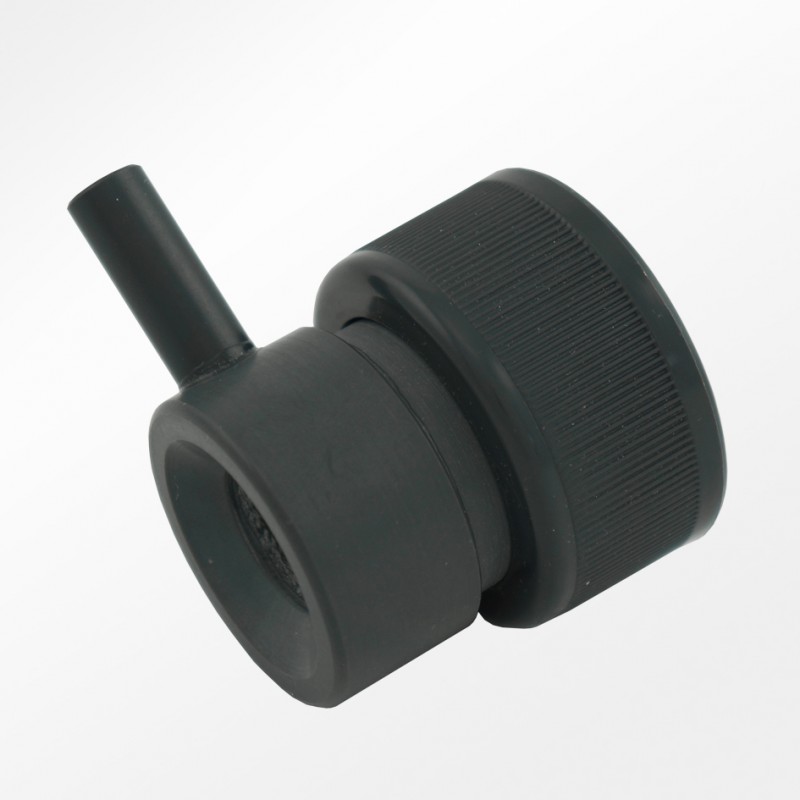

Octo Regal 200EXT (VarioS 4S) Elbow Air Venturi with Ozone
SKU: ROP-VNTR-REGAL200EOZ
- Genuine OEM Direct Replacement: Authentic factory-spec 90-degree right-angle gas induction elbow venturi nozzle engineered explicitly for the VarioS-4S controllable pump running on external recirculating skimmers.
- Dual-Inlet Air & Ozone Integration: Outfitted with an independent, dedicated auxiliary input port designed to introduce elemental ozone gas directly into the wet-well air stream.
- Recirculating Elbow Geometry: Specially configured with a sharp 90° union-coupled bend to accommodate tight plumbing return lines native to external skimmer body loops.
- Optimized Vacuum Constriction: Engineered with a calculated internal bottleneck diameter that accelerates water velocity to maximize passive atmospheric air-draw extraction metrics.
- Premium Ozone-Inert Materials: Fabricated from solid, commercial-grade injection-molded PVC engineered to withstand continuous oxidation without yellowing, pitting, or cracking.
- Toolless True Union Connection: Features an integrated locking threaded union ring that anchors directly to the primary pump volute cover face for an absolute airtight seal.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Regal 200EXT Recirculating Elbow Venturi with Ozone Port (ROP-VNTR-RD200EXT)
The Reef Octopus Regal 200EXT Elbow Venturi with Ozone Port (SKU: ROP-VNTR-RD200EXT) is an authentic factory-spec air-injection nozzle component distributed by CoralVue to preserve the intense microbubble production, organic extraction efficiency, and oxidative capabilities of your external recirculating skimmer. Because external (EXT) skimmers operate completely outside of the sump reservoir, they rely on airtight, pressure-locked recirculating plumbing loops. This specialized right-angle elbow venturi adapts the intake of the 24V controllable VarioS-4S pump directly to the body plumbing wall, utilizing an engineered restriction bottleneck to maximize the vacuum draw needed to pull in massive volumes of atmospheric air.
A primary advantage of this premium external configuration is its dedicated, ozone-inert bypass port. Injecting ozone (O3) into standard skimmer plastics quickly degrades, yellows, and cracks the polymer wall over time, leading to micro-fractures and catastrophic wet-room spray leaks. This genuine OEM assembly is constructed entirely from commercial-grade, specialized grey PVC compound capable of handling intense oxidation. It separates air line inputs from your ozonizer feed, allowing safe gas blending inside the high-vacuum throat of the nozzle just before the mixture reaches the spinning pinwheel. Swapping out a compromised, salt-choked, or hairline-fractured elbow nozzle with this original factory block completely restores peak performance tolerances, ensuring an airtight system seal.
Key Features
True Recirculating Alignment: Engineered with precise factory thread pitches and socket metrics to attach directly onto the VarioS-4S intake within Regal 200EXT configurations.
Corrosion-Proof Gas Blending: Safely introduces ozone gas directly into the center of the fractionating chamber, optimizing water clarity and ORP levels without endangering surrounding equipment.
Anti-Clogging Internal Profile: Flawless inner smooth-wall construction reduces the rate of organic slime accumulation and salt creep formation within the primary air bottleneck.
(Note: This replacement assembly includes the single molded right-angle grey PVC venturi block with integrated union nut only. Silicone air tubing lines, ozone check valves, and primary pump bodies are sold separately).
Verified Hardware Compatibility
Reef Octopus External Skimmer Networks: Sized exclusively as the native factory-correct elbow venturi for the Reef Octopus Regal 200EXT Recirculating Protein Skimmer.
Associated Stator Core Platforms: Designed to mate perfectly with the intake threads of the mid-frame Reef Octopus VarioS-4S Controllable Skimmer Pump when arranged in an external configuration.
What’s Included:
(1) Reef Octopus Replacement Regal 200EXT / VarioS-4S 90-Degree Grey PVC Elbow Venturi with Integrated Union Collar Nut
(Note: Rubber sealing gasket rings, clear silicone air tubing, and primary skimmer assemblies are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-4S Regal 200EXT Elbow Venturi with Ozone Port
SKU / Factory Part Identifier: ROP-DC-VNTR-RD200EXT
Plumbing Interface Geometry: 90-Degree Right-Angle Elbow with Female Union Thread Ring
Gas Input Array: (1) Primary 1/4-Inch Air Silencer Barb & (1) Dedicated Secondary Ozone Bypass Fitting
Material Composition: Chemical-Inert Premium Injection-Molded Grey PVC
Primary Function: High-Vacuum Air Induction, Safe Ozone Integration, & Recirculating Plumbing Coupling
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Turn off your VarioS-4S controller and unplug the primary 24V power supply from the wall outlet to eliminate live electricity before working on external plumbing loops.
- Close all external isolation gate valves or feed lines leading to the Regal 200EXT body to prevent water from draining out into your dry cabinet.
- Disconnect both the flexible silicone air-silencer hose and your ozonizer gas feed lines from the vertical input barbs on your old venturi elbow.
- Unscrew the knurled threaded union collar nut counter-clockwise to release the venturi nozzle face from the male intake threads of the white pump volute cover.
- Verify that the inner rubber sealing O-ring gasket is clean and seated perfectly flat inside the tracking groove of your new ROP-DC-VNTR-RD200EXT elbow connector.
- Hand-tighten the new elbow union collar clockwise onto the pump volute until snug, reconnect your air and ozone lines, open your plumbing isolation valves, and restore system power.
Pro Tips:
- Never Overtighten the Plastic Union Collar Nut. When securing this replacement elbow venturi onto the male intake threads of your pump's volute cover, hand-tighten the ring entirely. Do not use metal channel locks, pipe wrenches, or pliers to force the connection tighter. The union is designed to achieve a perfect, airtight seal via manual torque pressing against the internal rubber gasket ring. Forcing the collar past its engineered stopping point with tools will cross-thread the polymer tracks or easily crack the heavy-walled collar face completely open.
- Always Use an Ozone-Safe Check Valve. If you take advantage of the secondary input barb on this venturi to inject ozone gas from an external generator, you must place a high-quality, ozone-safe Kynar or PVDF check valve inline along the feed line. When the skimmer pump is paused for feed cycles or unexpected power outages, backpressure inside the plumbing loop can force saltwater backward up the ozone line. Without a verified check valve, raw saltwater will back-siphon straight into your dry ozone reactor cell, instantly destroying the generator electronics.
- Perform a Regular Vinegar or Citric Acid Flush. Because external recirculating skimmers process highly concentrated amounts of organic compounds, the localized introduction of ozone can cause hard calcium deposits and sticky organic matrices to precipitate rapidly right inside the throat of the venturi bottleneck. If you notice a steady drop in air draw or fluctuating foam levels, remove the venturi block every 2 to 3 months and submerge it in a warm bath of water mixed with citric acid powder to dissolve hidden internal scaling without altering the nozzle's precise interior dimensions.
