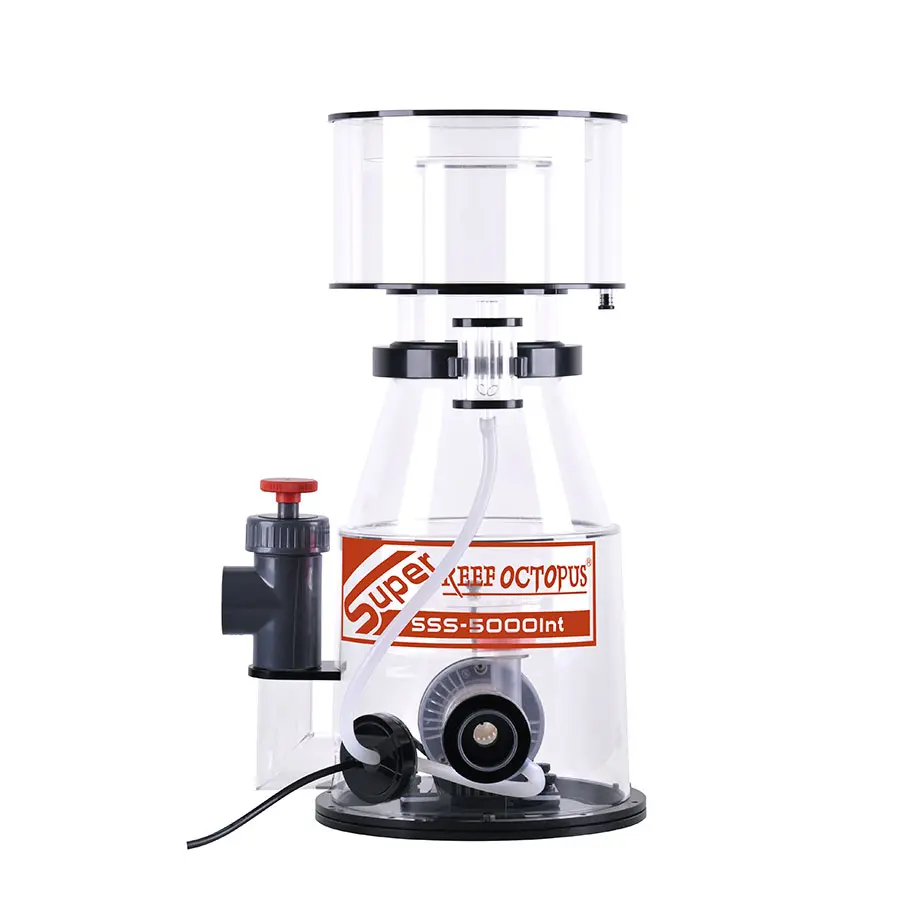

Octo SRO 5000S Space Saver Protein Skimmer
SKU: SRO-5000SSS
- Super Space Saver (SSS) Design: Features an internal pump configuration that places the HY-5000S inside the body, minimizing the footprint for high-capacity sumps.
- Bubble Blaster HY-5000S Power: Equipped with the legendary Bubble Blaster pump, specifically engineered for skimmers with a digital control circuit and 3-year warranty.
- 10-Inch Reaction Chamber: The massive 10-inch diameter body maximizes air-to-water contact time, ensuring thorough removal of dissolved organic compounds.
- In-Sump Efficiency: Designed specifically for in-sump use, offering industrial-grade processing power in a footprint typically reserved for much smaller units.
- Industrial Build: Hand-crafted with high-quality cast acrylic and heavy-duty components, designed for long-term durability in high-bioload systems.
- Precision Control: Includes a professional-grade gate valve for ultra-fine water level adjustments, allowing for consistent "dry" or "wet" skimming.
Reef Octopus SRO 5000-SSS Space Saver Protein Skimmer
The Reef Octopus SRO 5000-SSS (Super Reef Octopus) is the ultimate solution for large-scale reef systems where filtration performance is non-negotiable but sump space is limited. By mounting the legendary Bubble Blaster HY-5000S pump directly inside the massive 10-inch skimmer body, Reef Octopus has managed to fit a 500-gallon capacity filter into a remarkably compact footprint.
The SRO series is defined by the Bubble Blaster pump, widely considered one of the most reliable and efficient pinwheel motors in the industry. Unlike standard pumps, the Bubble Blaster features a digital control circuit that monitors the motor's status and a silicon carbide shaft for extreme wear resistance. The skimmer body is constructed from high-grade cast acrylic and features a turbulence-reducing bubble plate and an oversized air silencer. With its combination of a large-volume reaction chamber and internal pump design, the SRO 5000-SSS provides professional-grade nutrient export without dominating your entire sump.
Key Features
Internal HY-5000S Pump: Dramatically reduces the footprint, allowing a 10-inch skimmer to fit in tight filtration compartments.
Bubble Blaster Technology: Features a high-flow pinwheel impeller and a motor-monitoring circuit for industry-leading reliability.
Bubble Plate Diffuser: Reduces turbulence within the body to ensure the most stable foam production possible.
Solid Acrylic Construction: Hand-crafted for maximum durability and crystal-clear visibility of the reaction chamber.
Professional Hardware: Includes a precision gate valve to effortlessly "dial in" the internal water level for various bioloads.
Bioload Handling
Heavy Bioload: 300 Gallons
Medium Bioload: 400 Gallons
Light Bioload: 500 Gallons
What’s Included:
(1) SRO 5000-SSS Skimmer Body
(1) Bubble Blaster HY-5000S Pinwheel Pump
(1) Professional Gate Valve Assembly
(1) High-Volume Air Silencer
Technical Specs:
Body Size: 10 in
Footprint: 12.5 in x 11 in
Total Height: 24.5 in
Output Size: 50mm / 1.5 in PVC
Output Height: 6.5 in
Recommended Sump Water Depth: 8 – 9 in
- Reef Octopus Bubble Blaster 5000 Pinwheel Pump
- Wattage: 45w
- Air Draw: 2,100lph / 74 SCFH*
- Water Draw: 1,800lph / 480 GPH*
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Ensure the Bubble Blaster HY-5000S pump is securely mounted inside the body and the venturi is connected.
- Place the skimmer in your sump, aiming for a water depth of approximately 8.5 inches.
- Open the output gate valve completely before powering on the pump.
- Plug the HY-5000S pump into a GFCI-protected outlet.
- Gradually close the gate valve until the foam line reaches the base of the collection cup neck.
- Allow for a 2–3 week break-in period for the oversized acrylic body to stabilize.
- Check the air silencer periodically to ensure the intake remains free of dust or salt spray.
Pro Tips:
- Metric Plumbing Standards. The SRO 5000-SSS utilizes a 50mm Metric output. If you are hard-plumbing your drain, make sure to use a 50mm Metric Union or Coupling to maintain compatibility with the factory hardware.
- Maintaining the Internal Pump. Because the pump is housed inside the body, keep an eye on the intake for stray snails or debris. We recommend a full teardown and vinegar soak of the Bubble Blaster pump every 6 months to maintain its silent operation and peak air-draw.
- Water Level Stability. Like all in-sump skimmers, the SRO 5000-SSS performs best when the water level in the sump is constant. We highly recommend using an Auto Top Off (ATO) system to ensure the skimmer remains at its optimal 8.5-inch depth for consistent performance.
