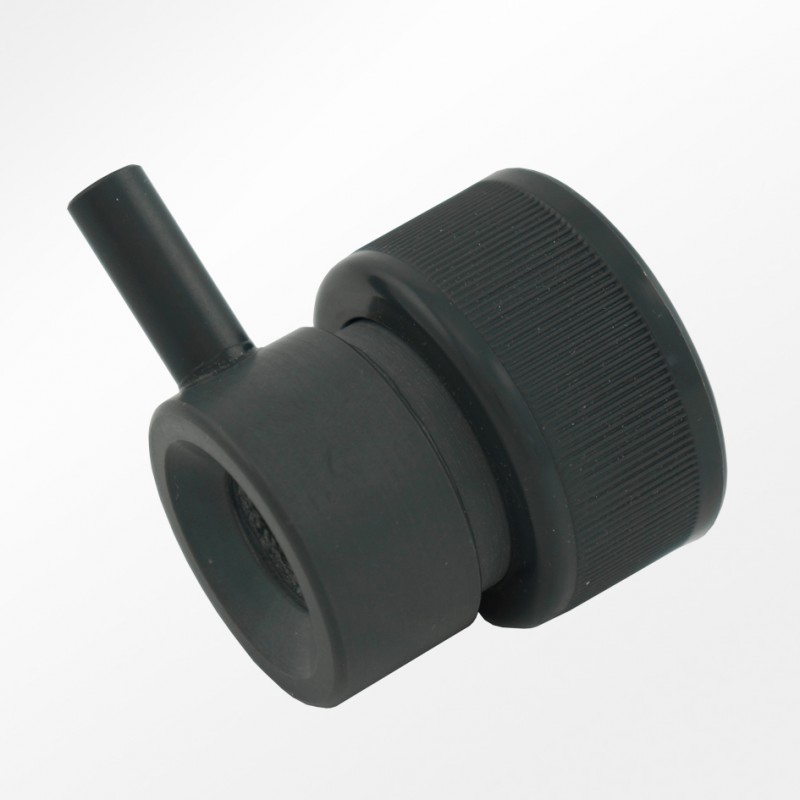

Octo VarioS 6S / Bubble Blaster 5000S Air Venturi
SKU: ROP-VNTR-VRS6
- Genuine OEM Direct Replacement: Authentic factory-spec high-volume gas induction venturi nozzle engineered explicitly for heavy-duty, large-frame Reef Octopus skimmer pumps.
- Optimized Vacuum Constriction: Technical bottleneck geometry accelerates water velocity across the intake well, maximizing passive atmospheric air-draw extraction curves.
- Integrated Barbed Air Line Nipple: Outfitted with a molded vertical intake post that tightly grips standard flexible silicone air-silencer hoses without requiring structural hose clamps.
- High-Impact Matte Grey Polymer: Fabricated from solid, commercial-grade injection-molded PVC engineered to withstand continuous saltwater friction and aggressive ozone exposure.
- Toolless Push-Fit Compression Fitment: Slides directly over the suction inlet of the front pump volute cover, creating an instant friction-locked, airtight hydraulic seal.
- Restores Stalled Foam Production: Rectifies lagging gas-to-liquid fractionating ratios, oversized bubbling issues, and skimmer neck flatlining caused by clogged or warped venturi ports.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-6S & Bubble Blaster 5000S Replacement Air Venturi
The Reef Octopus VarioS-6S & Bubble Blaster 5000S Air Venturi is an authentic factory-spec air-injection nozzle component distributed by CoralVue to preserve the intense microbubble saturation, rich foam column stability, and massive organic extraction rates of your heavy-duty skimmer system. A high-capacity fractionating pump cannot generate its dense waste-extracting column without an optimized air-induction device at its primary suction port. This specialized venturi chokes down the incoming stream as water is sucked into the pump. This restriction creates an aggressive internal vacuum that pulls raw atmospheric air through your silencer line directly into the spinning pinwheel rotor bay, creating up to 2,000 LPH of fine bubble processing.
Operating a flagship skimmer pump continuously makes this high-velocity entry point a prime target for environmental blockages. Saltwater evaporation naturally bakes rock-hard calcium carbonate crusts and crystalline salt creep right inside the narrow air intake barb, while raw bio-organics form an internal slime coat that disrupts the calculated bottleneck fluid dynamics. Attempting to clear these blockages with sharp metal drill bits or wire brushes will gouge the smooth inner polymer paths, permanently ruining the vacuum seal. Running a heavy skimmer pump with a clogged, warped, or cracked venturi causes severe drops in bubble density, turbulent water surges, and total foam neck collapse. Swapping out a compromised nozzle with this genuine replacement instantly restores original factory performance.
Key Features
True Large-Frame Matching Metrics: Precision molded with exact collar dimensions to seat flush onto the front intake housings of both commercial AC and variable-speed DC 5000/6S series pumps.
Ozone-Resistant Material Formulation: Dense PVC compound will not pit, yellow, become brittle, or degrade during structural descaling baths or continuous ozonizer injection routines.
Streamlined Low-Turbulence Internal Pathway: Smooth internal expansion walls eliminate early bubble coalescence, ensuring microbubbles travel directly onto the shredding pins.
(Note: This replacement hardware includes the single molded grey plastic venturi adapter block only. Silicone air tubing lines, noise-reducing silencer canisters, and primary pump motor bodies are sold separately).
Verified Hardware Compatibility
Reef Octopus Controllable DC Skimmers: Form-cut natively as the intake nozzle for the standard Reef Octopus VarioS-6S Controllable Skimmer Pump.
Reef Octopus Premium AC Platforms: Fully backward-compatible as the direct replacement adapter for the Bubble Blaster HY-5000S / 5000S Pinwheel Skimmer Pump.
(Note: This standard straight version is designed for regular in-sump or external configurations. Specialized Space Saver or Super Cone skimmers utilizing space-saving inside-body footprints may require altered right-angle or cropped variations depending on clearance limits).
What’s Included:
(1) Reef Octopus Replacement VarioS-6S / Bubble Blaster 5000S Molded Grey PVC Air Venturi Adapter
(Note: Flexible silicone air lines, replacement volute O-rings, and primary skimmer pump assemblies are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Bubble Blaster 5000 Venturi
SKU / Factory Part Identifier: ROP-VNTR-VRS6
Connection Interface Style: Push-Fit Female Volute Collar Fitment
Air Line Feed Port Size: Standard 1/4-Inch Flexible Silicone Tubing Barb
Material Matrix Composition: Saltwater-Inert High-Impact Injection-Molded Grey PVC
Primary Function: Fluid Velocity, Passive Air Induction, & Microbubble Fractionating
Official Manufacturer Warranty Support: 90-Day Factory Limited Parts Coverage
- Turn off your pump controller or pull the main AC cord from the wall outlet to kill live power before servicing the wet end.
- Disconnect the flexible silicone air-intake line from the vertical hose barb on your old venturi housing.
- Firmly grasp your pump's front volute cover with one hand, take hold of the old grey venturi body with the other, and twist while pulling straight outward to release the friction lock.
- Clean the exterior mounting collar of your pump's volute cover to remove any built-up detritus, mineral scale, or biological film.
- Align your new air venturi straight over the volute input port and push it firmly inward until it seats completely flush against the faceplate shoulder.
- Push your flexible silicone air line back over the integrated hose barb, place the pump back into position on its base tracking rails, and restore electrical power.
Pro Tips:
- Never Clean the Air Nipple Port with Metal Drill Bits or Screws. When salt creep or calcium carbonate inevitably crusts up inside the narrow vertical air line barb of this venturi, never use a metal drill bit, drywall screw, or knife point to scrape it out. The internal diameter of that air port is engineered to a precise millimeter tolerance to control the air-to-water ratio. Shaving or gouging the plastic walls with metal tools will enlarge the opening, permanently throwing off the vacuum dynamics and ruining the skimmer’s bubble pattern. Use a plastic toothpick or a warm citric acid soak instead.
- Apply a Micro-Smear of Silicone Grease for Easy Maintenance Teardowns. Because the venturi slides directly over the pump's intake collar using a tight friction fit, mineral scale can bind the two plastic pieces together over time, making them very difficult to separate. To make future maintenance much easier, rub a microscopic smear of 100% pure aquarium-safe silicone plumbing grease onto the inner mating ring of the new venturi before pushing it into place. This keeps the plastic from seizing up without affecting your water line.
- Perform an Overnight Citric Acid Soak to Clear Stubborn Scaling. If you notice your protein skimmer's foam line steadily dropping or producing large, irregular bubbles, the venturi is likely clogged with hidden internal calcium scaling. Every 3 to 4 months, slide the venturi off the pump and submerge it in a warm bath of water mixed with citric acid powder overnight. This safely dissolves hard scale build-ups inside the internal bottleneck without scratching or damaging the smooth polymer pathways.
