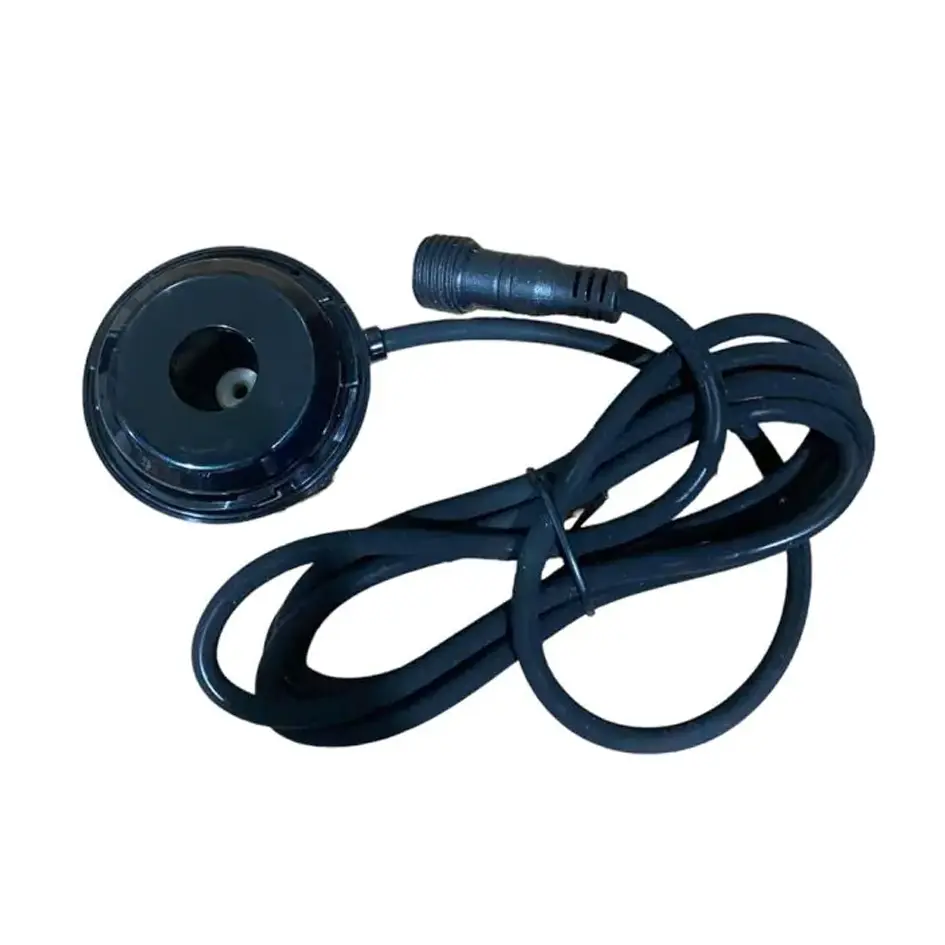

Octo Pulse 2 Motor
SKU: ROP-OP2-MTR
- Genuine OEM Replacement Component: Direct factory-spec replacement motor block manufactured specifically for the internal stator path of your Reef Octopus Octo Pulse 2 wavemaker.
- Energy-Efficient DC Core Technology: Runs a low-voltage, variable-speed direct current loop pulling between 5 to 10 watts under peak current delivery.
- High-Volume Output Calibration: Drives your impeller to shift up to 1,600 GPH of broad, natural tidal circulation without creating harsh tissue-shredding hot spots.
- Articulating Convex Geometry: Features a convex, rounded rear housing designed to fit neatly into a concave mounting magnet for complete 360-degree rotational adjustment.
- Hermetically Sealed Stator Core: Shielded by an aquarium-safe polymer housing that encapsulates delicate electronic coils from water exposure and electrical faults.
- HYDROS Native Ecosystem Driver: Features factory-wired input pin pathways that are fully compatible with standard standalone control hubs or direct-drive systems.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus Octo Pulse 2 Replacement Motor Block (ROP-OP2-MTR)
The Reef Octopus Octo Pulse 2 Replacement Motor Block (SKU: ROP-OP2-MTR) is a genuine factory-direct OEM core assembly distributed by CoralVue to restore powerful water flow patterns within your marine habitat. In a closed-loop marine aquarium, the primary wavemaker motor block functions under constant mechanical duty cycles. Over years of submersion, electronic stators can degrade due to electrical power grid spikes, or suffer internal copper coil failure if the impeller is left stuck by large debris or crawling snails. Instead of purchasing an entirely new retail wave pump bundle with unnecessary extra brackets and wires, swapping out the standalone motor block allows you to preserve your current controller grid while restoring full flow capabilities.
This replacement block features a heavy-duty, epoxy-encapsulated motor core that functions on a low-voltage 24V DC circuit. The housing is constructed from impact-resistant, non-leaching marine polymers and features a specialized convex rear end. This rounded back sits within the native concave magnetic base assembly, providing an articulating joint that allows you to tilt the motor across a 25-degree range of motion and rotate it a full 360 degrees to target dead zones in your rockwork. Engineered for seamless integration with high-end automated control grids, the integrated power cord features a waterproof screw-collar connector to keep your internal connections safe and dry.
Key Features
Genuine Direct Drop-In: Sized exactly to factory specifications to accommodate your original Octo Pulse 2 impeller and flow cage components.
True 360-Degree Aiming: The gyration-ready rear shell fits perfectly into your original stock mounting cradle, enabling precise directional control.
Whisper-Quiet Stator Core: Features advanced electronic commutation paths that eliminate low-frequency humming sounds while maintaining high volume tracking.
Broad Flow Efficiency: Calibrated to drive the impeller up to 1,600 GPH while pulling only 5 to 10 watts of total electricity.
Robust Factory Housing Warranty: Backed by the official CoralVue service framework, guaranteeing the structural integrity of your core equipment.
Verified Hardware Compatibility
Reef Octopus Wavemaker Series: Octo Pulse 2 (OP-2) and Octo Pulse 2+ systems.
Note: This core block is sized explicitly for the OP-2 footprint. If you operate the larger high-output model, you must use partner part number ROP-OP4-MTR to fit your larger system accessories.
What’s Included:
(1) Reef Octopus Octo Pulse 2 Replacement Motor Block with Integrated Waterproof Power Lead
(Note: Front flow cages, wet/dry side magnetic mounts, internal impellers, controllers, and DC power supply bricks are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Octo Pulse 2 Replacement Motor
SKU / Factory Part Identifier: ROP-OP2-MTR
Operational Energy Draw Array: 5 to 10 Watts Max
Maximum Potential Flow Speed: Up to 1,600 Gallons Per Hour
Housing Articulation Freedom: 25-Degree Angular Gyration / 360-Degree Rotation
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Disconnect the main power supply from your controller interface to completely de-energize the wavemaker circuit.
- Reach into the tank, detach the wet-side pump from the dry-side glass magnet, and move the pump head over to a clean workspace.
- Unsnap your original front flow cage and slide your active impeller assembly straight out of the old motor cavity.
- Unscrew the waterproof collar at the end of the motor block's cord line to separate it from your controller port or extension lead.
- Take your existing impeller and slide it down into the clean center well of your new ROP-OP2-MTR motor block until the magnet seats securely.
- Snap your front flow cage back onto the rim, route the power wire back to your cabinet grid, screw the locking connection collar together hand-tight, and restart your system.
Pro Tips:
- Never Run the Motor Block Dry. This variable-speed DC motor block uses surrounding aquarium water to cool its internal components during operation. Never plug the motor into a controller or power brick while testing it on a dry counter top. Running the stator without water tracking around the internal well creates friction heat that can warp the inner sleeve and ruin the motor block. Always submerge the pump completely before powering it up.
- Clean the Inner Cavity Thoroughly Before Installing Your Impeller. When moving your current impeller over to this new replacement motor block, take a moment to look at the magnet cylinder. Wipe it down with a soft cloth to make sure no fine sand grains, loose shell bits, or calcium flakes are stuck to it. Shifting debris into a brand new motor well can score the polymer walls, creating micro-grooves that decrease flow rates and cause loud clicking noises.
- Keep an Eye on the Rear Bushing Alignment. Inside the rear center point of the new motor well sits a tiny, specialized rubber bushing that cushions the back tip of your impeller's ceramic shaft. When cleaning your old pump or getting your new setup ready, verify that this rear cushion pad is centered and flush in its seat. If the bushing is misaligned or missing, the shaft will wobble under load, causing loud vibrations and uneven wear on your new motor.
