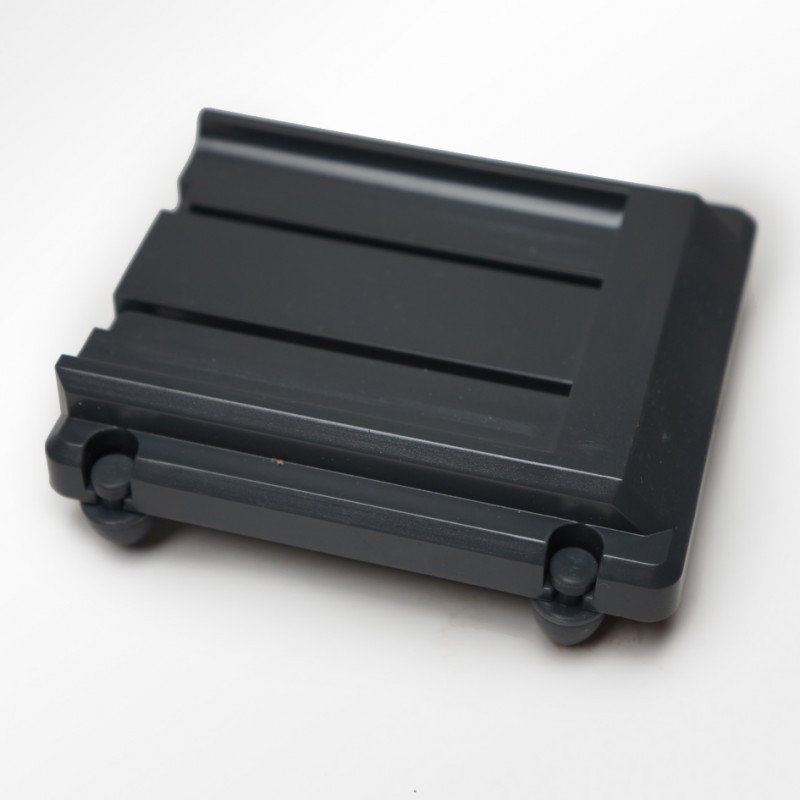

Octo Bubble/Water Blaster 10000/12500 Pump Base
SKU: ROP-BWB1012-BS
MSRP: $ 21.00
-
Available Through Authorized Retailer
- Direct OEM Replacement: Manufactured to exact factory tolerances for a seamless snap-fit onto Reef Octopus 10000 and 12500 series motor blocks.
- Acoustic Dampening: Includes four pre-fitted, high-grade silicone suction feet engineered to isolate physical vibration and quiet pump resonance.
- Dual-Pump Cross Compatibility: Fits both standard Water Blaster (HY) circulation pumps and Bubble Blaster (HY-S) skimmer pinwheel pumps.
- 100% Reef Safe Plastic: Injection-molded from dense, non-leaching ABS plastic completely inert in saltwater and freshwater environments.
- Tool-Free Slide Installation: Features precision slide-and-lock rails that allow quick attachment and detachment during routine pump maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus 10000/12500 Pump Baseplate
Restoring silent, stable operation to your high-volume circulation or protein skimmer pump begins with a solid foundation. The Reef Octopus Bubble/Water Blaster 10000/12500 Pump Base (SKU: ROP-BASE-HY10000) is the official factory replacement mounting plate designed for large-frame Reef Octopus motor blocks. Over years of continuous submersion, original rubber vibration feet can harden, tear, or lose grip due to mineral deposits and salt creep, allowing motor resonance to transfer directly into your sump floor or skimmer body as an annoying low-frequency hum. Replacing a worn baseplate restores whisper-quiet operation and keeps your pump firmly anchored.
Molded from high-impact, reef-safe ABS plastic, this heavy-duty baseplate features integrated side guide rails that slide directly into the alignment slots on the bottom of the pump's motor block. It comes equipped with four pre-installed, heavy-density silicone rubber feet that elevate the pump slightly off the sump bottom, creating an acoustic buffer that absorbs kinetic vibration.
Universal Large-Frame Fitment
Because Reef Octopus utilizes standardized motor housings across their flagship AC pump lines, this single baseplate SKU services both the Water Blaster return pumps and Bubble Blaster skimmer pumps within the 10000 to 12500 capacity rating.
(Note: This retail SKU contains (1) complete ROP-BASE-HY10000 replacement baseplate with (4) pre-installed silicone dampening feet. Pump motor blocks, volutes, and impellers are sold under separate product categories).
What’s Included:
(1) Reef Octopus HY-10000/12500 Slide-In ABS Baseplate
(4) Pre-Installed Heavy-Duty Silicone Vibration Feet
Technical Specs:
Official Manufacturing Title: Large-Frame Pump Mounting Baseplate Assembly
SKU / Factory Part Identifier: ROP-BASE-HY10000
Primary Material Composition: Chemical-Resistant Injected ABS Plastic
Dampening Material: 100% Saltwater-Safe Silicone Elastomer
Attachment Mechanism: Dual Slide-and-Lock Alignment Rails
Color Finish: Dark Industrial Gray / Black
Primary Compatibility: Water Blaster HY-10000W, HY-12500W & Bubble Blaster HY-10000S, HY-12500S
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
Replacement Instructions:
Disconnect the pump from power and carefully remove it from your sump or skimmer assembly.
Locate the release tab on the old baseplate (if still attached) and slide the old base backwards along the bottom rails of the motor block to disengage it.
Thoroughly clean any calcium, salt creep, or coralline algae out of the mounting tracks on the bottom of the pump motor housing using a soft brush dipped in diluted citric acid or vinegar.
Align the guide rails of the new ROP-BASE-HY10000 with the tracks on the pump housing.
Push the baseplate forward until it firmly clicks into place.
Verify that all four silicone dampening feet are seated securely in their mounting sockets before placing the pump back into your sump.
Pro Tips:
Check Base Orientation Before Sliding Into Skimmers.
CRITICAL SKIMMER FITMENT TIP: When installing a new baseplate onto a Bubble Blaster skimmer pump, ensure the base is oriented so the pump slides smoothly onto the skimmer's internal acrylic mounting bracket. Forcing an unaligned baseplate can snap the acrylic guide tracks inside the skimmer body.
Keep Silicone Feet Clean During Maintenance. Whenever you perform bi-annual pump maintenance, take a moment to pull the base off and soak the silicone feet in warm fresh water. Removing trapped sand grains, detritus, or calcium crust from underneath the feet restores their natural suction and dampening elasticity, keeping your filtration cabinet completely silent.
Never Operate Without Dampening Feet. Running a high-capacity 10000 or 12500 series pump on hard acrylic or glass without silicone feet will cause intense physical chatter and micro-vibrations. Over time, this mechanical shock can loosen threaded plumbing fittings, cause bulkhead micro-leaks, and significantly increase motor operating noise.
