Octo Water Blaster 16000 Pump Base
SKU: ROP-WB16000-BS
MSRP: $ 29.22
-
Available Through Authorized Retailer
- Direct OEM Replacement: Manufactured to exact factory tolerances for a seamless snap-fit onto Reef Octopus HY-16000W commercial motor blocks.
- Acoustic Dampening: Includes four pre-fitted, high-grade silicone suction feet engineered to isolate physical vibration and quiet pump resonance.
- Heavy-Duty Construction: Reinforcing ribs support the massive 4,000 GPH motor block during high-flow operation.
- 100% Reef Safe Plastic: Injection-molded from dense, non-leaching ABS plastic completely inert in saltwater and freshwater environments.
- Tool-Free Slide Installation: Features precision slide-and-lock rails that allow quick attachment and detachment during routine pump maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

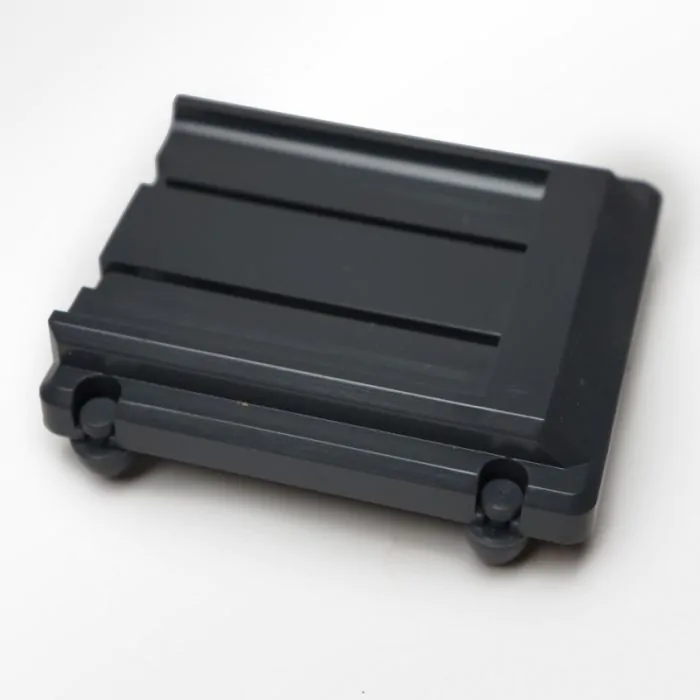

Reef Octopus Water Blaster 16000 Pump Baseplate
Restoring silent, stable operation to your commercial circulation pump begins with a solid foundation. The Reef Octopus Water Blaster 16000 Pump Base (SKU: ROP-WB16000-BS) is the official factory replacement mounting plate designed specifically for the flagship HY-16000W motor block. Over years of continuous high-volume operation, original rubber vibration feet can harden, tear, or lose grip due to mineral deposits and salt creep, allowing motor resonance to transfer directly into your sump floor as an annoying low-frequency hum. Replacing a worn baseplate restores whisper-quiet operation and keeps your massive return pump firmly anchored.
Molded from high-impact, reef-safe ABS plastic, this heavy-duty baseplate features integrated side guide rails that slide directly into the alignment slots on the bottom of the pump's motor block. It comes equipped with four pre-installed, heavy-density silicone rubber feet that elevate the pump slightly off the sump bottom, creating an acoustic buffer that absorbs kinetic vibration.
Commercial Frame Fitment
Engineered to handle the weight and high torque of the Water Blaster 16000 series, this mounting plate provides maximum surface contact to eliminate pump movement under heavy static pressure load.
(Note: This retail SKU contains (1) complete ROP-WB16000-BS replacement baseplate with (4) pre-installed silicone dampening feet. Pump motor blocks, volutes, and impellers are sold under separate product categories).
What’s Included:
(1) Reef Octopus HY-16000W Slide-In ABS Baseplate
(4) Pre-Installed Heavy-Duty Silicone Vibration Feet
Technical Specs:
Official Manufacturing Title: Flagship Commercial Pump Mounting Baseplate Assembly
SKU / Factory Part Identifier: ROP-WB16000-BS
Primary Material Composition: Chemical-Resistant Injected ABS Plastic
Dampening Material: 100% Saltwater-Safe Silicone Elastomer
Attachment Mechanism: Dual Slide-and-Lock Alignment Rails
Color Finish: Dark Industrial Gray / Black
Primary Compatibility: Water Blaster HY-16000W Return Pumps
Replacement Instructions:
Disconnect the pump from power and carefully remove it from your sump assembly.
Locate the release tab on the old baseplate (if still attached) and slide the old base backwards along the bottom rails of the motor block to disengage it.
Thoroughly clean any calcium, salt creep, or coralline algae out of the mounting tracks on the bottom of the pump motor housing using a soft brush dipped in diluted citric acid or vinegar.
Align the guide rails of the new ROP-WB16000-BS with the tracks on the pump housing.
Push the baseplate forward until it firmly clicks into place.
Verify that all four silicone dampening feet are seated securely in their mounting sockets before placing the pump back into your sump.
Pro Tips:
Keep Silicone Feet Clean During Maintenance. Whenever you perform bi-annual pump maintenance, take a moment to pull the base off and soak the silicone feet in warm fresh water. Removing trapped sand grains, detritus, or calcium crust from underneath the feet restores their natural suction and dampening elasticity, keeping your filtration cabinet completely silent.
Never Operate Without Dampening Feet. Running a high-capacity 4,000 GPH pump on hard acrylic or glass without silicone feet will cause intense physical chatter and micro-vibrations. Over time, this mechanical shock can loosen threaded plumbing fittings, cause bulkhead micro-leaks, and significantly increase motor operating noise.
Verify Rail Alignment. Because the HY-16000W motor block is heavy, make sure both left and right guide rails are completely engaged in the tracks before locking the baseplate forward into its final seated position.
