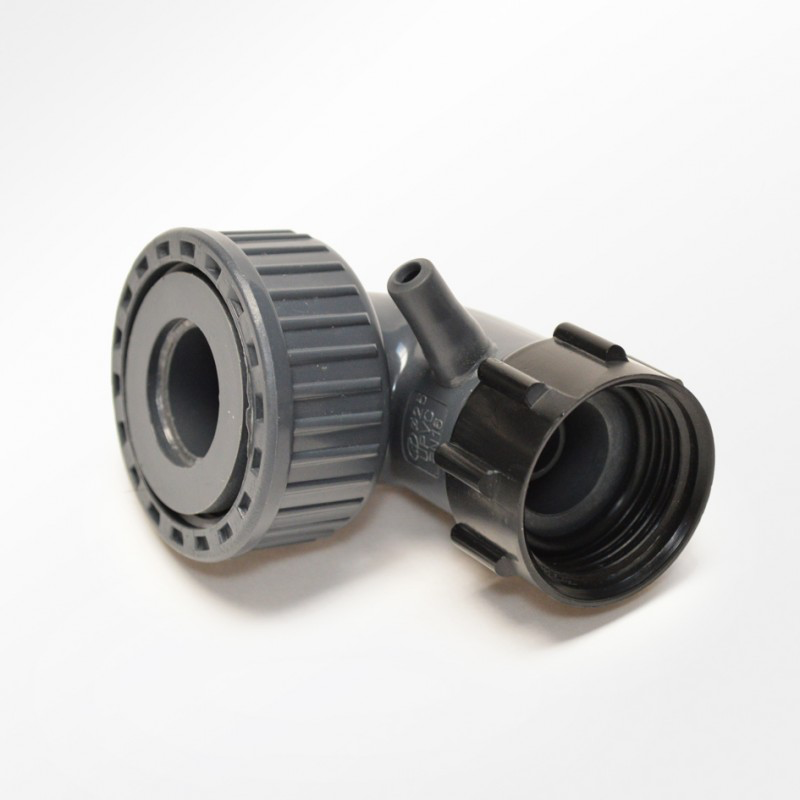

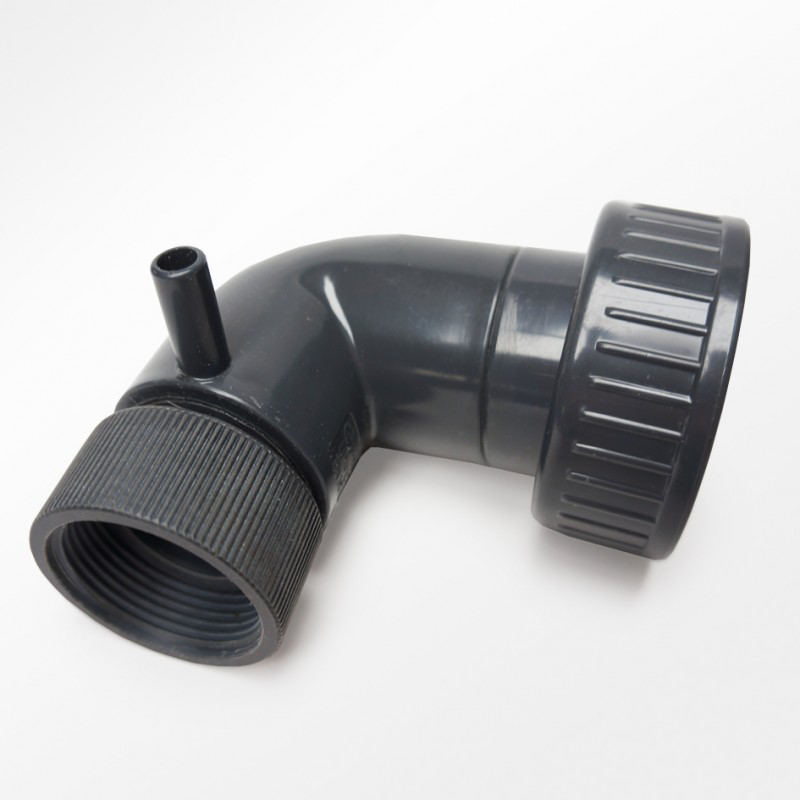

Octo AQ1000S Venturi Elbow (BH90/BH1000)
SKU: ROP-AQ901000-V
- Designed for HOB Skimmers: Specifically engineered for Reef Octopus Classic 90 HOB (BH-90) and Classic 1000 HOB (BH-1000) hang-on-back skimmer models.
Factory OEM Replacement: Genuine Reef Octopus intake elbow designed to factory specifications for a seamless slip-fit installation on Aquatrance AQ-1000S skimmer pumps.
Designed for HOB Skimmers: Specifically engineered for Reef Octopus Classic 90 HOB (BH-90) and Classic 1000 HOB (BH-1000) hang-on-back skimmer models.
High-Efficiency Venturi Design: Precision-molded internal restriction accelerates water flow, creating strong negative vacuum pressure through the air injection port.
Durable Injection-Molded ABS: Chemical-resistant, reef-safe thermoplastic body withstands continuous saltwater exposure, calcium deposits, and repeated servicing.
Integrated Airline Barb: Molded 5/16-inch barbed stem provides an airtight friction connection for standard skimmer airline tubing without glue or hose clamps. (air tubing not included)
Restores Peak Micro-Bubble Foam: Replaces cracked, warped, or calcium-blocked venturi elbows to restore proper air-to-water mixing and prevent skimmer overflowing.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus AQ1000S Venturi Elbow (BH-90 & BH-1000)
Hang-on-back protein skimmers rely entirely on a precise balance of water draw and passive air suction to maintain consistent fractionation without overflowing onto the surrounding floor or draining the pump chamber. The heart of this suction mechanism is the pump venturi. Over years of continuous operation, mineral scale, salt crystals, or physical impact during pump cleaning can crack the elbow housing or snap the delicate plastic air intake barb. The Octo AQ1000S Venturi Elbow BH90/BH1000 (SKU: ROP-AQ901000-V) is the official OEM replacement intake elbow engineered specifically for Aquatrance AQ-1000S Pumps on Reef Octopus HOB Skimmers.
Molded from heavy-duty, reef-safe black ABS plastic, the ROP-AQ901000-V attaches directly to the intake volute of the Aquatrance 1000S pump. Its internal geometry features a calibrated venturi throat that accelerates incoming raw aquarium water across the air nozzle opening. This velocity increase generates a localized vacuum that draws atmospheric air through the intake tubing, where it is instantly chopped into a cloud of micro-bubbles by the pinwheel impeller. Built with a 90-degree bend optimized for the compact hang-on bracket layouts of BH-90 cylindrical skimmers and BH-1000 dual-chamber skimmers, this factory replacement restores proper air draw and quiet, stable skimming performance.
Ideal Application & Upgrade Scenarios
If the air barb on your Aquatrance 1000S pump has snapped off, if mineral buildup has permanently etched the internal venturi throat, or if your BH-90 or BH-1000 skimmer is drawing only water and no air, the ROP-AQ901000-V provides an authentic drop-in replacement that eliminates vacuum leaks and restores factory foam production.
Note: Package includes (1) OEM AQ1000S Venturi Elbow. Pump, pinwheel impeller, skimmer airline, air silencer, and skimmer body sold separately.
What’s Included:
(1) Reef Octopus AQ1000S Skimmer Pump Venturi Elbow (ROP-AQ901000-V)
Technical Specs:
SKU / Factory Part Identifier: ROP-AQ901000-V
Component Type: 90-Degree Pump Intake Venturi Elbow
Air Line Barb Size: 5/16-Inch Outer Diameter
Material: Heavy-Duty Injection-Molded ABS Thermoplastic
Color: Grey
Operating Environment: Marine Reef, Saltwater Displays
Compatible Skimmer Pump: Reef Octopus Aquatrance 1000S (AQ-1000S)
Compatible Skimmer Models:
Reef Octopus Classic 90 HOB (BH-90)
Reef Octopus Classic 1000 HOB (BH-1000)
Reef Octopus BH-100 / BH-100SS (when retrofitted with Aquatrance 1000S pumps)
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
Installation & Maintenance Guidelines:
Disconnect power to the Aquatrance skimmer pump and remove the skimmer from the aquarium rim if necessary.
Disconnect the flexible 5/16-inch silicone air tubing from the venturi elbow's barbed air stem.
Gently twist and pull the old venturi elbow away from the pump volute cover.
Inspect the pump inlet and volute seal for sand, debris, or calcium deposits; wipe clean before installing the new component.
Align the new ROP-AQ901000-V elbow squarely onto the AQ-1000S pump intake port and press firmly until fully seated.
Slide the 5/16-inch air tubing securely over the integrated air barb until it seats flush against the barb base.
Reattach any intake strainer or siphon piping associated with the BH-90 or BH-1000 HOB configuration.
Prime the skimmer body with aquarium water according to the skimmer manual, then restore power to the pump to verify smooth water intake and dense micro-bubble generation.
Pro Tips:
- Soak in Diluted Citric Acid to Dissolve Venturi Salt Clogs. Because the venturi nozzle draws dry air directly across moist saltwater, evaporated salt crystals naturally form inside the tiny air barb over time. If your skimmer's air intake diminishes or the pump begins surging, remove the ROP-AQ901000-V and soak it in a warm bath of citric acid or white vinegar for 20 minutes. Use a pipe cleaner or soft plastic pick to clear the narrow internal nozzle bore completely before reinstalling.
- Inspect the Slip Joint for Air Leaks. When sliding the venturi elbow onto the pump volute, verify that it seats fully flush and straight. A loose or crooked connection at the pump intake can pull false air around the joint instead of drawing vacuum through the barbed venturi nozzle. This reduces air velocity through the silencer line, weakens micro-bubble shearing, and can cause the HOB skimmer to lose its prime during brief power interruptions.
