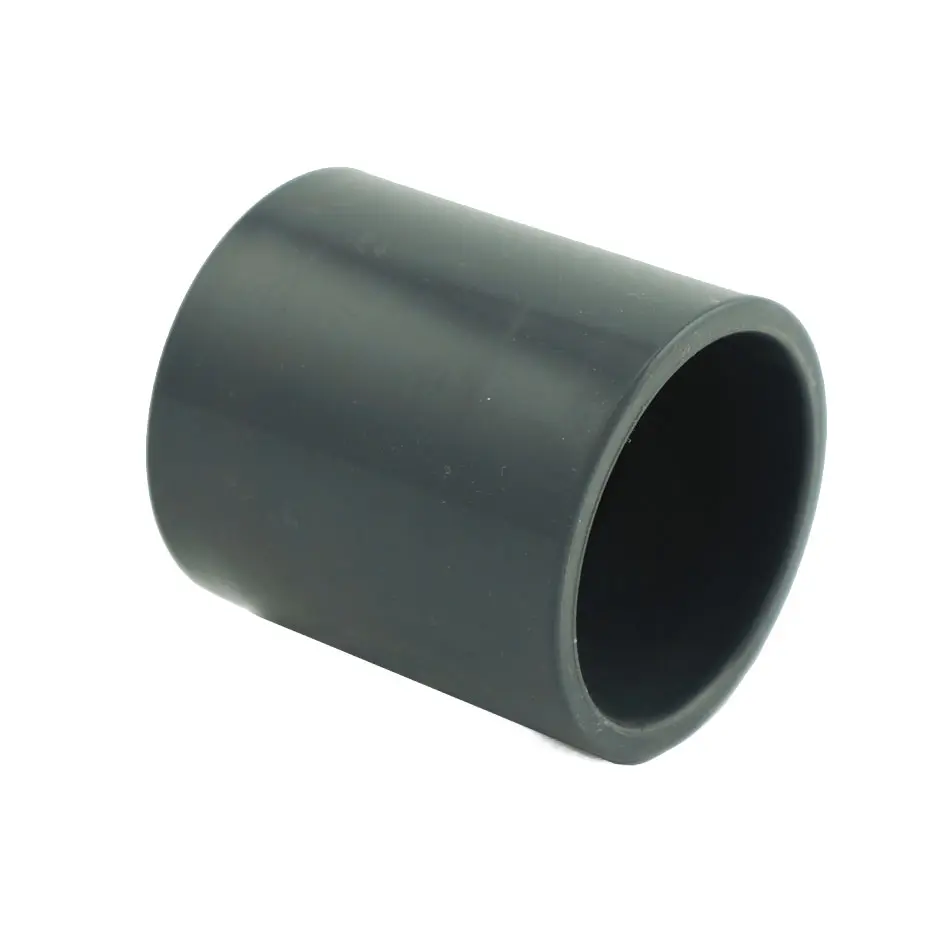

63mm Metric Standard Coupling
SKU: PVC-CPLG-63
- Commercial Grade Connection: Designed to join two lengths of 63mm metric pipe with a high-strength, leak-proof solvent weld.
- Metric Precision: Sized specifically for 63mm metric pipe (approx. 2.5" OD), the standard for commercial Reef Octopus discharge and recirculating lines.
- Internal Alignment Stop: Features a molded internal bridge to ensure both pipe ends are inserted to equal depths for maximum structural integrity.
- Industrial UPVC: Constructed from thick-walled grey UPVC, providing superior pressure and impact resistance compared to standard white fittings.
- Saltwater Proof: 100% non-corrosive and chemically inert; safe for permanent use in high-flow marine and aquaculture environments.
- Ideal For: Extending 63mm manifold headers; joining primary return lines; repairing large-scale filtration plumbing.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
63mm Metric Standard Coupling
The 63mm Metric Standard Coupling is a heavy-duty straight joiner engineered for the permanent connection of large-diameter plumbing in professional aquarium exhibits, public aquariums, and industrial aquaculture facilities. Precision-molded for 63mm Metric PVC pipe, this fitting is the primary component for extending main return headers and high-volume discharge assemblies on commercial-grade Reef Octopus filtration systems.
In large-scale life support engineering, joints must handle significant hydraulic pressure and the physical weight of water-filled 63mm lines. This coupling features deep sockets that provide a massive surface area for solvent welding, resulting in a bond that is effectively as strong as the pipe itself. Manufactured from industrial-grade grey UPVC, it provides a clean, professional aesthetic that matches factory-spec European filtration hardware. The internal center stop ensures perfect alignment during assembly, preventing internal gaps that could cause turbulence or restrict water flow in high-performance systems.
Key Features
True Metric Calibration: Fits 63mm OD metric pipe—essential for maintaining factory Reef Octopus and commercial-spec hardware.
Hydraulic Efficiency: The internal bore matches the pipe interior, ensuring zero flow restriction and maintaining optimal water velocity.
Marine Grade Durability: 100% non-metallic; will not rust, pit, or leach chemicals into sensitive aquatic exhibits.
High-Impact Build: Engineered to withstand the vibrations and hydraulic stresses typical of high-performance commercial pumps.
Commercial Bonding Surface: Deep socket design provides the necessary surface area for a secure, permanent chemical weld on large pipes.
Ideal For
Commercial Manifolds: Joining 63mm pipe sections to build robust distribution blocks for multi-tank systems.
Primary Life Support: Extending or repairing 63mm primary return and drain lines.
Filtration Upgrades: Splicing new sections into existing 63mm metric plumbing runs during system expansion.
Images shown are representative of the product family. Materials, sizes, and configurations may vary.
What’s Included:
(1) 63mm Metric Standard Coupling

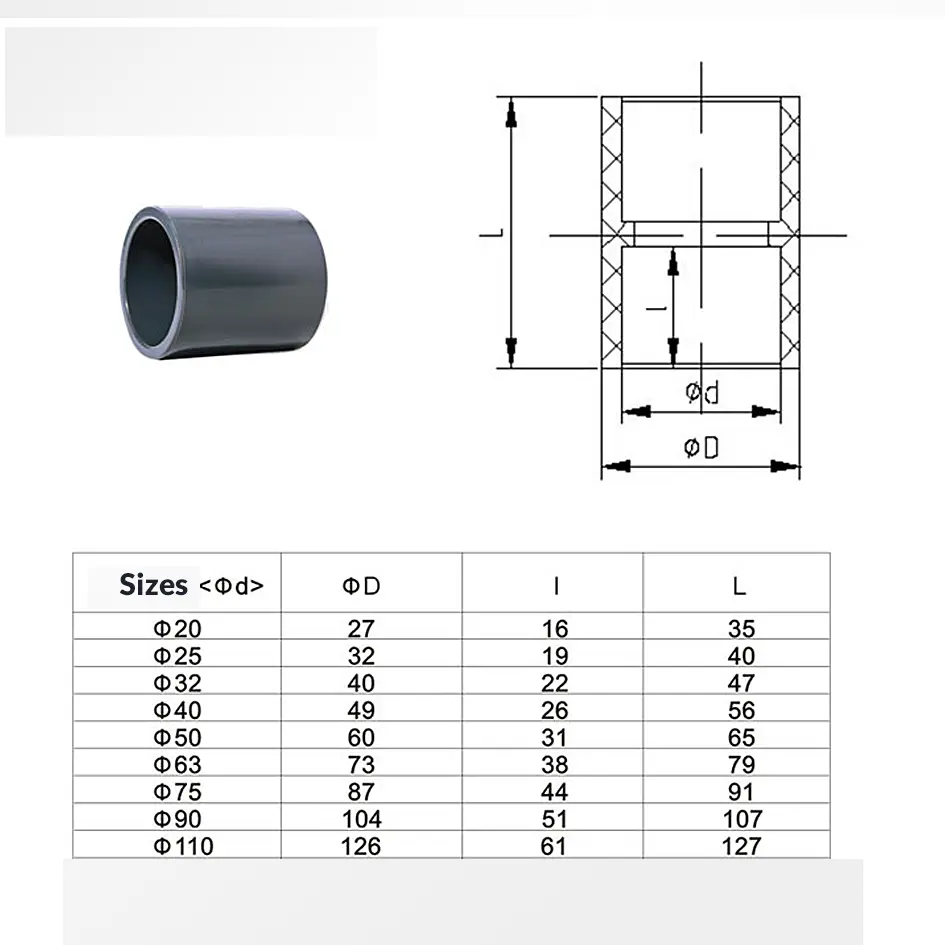

Specifications:
Size: 63mm
Connection Type: Slip x Slip (Socket)
Material: Industrial Grade Grey UPVC
Compatibility: 63mm Metric Pipe ONLY
- Ensure both 63mm metric pipe ends are cut perfectly square and thoroughly deburred.
- Clean the pipe ends and the internal sockets of the coupling with a dedicated PVC cleaner.
- Apply a layer of PVC primer to both the pipe ends and the inside of the coupling to soften the material.
- Apply a liberal coat of heavy-duty PVC solvent cement to both the pipe and the coupling sockets.
- Push the pipes into the coupling until they hit the center stop, giving a slight quarter-turn to ensure even glue distribution.
- Hold firmly for 60 seconds. Allow at least 6 hours to cure before introducing high-pressure water.
Pro Tips:
- Metric vs. Standard 2.5-Inch. A 63mm metric coupling will not fit standard US 2.5-inch pipe. 63mm is approximately 2.48 inches, while standard US 2.5-inch pipe has a 2.875-inch OD. Always verify your pipe diameter with a caliper before beginning a permanent solvent weld.
- Proper Priming. On 63mm and larger pipes, the surface area is vast. Proper priming is essential to ensure the solvent cement can create a true "chemical weld." Use clear primer to keep the joint looking clean and professional.
- The Union Alternative. If you are repairing a 63mm line that is rigid and cannot be pulled apart, a standard coupling is almost impossible to install. In these cases, use a 63mm Metric Union which allows you to drop the repair piece into place and tighten the collar.
