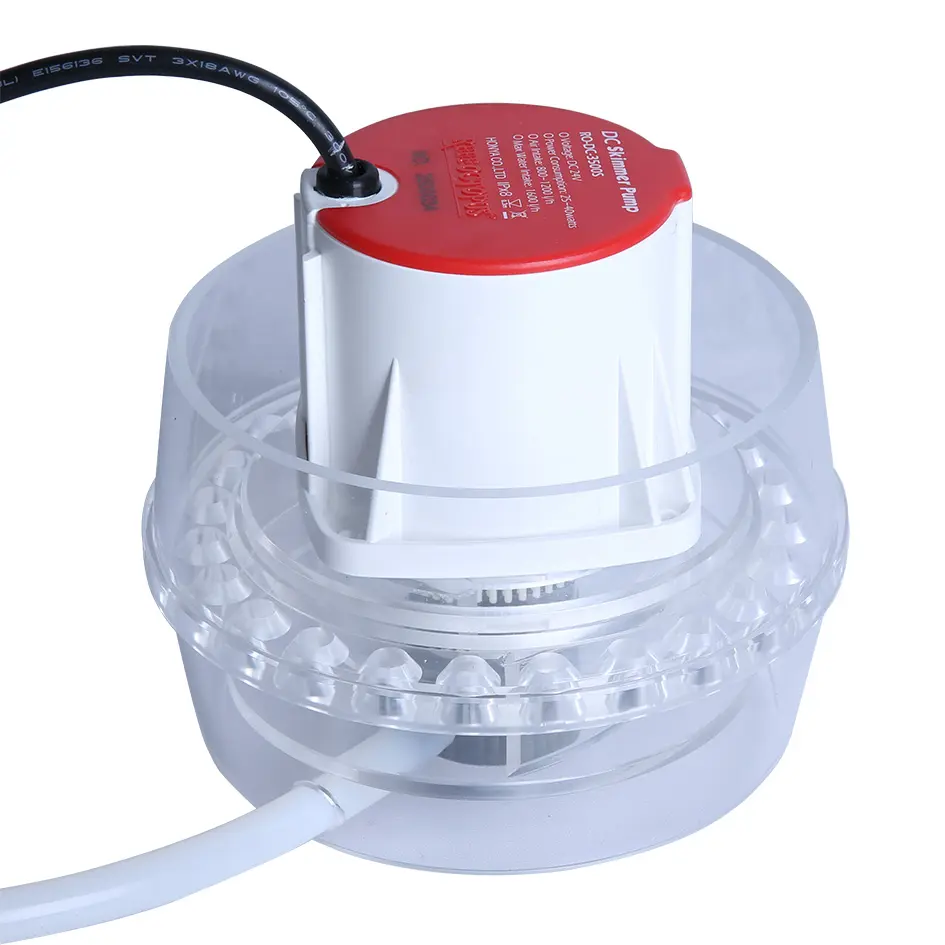

Octo Elite 200S Acrylic Volute Cover (VarioS 4S Pump)
SKU: ROP-VAR4-VOL-E200S
- Genuine OEM Direct Replacement: Authentic factory-spec transparent front wet-end impeller chamber housing designed explicitly for the Reef Octopus VarioS-4S skimmer pump housed inside Elite 200S/200SSS assemblies.
- Premium Cast Acrylic Composition: CNC-machined from optically clear, heavy-wall virgin cast acrylic to provide crystal-clear monitoring of the spinning pinwheel assembly.
- Open-Volute Performance Architecture: Engineered without standard restricting neck extensions to allow an immediate, low-resistance burst of fractionated microbubbles directly into the skimmer column.
- Integrated O-Ring Compression Ring: Features a factory-machined tracking channel built to seat the primary rubber housing gasket flush without pinching or compression slippage.
- Toolless Twist-and-Lock Fitment: Built with an interlocking bayonet-style flange rim that mounts securely to the primary mid-frame motor block without requiring metal hardware.
- Streamlines Blockage Troubleshooting: Optical transparency permits immediate, at-a-glance inspection for calcified buildup, trapped sand grains, or shell fragments.

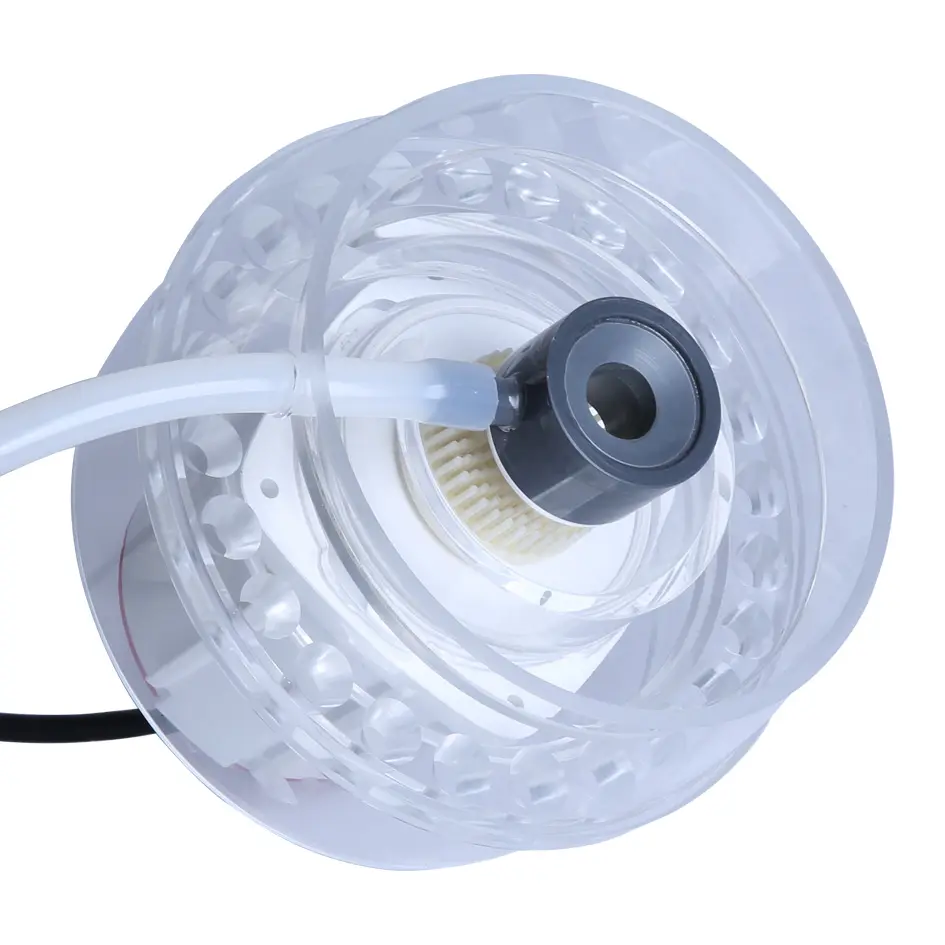

Reef Octopus VarioS 4S Clear Acrylic Volute Cover (ROP-VAR4-VOL-E200S)
The Reef Octopus Elite 200S Clear Acrylic Volute Cover (SKU: ROP-VAR4-VOL-E200S) is an authentic factory-spec replacement wet-end chamber faceplate distributed by CoralVue to preserve the intense microbubble production and low-resistance gas induction of your high-performance protein skimmer. While typical water-moving or lower-tier skimmer pumps use opaque white PVC front housings, the flagship Elite 200S space-saver skimmer engine features an "open volute" layout. This specialized architecture drops standard intake bottlenecks, positioning the spinning needlewheel assembly right up against the column environment to drastically optimize your air-shredding ratios.
Operating a high-power controllable DC skimmer pump like the VarioS-4S generates significant vacuum pressures inside the impeller bay. Over years of service, aggressive descaling cleanings, salt creep binding, or structural stress during teardowns can cause the fine bayonet interlocking tabs to snap, or the clear acrylic walls to develop micro-fractures. Running a space-saver skimmer pump with a compromised or hairline-cracked volute faceplate is highly problematic; it will steadily draw in bypass water, introduce turbulent microbubble bursts that cause cup overflows, or create a loud mechanical vibration against the skimmer's bottom acrylic base. Swapping out a damaged faceplate with this genuine original factory component completely re-establishes a perfect airtight, pressure-balanced seal.
Key Features
True Elite Series Matching Metrics: Precision molded to match the physical shoulder tolerances of mid-frame VarioS-4S skimmer engines operating within modern Elite 200-series setups.
Saltwater-Inert Resilience: Fabricated entirely from premium cast acrylic and high-density polymers that will never degrade, yellow, or cloud under continuous pure ozone exposure.
Optimized Bubble Injection Tracking: Internal smooth contour walls guide the spinning air/water mass smoothly upward, reducing premature bubble fusion before the mixture enters the skimmer neck.
Verified Hardware Compatibility
Reef Octopus Elite Space Saver Infrastructure: Form-cut natively as the factory-correct clear volute face for the Reef Octopus Elite 200S Protein Skimmer and the Reef Octopus Elite 200SSS Space Saver Skimmer.
Associated Stator Core Platforms: Designed to mount exclusively to the mid-frame VarioS-4S Controllable Skimmer Pump and the legacy POV-DC2 Skimmer Pump.
(Note: This clear skimmer volute is dedicated solely to the 4S model frame. It cannot be used with standard white PVC VarioS-4 circulation pumps, smaller Elite 150S lines, or extra-large Elite 220S/VarioS-6S skimmer engines).
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
What’s Included:
(1) Reef Octopus Replacement VarioS-4S Clear Acrylic Open-Volute Cover Faceplate
(Note: Primary rubber sealing O-rings, replacement air venturi nozzles, magnetic pinwheel impellers, and motor block stators are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus VarioS-4S Clear Volute Cover (Elite 200S / POV-DC2)
SKU / Factory Part Identifier: ROP-VAR4-VOL-E200S
Chamber Profile Footprint: Open-Volute Ultra-Compact Space Saver Profile
Material Matrix Composition: CNC-Machined High-Optical Cast Acrylic & Saltwater-Inert Polymers
Primary Function: Impeller Containment, Vacuum Compression Seal, & Visual Performance Tracking
Official Manufacturer Warranty Support: 90-Day Factory Limited Parts Coverage
- Turn off your VarioS controller and unplug the main power transformer brick from the wall socket to stop all live electricity before servicing the wet end.
- Disconnect your flexible silicone venturi air lines and slide the VarioS-4S pump straight backward off the molded mounting rails inside your Elite 200S skimmer base.
- Remove the grey intake air venturi nozzle from the front of the volute, then rotate the old clear acrylic cover counter-clockwise across the bayonet tracking to slide it off the motor face.
- Extract the primary rubber housing O-ring gasket, clean it of any sand grit or calcified mineral scale, and place it carefully back into the tracking channel of the new ROP-VAR4-VOL-E200S cover.
- Align the new clear volute cover straight over the magnetic pinwheel rotor, press it firmly flush against the motor block shoulder, and twist it clockwise until it clicks locked into place.
- Push your grey intake venturi back onto the front collar, slide the assembled pump back onto the skimmer base rails, reconnect your air lines, and restore system power.
Pro Tips:
- Never Twist the Acrylic Volute If Hard Mineral Scaling Is Present. If your skimmer pump has been operating inside your sump for several months without a maintenance teardown, calcium carbonate scale will naturally bake onto the interlocking bayonet tabs. If you attempt to twist the clear acrylic volute off the motor block while this hard crust is present, the calcified scale will bind the tracks and easily snap the acrylic locking ears right off the housing. Always soak the entire front end of the pump in warm water and citric acid powder for 30 minutes to dissolve the scale before attempting to twist the cover open.
- Lubricate the Tracking Gasket for an Absolute Airtight Vacuum Seal. When seating your rubber sealing gasket into the new acrylic face tracking, never allow the rubber ring to compress dry against the clean plastic walls. Dry tightening can cause the rubber ring to pinch, bunch up, or roll slightly out of its channel when you twist the volute locked. This minor distortion allows atmospheric air to bleed into the wet well from around the rim, causing massive performance drops. Rub a microscopic smear of 100% pure silicone plumbing grease onto the ring to help it glide into position safely.
- Keep Alcohol and Harsh Chemical Cleaners Far Away from Cast Acrylic. When performing seasonal deep cleans of your Elite 200S skimmer equipment, never use rubbing alcohol, Windex, acetone, or alternative commercial chemical solvents to wipe down this clear volute cover. Exposing stressed cast acrylic to alcohol or solvents triggers an immediate chemical reaction known as "crazing." This structural failure fills the clear plastic with thousands of microscopic internal hairline fractures, permanently clouding the face and destroying its structural integrity under pressure. Use only warm water and citric acid powder.
