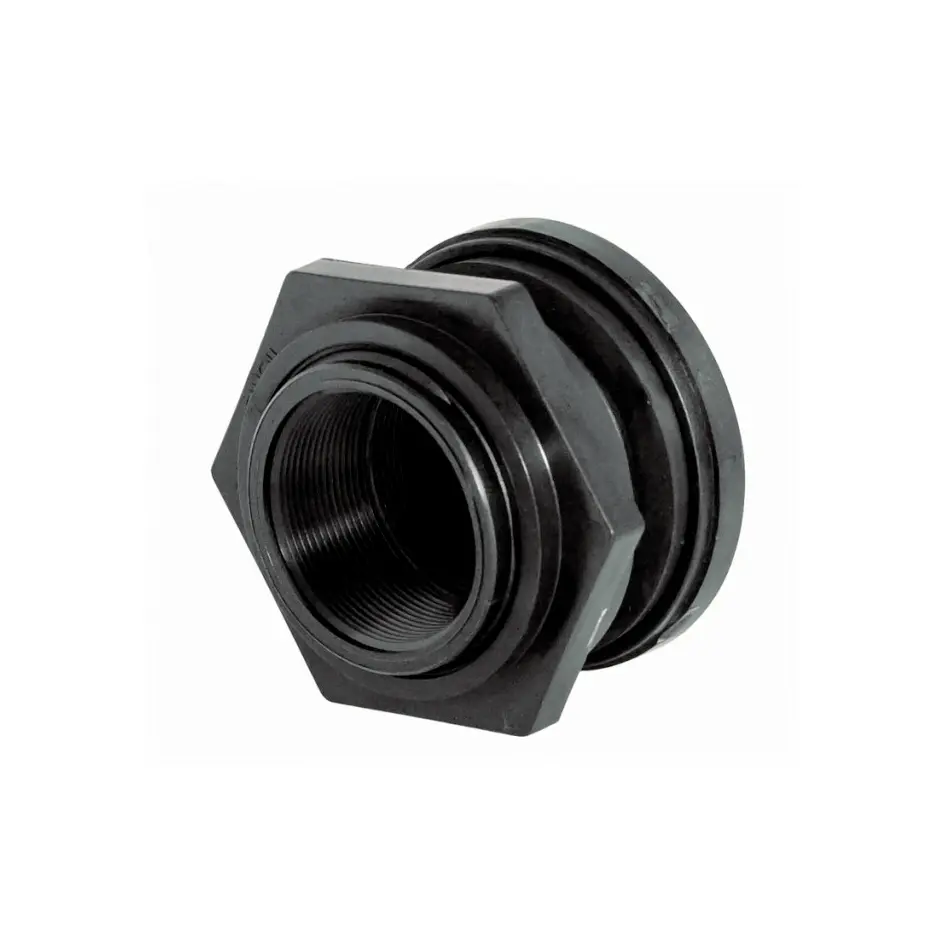

1in Thread x Thread PVC Bulkhead Heavy Duty PP Bulkhead
SKU: RF-9310-TT
- Industrial Polypropylene Construction: Injection-molded from thick-wall black polypropylene (PP) to deliver maximum structural rigidity, advanced impact defense, and absolute corrosion resistance.
- Double Female Threaded Framework: Configured with 1" Female Iron Pipe Threads (FPT) internally on both ends, allowing fully modular connection of internal screens and external pipelines without liquid cement.
- Advanced Chemical & Salt Shield: Highly resilient against aggressive saltwater tracking, commercial water treatments, acids, and ozone dosing environments.
- Robust Left-Hand Locknut Tracks: Designed with reverse safety threads on the outer body to ensure the locking nut remains anchored tight when screwing internal pipes clockwise.
- Commercial Grade Compression Ring: Supplied with a premium, extra-thick EPDM compression sealing ring that compresses perfectly against uneven or curved tank surfaces to block micro-leaks.
CoralVue 1 Inch Thread x Thread Heavy Duty Polypropylene Tank Bulkhead Fitting
The CoralVue 1 Inch Thread x Thread Heavy Duty Polypropylene Tank Bulkhead Fitting (SKU: RF-9310-TT) is a premium commercial-grade fluid management transition adapter engineered to build high-security, structural paths across glass or acrylic overflow basins, plastic sumps, mixing reservoirs, and large scale commercial aquaculture stations. In multi-tank arrays or commercial setups, structural junctions are constantly exposed to external pipe weight stress, localized vibrations, and changing temperature profiles. Standard thin-wall hobbyist fittings often crack or warp under these structural stresses. The RF-9310-TT isolates and neutralizes these connection risks, utilizing a rugged, thick-walled industrial polypropylene profile and a heavy-duty compression ring to deliver absolute seal integrity over long production life cycles.
Designed for extreme versatility, this heavy-duty bulkhead features a fully mechanical double threaded internal profile. Both the wide front flange face and the extended rear tail section are equipped with precision-molded internal 1" Female National Pipe Threads (FPT / FNPT). This configuration allows you to attach threaded intake strainers or directional lock-line nozzles inside the tank while screwing male-threaded plumbing adapters, true union ball valves, or structural lines directly into the dry exterior. Because the entire assembly relies completely on mechanical threads, you avoid the use of toxic liquid PVC primers and solvent cements entirely. This means the entire hard-plumbed line can be disassembled, washed, or repositioned down the line without taking a saw to your pipes.
Key Features
Industrial-Tier Polypropylene Body: Crafted from premium black polypropylene, offering advanced physical toughness, thermal tolerance, and resistance to environmental stress cracking.
Reverse Clamping Security: Precision left-handed reverse threads on the exterior nut ensure that screwing an internal pipe coupling clockwise works to tighten the bulkhead's wall compression rather than backing the nut off the tank wall.
Ideal for Heavy-Use Water Farms: Excellent chemical neutrality makes this fitting the go-to standard for commercial hatcheries, public aquariums, rainwater harvesting tanks, and hydroponic nutrient bins.
(Note: This retail SKU contains (1) standalone CoralVue 1" Thread x Thread Heavy Duty PP Bulkhead assembly, which includes (1) thick-wall double-threaded body, (1) reverse-threaded hex locknut, and (1) pre-fitted commercial EPDM rubber seal ring. Male threaded plumbing adapters, thread seal tapes, and tank tools are sold separately).
What’s Included:
(1) CoralVue RF-9310-TT 1" Double-Threaded Heavy Duty PP Bulkhead Body
(1) Heavy-Wall Reverse-Threaded Clamping Nut
(1) Commercial-Grade EPDM Rubber Compression Gasket
Technical Specs:
Official Manufacturing Title: 1" Heavy Duty Polypropylene Bulkhead (Thread x Thread)
SKU / Factory Part Identifier: RF-9310-TT
Front Flange Internal Port Profile: 1" Female National Pipe Thread (FPT NPT-Spec)
Rear Tailpiece Internal Port Profile: 1" Female National Pipe Thread (FPT NPT-Spec)
Material Composition Matrix: Industrial-Grade High-Density Polypropylene (PP Body & Nut)
External Casing Thread Type: Left-Handed Reverse Tightening Safety Threads
Required Structural Installation Hole: Requires a nominal 2" (50.8mm) to 2-1/18" (54mm) hole size for clear pass-through.
Maximum Wall Thickness Capacity: Clamps tightly on structural walls up to 0.85" thick.
Primary Casing Color Finish: Solid Commercial Black.
While most of our equipment carries a one-year manufacturer's warranty, consumable products like fish and coral foods are not covered under traditional warranty terms due to their perishable nature and varied storage conditions. However, we fully stand behind the quality of every product we sell. If you experience any issues with your food purchase shortly after receiving it, such as concerns about freshness, packaging integrity, or product quality, please contact us at [email protected]. We're committed to making it right and will work with you to resolve any problems quickly and fairly.
- Verify the structural hole opening. For these heavy-walled polypropylene bulkhead casings, verify the drilled space measures a clean 2" to 2-1/8" in diameter and is completely smooth.
- Wipe down the tank area surrounding the pass-through hole inside and out. Ensure the sealing footprint is totally clear of salt creep, calcified film, acrylic chips, or grit.
- Slide the thick rubber EPDM compression gasket over the threaded body shaft, ensuring it sits flat and un-twisted against the wide front flange face shoulder.
- Pass the threaded shaft through the hole from the inside of the tank layout. The broad flange face and rubber gasket MUST sit on the wet water side of the wall. The hard nut always spins onto the dry exterior wall.
- Thread the hard polypropylene hex locknut onto the external body shaft. Spin it counter-clockwise (due to the reverse-threaded security tracks) until it rests flat against the dry exterior structure.
- Hand-tighten the nut as firmly as possible, then use an adjustable bulkhead wrench to apply an additional 1/4 to 1/2 turn. Do not over-torque past this point to prevent damaging the tank wall material.
Pro Tips:
- Gasket Placement Rule: The Sealing Ring Always Seats on the Flange Side.
CRITICAL COMMERCIAL PLUMBING WARNING: Regardless of whether you mount this fitting vertically through a reservoir floor or horizontally through a vertical filtration wall, the thick rubber gasket must always rest between the wide molded bulkhead flange and the tank wall. Never place the compression gasket on the exterior side with the spinning locknut. Turning the hard plastic nut directly against a dry rubber ring will warp, pinch, or tear the seal, leading to an immediate and permanent leak.
- Wrap Male Thread Inserts with 2-3 Wraps of Thread Tape—No Solvent Cement! When threading your hard pipelines into the internal 1" FPT sockets, always select high-quality male threaded (MPT) fittings. Wrap the male components cleanly with 2 to 3 layers of premium Teflon thread tape before assembly. Because this unit is molded from high-density polypropylene, never use liquid PVC primers or solvent glues on these connections. Solvent glue will not bond to polypropylene; instead, it will melt the thread valleys, ruining the fitting and causing structural seal failure.
- Hand-Tighten Plus 1/2 Turn Max—Avoid Heavy Liquid Teflon Dopes. Because these deep-molded internal thread channels are engineered with high precision, you do not need massive mechanical wrenches to force a water-tight seal. Avoid packing the threads with thick layers of industrial paste pipe dopes. Over-wrapping or using high-leverage metal pipe tools can create a powerful mechanical wedge action inside the bulkhead, which can split the heavy-duty polypropylene wall right down its factory molding seams.
