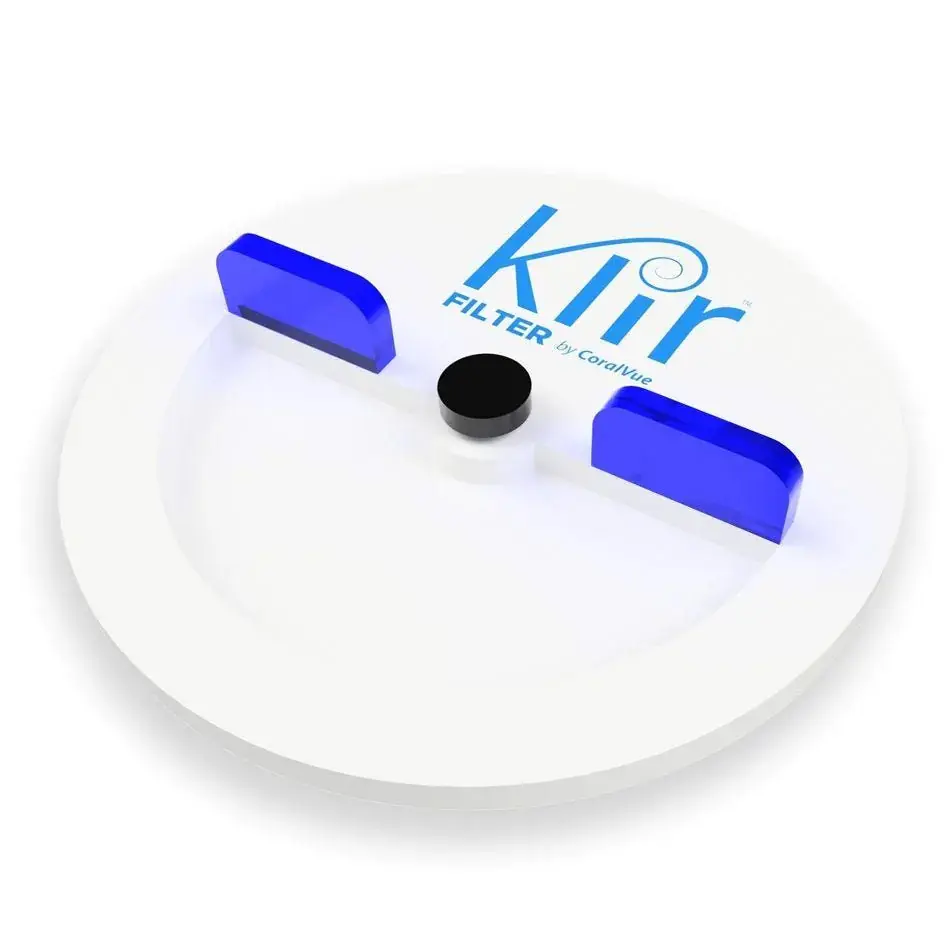

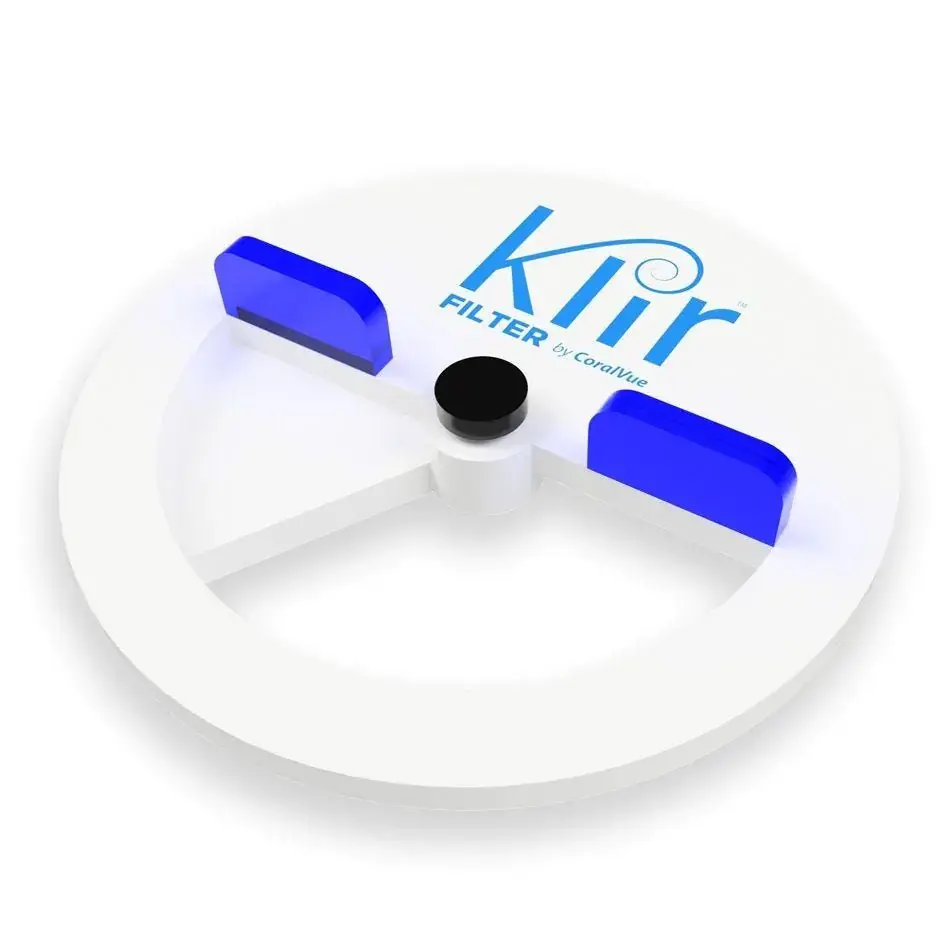

Klir 7" Flow-Diverting Cap
SKU: CV-KLIR-CAP-7
- 100% Genuine OEM Factory Part: Distributed directly by CoralVue as an exact structural mold replacement for perfect alignment inside the Di-7 chassis base.
- Eliminates Unfiltered Water Bypass: Blocks downward pressurized water flow, redirecting it completely through the porous fleece media walls for maximum water polishing.
- Maximizes Media Saturation Life: Ensures that the entire submerged surface area of your fleece roll is evenly saturated with waste, preventing premature sensor triggers and saving money on replacement rolls.
- Tool-Free Snap-Fit Installation: Features precision-molded retention clips that snap firmly onto the bottom tracks of the filter frame by hand.
- High-Impact Thermopolymer Resin: Injection-molded from a dense, saltwater-inert polymer compound that entirely resists stress-cracking, sump vibrations, and mineral breakdown.
Klir
Klir by CoralVue provides automatic fleece filters that replace filter socks. They automatically advance 50-micron fleece when dirty, maintaining clear water with less maintenance.
Klir Automatic Fleece Filter 7-Inch Flow-Diverting Cap

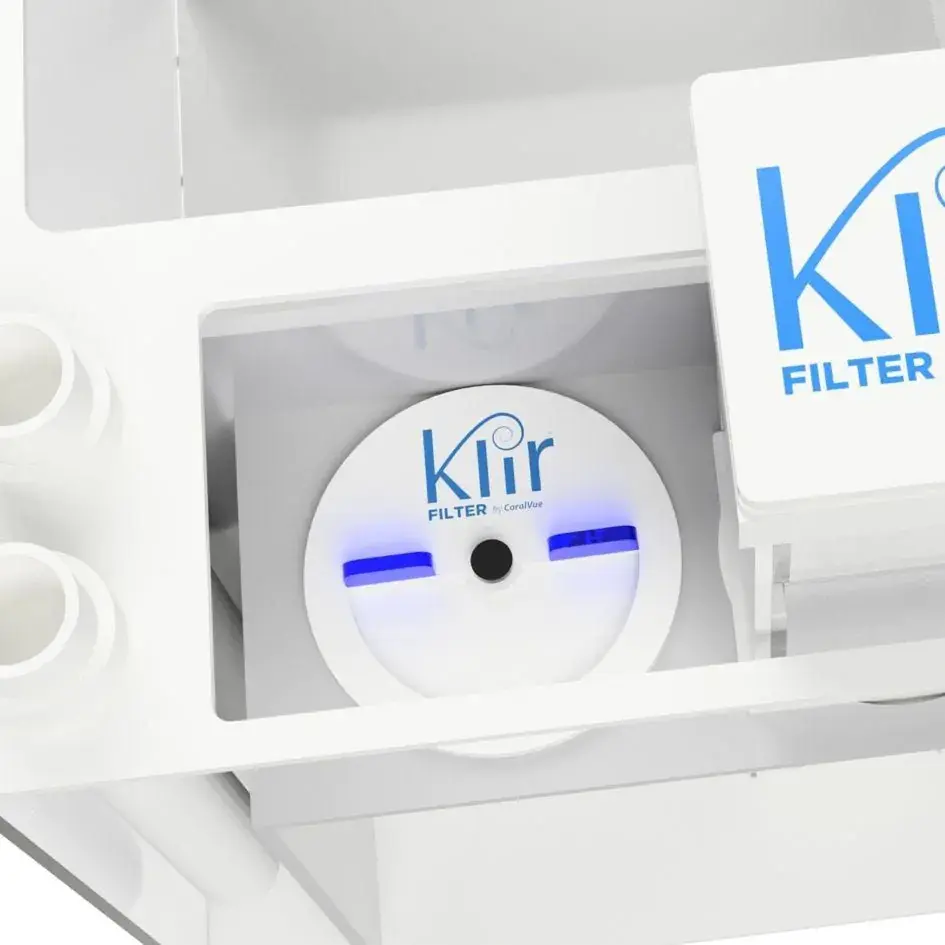

The Klir Automatic Fleece Filter 7-Inch Flow-Diverting Cap (SKU: CV-KLIR-DI7-CAP) is an authentic structural OEM replacement component distributed by CoralVue to maintain peak mechanical filtration efficiency inside your sump basin. Drop-in automatic roller filters serve as a massive upgrade over traditional cloth socks, continuously winding a non-woven fleece roll to pull out organic waste before it decays into nitrates and phosphates. Because raw aquarium water enters the core of the drop-in unit from high-velocity drain lines, water naturally seeks the path of least resistance. Without a secure lower boundary, water would blast straight out of the bottom of the filter assembly without properly passing through the fabric mesh. This flow-diverting cap is strategically designed to plug the bottom aperture, pushing the water laterally through the submerged fleece matrix to guarantee pristine water clarity.
Molded to exact commercial manufacturing tolerances, the CV-KLIR-DI7-CAP snaps cleanly onto the lower rim of the Klir Di-7 Drop-In Filter base. It is a critical functional element of the system's fluid dynamics; running the unit with a cracked, missing, or loosely seated cap allows raw, unfiltered detritus to spill out into your clean return pump chamber. Over time, heavy handling during semi-annual deep cleanings or accidental drops during maintenance can damage the mounting clips on the original part. Swapping a damaged piece for this fresh factory-original cap instantly restores absolute filtration security and ensures you are getting the absolute most out of every 50-yard roll of fleece.
Key Features
Halts Direct Sump Bypassing: Guarantees 100% of the raw drain water entering the roller core is processed through the mechanical fleece barrier.
Stabilizes Lower Frame Rigidity: Acts as a structural brace along the bottom track of the side plates, keeping the entire acrylic and polymer frame perfectly square under water pressure.
Smooth Snag-Free Profile: Engineered with smooth internal deflection curves that won't tear or snag the sensitive 50-micron fleece as the motor advances the roll downward.
(Note: This retail SKU contains (1) standalone replacement 7-inch flow-diverting cap. Complete Klir Di-7 automatic roller filter frames, 12V DC motor blocks, clean media spindles, and smart level sensors are sold under separate product categories).
What’s Included:
(1) Klir Replacement Automatic Fleece Filter 7-Inch Flow-Diverting Cap
Technical Specs:
Official Manufacturing Title: Klir Di-7 Flow-Diverting Cap
SKU / Factory Part Identifier: CV-KLIR-DI7-CAP
Component Type: Internal Flow Deflector Plate
Material Matrix Composition: Saltwater-Safe, Non-Leaching High-Impact Injection Polymer
Primary Shell Color Finish: Matte Black
Chassis Platform Compatibility: Form-Fitted strictly for the Klir Di-7 V1 and Di-7 V2 Automatic Rollers
WARRANTY
CoralVue, Inc. hereby guarantee this product to be free from defects in material and workmanship for a period of:
- 90days
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
Click here to learn more.
- Unplug your automatic fleece roller filter's electronic smart controller from the wall socket to prevent any accidental motor cycles during maintenance.
- Carefully lift the entire Klir Di-7 unit straight up out of your sump's filter sock tray and lay it flat on a clean, dry towel.
- If the old cap is still attached, locate the retention clips at the base of the frame. Gently pry the tabs outward with your thumbs to unlock the cap, and pull it straight down and off the chassis.
- Clean the lower mounting rim of the filter frame with a warm, damp cloth to wipe away any hard, crusty salt creep or calcified mineral buildup.
- Take your fresh CV-KLIR-DI7-CAP flow-diverting cap and align its mounting tabs with the matching receiving slots on the bottom of the filter frame.
- Press the cap firmly upwards until you hear and feel the clips snap securely into place. Ensure the cap sits completely flush against the frame, then lower the filter back into your sump tray.
Pro Tips:
- Never Operate the Klir Filter Without the Flow-Diverting Cap Installed. If you lose or break your diverter cap, do not attempt to run the filter without it. Running a "capless" roller creates a massive path of least resistance directly downward. Water will immediately flow out the open bottom rather than passing through the fleece walls, allowing 100% of your tank's physical waste to bypass your mechanical filtration entirely. This leads to rapid detritus accumulation in your return chamber and negates the purpose of the roller filter.
- Ensure Both Retaining Clips are Fully Snapped to Avoid Media Jams. When installing this fresh cap onto the bottom of your Di-7 chassis, always press firmly on both sides to verify that both retaining clips have locked into the side plate slots. If the cap is only partially engaged on one side, it will hang at a slanted angle. The exposed edge of a slanted cap can catch and tear the delicate 50-micron fleece fabric as the motor attempts to wind it, causing an immediate media jam and triggering controller error alarms.
- Do Not Confuse This With the Sump Hole Blocker Cap (CV-KLIR-CAP-7). Make sure your inventory and catalog details clearly differentiate this part from CV-KLIR-CAP-7. The product on this page is the internal chassis bottom cap (CV-KLIR-DI7-CAP) that snaps directly onto the physical roller filter body to direct the water pathing. The CV-KLIR-CAP-7 is a completely flat, disc-like blocker plug designed to sit separately inside your sump tray to close off empty, neighboring filter sock holes.
