Octo Elite 200INT Super Cone Protein Skimmer
SKU: ELITE-200INT
MSRP: $ 958,64
-
Available Through Authorized Retailer
- Super Cone Design: Features a professional-grade 8-inch "Super Cone" body that naturally stabilizes foam and reduces turbulence for maximum nutrient export.
- VarioS DC Control: Powered by the VarioS-4S pinwheel pump, offering 5 variable speed settings and a "soft start" to prevent overflow upon startup.

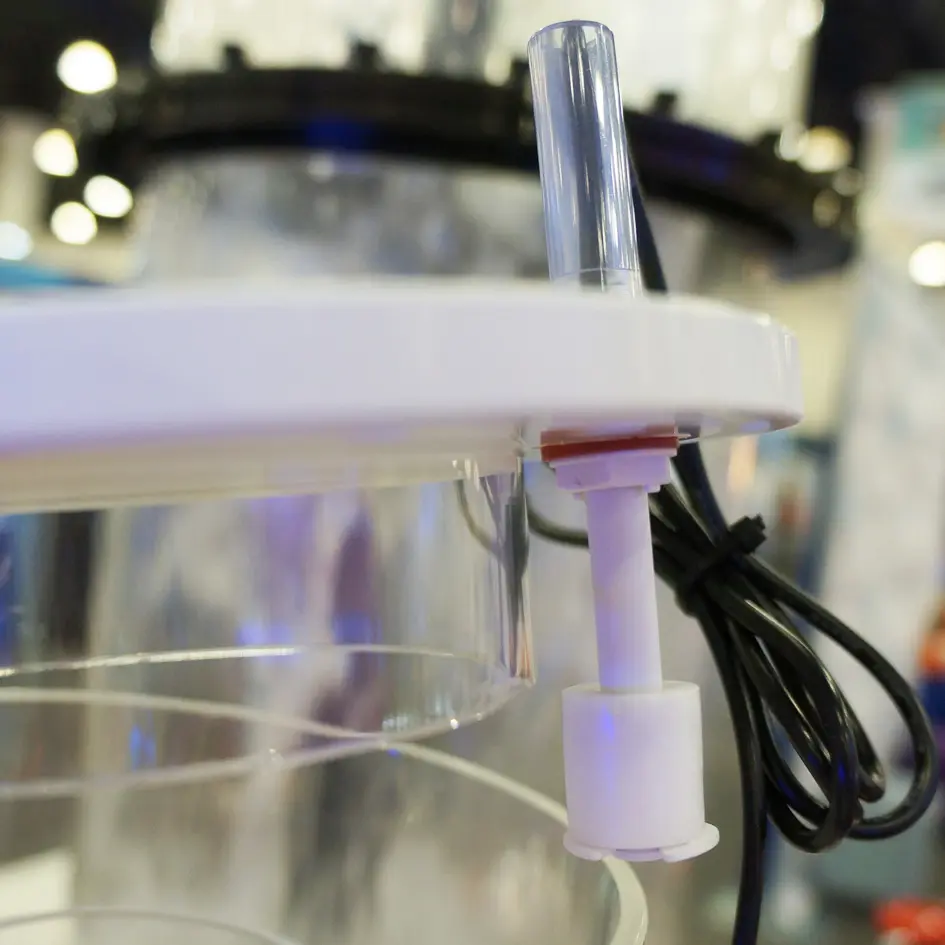

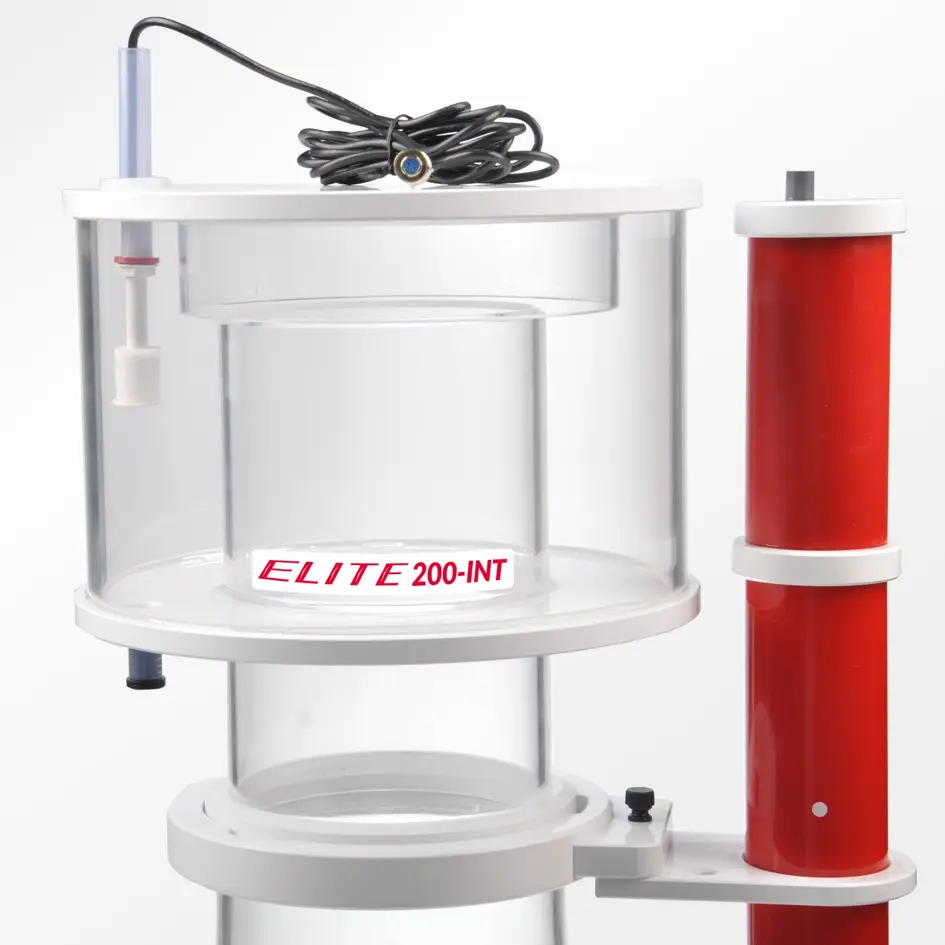

- Intelligent Safety: Includes a waste collector float switch that integrates with the controller to shut off the pump instantly if the collection cup is full.

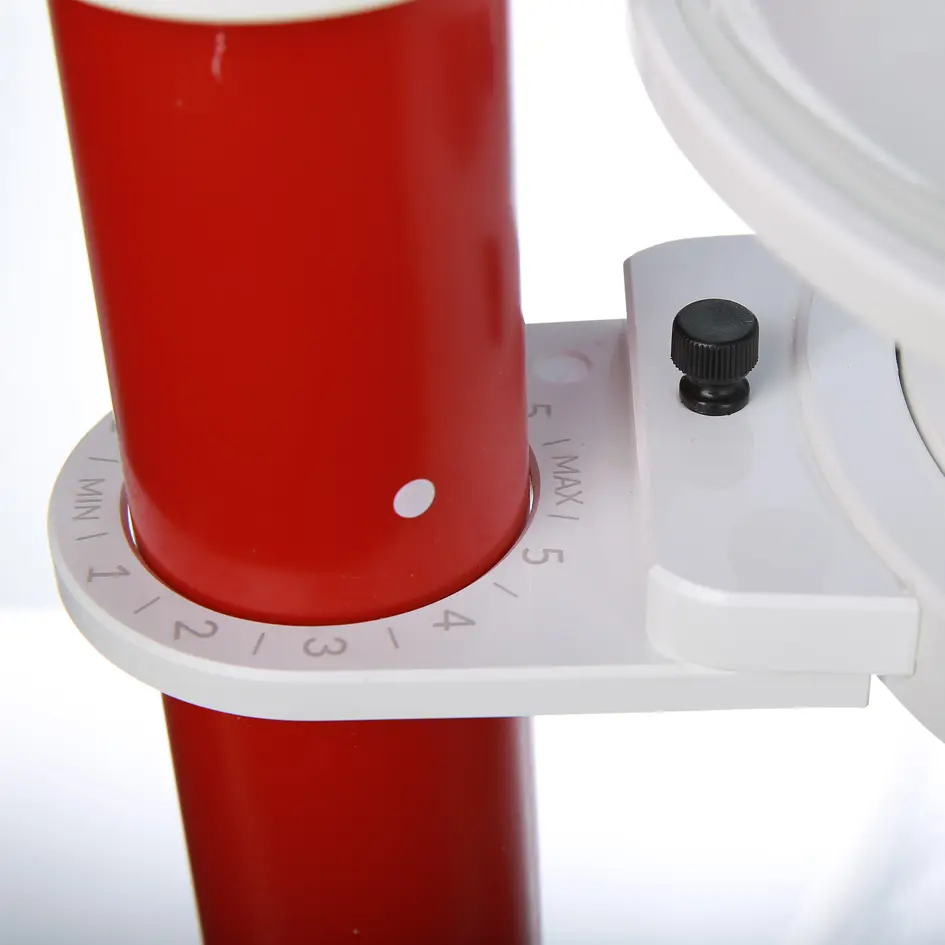

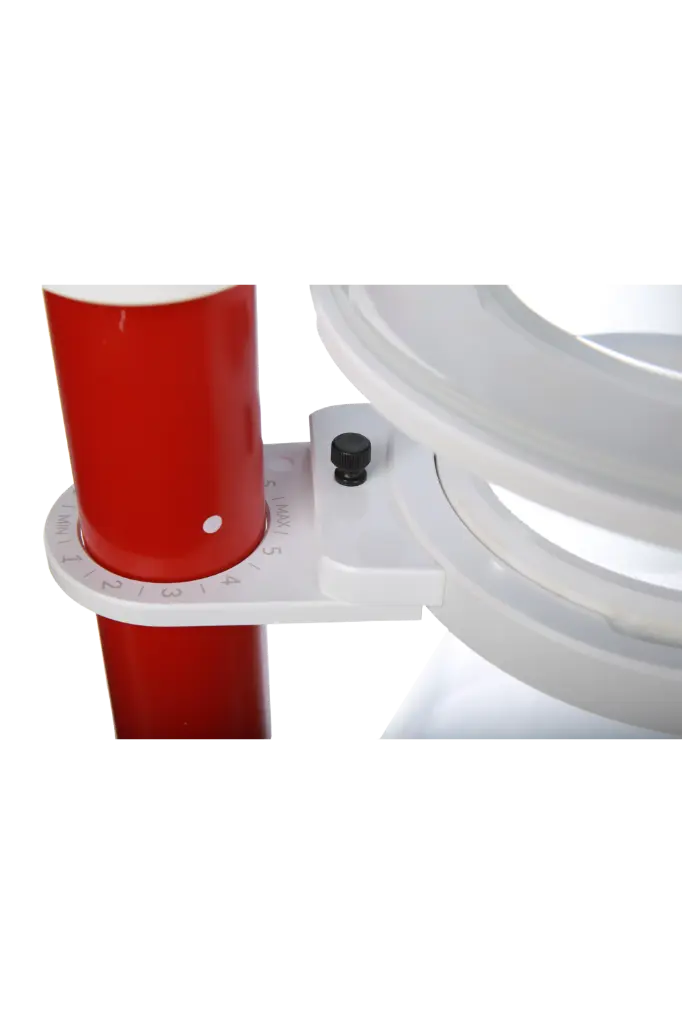

- Refined Output Valve: Equipped with a precision-geared output valve for ultra-fine water level adjustments, allowing you to dial in dry or wet skimmate.
- Silent Performance: Features a high-performance air silencer and vibration-dampening feet for near-silent operation in your aquarium cabinet.

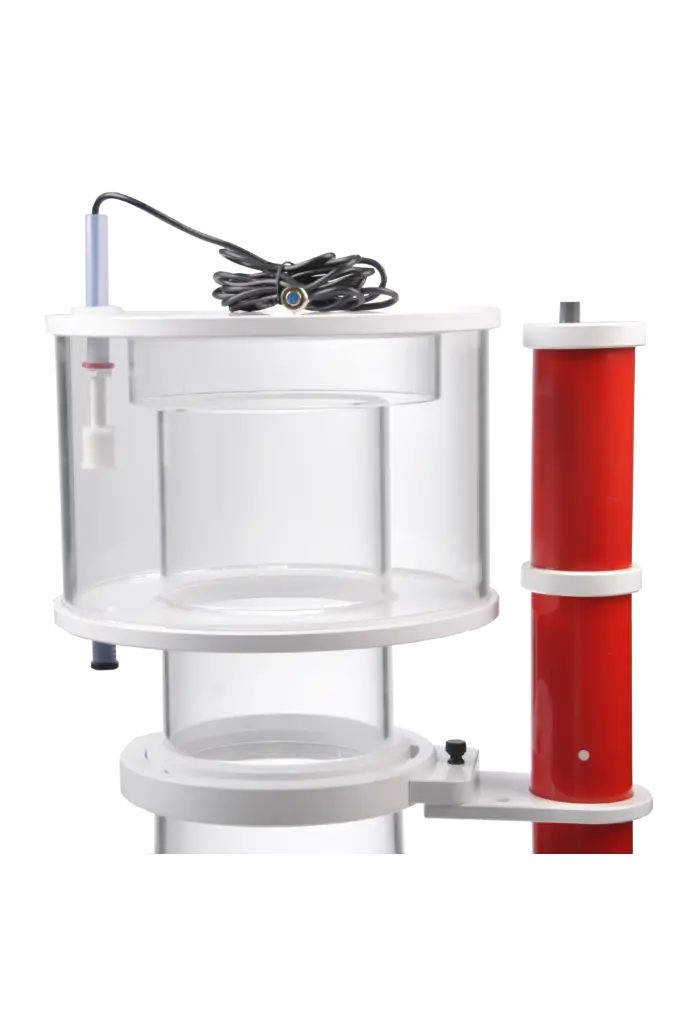

- Premium Construction: Hand-crafted with high-quality cast acrylic and featuring a "Twist & Lift" collection cup for effortless maintenance.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.

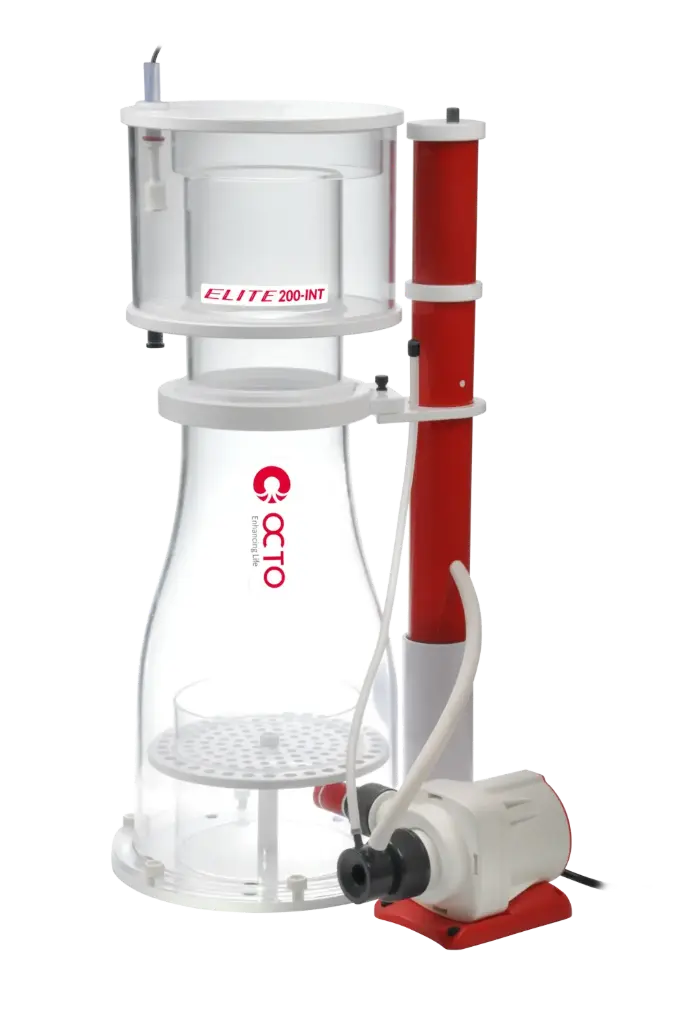

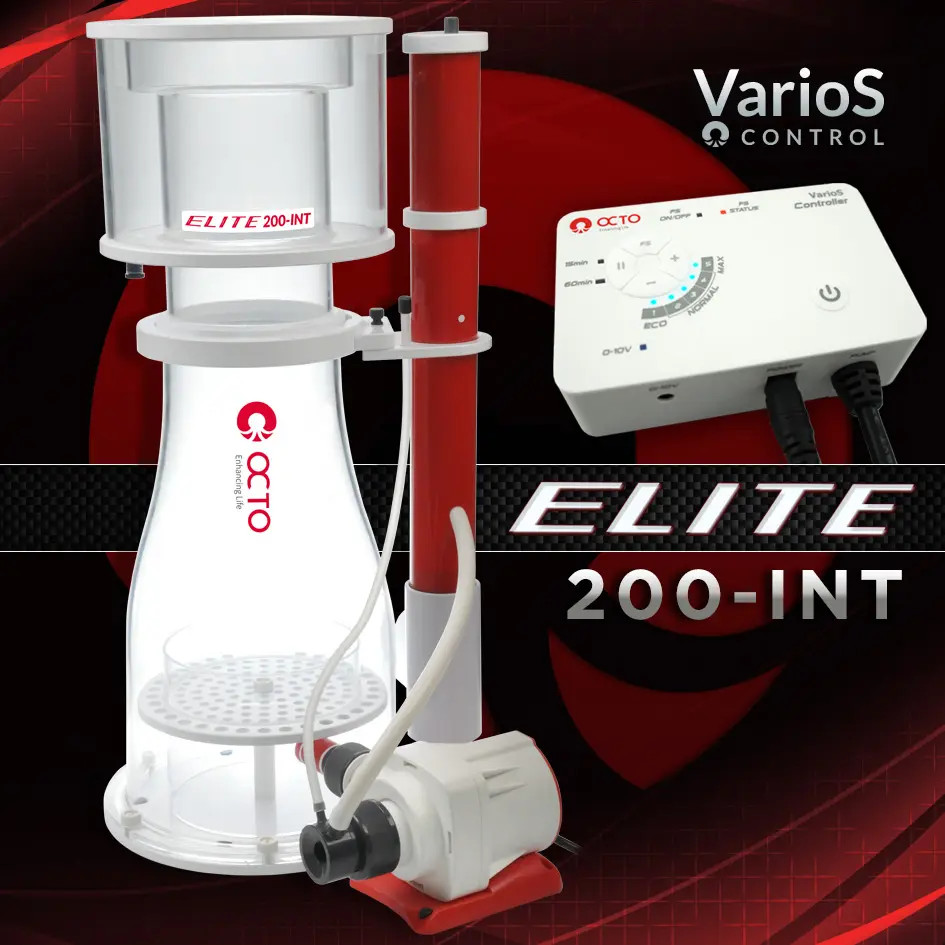

Reef Octopus Elite 200-INT Super Cone Protein Skimmer
The Reef Octopus Elite 200-INT represents the pinnacle of in-sump protein skimming for large-scale reef systems. Designed for the discerning reef keeper, the Elite series takes filtration a step further with its "Super Cone" body design. This shape is engineered to provide a smooth, turbulence-free transition for the air-rich foam as it rises, significantly increasing the efficiency of organic removal compared to standard cylindrical skimmer bodies.
At the heart of the Elite 200-INT is the VarioS-4S DC controllable pump. This allows the user to digitally tune the air and water mixture through five speed settings, ensuring the skimmer performs optimally regardless of the bioload. For added peace of mind, the system includes an integrated float switch that connects directly to the controller, automatically pausing the pump if the collection cup reaches capacity. With its elegant design and industrial-grade build quality, the Elite 200-INT is a premier choice for systems up to 400 gallons.
Key Features
VarioS-4S Controllable Pump: High-efficiency 36V DC pump with a ceramic shaft and digital controller.
Super Cone Shape: 8" base naturally concentrates foam for a more stable and productive foam column as it enters the neck.
Float Switch Safety: Automatic shut-off sensor protects against cup overflows and salinity fluctuations.
0-10V System Ready: Connection to third-party controllers like the CoralVue HYDROS, Neptune Apex, or GHL Profilux, and other third-party controllers.

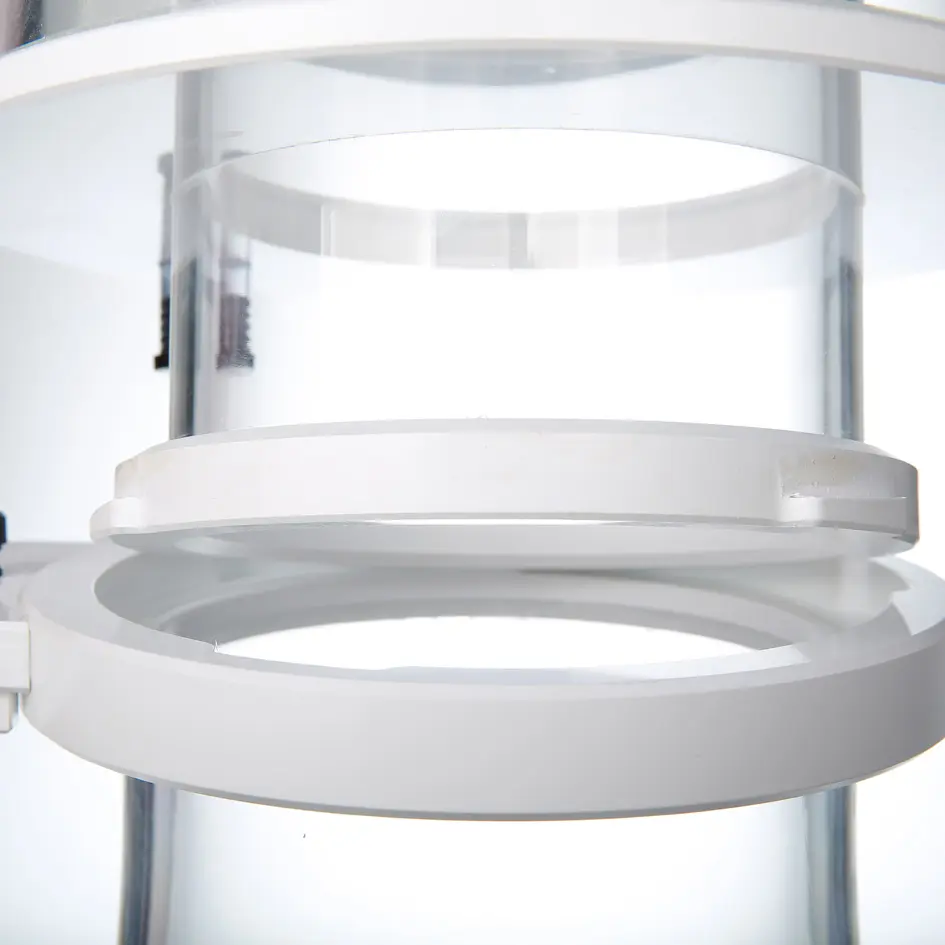

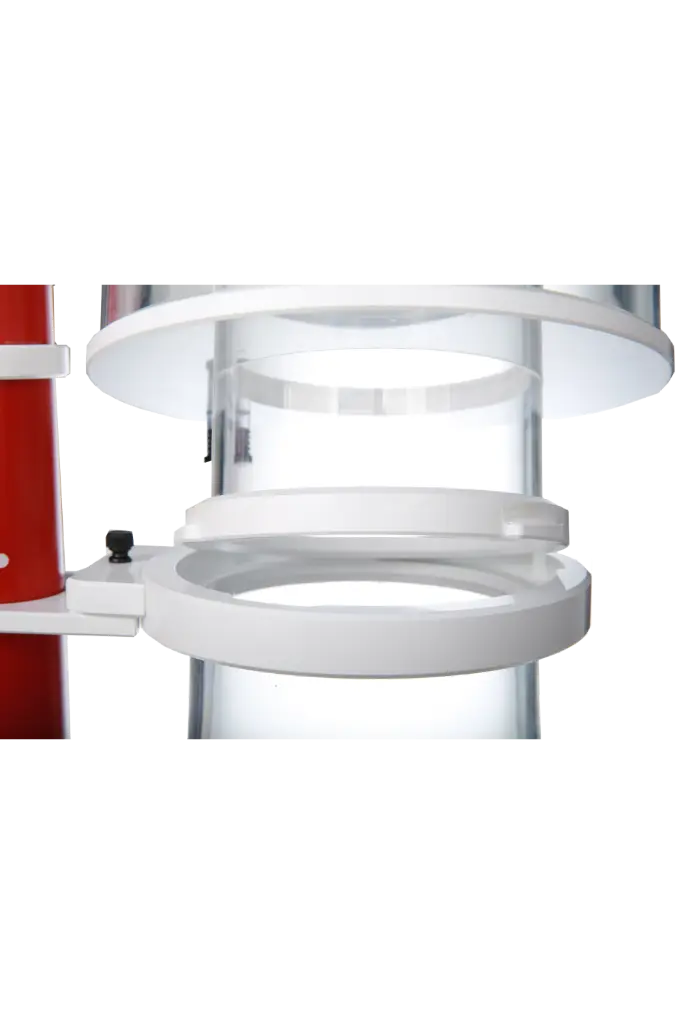

Easy Maintenance: The body disassembles completely, and the cup features a "Twist & Lift" mechanism for quick removal.
Bioload Handling
Heavy Bioload: 211 Gallons
Medium Bioload: 317 Gallons
Light Bioload: 400 Gallons
What’s Included:
(1) Elite 200-INT Protein Skimmer
(1) VarioS-4S Controllable Pinwheel Pump

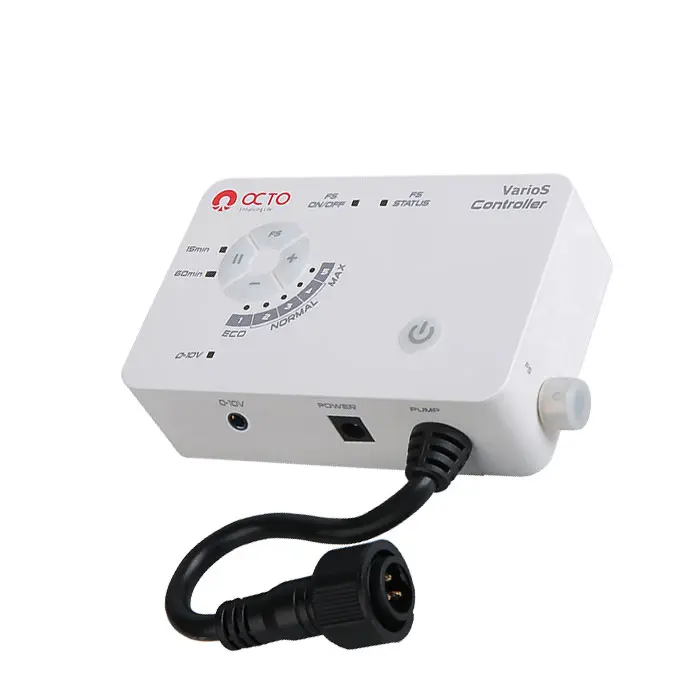

(1) VarioS Controller with Float Switch
(1) Vented Output Valve
Technical Specs:
Body Size: 8 in
Footprint: 15 in x 11.2 in
Total Height: 23.2 in
Neck Size: 4.7 in
Output Size: 50mm / 1.5 in
Recommended Sump Water Depth: 7 – 8.5 in
- Reef Octopus VarioS-4S Pinwheel Pump
- Power Consumption: 25-40watts
- Air Draw:800-1500lph / 28-52 SCFH*
- Water Draw: 422gph
*Air and water results will vary depending on aquarium setup
WARRANTY
CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:
- Five (5) year warranty on pump body/housing
- Three (3) year warranty on Reef Octopus-branded controller
- One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Assemble the Super Cone body and attach the VarioS-4S pump to the internal intake.
- Place the skimmer in your sump, targeting a water depth of 8 inches.
- Mount the float switch in the collection cup and connect it to the controller.
- Connect the pump to the controller and plug in the power supply.
- Open the geared output valve fully and power on the unit.
- Adjust the valve until the foam line is at the base of the collection cup neck.
- Allow 14 days of break-in time for the acrylic to fully stabilize.
Pro Tips:
- Metric Plumbing Standards. The Elite 200-INT uses a 50mm Metric output. For a professional, hard-plumbed drain, use a 50mm Metric Union to connect the skimmer's output to your sump system for easy removal during cleaning.
- Vinegar Cleaning. To keep the Super Cone body crystal clear and the pump running silently, we recommend a full teardown and vinegar soak of the pump impeller and assembly every 6 months to remove calcium buildup.
- Controller Calibration. If using a 0-10V third-party controller, remember that speed 1 on the VarioS controller is approximately 2V. Ensure your Apex/GHL profile stays within the 2V–10V range to prevent the pump from stalling.
