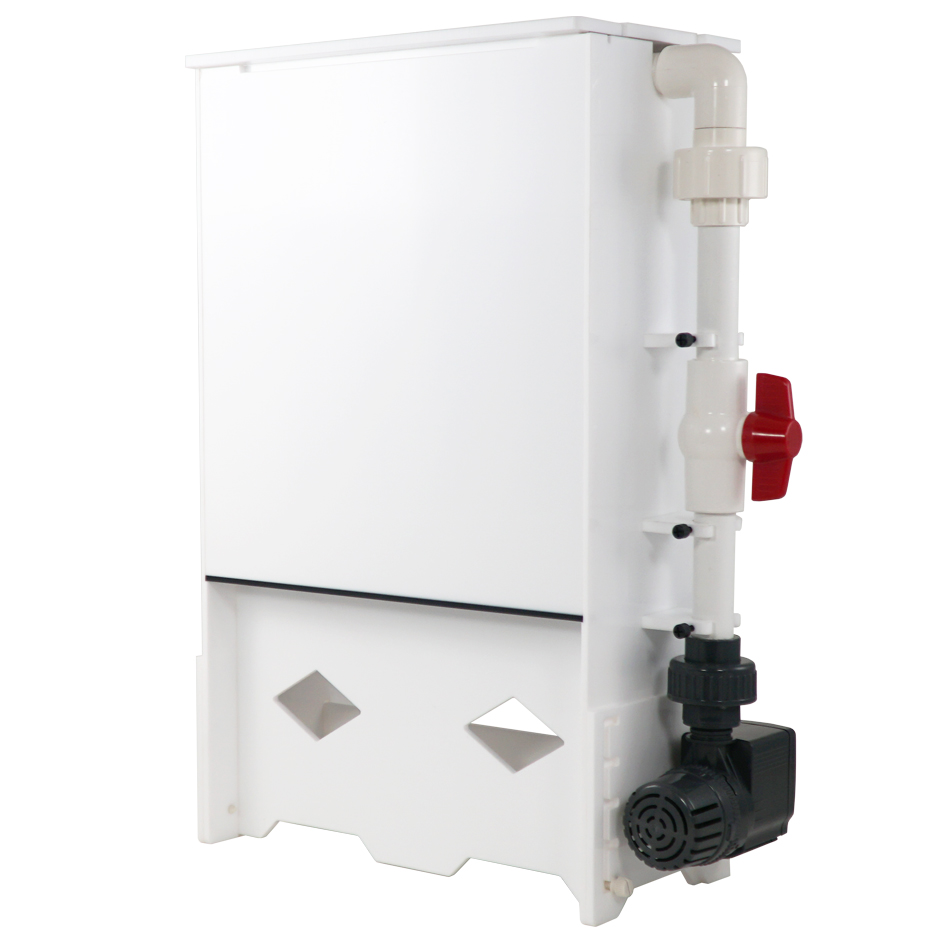

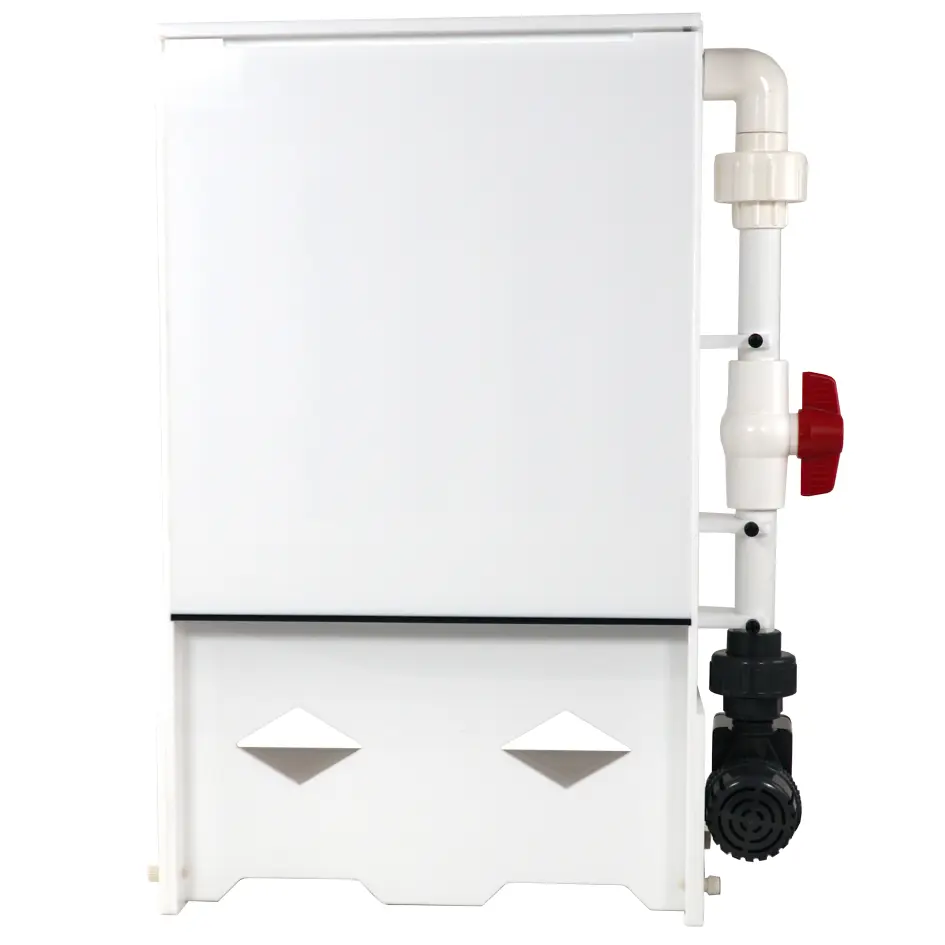

IceCap Algae Scrubber Pro, Large
SKU: IC-AGS-4INTPRO
MSRP: $ 733.41
-
Available Through Authorized Retailer
- In-Sump Space Optimization: Drop-in internal footprint resides completely within your filtration basin, draining passively back into the sump with zero external hose plumbing required.

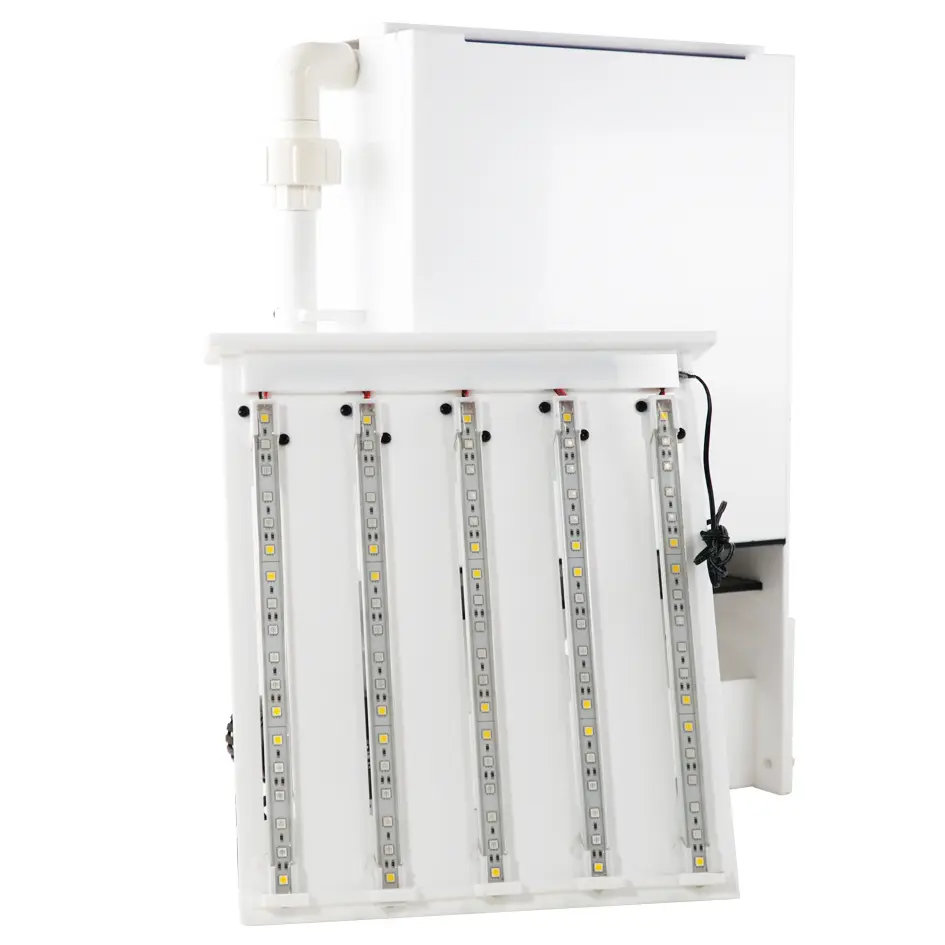

- Dual-Sided High-Output Light Arrays: Equipped with twin 15W water-insulated LED light bars (2×15W) providing an intense 30W deep red spectrum (30W / DC24V) to optimize cellular growth.

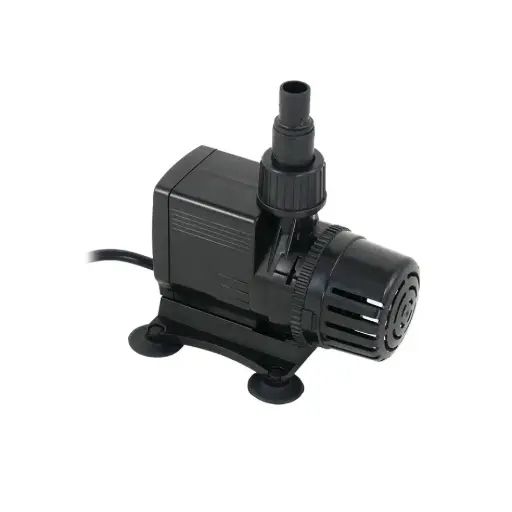

- Heavy-Duty Feed Pump Inclusion: Packaged directly with a high-velocity 30W IceCap EVO-2000 submersible utility pump to safely push up to 800 GPH across the sheet.
- Variable Sump Level Sliders: Features an adjustable mechanical side bracket array to calibrate the reactor's physical frame height across a wide 4-to-10-inch sump water depth window.
- Integrated Safety Bypass Drain: Formed with a primary lower discharge matrix backed by an emergency upper overflow slot to guarantee fail-safe drainage if the screen clogs.
- Toolless Maintenance Screen Extraction: Outfitted with an inline quick-release pipe union allowing you to lift out the textured growing screen for quick sink harvesting.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.
IceCap Large PRO Internal In-Sump Algae Turf Scrubber (IC-AGS-400PRO)
The IceCap Large PRO In-Sump Algae Turf Scrubber (SKU: IC-AGS-400PRO) is an authentic, original factory-spec natural biological filtration chamber distributed by CoralVue to provide aggressive nutrient uptake on heavily loaded marine reef systems up to 350 gallons. In standard aquarium environments, floating fish waste, organic byproducts, and decaying foods lead to a persistent accumulation of inorganic nitrates and orthophosphates. Rather than utilizing chemical resins, synthetic media blocks, or carbon dosing systems that can destabilize delicate biological lines, the IC-AGS-400PRO harnesses natural photosynthesis. By providing a highly illuminated, oxygen-rich localized growth matrix, it isolates nuisance hair and film algae inside the reactor box rather than over your display coral rockwork.
Operation is self-contained and highly efficient. The included heavy-duty IceCap EVO-2000 utility pump sits submerged next to the scrubber base, lifting raw water straight into the internal spray bar manifold. This water cascades smoothly down an oversized 15.8 by 10.5-inch laser-roughened growing mesh screen. As the water sheets over the grid, it is blasted from both sides by integrated full-spectrum pink/red grow lights. The growing algae acts like an organic sponge, locking up unwanted dissolved nutrients inside its biomass. Scraping the sheet clean every 1 to 3 weeks permanently removes these bound pollutants from your system loop, reducing your dependency on intensive, time-consuming water changes.
Key Features

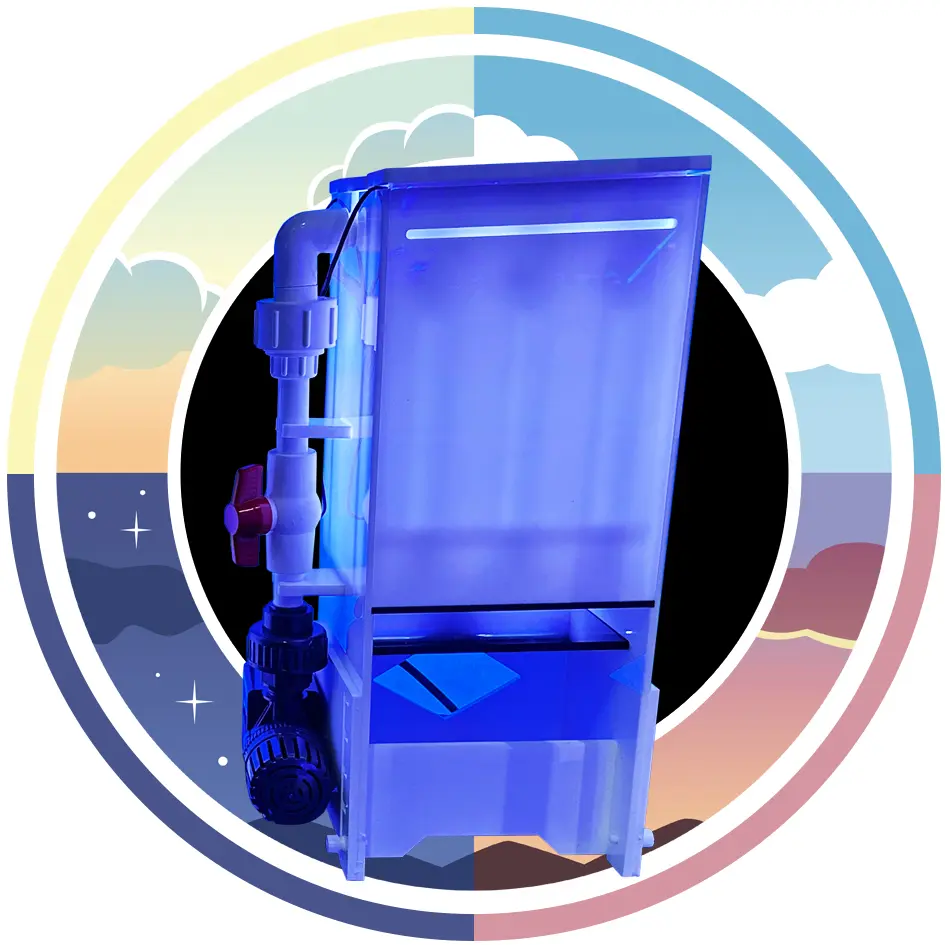

Mitigates Daily pH Fluctuations: When programmed to run on a reverse photoperiod opposite your display lights, the algae's overnight photosynthesis consumes carbon dioxide, preventing morning pH drops.
Heavily Textured Grow Grid Mesh: Custom laser-scored surface profile provides an optimized anchoring foundation for hair algae filaments to grip, resisting washouts under high flow.
Multi-Directional Input Controls: Outfitted with a high-flow multi-stage inlet ball valve assembly to perfectly govern water sheet consistency across the screen faceplate.
(Note: This internal system is designed for submerged deployment inside a sump chamber only. It includes the heavy cell-cast acrylic reactor housing, internal mesh grid, dual 15W LED strips, 24V DC power transformer, and an EVO-2000 feed pump).
Verified System Performance Specifications
Target Aquarium Rating: Explicitly rated to manage biological waste profiles on standalone setups up to 350 Gallons.
What’s Included:
(1) IceCap Large PRO In-Sump Cast Acrylic Algae Scrubber Vessel Housing Frame
(1) IceCap EVO-2000 (30W) Submersible Water Feed Pump with Flexible Tubing Links
(1) Removable Highly Textured Turf Algae Growing Mesh Screen with Slotted Spray Bar
(2) 15W Waterproof Internal LED Growing Light Strips with Single 24V DC Power Adapter Brick
(1) Pre-assembled Plumbing Discharge Loop with Quick-Release Structural Side Union
Technical Specs:
Official Manufacturing Title: IceCap Algae Scrubber Pro - Large
SKU / Factory Part Identifier: IC-AGS-400PRO (Alternative Item Reference: IC-AGS-4INTPRO)
Total Exterior Enclosure Footprint: 16.5 Inches x 6.15 Inches x 21 Inches (L x W x H)
Internal Target Screen Dimensions: 15.8 Inches x 10.5 Inches Active Growth Area
Total Lighting Power Allocation: 30 Watts Combined Output running on a safe DC24V Rail
Included Feed Pump Flow Capability: IceCap EVO-2000 pushing a Max 800 GPH Velocity
Sump Operational Depth Window: Functional in standing water depths from 4 Inches up to 10 Inches
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
- Unpack your IC-AGS-400PRO housing, pull off the opaque protective top cover, and verify that the internal spray bar assembly sits flat inside the vertical side alignment guides.
- Place the scrubber base flat inside your sump's designated mechanical or filtration chamber, ensuring the open lower drain slots sit away from the sump partition walls.
- Loosen the side bracket thumb sliders to raise or lower the main housing frame until the lower water exit ports sit partly submerged in your sump water line (ideal depth: 4 to 10 inches).
- Submerge the included EVO-2000 water feed pump completely into the sump floor, linking its vinyl outlet tube directly into the scrubber’s multi-directional input ball valve.
- Open the input ball valve fully and plug in the EVO-2000 pump to flood the internal spray bar, adjusting the valve until a smooth, unbroken sheet of water trickles down the entire mesh screen.
- Connect the 24V DC light power cord to an external timer programmed for a 12-hour daily photoperiod—ideally scheduled on a reverse cycle opposite your display tank lighting.
Pro Tips:

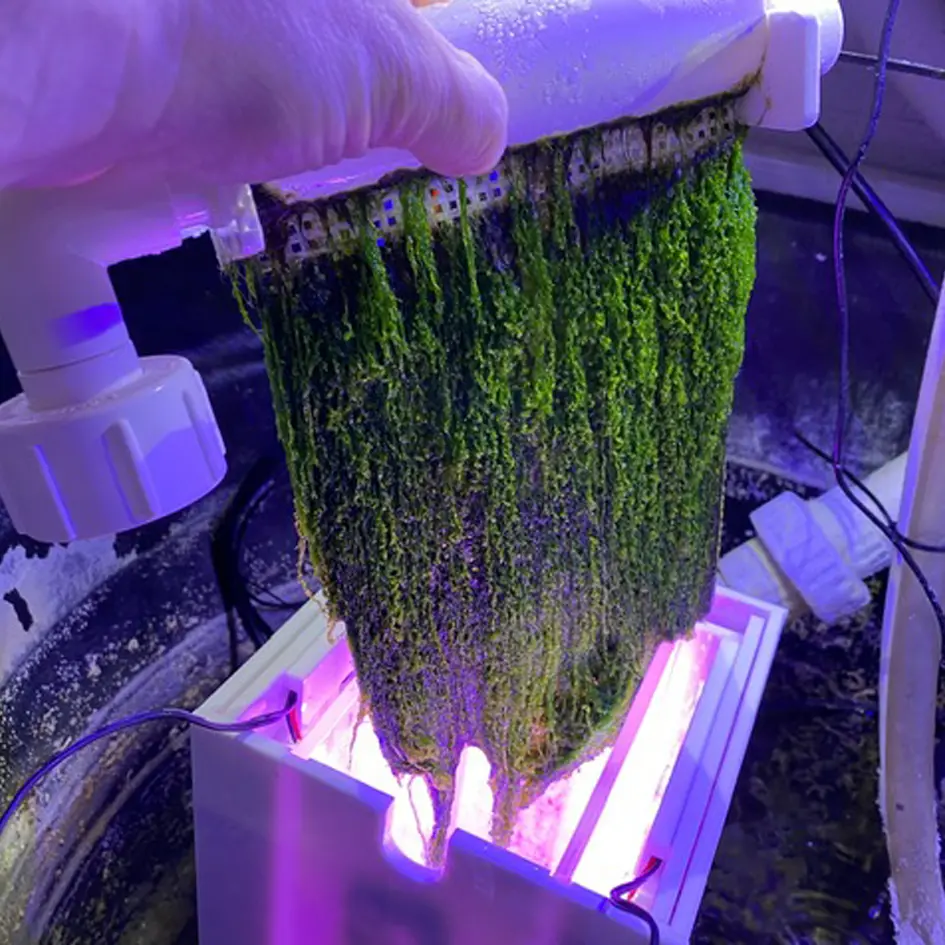

- Never Scrape the Mesh Growing Screen Completely Bare During a Harvest. When pulling the textured screen out every few weeks to scrape away mature algae mats in your sink, avoid using aggressive metal wire brushes or boiling water to sanitize the mesh. If you clean the plastic screen down to a completely bare surface, you eliminate the underlying "seed" population. This forces the system to restart the growth cycle from scratch, adding 7 to 10 days to your next harvest window. Instead, use an old credit card or a plastic scraper to remove the heavy clumps, leaving a thin, translucent layer of green film behind to kickstart immediate regrowth.
- Verify That the Spray Bar Slot Stays Clear of Loose Algae Strands Weekly. Because water is pumped directly through a narrow longitudinal slot cut into the horizontal PVC spray bar, fast-growing turf algae will occasionally creep upward and grow into the supply slot. If these strands clog the opening, water will start spraying sideways against the top lid rather than flowing smoothly down the screen. This can cause salt creep or small leaks around the box lid. Make it a habit to quickly peek into the open spray chamber once a week, clearing out any stray algae blocks with a plastic toothpick.
- Allow Up to 3 Full Weeks for the First Active Green Algae Pad to Establish. When first firing up a brand-new IC-AGS-400PRO, do not expect a thick, lush green carpet of turf algae to appear within the first 48 hours. The screen must transition through a natural ecological progression. During the first 7 to 10 days, the mesh will typically populate with a slick, golden-brown layer of diatoms and light organic film. This brown coating provides the ideal anchoring foundation for true green hair algae filaments. By week 3, the green turf mat will take hold and begin aggressively pulling down your nutrient levels.
