IceCap AIO-240 Protein Skimmer
SKU: IC-AIO240
MSRP: $ 115.49
-
Available Through Authorized Retailer
- Upsized All-In-One Configuration: Engineered with a deep, square reaction column specifically calibrated to drop into the rear filter tracks of 20-to-50-gallon AIO tanks.
- Controllable 12V DC Pump Core: Driven by a native 12-volt DCair 400 needlewheel pump that combines energy efficiency with near-silent operation.
- Variable Speed Inline Control: Outfitted with an accessible inline digital controller to easily adjust pump speed and dial in your target foam lines.
- Adjustable Height Hanging Mount: Features a rigid over-rim slider bracket with a nylon set screw to perfectly calibrate the skimmer's depth against changing water levels.
- Advanced Multi-Stage Diffusion: Equipped with an integrated lower bubble dispersant chamber that extends organic contact time while eliminating microbubble display bypass.
- Toolless Maintenance Teardown: The modular acrylic housing slides completely apart in seconds, allowing fast, unobstructed access to the internal volute and impeller track.
IceCap
Premium aquarium equipment without the premium price. Protein skimmers, pumps, reactors, heaters & more.

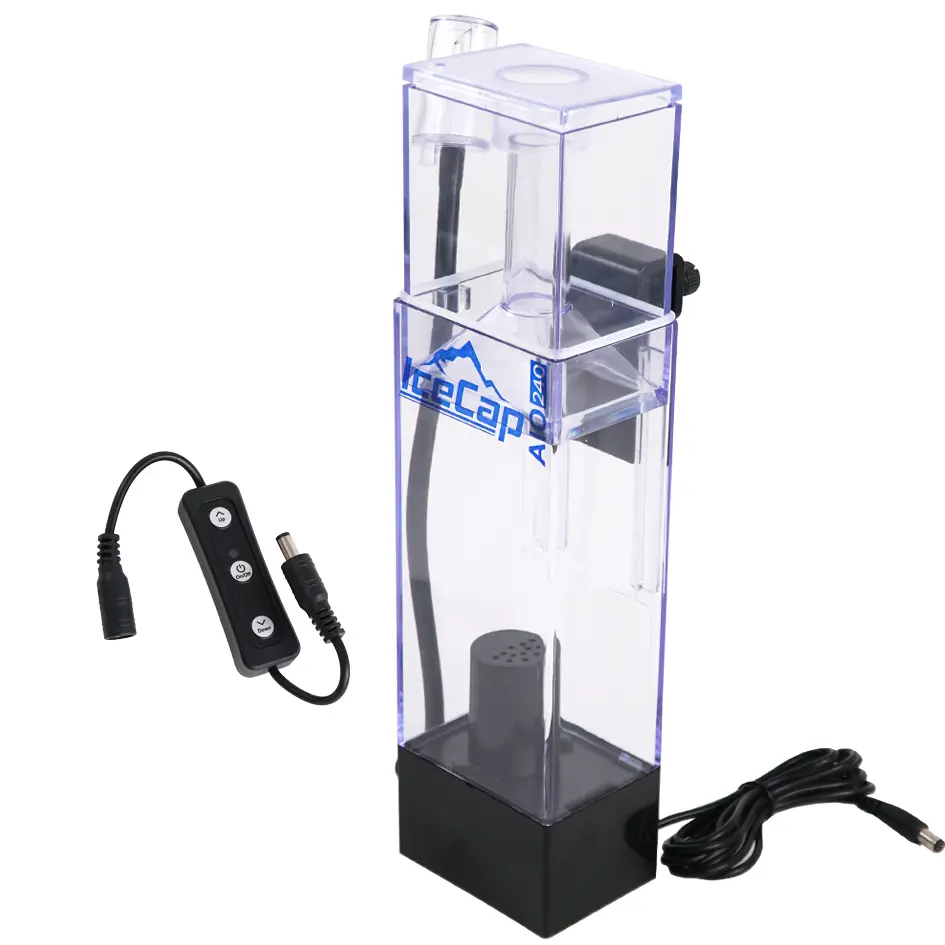

IceCap AIO 240 All-In-One Nano Protein Skimmer
The IceCap AIO 240 Protein Skimmer (SKU: IC-AIO240) is an authentic high-efficiency, space-saving direct-current foam fractionator distributed by CoralVue to bring intensive, controllable organic extraction to mid-sized rear-compartment filtration layouts. When managing mixed nano reefs or heavily stocked desktop marine systems, small budget-skimmers often fail to keep up with the biological waste load. The IC-AIO240 steps up to bridge this gap, utilizing an elongated square reaction body that fits into the rear chambers of larger All-In-One systems while maximizing internal volume. This allows hobbyists to aggressively lift dissolved organic compounds, amino acids, and fine waste out of the water column before they can break down into troublesome nitrates and phosphates.
Beneath the clear, high-density acrylic shell of the AIO 240 sits the upsized, controllable DCAIR-400 DC pinwheel pump. Operating on safe, low-voltage 12V current, this energy-conscious motor pulls up to 150 liters of air per hour while generating high rotational torque to finely slice incoming bubbles. The included inline digital speed controller allows you to easily adjust the pump's RPM, putting complete fine-tuning power at your fingertips. By matching the pump's power to your specific bio-load, paired with a height-adjustable hanging bracket and a simple friction-fit collection cup neck, the AIO 240 delivers full-scale skimmer capabilities without taking up real estate in your display tank.
Key Features:
Extended Reaction Column Path: Heightened square body geometry increases internal bubble dwell time, dramatically improving organic compound capture rates.
Durable Cell Cast Acrylic Build: High-grade polymer formulation resists yellowing and embrittlement, easily handling the rough conditions of localized saltwater filtration zones.
Friction-Adjustable Cup Ring: Uses a simple, thick-gauge rubber O-ring along the neck column to smoothly change collection heights without dealing with fragile locking threads.
(Note: This self-contained nano skimmer includes the main body housing, DC pump assembly, inline speed controller, air silencer, and power supply brick. Side magnetic mounts are sold separately under alternative parts layouts).
Verified Biological Load Ratings:
Heavy Bioload Settings: Rated for intensively fed or heavily stocked nano fish systems up to 20 Gallons.
Medium Bioload Settings: Rated for standard soft coral or community nano setups up to 30 Gallons.
Light Bioload Settings: Rated for low-nutrient frag tanks or sparsely populated layouts up to 40 Gallons.
What’s Included:
(1) IceCap AIO 240 Square-Body Acrylic Protein Skimmer Housing

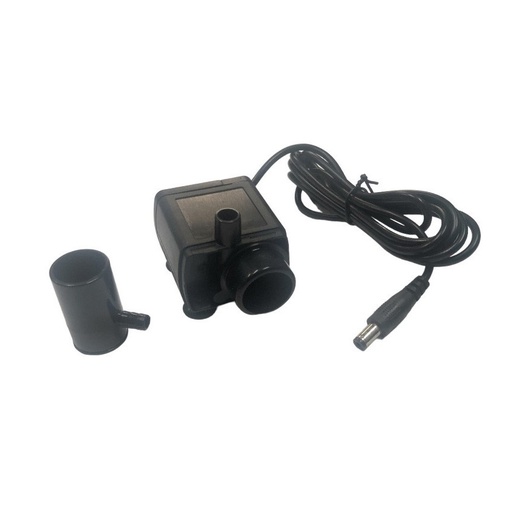

(1) IceCap DCAIR-400 12V DC Pinwheel Impeller Pump with Air Intake Assembly
(1) Inline Variable-Speed Digital Pump Controller Module
(1) Adjustable Over-Rim Hanging Acrylic Mounting Bracket with Nylon Set Screws
(1) Removable Clear Waste Collection Cup with Flexible Sealing Neck O-Ring
Technical Specs:
Official Manufacturing Title: IceCap AIO 240 Protein Skimmer
SKU / Factory Part Identifier: IC-AIO240
Primary Reaction Chamber Dimensions: 3.75 Inches x 2.4 Inches
Total Base Footprint Requirements: 4.125 Inches x 2.875 Inches
Overall Physical Insertion Height: 14 Inches total height profile
Native Neck Diameter: 0.875 Inches
Pump Power Footprint: 12V DC / 0.8A Current Draw (9 Watts Operational Consumption)
Maximum Air Induction Volume: 150 Liters Per Hour (5.3 SCFH baseline tracking)
Maximum Fluid Water Delivery: ~40 Gallons Per Hour internal movement
- Unpack the AIO 240 skimmer body, remove the collection cup, and pull out any internal cardboard shipping dividers from the lower bubble plate.
- Align the intake nozzle of the DCAIR-400 pump with the receiving port at the bottom base of the skimmer body, routing the power cable up through the integrated side tracking slots.
- Position the open mouth of the venturi line toward the skimmer, gently pushing the air intake pipe into the side hole until it links cleanly with the pump suction cover.
- Slide the adjustable mounting bracket into the rear vertical channel tracking, locking it at your initial depth preference by turning the nylon set screw clockwise until snug.
- Place the skimmer body straight down into your aquarium's designated rear filter chamber, hang the hook over the glass edge, and tighten the thumbscrews hand-tight.
- Mount the non-waterproof inline controller and power transformer outside the stand using a defined safety drip loop, attach the power cords, and press the power pad to initialize skimming.
Pro Tips:
- Do Not Adjust the Pump Settings During the Initial 2-Week Break-In Window. Like all high-grade protein skimmers, a brand-new AIO 240 requires an initial break-in period of at least 14 days to shed microscopic manufacturing films and static charges left over from the acrylic cutting tables. During this break-in frame, your foam column will naturally fluctuate, occasionally popping early or over-foaming aggressively into the cup. Keep your collection cup pushed up into a higher safety position and let the pump run at a steady mid-range speed without touching the controls to let the plastic surfaces naturally cure and stabilize.
- Keep the Pump Power Cable Pinned Inside the Rear Tracking Slots. When lowering your skimmer into a tight, dark rear filter compartment, a loose power cord can easily drift out of place and get caught underneath the pump's lower intake volute. This pinches off incoming water flow and can cause annoying vibration rattles against the glass wall. Always make sure you press the thin power cord firmly into the built-in tracking clips running down the backside of the square acrylic frame to keep your lines clean and out of harm's way.
- Flush the Small Air Silencer Weekly to Remove Crystalline Salt Creep. Because nano all-in-one filtration areas feature very high evaporation rates inside tight, humid spaces, fine salt spray can easily make its way into the small air silencer capsule. Over a few weeks, this moisture dries out and forms a hard salt crust right around the internal air path. This starves the needlewheel pump of air, causing the skimmer's water line to skyrocket and flood the cup. Simply pull the silicone air line free once a week and flush the silencer with a dash of warm fresh water to keep your airflow lines open.
