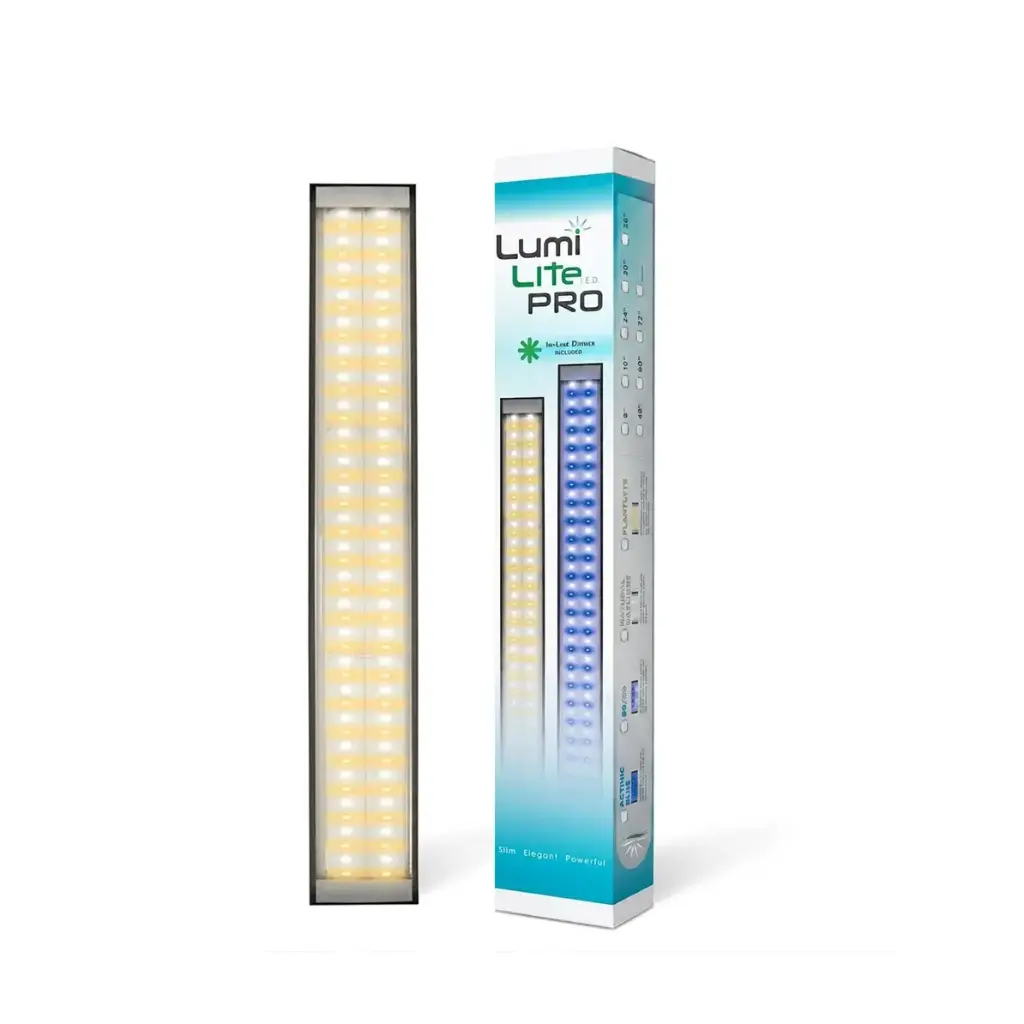

Reef Brite Lumi Lite PRO 12" Freshwater Aquarium Light - Plantlyte
SKU: RB-LLPRO12-PL
MSRP: $ 147.04
-
Available Through Authorized Retailer
- Optimized for 12-Inch Nano Aquariums: Measures a full 12 inches to deliver continuous, end-to-edge full-spectrum illumination across compact nano systems (such as 5-gallon cubes, ADA 30C, desktop pico displays, and sump refugiums).
- Proprietary Plantlyte Spectrum: Precision-engineered blend of full-spectrum daylight, enhanced deep red, and photosynthetic blue wavelengths to drive vigorous chlorophyll A and B synthesis.
- High-Density LumiLite PRO Diode Array: Packed with tightly spaced surface-mount micro-LEDs that eliminate disco-ball color separation while producing uniform, wide-angle light spread.
- High CRI Visual Clarity: Enhances the natural coloration of aquatic plants, hardscape driftwood, and dwarf shrimp without washing out delicate green and red hues.
- Passive Extruded Aluminum Heatsink: Ultra-slim aircraft-grade aluminum chassis silently radiates thermal energy upward, keeping nano water volumes cool without failure-prone fans.
- Automation & Dimmer Ready: Fully dimmable and easily paired with Reef Brite inline rotary dimmers, Bluetooth LE modules, or 0–10V aquarium controllers.
Reef Brite
LED and T5 lighting built for reefs; energy-efficient, visually stunning, and engineered to make corals truly glow.
Reef Brite 12-Inch LumiLite PRO Plantlyte LED Strip Light
Illuminating a compact 12-inch nano or pico planted aquarium with standard gooseneck clamp lights or small spotlight fixtures often leads to uneven coverage, hot spots in the center, and dark perimeter edges where delicate stem plants begin to stretch and wither. The Reef Brite Lumi Lite PRO 12" Freshwater Aquarium Light - Plantlyte (SKU: RB-LLPRO12-PL) is the official OEM linear LED fixture engineered specifically for 12-Inch Nano Aquascapes, Desktop Freshwater Tanks, and Refugium Compartments.
Spanning 12 inches, the RB-LLPRO12-PL delivers seamless, edge-to-edge linear photon coverage across small footprints. Rather than relying on generic cool-white LEDs that can trigger nuisance green spot algae while flattening natural plant tones, Reef Brite’s proprietary Plantlyte spectral profile concentrates photon emission into the primary absorption bands of chlorophyll A (430nm and 662nm) and chlorophyll B (453nm and 642nm). This targeted delivery stimulates rapid cell division, tight internodal growth in stem plants, and rich coloration in red varieties such as Rotala, Ludwigia, and Cryptocoryne. Concurrently, a high Color Rendering Index (CRI) presents freshwater caridina/neocaridina shrimp, micro-rasboras, and river stone in natural, authentic visual detail. Housed in a black anodized extruded aircraft-grade aluminum chassis, the fixture acts as an integrated passive heatsink, operating completely silently and dissipating heat upward away from the water column to protect fragile nano water volumes from thermal spikes.
Ideal Application & Upgrade Scenarios
If you are scaping an ADA 30C (12-inch cube) or 5-gallon desktop planted tank, upgrading a small all-in-one desktop tank hood to high-efficiency LED technology, or seeking a focused, ultra-slim vegetative light bar for an in-sump freshwater planted refugium, the RB-LLPRO12-PL delivers high-efficiency photosynthetic output in a compact form factor.
(Note: Package includes (1) 12-inch LumiLite PRO Plantlyte LED Light Fixture, (1) Set of Adjustable Tank Mount Legs/Brackets, and (1) Dedicated DC Power Supply. Inline dimmers, timers, and specialized hanging hardware sold separately).
What’s Included:
(1) Reef Brite LumiLite PRO 12-Inch Plantlyte LED Light Fixture (RB-LLPRO12-PL)
(2) Stainless Steel / Acrylic Adjustable Tank-Mount Support Legs
(1) Dedicated Electronic DC Power Supply with AC Power Cord
Technical Specs:
SKU / Factory Part Identifier: RB-LLPRO12-PL
Fixture Length: 12.0 Inches (~30.5 cm)
Fixture Dimensions: 12.0" L x 1.25" W x 0.5" H
Target Environment: Freshwater Nano Planted, Pico Aquascaping, Desktop Paludarium, Refugium
Spectrum Technology: Plantlyte Full-Spectrum (Chlorophyll A & B Enhanced Photosynthetic Wavelengths)
LED Architecture: High-Density Surface-Mount Device (SMD) Micro-LED Array
Chassis Material: Black Anodized Extruded Aircraft-Grade Aluminum
Cooling Design: 100% Passive Convection Cooling (Fanless / Completely Silent)
Control / Dimming: Manual Inline Dimmer, Bluetooth LE Module (RB-BT-CTRL), or 0–10V Interface Ready
Input Voltage: 100–240V AC, 50/60 Hz
Recommended Tank Footprint: 12" L x 8" W to 12" L x 12" W Aquariums
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Installation & Operating Guidelines:
Unbox the fixture and verify that the 12-inch aluminum housing, DC lead cord, and power adapter are undamaged.
Determine your preferred mounting method:
Tank Rim Mounting: Slide the adjustable stainless steel mounting legs into the side extrusion channels at both ends of the fixture and rest them securely on the aquarium rim.
Canopy Mounting: Fasten the fixture to the inner framework of your canopy or lid using mounting clips, ensuring the LED surface sits at least 2 to 4 inches above the water line.
Align the light strip so the diodes project directly downward across the entire length of the substrate.
Plug the low-voltage barrel connector from the fixture lead directly into the female plug of the included DC power supply (or connect via an optional inline dimmer/controller).
Establish a drip loop along the power cord below the electrical socket to prevent condensation or water droplets from running into the wall outlet.
Connect the power supply to an AC wall receptacle, digital lighting timer, or smart controller outlet.
Set an initial photoperiod of 6 hours daily, gradually increasing to 7–8 hours as plant biomass expands and nutrient uptake stabilizes.
Pro Tips:
- Prevent Algae in Small Water Volumes with Dimming Control. Because 12-inch nano tanks contain small water volumes (often 3 to 7 gallons), fluctuations in light intensity can accelerate green dust or hair algae much faster than in large displays. To prevent light stress on newly introduced plants, add a Reef Brite inline rotary dimmer or Bluetooth controller to reduce total output to 40%–50% during the initial three weeks of setup, gradually ramping up output as the plant carpet establishes.
- Maximize Flora Growth in Sump Refugiums. The compact 12-inch form factor makes the RB-LLPRO12-PL an exceptional light source for sumps housing freshwater macro-vegetation (such as Ceratophyllum demersum hornwort or Pistia stratiotes water lettuce). Its linear distribution blankets the entire chamber evenly without spilling harsh stray light into adjacent filter chambers or protein skimmer bodies.
