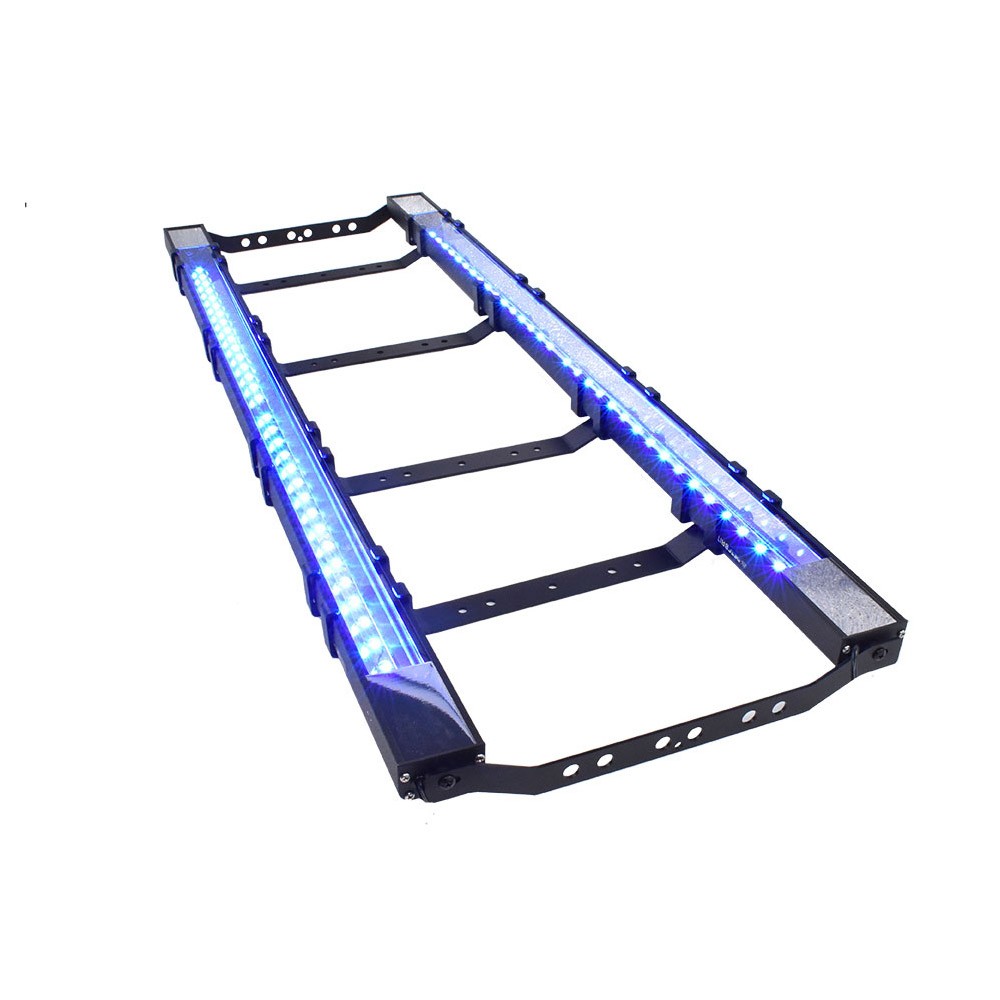

Reef Brite X36 Dual Add-on Kit
SKU: RB-X36DUAL
MSRP: $ 824.73
-
Available Through Authorized Retailer
- Direct Multi-Fixture LED Integration: Precision-engineered to flank popular primary LED fixtures—including EcoTech Marine Radion (XR15/XR30), AquaIllumination Hydra (32HD/64HD), and Kessil (A360X, A500X, AP9X, AP700)—without requiring custom drilling or modifications.
- Dual 36-Inch Actinic Blue XHO Strips: Features two full-length 36-inch high-output XHO LED bars equipped with 72 total 3-watt diodes targeting essential coral-absorbing wavelengths (~450nm and ~470nm).
- Eliminates Point-Source Shadows & Hot Spots: Surrounds centralized cluster LEDs with seamless linear light, wrapping illumination around dense SPS branches and montipora plates to prevent lower tissue die-off.
- Modern T5HO Hybrid Alternative: Delivers the diffuse, wraparound light spread of traditional T5 fluorescent fixtures without bulb replacements, high heat output, or bulky canopy ballasts.
- Complete Plug-and-Play Assembly: Includes heavy-duty aluminum mounting brackets, M4 hex standoffs, wire hanging hardware, an inline rotary dimmer, a 2-way DC Y-cable, and a dedicated DC power supply.
- Advanced Automation & Dimming Ready: Comes with manual dial dimming out of the box and is fully compatible with third-party 0–10V controllers (via the Reef Brite APEX interface) or wireless Bluetooth LE modules.
Reef Brite
LED and T5 lighting built for reefs; energy-efficient, visually stunning, and engineered to make corals truly glow.
A Great Alternative to T5HO Lighting!
The Reef Brite X Series Dual Add-on Kit can be added to select LED aquarium lights to bring out incredible color and fluorescence in corals, anemones, and other invertebrates while promoting growth. Using the included hardware, the X Series Dual Add-on Kit integrates seamlessly with the existing lighting to maintain a sleek look and comes complete with a universal hanging kit. It is compatible with Ecotech® Radion®, AI® Hydra®, Kessil® A360x, A500x, AP9X, and AP700 fixtures with no drilling or special tools required.
Designed to span standard 36-inch footprints (such as 40 Gallon Breeder, 50 Gallon, and 65 Gallon systems), the RB-X36DUAL flanks your central LED lighting with two 36-inch Reef Brite XHO (Extra High Output) Actinic Blue LED bars. Powered by 72 high-efficiency 3-watt diodes driven conservatively for prolonged service life, the system projects sheets of targeted 450nm and 470nm violet-blue light inward from both the front and rear perimeter. This linear light path eliminates harsh shadowing and diffuses hot spots while intensely exciting green and red fluorescent proteins (GFPs and RFPs) throughout the coral tissue. Utilizing an anodized aluminum bracket chassis, the system accommodates EcoTech Radion (XR15 and XR30 across all generations), AI Hydra, and Kessil pendant fixtures using provided hex standoffs, preserving your primary light's independent height and orientation.
Product Highlights:
- Includes 2 Actinic Blue XHO LED lights
- Includes an in-line dimmer that allows you to set the intensity of the XHO LED’s
- Can be controlled via APEX® controllers using our APEX LED interface or our Bluetooth LE controller (sold separately)
- Aluminum Male-Female Threaded Hex Standoff, 8mm Hex, 16mm Long, M4 x 0.70 mm Thread
- Manufactured in the USA
- Available in 24”, 36”, 48” and 60″ models
Important Notice:
Before use, read the instructions thoroughly: http://www.reefbrite.com/wordpress/wp-content/uploads/2021/03/Instructions-X-Series-Dual.pdf
What’s Included:
(2) 36-Inch Reef Brite Actinic Blue XHO LED Light Bars
(1) X-Series Modular Aluminum Mounting Bracket & Endplate Framework
(1) Threaded M4 Aluminum Hex Standoff & Fastener Hardware Set
(1) Adjustable Wire Suspension Hanging Kit
(1) Inline Rotary Dial Dimmer Switch
(1) 2-Way DC Y-Splitter Power Cable
(1) Dedicated DC Electronic Power Supply with AC Power Cord
Technical Specs:
SKU / Factory Part Identifier: RB-X36DUAL (RBX36DUAL)
Light Strip Length: 36.0 Inches (~91.4 cm) each
Assembled System Dimensions: Approximately 36.0" L x 12.27" W x 1.1" H
Recommended Lighting Footprint: 36" L x 24" W Aquarium Area
Total LED Count: 72 High-Output 3-Watt LEDs (36 diodes per bar; 12 per foot)
Power Consumption: Approximately 80W–90W total (~40W–45W per bar)
Color Spectrum: Actinic Blue (~450 nm & 470 nm High-Excitation Peak)
Optical System: Specular High-Reflectance Specular Aluminum Reflectors
Chassis Material: Heavy-Gauge Extruded Aircraft Aluminum with Matte Black Powder-Coat
Cooling Design: 100% Passive Heat Dissipation (Fanless / Completely Silent)
Dimming Control: 0–100% Manual Inline Dimmer Included; 0–10V Ready (via RB-APEX-INT) or Bluetooth LE Ready (via RB-BT-CTRL)
Input Voltage: 100–240V AC, 50/60 Hz
Primary Compatibility:
EcoTech Marine Radion XR15 & XR30 (G1 through G6)
AquaIllumination Hydra 26HD, 32HD, 52HD, and 64HD
Kessil A360X, A500X, AP9X, and AP700
Warranty
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- 1 Year
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
- That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
Installation & Assembly Guidelines:
Power down and disconnect your primary LED fixtures from AC power, placing them face-down on a soft, padded work mat.
Assemble the RB-X36DUAL aluminum bracket frame, securing the cross-bars to the endplates using the supplied machine screws.
Attach the supplied M4 threaded aluminum hex standoffs to the mounting points of your primary LED fixture (Radion, Hydra, or Kessil).
Align the bracket frame over the standoffs and secure the central fixture to the hybrid assembly using the corresponding retaining screws.
Fasten the two 36-inch Actinic Blue XHO LED bars to the front and rear perimeter channels of the bracket, ensuring the reflector optics face downward.
Connect the power leads from each 36-inch XHO bar into the output receptacles of the 2-way DC Y-splitter cable.
Connect the single lead of the Y-cable to the inline rotary dimmer, then attach the dimmer to the dedicated DC power supply.
Suspend the completed hybrid fixture over your aquarium using the included wire hanging kit (or integrate into an existing canopy mounting rail).
Plug in both the primary light and Reef Brite power supplies, and adjust the inline dimmer knob to balance supplemental actinic intensity with your primary photoperiod.
Pro Tips:
- Angle Reflector Bars Inward to Maximize Branch Under-Canopy Lighting. When securing the two 36-inch XHO bars into the endplate channels, angle the light housings inward roughly 10 to 15 degrees toward the central rock scape. This cross-angled trajectory directs high-excitation actinic photons directly beneath horizontal coral shelves, ensuring that light reaches lower branches without throwing wasted PAR or glare onto the front viewing glass.
- Gradually Acclimate Corals to Supplemental Hybrid PAR. Adding 72 high-output 3-watt diodes introduces a substantial increase in total photosynthetically active radiation across the 36-inch footprint. To avoid light shock or photoinhibition in sensitive Acropora colonies, start the inline dimmer dial at 40% to 50% intensity for the first two weeks, gradually rotating the dial up over a 3- to 4-week acclimation window.
