HYDROS Control X4 / XP8 PRO Pack
SKU: HDRS-X4PRO
MSRP: $ 820.04
-
Available Through Authorized Retailer
- The HYDROS Control X4 / XP8 PRO Pack bundles two HYDROS controllers into one complete system.
- It is built for hobbyists who want dual pH/ORP monitoring and eight controllable outlets together.
- A pH probe, temperature sensor, and Command Bus cable are included, so you can start right away.
- The Control X4 handles probes, sensors, and drive ports while the XP8 powers up to eight devices.
HYDROS
USA-built aquarium automation system that monitors & controls equipment from an intuitive app.
Two-Controller Pro Pack with Dual pH/ORP Ports and Eight Monitored Outlets

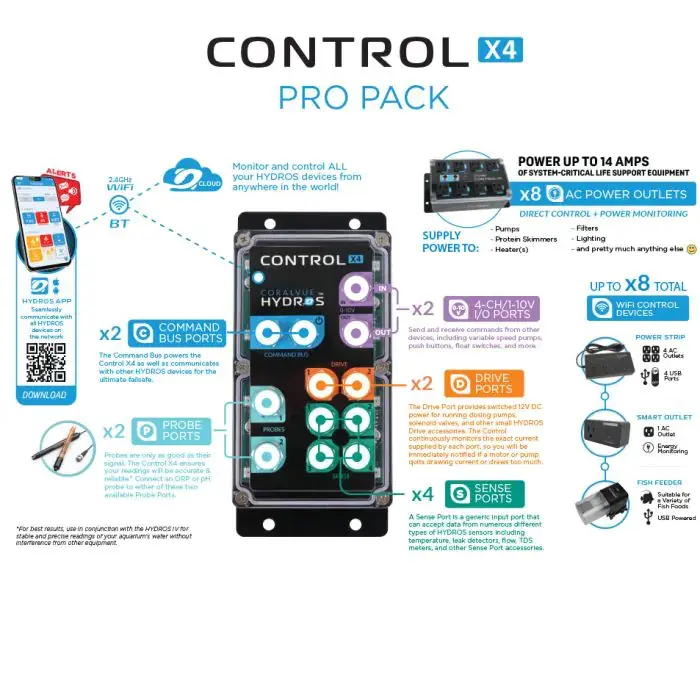

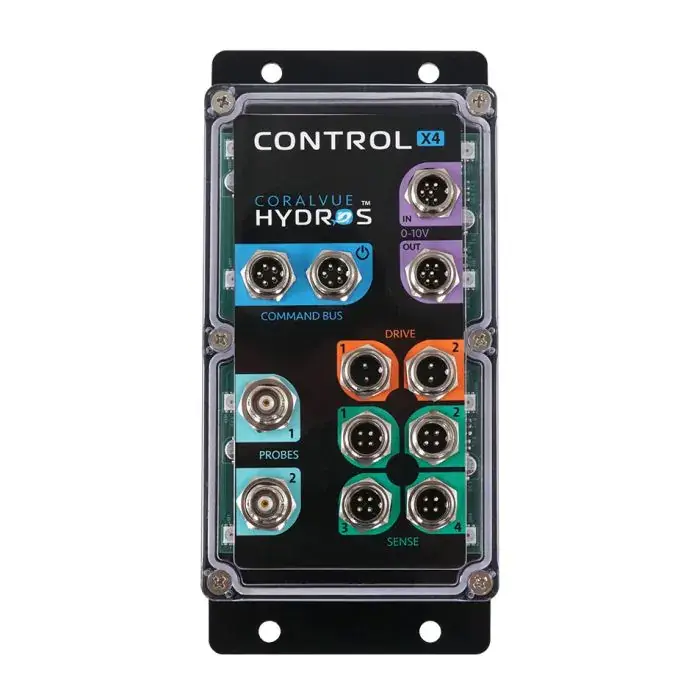

The HYDROS Control X4 / XP8 PRO Pack combines two HYDROS controllers into one ready-to-connect system for saltwater and freshwater aquariums. The Control X4 handles monitoring and 12V control, with four sense ports for sensors such as temperature, water level, and leak detectors, two probe ports for pH or ORP, two drive ports for pumps and solenoids, and a 0-10V port. The Control XP8 handles power, with eight individually controlled and monitored 120V AC outlets for heaters, lights, pumps, skimmers, and more.
The two controllers link over the included Command Bus cable and share decisions across the system with no single point of communication failure. Both can send alerts to your phone, and both can add up to eight WiFi devices through a HYDROS WiFi Power Strip or Smart Plug (sold separately). All HYDROS products are engineered, assembled, and supported in the USA.
Key Features:
- Control X4 with four sense ports, two drive ports, and a 0-10V input and output port
- Two digitally isolated pH/ORP probe ports on the Control X4
- Control XP8 with eight individually controlled AC outlets and per-outlet power monitoring
- Included pH probe with calibration solutions and temperature sensor
- Included 6ft Command Bus cable with two terminators to link both controllers
- Dual-core 32-bit processor in each device for fast, on-device decisions
- XP8 can take over decision-making if it is disconnected from the rest of the system
- Passively cooled XP8 with no noisy fans, and IP65-rated Control X4
Ideal For:
- Reef keepers who want dual pH/ORP monitoring plus full equipment control in one bundle
- Hobbyists adding variable-speed pumps or third-party gear through the 0-10V port
- Anyone building a HYDROS system who wants room to grow without adding modules
Pro Tips:
- Calibrate the pH probe before setting alert thresholds. Use the included calibration solutions first, so your alerts reflect accurate readings.
- Use the second probe port for a second reading. Run ORP alongside pH, or cross-check two pH probes for confidence in your readings.
- Balance heavy loads across XP8 outlets. Each outlet handles up to 8A and the whole bar handles 14A total, so spread heaters and pumps out instead of stacking them.

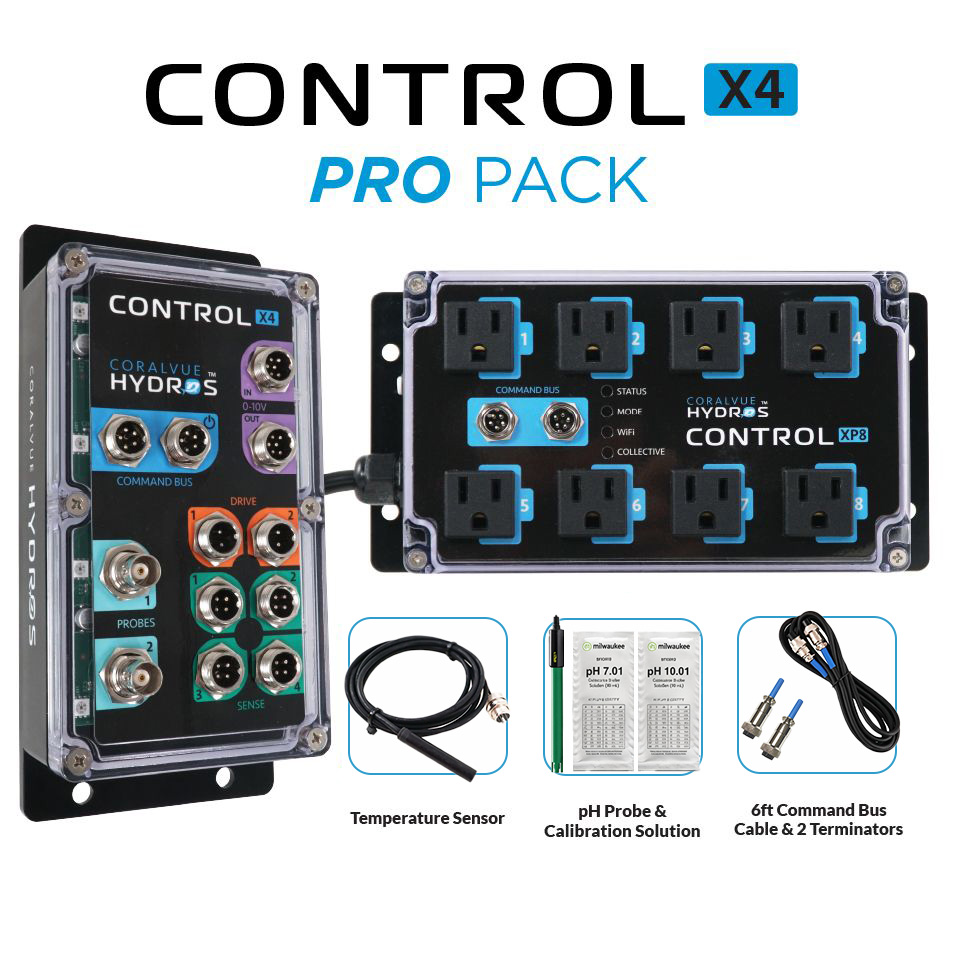

What’s Included:
- Control X4 Unit
- Control XP8 Unit

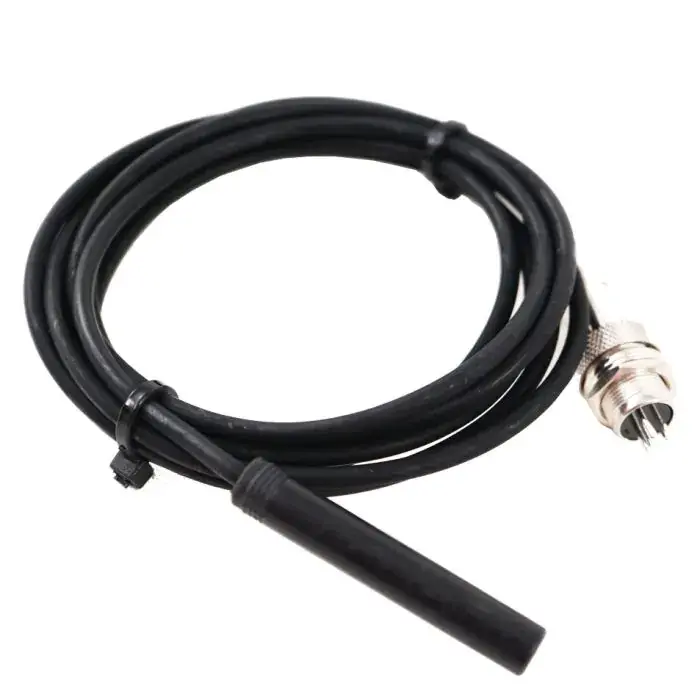

- Temperature Sensor

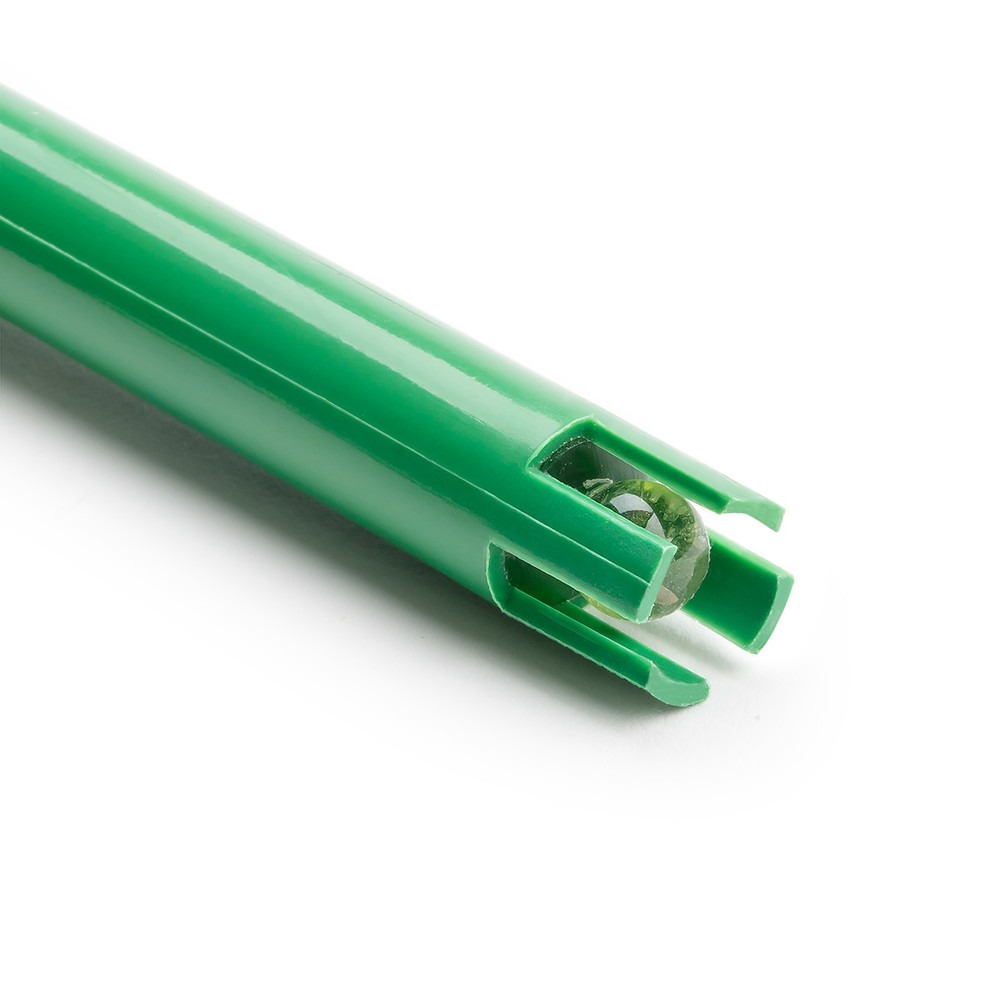

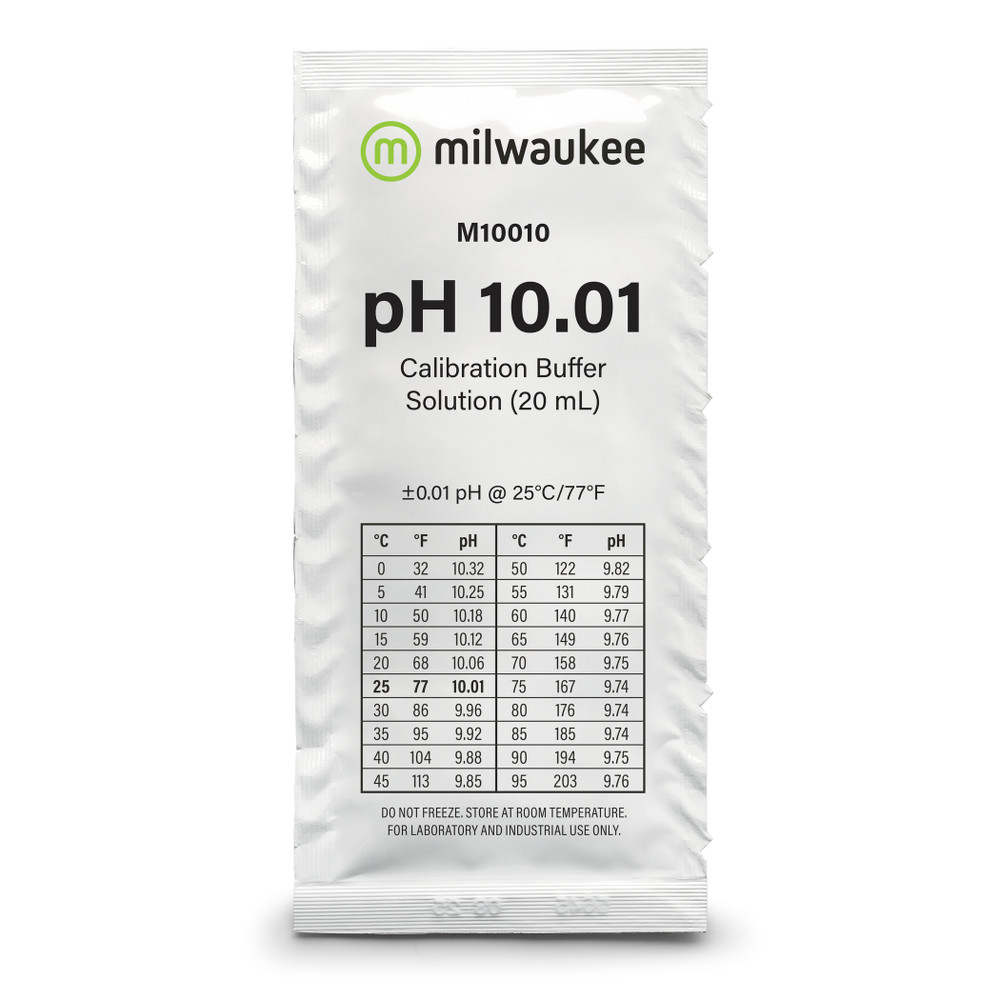

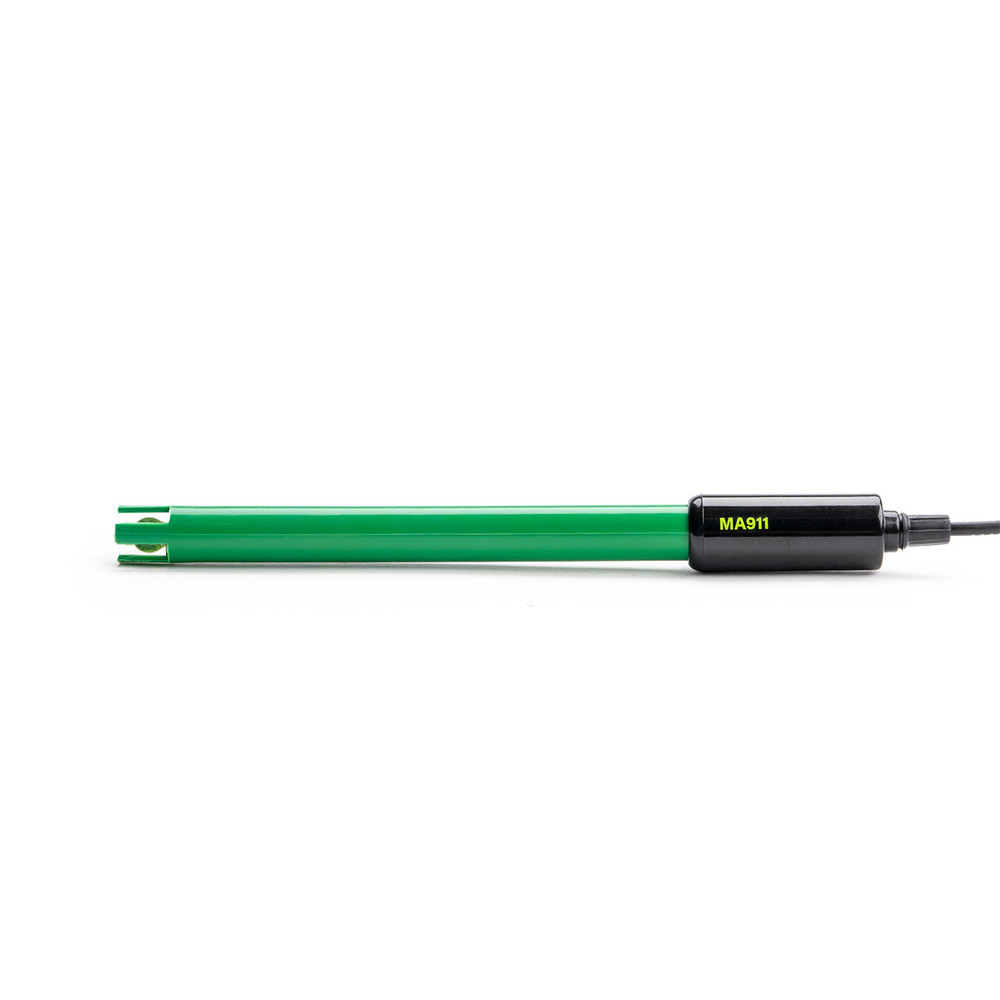

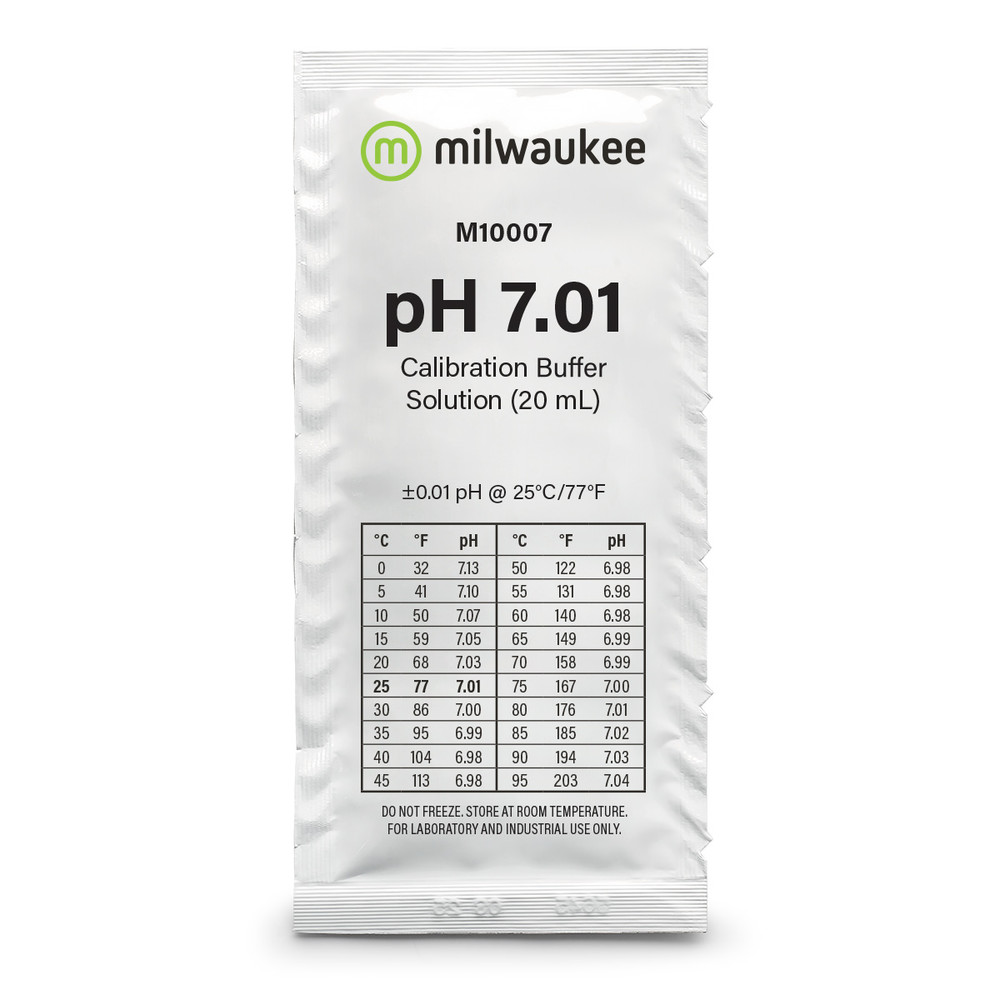

- pH Probe with Calibration Solutions
- 6ft Command Bus Cable with Two Terminators

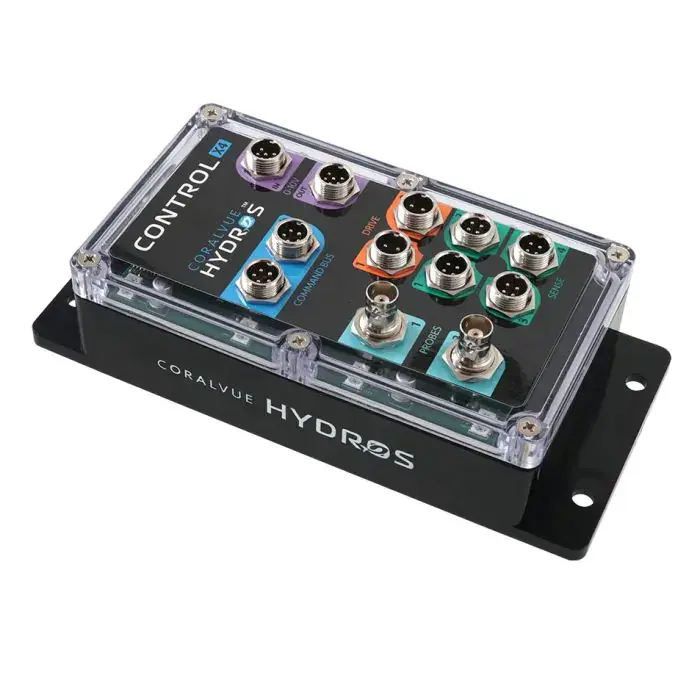

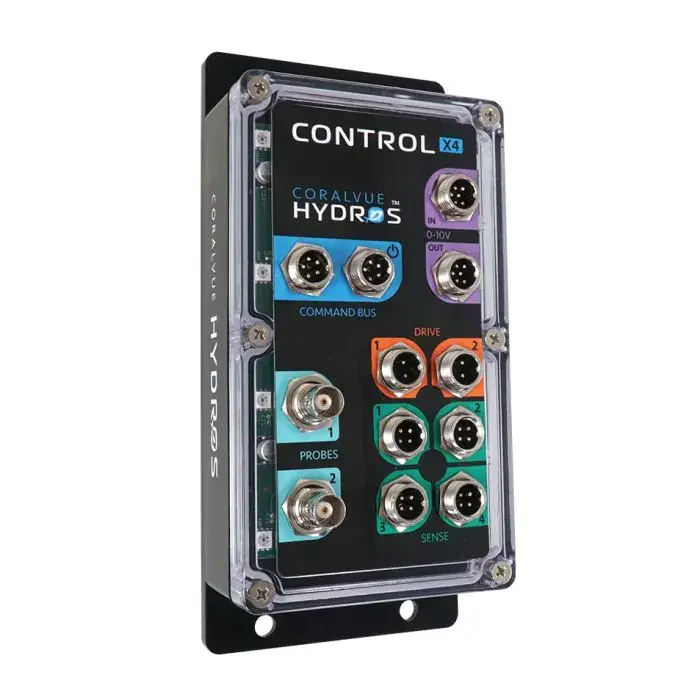

HYDROS Control X4 Technical Specifications:
Physical

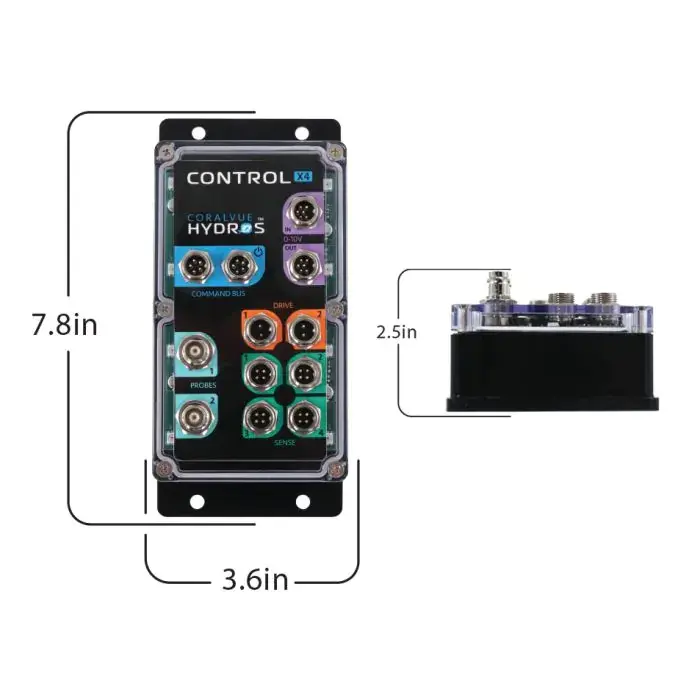

- Dimensions (L × W × H): 7.8 × 3.6 × 2.5 in
Drive Ports (12V DC)
- Quantity: 2
- Max Per Port: 1A
- Total Max Amperage: 1.5A
Sense Ports
- Quantity: 4 universal input ports
- Compatible Sensors: Temperature, optical level, capacitive non-contact level, rope and point leak detectors, flow rate, magnetic switches, push-button switches
Probe Ports
- Quantity: 2
- Type: Digitally isolated pH/ORP input
- Compatible: pH probes, ORP probes
0-10V Port
- Quantity: 1 (input and output)
- Function: Controls or receives commands from HYDROS devices and third-party automation
Command Bus
- Quantity: 2 ports
- Function: Data transfer and power delivery to HYDROS accessories

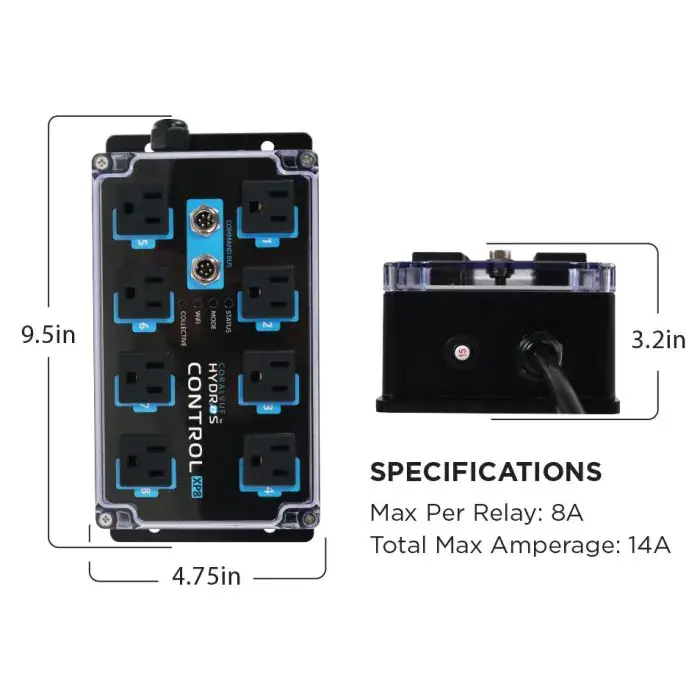

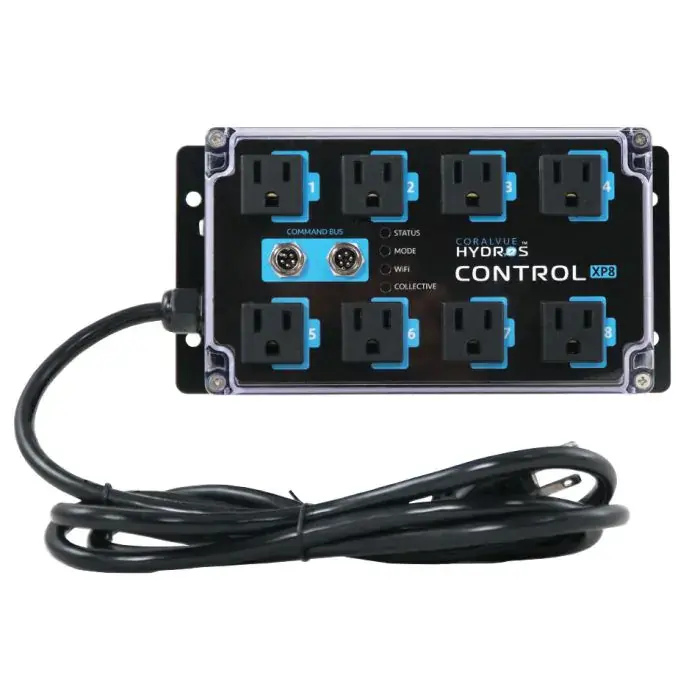

HYDROS Control XP8 Technical Specifications:
Physical
- Dimensions (L × W × H): 9.5 × 4.75 × 3.2 in
- Cord Length: 6 ft
AC Outlets
- Quantity: 8 individually controlled outlets
- Max Per Outlet: 8A
- Total Max Amperage: 14A
- Individual power monitoring on each outlet
Power
- Input: Universal voltage, 110V and 220V
- Power Supply: 60W Meanwell
- Cooling: Passive, no fans
Command Bus
- Quantity: 2 ports
- Function: Data transfer and power delivery to HYDROS accessories
Connectivity (Both Devices)
- WiFi device control: Up to 8 devices via HYDROS app
- App: HYDROS cloud-based app (iOS and Android)
- Local control: Available via WiFi even without internet
Processing (Both Devices)
- Processor: Fast dual-core 32-bit
- Control logic: Executed locally on-device
WARRANTY
CoralVue, Inc. hereby guarantees this product to be free from defects in material and workmanship for a period of:
- One (1) year warranty on the device body/housing
- One (1) year warranty on dosing pump motor (not dosing head(s))
- Tubing, head rollers, and head bushings are considered wearable parts because they experience regular friction, pressure, and use over time, leading to natural degradation. Since these components are expected to wear out during normal operation, they are not covered under the limited warranty.
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
- To the product only as long as it remains in the possession of the original purchaser.
- To the product that has not been subject to accident, misuse, or abuse.
- To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
- That CoralVue be immediately notified in writing within ten (10) days of the owner's or his agent's first knowledge of the defect.
- That CoralVue, Inc. shall be given the first opportunity to make any repairs, replacements, or corrections to the defective construction within a reasonable period of time.
- Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary, or consequential damages of any nature, however arising out of the use or inability to use because of the product defect.
