HYDROS IceCap Battery Backup Cable Kit

SKU
HDRS-BTB-1314
$24.99

This product is available at our retail partners. You can also find replacement parts and outlet items in our Outlet and Parts Store.


HYDROS WaveEngine is ONLY compatible
with IceCap Battery Backup v3

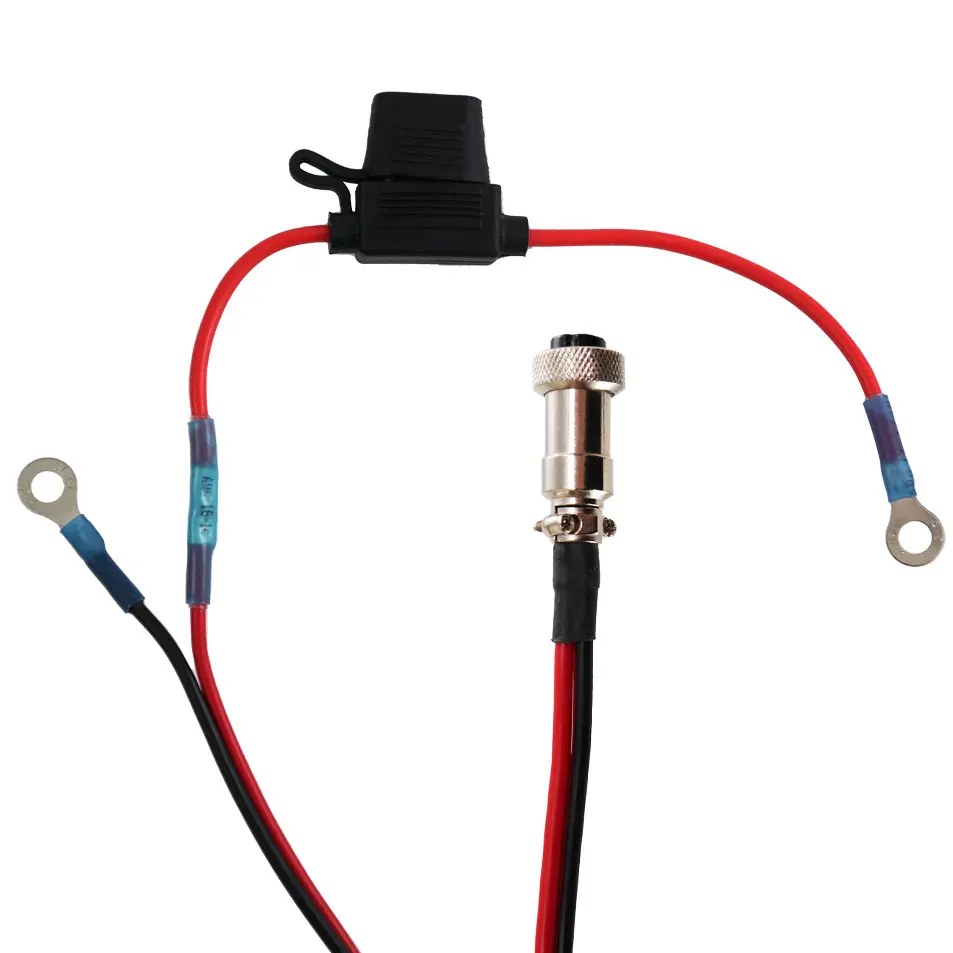

HYDROS IceCap Battery Cable Kit

This cable kit allows you to connect your HYDROS WaveEngine to the IceCap Battery Backup V3.

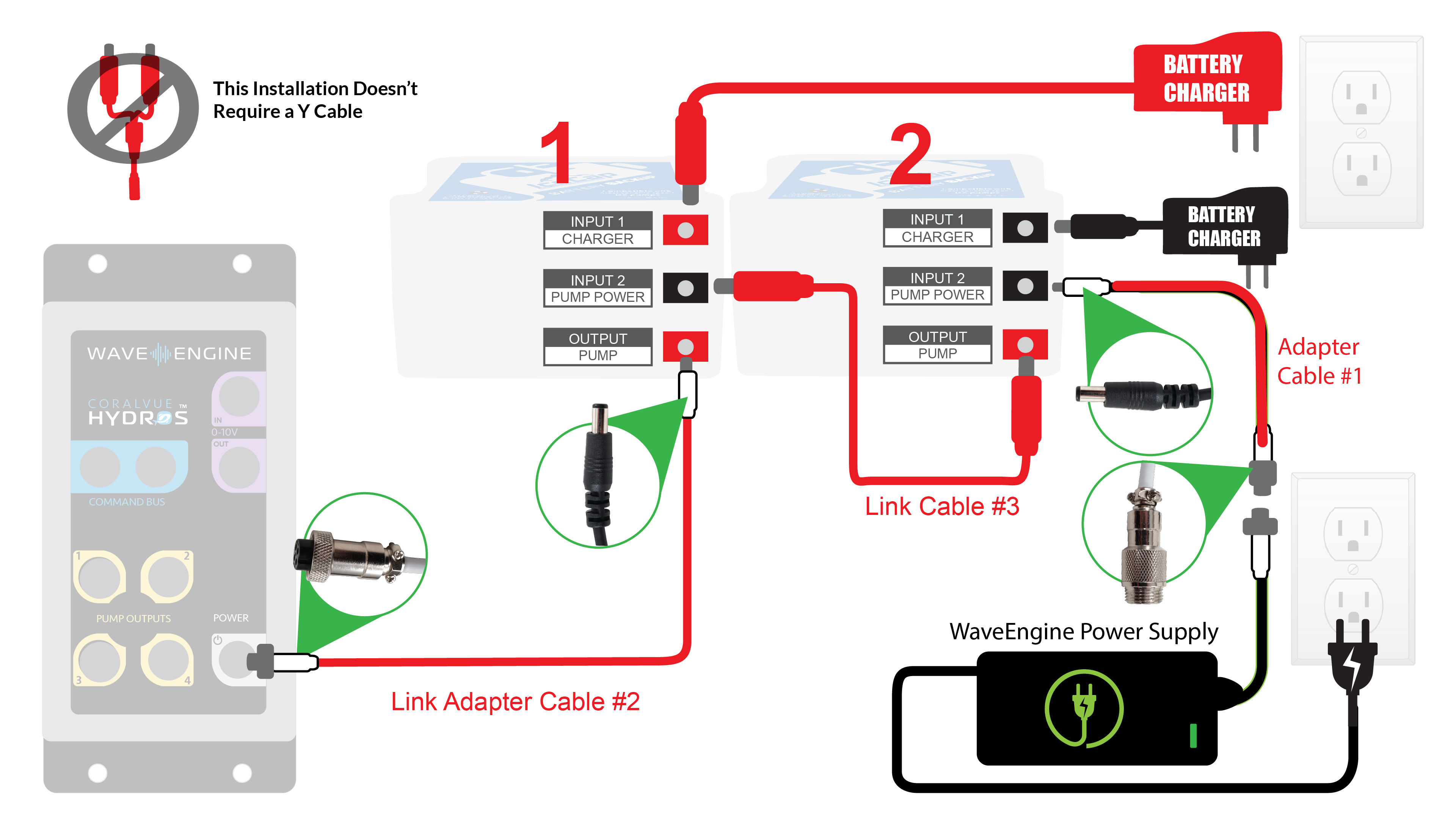

Connection is simple:

  1. Connect the HYDROS WaveEngine Power Supply to the battery kit cable with the female 4-pin GX12 and connect the other end to the "Input: Pump Power Supply" port on the side of the IceCap Battery
  2. Connect the battery kit cable with the male 4-pin GX12 connector to the WaveEngine power port and then connect the other end of the cable to the "Output: Pump" port on the side of the IceCap Battery
  3. Connect the smaller IceCap Battery Backup power supply to the "Input: Charger" port on the side of the IceCap Battery
IMPORTANT: HYDROS WaveEngine is ONLY compatible with IceCap Battery Backup V3
