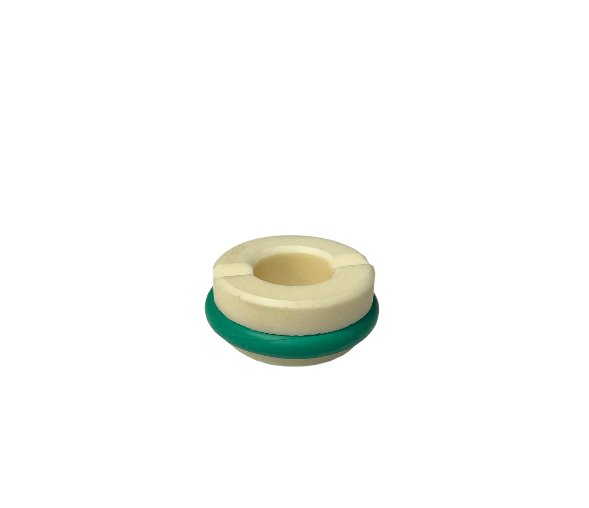

Octo VarioS 10 Rear Bushing
SKU: ROP-RR-BSHNG-V10
- Genuine OEM Direct Replacement: Authentic factory-spec rear drive stabilization sleeve engineered specifically for the flagship Reef Octopus VarioS-10 controllable pump block.
- Vibration and Harmonic Cancellation: Functions as the primary mechanical shock-absorber to cushion high-frequency rotational vibration from the high-torque 36V motor.
- Precise Axial Centerline Sizing: Formed to meet absolute micrometric tolerances, keeping the heavy-duty magnetic rotor centered on its ceramic shaft.
- Advanced High-Durometer Construction: Fabricated from saltwater-inert polymers designed to endure extreme high-rpm wear and frictional thermal energy.
- Prevents Costly Stator Damage: Eliminates dynamic shaft wobbling, preventing the spinning magnet from making physical contact with the internal motor block walls.
- Toolless Push-Fit Calibration: Drops cleanly into the deep rear housing socket of the pump stator bay during routine maintenance tear-downs.
Reef Octopus
Globally trusted for premium protein skimmers and pumps, engineered in-house for unmatched reef filtration performance.
Reef Octopus VarioS-10 Pump Replacement Rear Bushing (ROP-RR-BSHNG-V10)
The Reef Octopus VarioS-10 Pump Rear Bushing (SKU: ROP-RR-BSHNG-V10) is an authentic factory-spec alignment and isolation sleeve distributed by CoralVue to preserve the whisper-quiet runtime and structural hardware lifespans of your central return loop. The industrial-class VarioS-10 pump works on an advanced 36V DC platform to deliver over 4,200 GPH of high-pressure fluid transit. Driving a high-torque 200W motor block produces significant rotational forces. To ensure the premium ceramic shaft doesn't vibrate or snap under pressure, the very back end of the magnetic rotor assembly rests within this specialized rear bushing spacer.
Sitting at the deepest point of the pump’s internal motor cavity, this bushing acts as a critical mechanical alignment block. Over years of nonstop system turnover, tiny particles of calcium carbonate, fine substrate sand, and organic film can bypass your screen and work their way into the rotor bay. This abrasive debris creates heavy grinding friction that slowly wears down the smooth plastic walls of the bushing, causing it to lose its round shape. Once a rear bushing becomes ovalized or cracked, the magnetic impeller will develop an unsafe wobble. This wobble shows up as a loud, chattering metal rattle or a grinding hum, and it can cause the spinning rotor to hit the sensitive epoxy stator walls—permanently frying your expensive pump block. Replacing a worn bushing with this original factory component immediately realigns your drive array, restoring smooth performance and silent operation.
Key Features
True VarioS-10 Factory Scaling: Specifically molded to snap directly into the rear tracking socket built into the primary VarioS-10 stator core bay.
Hydrodynamically Slotted Profile: Outfitted with structural bypass grooves that allow internal cooling water streams to pass through, pulling heat off the ceramic bearing.
Reef-Safe Chemical Density: Fabricated entirely from premium, non-leaching marine plastics that will never pit, soften, or break down under heavy ozone exposure.
Prevents Ceramic Core Snapping: Cushions the rigid ceramic axle against sudden structural shocks during controller speed adjustments or sudden soft-start ramp cycles.
Verified Hardware Compatibility
Reef Octopus VarioS Pump Infrastructure: Sized exclusively as the correct replacement rear stabilization bushing for the flagship Reef Octopus VarioS-10 Controllable Circulation Pump.
CoralVue Outlet & Parts Store(Note: This industrial-sized bushing is dedicated solely to the wide shaft diameter of the 36V VarioS-10 pump. Smaller 24V pump families, such as the VarioS 2, 4, 6, or 8, utilize narrow drive tracks and require different model-specific replacement bushings).
What’s Included:
(1) Reef Octopus Replacement VarioS-10 Pump Motor Block Internal Rear Bushing Spacer Sleeve
CoralVue Outlet & Parts Store(Note: High-clarity ceramic shafts, magnetic impeller rotors, front volute covers, and primary motor blocks are sold separately).
Technical Specs:
Official Manufacturing Title: Reef Octopus Rear Bushing for VarioS 10
SKU / Factory Part Identifier: ROP-RR-BSHNG-V10
Internal Fitment Alignment: 100% Matching Factory Ceramic Shaft Diameter Matrix
Material Composition: High-Impact Heavy-Wall Injection-Molded Saltwater-Inert Polymer
Primary Function: Rotor Shaft Alignment, Vibration Cancellation, & Stator Impact Protection
- Power down your VarioS-10 controller and unplug the main 36V transformer from the wall to eliminate live electricity before handling internal motor components.
- Disconnect your plumbing unions, pull the pump out of your sump, and twist the front volute cover plate counter-clockwise to remove it.
- Slide the heavy magnetic impeller rotor assembly straight out of the motor block cavity along with its central ceramic shaft.
- Look down into the deep, blind socket at the very back of the open motor well. Use a plastic hook or your finger to pull the old, worn rear bushing out.
- Clean the rear socket thoroughly to remove any calcified mineral rings, sand grit, or dark organic slime.
- Push your new ROP-RR-BSHNG-V10 rear bushing straight back into the socket until it seats completely flat, slide the clean rotor shaft back in, and reassemble the volute cover.
Pro Tips:
- Ensure the Bushing Sits Perfectly Flat in the Rear Well. When dropping your new replacement bushing into the deep back cavity of the motor block, ensure it is oriented straight and pushed completely flush into its alignment slot. If the bushing gets jammed crookedly or sits halfway out of its track, sliding the rigid ceramic axle back in will put severe point-load pressure on the plastic. When you twist the front volute cover locked, that uneven pressure can instantly snap your ceramic shaft or crack the brand-new bushing block.
- Soak the Bushing and Shaft in Citric Acid to Dissolve Scale. Because the electric motor well produces localized heat during long-term operation, calcium carbonate and hard mineral scale will naturally bake onto the surfaces of your shaft and rear bushing over time. If left uncleaned, this rough crust locks onto the plastic, acting like coarse sandpaper that accelerates internal wear. Every 3 to 4 months, pull the assembly apart and give the internal wet components a quick soak in a warm bath of citric acid powder to keep everything sliding smoothly.
- Keep a Backup Bushing in Your Dry Maintenance Organizer. The internal rear bushing is classified as a mechanical wear item that is subjected to constant physical friction whenever the pump is active. Because sand grains or calcium deposits can unexpectedly chew up the plastic walls during normal operation, keeping a backup ROP-RR-BSHNG-V10 sleeve in your cabinet is a smart insurance policy. Having a spare allows you to fix a noisy, vibrating pump instantly during weekend cleanings without facing filtration downtime.
